The Mechanical Load Distribution of Hourglass Coils Versus Sinuous Wire Springs in Upholstered Seating

When a 200-pound user sits on a standard upholstered sofa, the internal suspension system immediately absorbs roughly 300 pounds of dynamic force. How the furniture handles that sudden kinetic energy depends entirely on the geometry of the steel hidden beneath the dust cover.[3]

In a traditional eight-way hand-tied system, that kinetic energy travels outward through a tightly knotted web of heavy twine. The physical load disperses across adjacent hourglass coils, sharing the downward deflection across the entire wooden seating platform.[1][4]

Modern manufacturing largely replaces that web with sinuous wire springs, which run in parallel lines from the front rail to the back. This design stops the energy from traveling laterally, forcing the individual steel wires to absorb the impact alone.[4]

The difference in longevity between these two construction methods comes down to cyclical fatigue. Every time a person sits, the suspension stretches and rebounds, repeatedly stressing the exact points where the steel hardware meets the wooden frame.

The Mechanics of Sinuous Wire

Sinuous springs, often called zig-zag springs, consist of continuous S-shaped curves of heavy-gauge steel wire. Upholsterers cut these wires to length and stretch them across the seat box, securing them with metal clips screwed directly into the frame.[4]

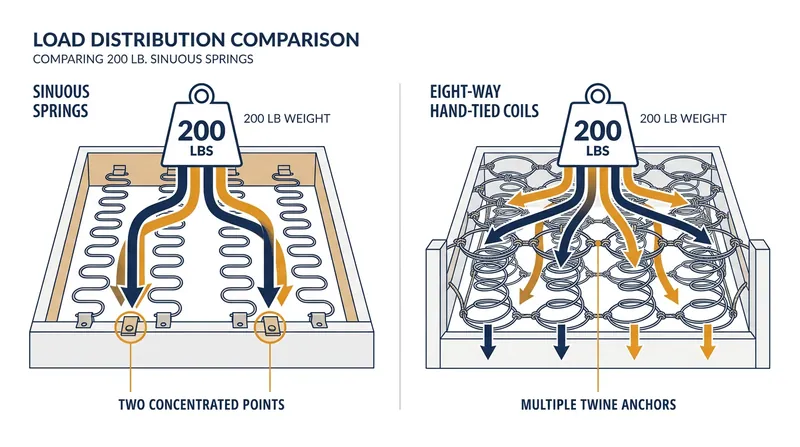

Because the wires run independently, sitting on one section of the cushion depresses only the two or three springs directly beneath the user. The adjacent springs remain largely inactive, offering no mechanical support to the loaded area.[3]

This isolation concentrates the physical stress. The entire dynamic load transfers directly to the four or six metal clips holding those specific wires in place, turning the user's weight into a concentrated sheer force against the wood.[3][5]

Over thousands of seating cycles, this concentrated force acts like a hammer on the mounting hardware. The metal clips can slowly pry themselves out of the wooden rails, or the constant friction can cause the steel wire to snap entirely.[5]

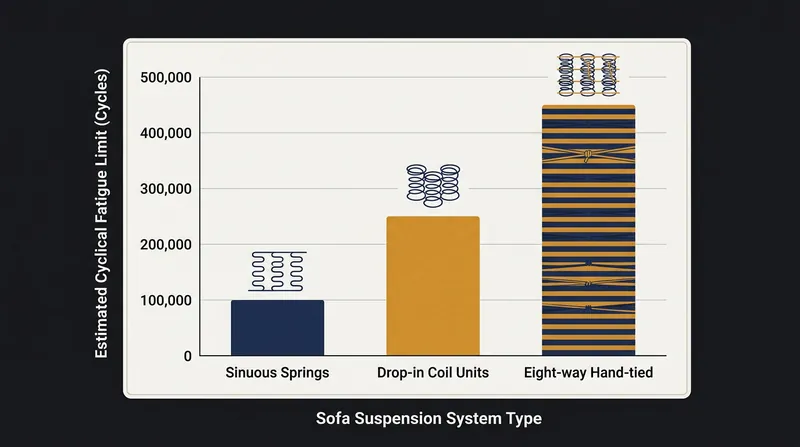

Furniture testing laboratories subject seating to 50,000 drop cycles to simulate years of household use. As noted by the Furniture Industry Research Association, "sinuous spring assemblies consistently exhibit their primary mechanical failure at the anchor clips, where sheer forces overcome the fastener retention."[2]

The Hourglass Coil Web

Hourglass coils operate on a fundamentally different mechanical principle. Rather than spanning the frame as a single piece of wire, individual cone-shaped springs are mounted to a webbing base and tied together at the top.[4]

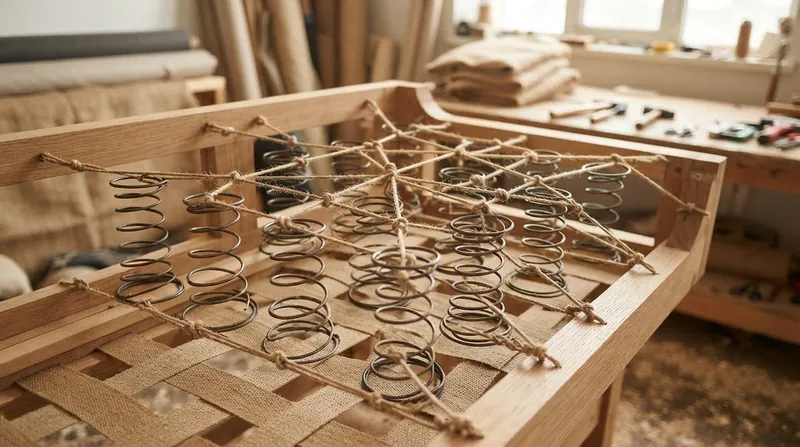

Craftsmen use specialized twine to tie each coil to its neighbors in eight different directions: front-to-back, side-to-side, and diagonally. This creates an interlocking suspension web that moves as a single unified platform.[1][4]

When weight presses down on one coil, the tension on the twine pulls the surrounding coils downward as well. A single 200-pound user might engage 12 different springs simultaneously, even if they are only sitting directly over four of them.[3]

This shared deflection drastically reduces the mechanical burden on any single component. The kinetic energy dissipates across the entire web, meaning no single knot or frame anchor bears the full brunt of the user's weight.[1][3]

The twine itself acts as a secondary shock absorber. By allowing the coils to shift slightly under load, the eight-way tie prevents the steel from reaching its maximum compression limit, extending the fatigue life of the metal.

Manufacturing and Cost Trade-Offs

The shift toward sinuous springs in modern furniture is driven entirely by manufacturing efficiency. Installing a zig-zag spring system takes a single worker a few minutes using a pneumatic staple gun and pre-cut wire.[4]

In contrast, building an eight-way hand-tied deck requires specialized labor and significant time. A skilled upholsterer must manually compress each coil, thread the twine, and secure dozens of individual knots to achieve the correct tension.[4]

This labor disparity makes sinuous springs roughly 10 to 15 percent of the cost of a traditional coil system. For mass-market furniture brands, eliminating the hand-tying process is the easiest way to maintain competitive retail prices.[1][4]

However, the cost savings at the factory often translate to a shorter functional lifespan in the living room. When a single sinuous spring clip fails, that section of the sofa immediately sags, rendering the seat uncomfortable.

Repairing a broken sinuous clip requires stripping the fabric and padding off the bottom of the sofa. Because the frame rails are often obscured by other components, replacing the hardware is a labor-intensive repair that many consumers avoid.[4]

Evaluating Suspension Durability

Consumers evaluating upholstery longevity should look beyond the fabric and foam to understand the underlying steel geometry. A high-density foam cushion cannot compensate for a suspension system that concentrates fatigue on isolated points.[1][3]

Some manufacturers attempt to bridge the gap by using drop-in coil units. These pre-assembled wire grids contain hourglass coils but are mounted to the frame using clips, combining the shared deflection of coils with the isolated mounting stress of sinuous wire.[4]

While drop-in units perform better than basic zig-zag springs, they still lack the omnidirectional load sharing of a true hand-tied web. The rigid metal grid cannot adapt to off-center loads as fluidly as independent twine.[3][4]

The physics of weight distribution dictate the lifespan of the seat. Spreading kinetic energy across a wide network of anchors will always outlast forcing a few isolated clips to absorb the impact alone.[1][3]

The true cost of a sofa is measured in its cycles to failure, not its initial retail price. A suspension system built to share its mechanical burden ensures the frame and the fabric age at the same rate.[2]
