How Core-Veneer Density Mismatches Cause Particleboard Edges to Peel

During standard factory testing, the low-density core of a conventional particleboard panel swells by 15 to 25 percent of its original thickness when exposed to water for 24 hours. When that expanding wood is capped by a rigid plastic edge, the resulting mechanical conflict can destroy flat-pack furniture within months.

The failure typically begins as a slight raised seam along a bathroom vanity or kitchen cabinet before the plastic tape peels away entirely. This exposes the raw wood composite beneath to accelerated water damage.

While consumers often blame weak glue for the delamination, the root cause is actually a structural conflict between the materials themselves. The engineered wood core and the protective plastic edge react to environmental changes at drastically different rates.

Understanding this mechanical mismatch explains why some affordable cabinets survive for decades while others quickly disintegrate. It also provides a clear blueprint for selecting durable furniture that can withstand cyclic humidity and temperature shifts.

The Anatomy of Engineered Panels

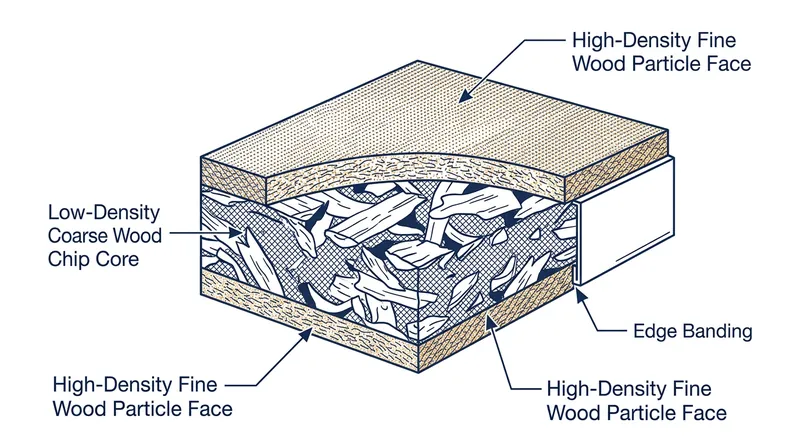

Particleboard is manufactured by compressing wood chips, shavings, and resin under extreme heat and pressure. The resulting panel is not uniform; it features a three-layer structure with high-density faces and a lower-density interior core.

The outer faces consist of fine wood particles packed tightly together, providing a smooth surface for decorative melamine or wood veneers. The inner core uses larger, coarser wood fragments, which reduces the board's overall weight and cost but leaves microscopic voids between the chips.

To seal the raw edges, factories apply a strip of polyvinyl chloride (PVC) or acrylonitrile butadiene styrene (ABS) tape. This edge banding serves as the primary hermetic barrier, blocking ambient moisture from infiltrating the porous inner core.

When the edge banding is perfectly sealed, the panel remains dimensionally stable. However, any microscopic gap in the glue line allows water vapor to bypass the dense surface veneers and enter the vulnerable, low-density center.

The Mechanics of Moisture Swelling

Wood is a hygroscopic material, meaning it naturally absorbs and releases moisture in response to the surrounding air. When humidity rises, the wood fibers inside the particleboard core draw in water vapor and physically expand.

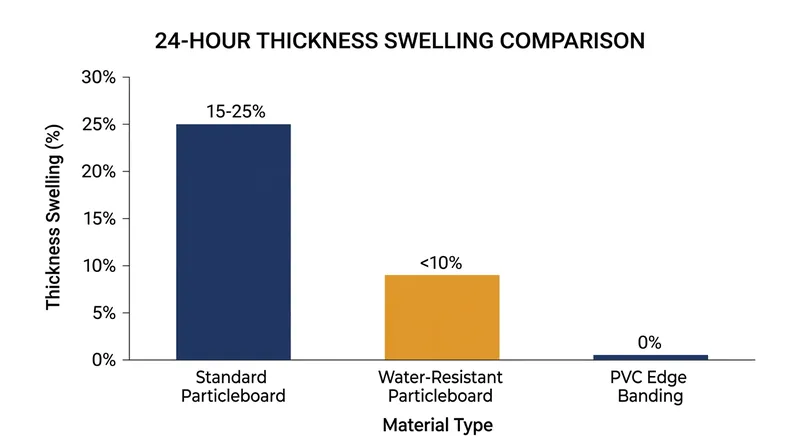

Factory testing reveals the severity of this expansion. Standard particleboard panels swell by 15 to 25 percent of their original thickness during a 24-hour water soaking test. The lighter core layers expand significantly more than the dense, resin-heavy surface faces.[1]

This swelling is largely irreversible because the expanding wood chips permanently break the dried urea-formaldehyde resin bonds holding them together. Once the core expands, it cannot shrink back to its original factory dimensions, even after the ambient humidity drops.

Water-resistant grades of particleboard mitigate this issue by incorporating specialized resins and wax emulsions. These premium boards limit thickness swelling to below 10 percent, preserving the panel's structural integrity under damp conditions.[1]

The Peeling Shear Stress

The critical failure occurs because the protective PVC edge banding does not absorb water or swell alongside the wood core. As temperatures and humidity fluctuate, the plastic tape expands and contracts at a rate more than double that of the wood composite.[2]

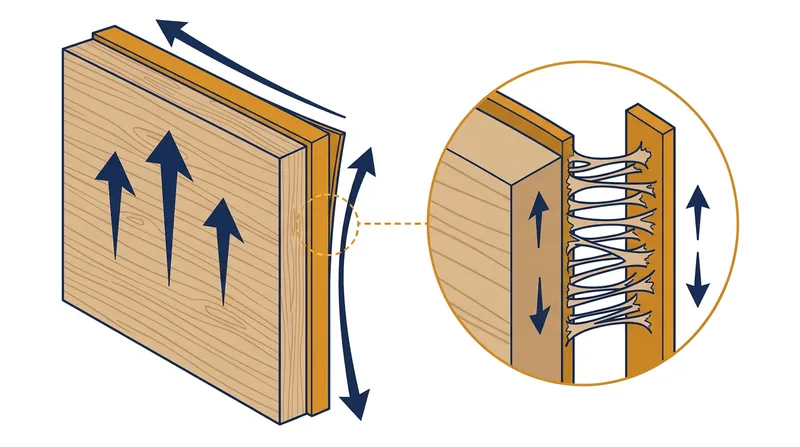

This differential movement creates a severe mechanical conflict at the border where the two materials meet. The swelling wood core pushes outward, while the rigid plastic edge banding resists the expansion, inducing powerful peeling shear stresses directly on the glue line.[2]

The shear stress acts like a microscopic wedge, constantly pulling the plastic tape away from the wood substrate. Over thousands of environmental cycles—from hot, humid afternoons to cool, air-conditioned nights—the mechanical force fatigues the adhesive bond.

Once the shear stress overcomes the glue's holding power, the edge banding detaches. The failure is a physical tearing event driven by the core-veneer density mismatch, rather than a simple chemical dissolving of the adhesive.

The Role of Adhesives

The type of hot-melt adhesive used to apply the edge banding determines whether the seam can survive these shear stresses. While industrial manufacturers rarely attribute technical specifications to individual engineers, the consensus across tooling documentation is clear.

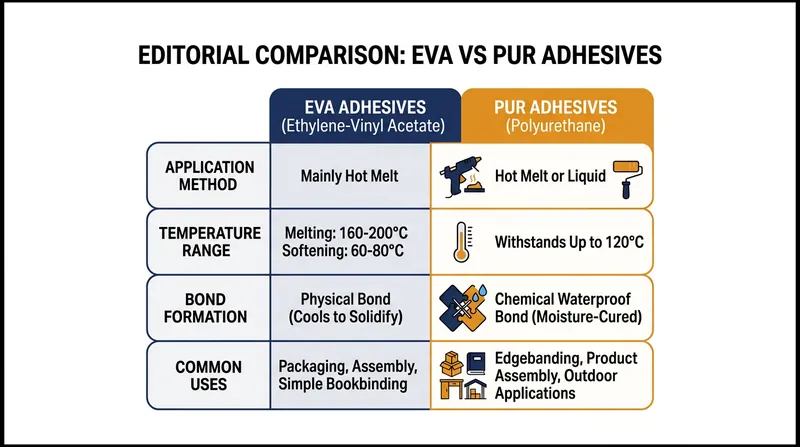

Since the 1970s, the furniture industry has relied heavily on ethylene-vinyl acetate (EVA), a thermoplastic glue that melts at 160 to 200 degrees Celsius. EVA is highly efficient for factory production, but it softens when ambient temperatures reach 60 to 80 degrees Celsius.[3]

Furthermore, EVA offers only moderate water resistance, classified as D2 under industrial standards. When cyclic humidity introduces moisture into the seam, the EVA bond weakens simultaneously with the core's expansion, guaranteeing a rapid delamination.[3]

Polyurethane reactive (PUR) hot-melt adhesive provides a vastly superior alternative for high-stress environments. Unlike EVA, PUR completes its bond through a chemical cross-linking reaction with moisture in the air, creating a permanent, waterproof seal.[4]

PUR adhesives withstand temperatures up to 120 degrees Celsius and offer exceptional resistance to peeling shear stresses. The chemical bond remains rigid even when the underlying particleboard attempts to swell, keeping the edge banding firmly anchored to the core.[3]

Shopping for Durable Furniture

Consumers can identify moisture-resistant furniture by inspecting the edge banding construction before purchasing. A high-quality edge will feature a nearly invisible glue line, indicating a tight, machine-pressed seal that leaves no room for water vapor entry.

Shoppers outfitting kitchens, bathrooms, or laundry rooms should specifically seek out cabinets assembled with PUR adhesive. While PUR-banded furniture costs slightly more due to the complex manufacturing process, it prevents the costly delamination failures common in wet environments.

Examining the panel substrate also helps predict long-term durability. Medium-density fiberboard (MDF) offers a more uniform density profile than standard particleboard, reducing the severity of differential swelling and minimizing shear stress on the edges.

Finally, buyers should check the bottom edges of cabinet doors and side panels, as these areas face the highest risk of water exposure from spills or mopping. Furniture with fully sealed, banded bottom edges will significantly outlast pieces that leave the raw core exposed to the floor.
