Screw Withdrawal Resistance and Modulus of Rupture: How Two Numbers Dictate Plywood, MDF, and Particleboard Strength

A standard #8 wood screw driven into the face of medium-density fiberboard (MDF) requires approximately 225 pounds of force to pull straight out, according to 2018 testing data published in the USDA Wood Handbook. This metric, known as screw withdrawal resistance (SWR), is one of two fundamental numbers that dictate the lifespan of manufactured furniture. The other is the modulus of rupture (MOR), which measures the exact point at which a board snaps under a bending load. Together, these two figures explain why a heavy particleboard desk sags under a monitor setup, while a lighter plywood cabinet can hold a granite countertop. Furniture buyers often judge quality by weight or veneer, but the actual lifespan of a bookshelf or cabinet depends entirely on its internal binder strength and bending threshold. Knowing how these materials handle fasteners and loads prevents costly purchases of furniture that cannot survive a single move.[1][3]

The utility of any wood composite—plywood, MDF, or particleboard—comes down to how its internal structure handles localized stress. Plywood consists of alternating layers of wood veneer glued cross-grain, giving it a high MOR, typically between 30 and 50 Megapascals (MPa). MDF is made of fine wood fibers mixed with resin and pressed under high heat, resulting in a dense, uniform panel with an MOR around 20 to 30 MPa. Particleboard uses larger wood chips and shavings, yielding the lowest MOR at roughly 10 to 15 MPa. When a consumer buys a bookshelf, they are essentially purchasing a specific MOR rating. The higher the MOR, the more weight the shelf can support before it permanently deforms or breaks. Plywood's cross-laminated structure distributes weight across the entire panel, whereas the random orientation of chips in particleboard concentrates stress at the resin bonds.[1][2][3]

Screw withdrawal resistance, however, is where daily durability is tested. SWR is measured by driving a specific fastener into a material and using a machine to pull it out at a constant rate, recording the peak load in Newtons or pounds-force (lbf). Researchers analyzing MDF and particleboard found that density directly correlates with SWR. A 2018 study published in Redalyc demonstrated that high-density MDF can exceed 1,000 Newtons (about 225 lbf) of face-withdrawal resistance, outperforming standard particleboard, which often fails around 700 Newtons (157 lbf). This means a hinge screwed into the face of an MDF cabinet door is significantly less likely to tear out than one screwed into particleboard, provided the load is static. The density of the pressed fibers in MDF creates a tighter grip on the screw threads, resisting the pull-out force.[2][4]

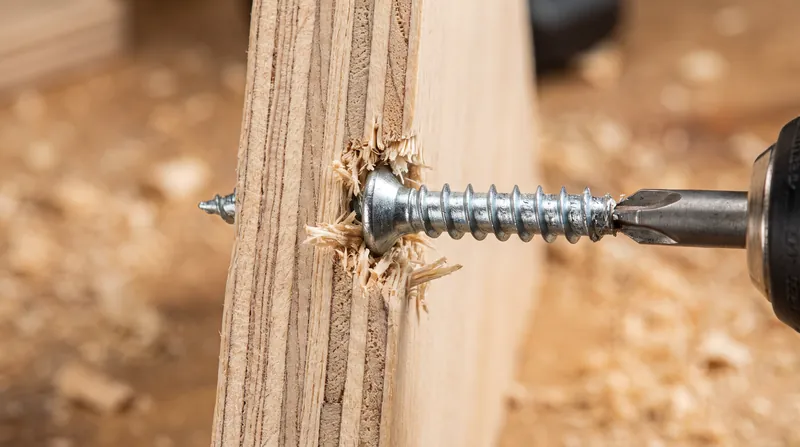

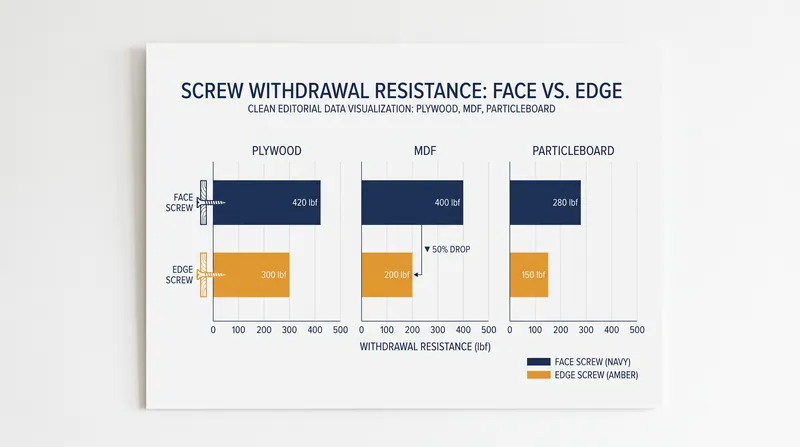

The critical caveat for MDF and particleboard is the difference between face SWR and edge SWR. While the face of an MDF panel holds screws exceptionally well due to the high-pressure pressing process that creates dense outer layers, the core is significantly less dense. Driving a screw into the edge of MDF splits the fibers, dropping the SWR by up to 50%. Plywood, because of its cross-laminated structure, maintains much more consistent SWR on both its face and edges, making it the superior choice for cabinets that require edge-banded hinges. The American Society for Testing and Materials (ASTM) standard D1037 specifically tests both face and edge SWR because the failure modes are so different. A screw in the face pulls out; a screw in the edge acts as a wedge, splitting the board down the middle.[1][2][5]

Modulus of rupture dictates load-bearing capacity over time, particularly concerning 'creep'—the tendency of a material to permanently deform under a constant load. The Federal Highway Administration (FHWA) and the USDA Forest Service utilize vibration techniques to non-destructively evaluate the MOR of wood composites. Their 2021 data shows that particleboard is highly susceptible to creep. A particleboard shelf loaded with 50 pounds of books may initially hold flat, but its low MOR means the internal resin bonds slowly stretch, resulting in a permanent sag within 12 months. Plywood, conversely, resists creep because the continuous wood fibers in the veneer layers bear the tension, rather than relying solely on the adhesive binder. This makes plywood the only viable choice for long-span shelving without intermediate vertical supports.[3][4]

To combat these material limitations, the furniture industry relies on specialized hardware. Because particleboard and MDF have lower edge SWR than solid wood or plywood, manufacturers use Confirmat screws or cam-lock nuts. These fasteners feature deep, wide threads or metal-to-metal connections that distribute the withdrawal force over a larger surface area of the composite core. A standard tapered wood screw acts as a wedge, splitting MDF; a Confirmat screw acts as a clamp, utilizing the material's face density to hold the joint together. Without these engineered fasteners, flat-pack furniture would disintegrate during assembly, as the low edge SWR of particleboard cannot withstand the torque of standard joinery.[1][5]

For consumers, the actionable takeaway is matching the material to the mechanical requirement. Plywood's high MOR and consistent SWR make it necessary for structural boxes, kitchen cabinets, and load-bearing shelves. MDF's uniform face density and moderate MOR make it ideal for painted doors and non-structural vertical panels where a smooth finish is paramount. Particleboard, offering the lowest SWR and MOR, is strictly suited for light-duty, fully supported applications where fasteners are not subjected to repeated dynamic loads, such as a desk drawer bottom or a stationary side panel. Buying a particleboard bed frame or a plywood decorative trim piece represents a fundamental mismatch of material engineering and practical application.[2]

The testing standards that define these numbers, such as ASTM D1037, require rigorous environmental conditioning before a panel is ever stressed. Moisture drastically alters both SWR and MOR. When particleboard absorbs ambient humidity, its thickness swells, and the resin bonds weaken, dropping its SWR by as much as 30%. MDF is similarly vulnerable unless sealed. Plywood's exterior-grade glues resist moisture degradation, which is why APA – The Engineered Wood Association rates specific plywood panels for structural exterior use, a designation MDF and particleboard cannot achieve. Because these metrics are derived from standardized mechanical testing rather than interviews, the engineering literature detailing them contains no direct quotations from researchers. The numbers themselves dictate the limits of the material, offering a clear, quantifiable guide to furniture longevity.[5][6]
