The Mechanics of Water Heating: Comparing Tank, Tankless, and Heat Pump Systems for Efficiency and Cost

Most homeowners buy a water heater in a state of emergency. When the basement floods on a Tuesday morning, the default instinct is to tell a plumber to install the exact same standard tank that just failed. It is the path of least resistance.[7]

This panic-buying reflex locks households into a decade of unnecessarily high utility bills. What everyone gets wrong about water heating is treating it as a static technology where a tank is just a tank. The reality is that the underlying mechanics of how we heat water have fundamentally shifted.[7]

Water heating accounts for nearly 20% of a home's total energy use, making it the second-largest utility expense. Choosing between standard tanks, tankless systems, and heat pumps dictates both your monthly operating costs and your home's infrastructure limits for the next ten to fifteen years.[2]

To understand the stakes, you have to look at the baseline: the standard storage tank. Whether powered by a gas burner at the bottom or electric resistance coils inside, the mechanism is brute force. It generates heat and pushes it into a large volume of water.[2]

A standard tank heats 40 to 80 gallons of water to 120 degrees Fahrenheit and then fights a constant battle against thermodynamics to keep it there. This creates "standby heat loss," where energy is continuously spent just to maintain temperature while you sleep or work.[2]

The appeal of the standard tank is entirely upfront. It is the cheapest hardware to buy and the easiest to install, requiring no changes to electrical panels or gas lines. However, its Uniform Energy Factor (UEF)—the metric used by the Department of Energy to measure efficiency—rarely exceeds 0.93 for electric models.[2]

Tankless, or on-demand, water heaters were marketed as the ultimate solution to standby heat loss. The mechanism here eliminates the storage tank entirely, freeing up floor space and theoretically reducing wasted energy.[6]

When a hot water tap is opened, cold water flows through a heat exchanger. A flow sensor triggers a massive gas burner or a series of high-draw electric elements that flash-heat the water as it passes through the unit.[6]

Because they only fire when water is moving, tankless systems are highly efficient, often achieving a UEF of 0.95 or higher. They also deliver theoretically endless hot water, provided the household demand does not exceed the unit's maximum flow rate capacity.[6]

But the actionable takeaway for tankless is the installation hurdle. Flash-heating water requires an immense amount of instantaneous power. Gas tankless units often require upgrading the home's gas line from a half-inch to a three-quarter-inch pipe to handle the sudden draw.[6]

Electric tankless units are even more demanding, frequently requiring three or four dedicated 40-amp circuits. For many older homes, installing an electric tankless system means a multi-thousand-dollar electrical panel upgrade before the heater is even purchased.[7]

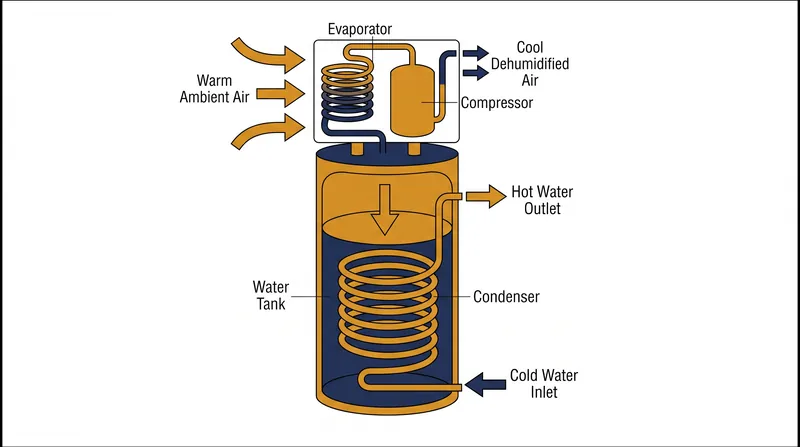

The actual revolution in water heating mechanics is the heat pump water heater (HPWH). Instead of generating heat directly through resistance or combustion, a heat pump moves existing heat from the surrounding air into the water tank.[4][5]

It operates exactly like a refrigerator in reverse. A fan pulls ambient room air across an evaporator coil filled with eco-friendly refrigerant. The refrigerant absorbs the heat, a compressor pressurizes it to increase the temperature, and a condenser coil wraps around the tank to transfer that heat into the water.[4]

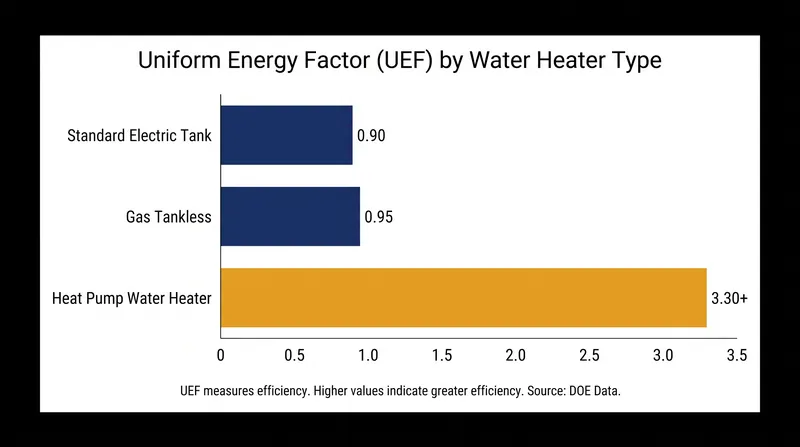

Because moving heat requires significantly less energy than creating it, the efficiency gains are massive. According to ENERGY STAR criteria, modern heat pump water heaters achieve UEF ratings of 3.3 to 4.0—meaning they are 300% to 400% more efficient than standard electric tanks.[3]

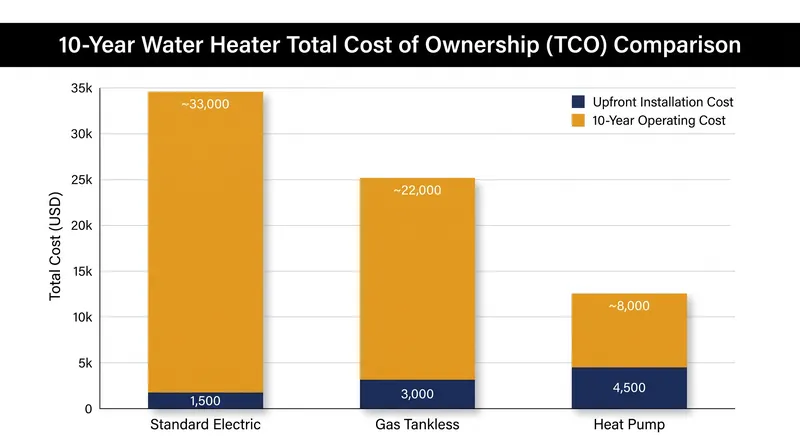

The utility-first math heavily favors the heat pump. While the upfront hardware cost is two to three times higher than a standard electric tank, the operating costs are slashed by more than half. Over a 10-year lifespan, the total cost of ownership for a heat pump is drastically lower.[5][7]

Policymakers are forcing this transition. The Federal Register recently published new Department of Energy conservation standards that will effectively mandate heat pump technology for most electric water heaters over 35 gallons starting in the late 2020s.[1]

There are specific caveats to the heat pump mechanism. Because they pull heat from the air, they exhaust cool, dehumidified air into the room. They require roughly 1,000 cubic feet of air space to operate efficiently, making them ideal for basements or garages, but poor fits for tight hallway closets.[4]

They also recover hot water slower than gas or standard electric tanks. To compensate, manufacturers build them as "hybrids," including standard electric resistance coils that kick on only during periods of high demand to ensure the tank doesn't run cold.[6]

Ultimately, the decision comes down to infrastructure and timeline. If you have the space and a 240-volt outlet, the heat pump is the definitive financial and environmental winner. If space is tight and gas infrastructure is already robust, tankless offers endless water and space savings. The only wrong choice is defaulting to a standard electric tank out of habit.[7]
