The Fall Factor and the 12 kN Maximum: How Rope Stretch Limits Impact Force

For a climbing safety system to work, one condition must hold: the force generated by a falling human must not exceed the breaking strength of the gear or the physiological limits of the human body. That limit is currently codified by the International Climbing and Mountaineering Federation (UIAA) at 12 kilonewtons (kN) for a standard single rope.

If a fall generates more than 12 kN of impact force, the system is in danger of catastrophic failure—carabiners can snap, protection can rip from the rock, and the climber can suffer severe internal injuries. The entire architecture of modern dynamic climbing ropes is engineered backward from this 12 kN ceiling.[2]

The mechanism that keeps climbers below this threshold is not the strength of the rope, but its elasticity. When a climber falls, they accumulate kinetic energy. That energy must be dissipated. If the rope were static—like a steel cable or a Kevlar line—the deceleration would be instantaneous, transferring the entire load directly to the climber, the harness, and the top piece of gear.

Instead, climbing ropes are dynamic. They stretch, acting like a massive shock absorber that elongates to decelerate the climber over time, spreading the impact force and keeping the peak load below the 12 kN maximum.[1]

However, the amount of energy a rope can absorb is not fixed; it depends entirely on how much rope is in the system to stretch. This relationship is quantified by the fall factor, a simple mathematical ratio that dictates the severity of a fall.

The fall factor is calculated by dividing the distance of the fall by the length of the rope between the climber and the belayer. The formula is absolute: a higher fall factor means a harder catch and a higher impact force, regardless of the total distance fallen.[3]

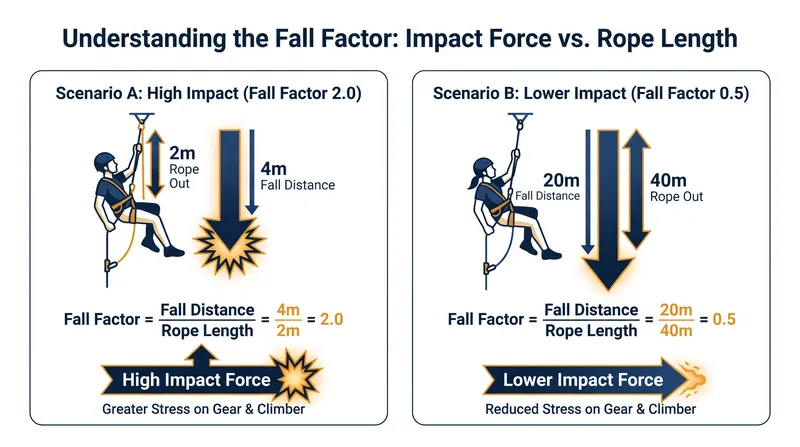

The counterintuitive reality of the fall factor is that a short fall can be vastly more violent than a long one. Consider a climber who falls 4 meters while only 2 meters of rope are out—a scenario that occurs if the climber climbs 2 meters above the belay station without placing any gear and then falls past the belayer.

The fall distance (4 meters) divided by the rope length (2 meters) yields a fall factor of 2.0. This is the maximum possible fall factor in a standard climbing scenario, and it generates the highest possible impact force, pushing the system toward its limits.[3][4]

Compare that to a massive 20-meter fall taken high on a route, where 40 meters of rope are in the system. The fall distance (20 meters) divided by the rope length (40 meters) results in a fall factor of 0.5.

Despite falling five times further than the climber in the first scenario, the second climber will experience a much softer catch and a significantly lower impact force. The 40 meters of rope provide abundant material to stretch and absorb the energy, keeping the peak load well below the 12 kN threshold. The distance of the fall is largely irrelevant to the force generated; the ratio is everything.[3]

The UIAA tests ropes specifically against the worst-case scenario: a fall factor of 1.77. In the standard drop test, an 80-kilogram mass is dropped to generate this severe factor, and the rope must catch the mass without the impact force exceeding 12 kN on the first drop.

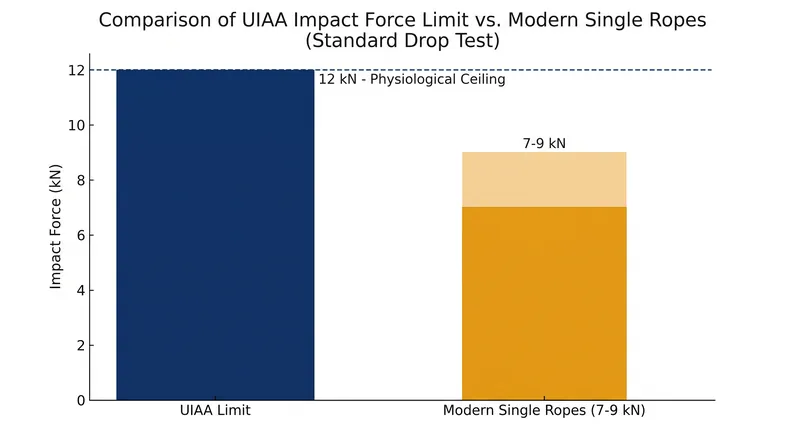

Modern single ropes typically record impact forces between 7 and 9 kN in this test, providing a significant safety margin below the 12 kN limit. This testing protocol ensures that even in the event of a severe, high-factor fall, the rope will stretch enough to protect the climber and the gear.[2]

The 12 kN limit itself is not arbitrary; it is rooted in human physiology and military research. Paratrooper studies conducted during the mid-20th century determined that a shock load of approximately 12 kN (roughly 2,700 pounds of force) is the maximum a human body can withstand in a harness without suffering severe injury or death. The UIAA adopted this physiological ceiling as the absolute limit for climbing equipment, ensuring that the gear will not outlast the climber's ability to survive the catch.[2]

While the fall factor provides a theoretical framework, real-world variables complicate the math. Friction in the system—caused by the rope running over rock edges or through multiple carabiners—prevents the entire length of the rope from stretching evenly. This friction effectively isolates sections of the rope, reducing the amount of material available to absorb energy and artificially increasing the fall factor. Climbers mitigate this by using longer slings to extend placements, keeping the rope path as straight as possible to minimize drag and maximize the rope's dynamic capacity.[4]

The belayer also plays a critical role in managing impact force. A static belay, where the belayer holds their ground rigidly, forces the rope to absorb the entire load. A dynamic belay, where the belayer allows themselves to be pulled slightly upward or forward by the force of the fall, introduces additional energy absorption into the system. This technique effectively lengthens the deceleration period, lowering the peak impact force and resulting in a softer catch for the climber and less stress on the top piece of gear.

Understanding the interplay between fall factor, rope stretch, and impact force fundamentally changes how climbers approach a route. The most dangerous moments are not high on the wall, but immediately after leaving the belay, where the amount of rope in the system is minimal and the potential fall factor is high. By placing gear early and often, minimizing rope drag, and utilizing dynamic belay techniques, climbers manipulate the physics of the system to ensure that the 12 kN limit remains a theoretical ceiling rather than a physical reality.[1][4]
