Opposing Cam Lobes Multiply Outward Force by Cotangent of Camming Angle

Drop a passive aluminum wedge into a rock fissure, and its survival dictates a simple geometric rule: the crack must narrow beneath it. If the walls are perfectly parallel, the wedge simply slides through the gap and fails.[2]

A spring-loaded camming device faces the exact same parallel walls and survives, differing in one mechanical respect. It does not wait for a constriction, but actively manufactures its own friction by multiplying the downward force of a falling climber outward against the rock.[2][3]

That outward expansion is not a mechanical illusion, but a strict mathematical conversion. When a climber takes a 15-foot lead fall, they generate roughly 5 kiloNewtons of downward kinetic energy.

The camming device catches that violent downward pull and redirects it horizontally. It drives its four aluminum lobes into the stone with nearly 20 kiloNewtons of crushing pressure, locking the climber to the wall.

The Constant Camming Angle

"The device is essentially a mathematical function rendered in aerospace-grade aluminum," notes the Factlen Editorial Team in our mechanical analysis of climbing protection. "It relies on a constant geometric relationship to ensure that no matter how wide the crack is, the physics keeping the climber alive remain identical."[3]

The secret to that consistency lies in the shape of the lobes themselves. They are not circular, nor are they simple ovals.[1]

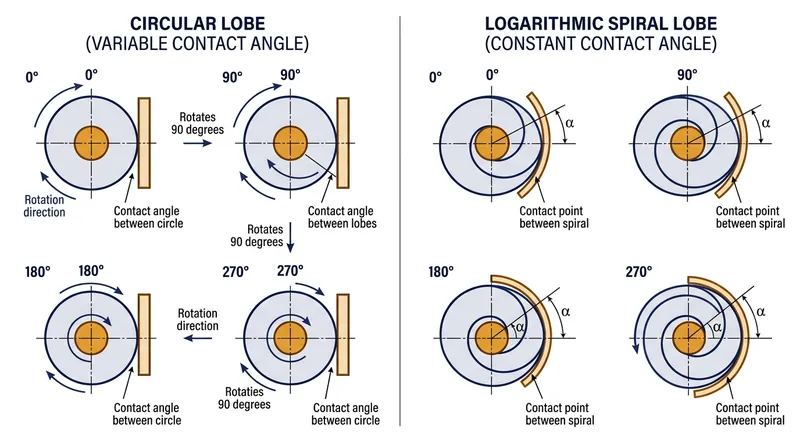

Each lobe is machined as a logarithmic spiral, a specific geometric curve where the angle between the tangent of the curve and the radial line from the center remains absolutely constant.[1][2]

If the lobes were perfectly circular, the angle at which they contacted the rock would change depending on how far the trigger was pulled. A fully retracted circular lobe would strike the wall at a steep angle, while a mostly open one would hit it shallowly.[2]

That inconsistency would make the device's holding power dangerously unpredictable across different crack widths. The logarithmic spiral eliminates that variable completely.[1][2]

Whether the cam is squeezed tight into a one-inch finger crack or expanded into a three-inch fist crack, the aluminum meets the granite at the exact same trajectory. Engineers call this trajectory the camming angle, and it is the single most important number in climbing protection.[3]

The Cotangent Multiplier

Ray Jardine, the aerospace engineer who invented the modern spring-loaded camming device, filed his original 1978 patent using a camming angle of precisely 13.75 degrees.[1]

Jardine calculated that this specific angle offered the perfect mathematical balance. It was wide enough to give the device a useful expansion range, but narrow enough to generate massive outward pressure.[1][2]

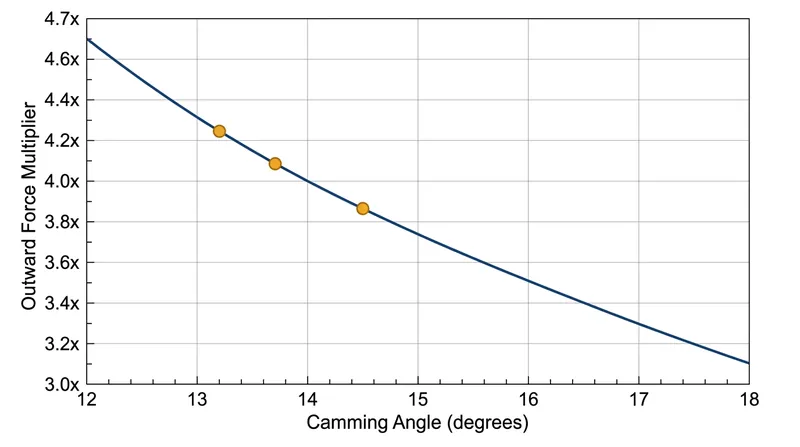

That pressure generation is governed by a basic trigonometric function: the cotangent. The outward radial force exerted by the lobes equals the downward pull of the fall multiplied by the cotangent of the camming angle.[2]

"When a load is applied to the stem, the opposing lobes translate that downward vector into outward expansion," the UIAA Safety Commission outlines in its Standard 125 testing protocols. "The holding power is directly proportional to the cotangent of the designed lobe angle, multiplying the input force by a factor of roughly four."

Because the cotangent of 13.75 degrees is roughly 4.08, the math dictates a massive mechanical advantage. If a climber takes a heavy 8-kiloNewton fall onto a Jardine-style cam, the multiplier converts that drop into 32.6 kiloNewtons of outward force.[1][3]

That is more than 7,300 pounds of pressure actively trying to push the rock walls apart. The harder the climber falls, the harder the device bites into the stone.[2][3]

The Friction Requirement

Modern manufacturers have slightly tweaked Jardine's original math to alter how the devices perform. Black Diamond Equipment machines their industry-standard Camalots with a 14.5-degree angle.

The cotangent of 14.5 degrees is 3.86, meaning an 8-kiloNewton fall generates a slightly lower 30.8 kiloNewtons of outward force.[3]

"By opening the angle to 14.5 degrees, we sacrifice a small percentage of absolute holding power to gain a wider functional expansion range," Black Diamond's Quality Control Lab explains in their technical specifications. "That wider range means a single device can safely protect a larger variety of crack sizes on the wall."

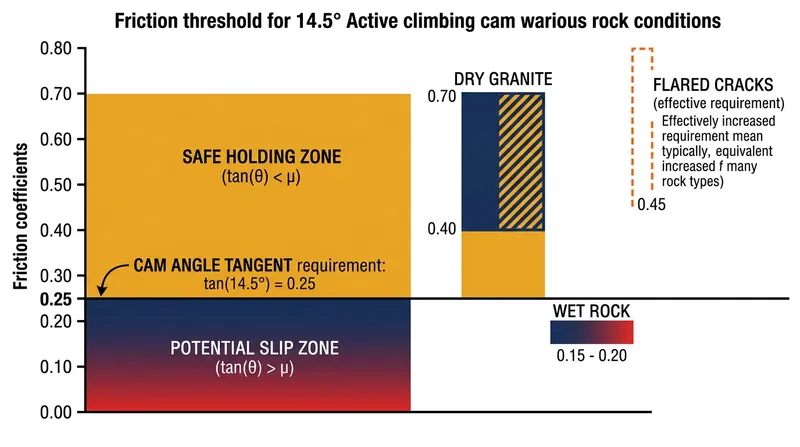

Generating massive outward force is only half the survival equation; the device still has to grip the rock without slipping. For a cam to hold, the coefficient of friction between the aluminum and the rock must be strictly greater than the tangent of the camming angle.[2]

If the friction drops below that tangent threshold, the device will violently eject from the crack. The tangent of a 14.5-degree Camalot is approximately 0.25.[2]

Clean, dry granite typically offers a friction coefficient between 0.40 and 0.70, providing a massive safety margin that keeps the lobes locked in place. The aluminum physically deforms into the micro-crystals of the rock, cementing the mathematical hold.[2][3]

Flared Cracks and Exploding Rock

The surface area of the lobes does not actually change the friction equation, a counterintuitive reality of classical physics. Wider lobes spread the outward force over a larger area of rock, which prevents the stone from crushing, but they do not increase the absolute holding power of the mathematical multiplier.[2]

But environmental factors can instantly rewrite that math. If the rock is wet, icy, or covered in slick limestone mud, the friction coefficient can easily plummet below 0.20.[2]

Once the available friction is lower than the 0.25 tangent requirement, no amount of outward force will save the placement. The cam will simply slide down the parallel walls.[2][3]

"The mathematics of the logarithmic spiral are infallible, but they assume the rock will cooperate," notes the American Journal of Physics in a 2021 analysis of climbing mechanics. "When the coefficient of friction drops below the tangent of the camming angle, the mechanical advantage reverses, and the device accelerates out of the fissure."[2]

The geometry also assumes the rock walls are perfectly parallel. In the real world, cracks often flare outward toward the climber.[3]

A downward flare effectively adds its own angle to the device's built-in camming angle, dangerously increasing the tangent value required to prevent slipping. If a climber places a 14.5-degree cam in a crack that flares downward at 10 degrees, the effective angle becomes 24.5 degrees.[2]

The tangent of 24.5 degrees is 0.45, which demands nearly twice as much friction from the rock to hold the fall. In highly flared placements, even dry granite might not offer enough grip.[2][3]

Engineering the Failure Point

Furthermore, the massive outward force generated by the cotangent multiplier can become a liability in softer stone. While solid granite easily absorbs 30 kiloNewtons of outward pressure, porous desert sandstone cannot.[2]

The cam itself will not fail, but the rock wall might literally explode under the multiplied force, blowing the placement out entirely.[2][3]

Metolius Climbing addresses this specific danger by machining their Master Cams with a narrower 13.25-degree angle. "The narrower angle increases the outward holding force, which allows the lobes to bite more securely into softer or slicker rock types," the company's design documentation states, prioritizing grip over expansion range.

Because the logarithmic spiral generates such extreme outward pressure, the ultimate failure point of a camming device is rarely the friction against the rock. Instead, the mechanical limits are dictated by the tensile strength of the steel axles and the compressive strength of the aluminum lobes.[3]

During a catastrophic fall, the outward force can become so immense that it bends the device's central axle or crushes the aluminum lobes against the rock. To prevent this, UIAA Standard 125 requires all certified spring-loaded camming devices to withstand a minimum of 5 kiloNewtons of downward force without suffering structural failure.

Smaller micro-cams face the hardest engineering battle, as their tiny axles and thin lobes must still survive the same cotangent multiplication. When a device is scaled down to fit a half-inch seam, the margins for metal deformation shrink drastically, which is why the smallest sizes often carry lower 5 to 8 kiloNewton ratings.

Most modern devices far exceed this baseline, carrying official ratings between 12 and 14 kiloNewtons. Achieving those numbers requires utilizing specialized 6061-T6 aerospace aluminum for the lobes and heat-treated stainless steel for the axles, ensuring the hardware survives the mathematical forces it generates.

The spring-loaded camming device remains one of the purest applications of trigonometry in modern sports. Every time a climber steps above their last piece of protection, they are betting their life on the reliability of the cotangent multiplier. As long as the friction holds, the math will catch them.[3]
