The Chemical Mechanism of Pyrolysis: How Unsaturated Fats and High Heat Create the Non-Stick Polymer Layer on Cast Iron

The condition that has to hold for any of this to work is the presence of carbon-carbon double bonds in the cooking oil, and whether the pan reaches a temperature high enough to break them. If you use a saturated fat like lard or butter, or if you keep the heat too low, the reaction simply cannot happen—leaving you with a sticky, rancid layer of grease instead of a slick cooking surface. For the home cook standing over a stove, this chemical threshold dictates whether a cast iron skillet becomes a generational heirloom or a frustrating chore.[6]

The process that transforms liquid oil into a hard, non-stick surface is not drying or baking, but a specific sequence of chemical reactions known as pyrolysis and polymerization. According to a 2020 study published in Nano Materials Science, when unsaturated fats are exposed to high heat, the thermal energy initiates pyrolysis, breaking down the oil's molecular structure and releasing volatile compounds. This is the smoke you see when seasoning a pan. What remains on the iron is a matrix of carbon-centric molecules primed to bond with one another.[1]

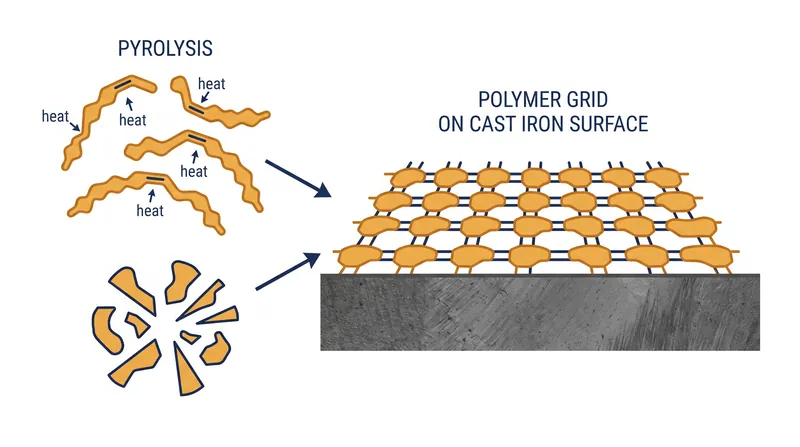

The magic happens in the subsequent polymerization phase. Drying oils—fats with high levels of polyunsaturated fatty acids—contain multiple double bonds in their carbon chains. As detailed in time-resolved infrared spectroscopy research published in Macromolecules, these double bonds are chemically reactive. When heated past their smoke point, these bonds open up and cross-link with neighboring molecules. The result is a massive, interconnected macromolecule—a bioplastic layer measuring roughly 2 to 3 micrometers thick that bonds directly to the porous surface of the cast iron.[2]

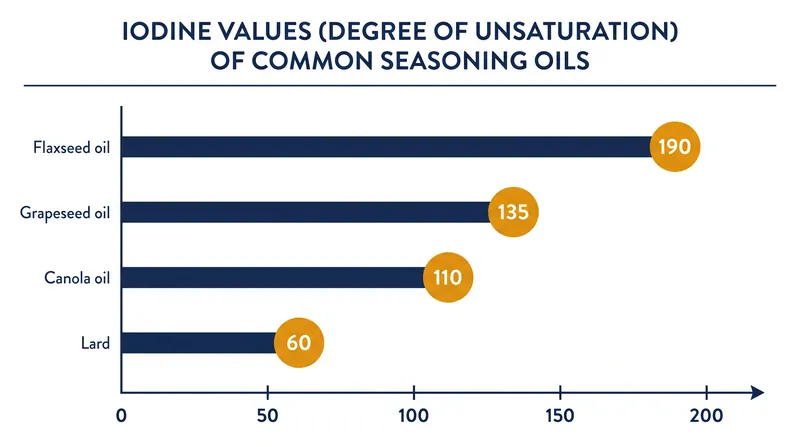

Not all fats are capable of this transformation. The binding constraint relies heavily on the oil's iodine value, a metric used to quantify the degree of unsaturation. Sheryl Canter, whose 2010 analysis revolutionized home seasoning techniques, pointed out that flaxseed oil, with an iodine value around 190, contains an abundance of these reactive double bonds. Saturated fats like bacon grease, traditionally used by previous generations, have very few double bonds and rely instead on trace impurities and carbonization to create a rudimentary, less durable coating.[4]

The iron itself plays a crucial catalytic role in this reaction. Research from UC Merced on the surface properties of seasoned cast iron demonstrates that the rough, microscopic topography of the metal provides mechanical adhesion points for the polymer. Furthermore, the iron atoms act as a catalyst, accelerating the oxidation and cross-linking of the oil molecules. This is why the polymer layer adheres so tenaciously to cast iron, whereas it would easily flake off a smooth stainless steel surface.[3]

Temperature control is the final, critical variable. The Journal of Applied Physics notes that thermal polymerization of drying oils requires sustained temperatures that exceed the oil's activation energy threshold. If the temperature is too low, the oil merely oxidizes and becomes sticky. If the temperature is too high—typically above 600 degrees Fahrenheit—the polymer matrix breaks down completely into ash, a process known as carbonization. The sweet spot lies just above the oil's smoke point, usually between 400 and 500 degrees Fahrenheit, maintained for at least 60 minutes.[5]

For the everyday kitchen, this science translates into a highly specific protocol. Applying a microscopic layer of an unsaturated oil—wiping away as much as possible to prevent pooling—and baking the skillet at 450 degrees Fahrenheit ensures that the entire surface polymerizes evenly. "The goal is to create a cross-linked polymer that is hard, slick, and hydrophobic," Canter wrote in her seminal 2010 guide. This hydrophobic nature is what repels water and prevents proteins from bonding to the pan.[4]

The durability of this bioplastic layer outpaces many synthetic alternatives. While commercial non-stick coatings like PTFE degrade over time and cannot be repaired, a cast iron polymer layer is 100 percent renewable. Every time a cook sears a steak in a little oil, they are depositing a new, microscopic layer of cross-linked polymer, continually reinforcing the pan's surface through the exact same chemical mechanism.[6]
