Switching Altimeters to 1013.25 hPa at Transition Altitude Enforces Vertical Separation

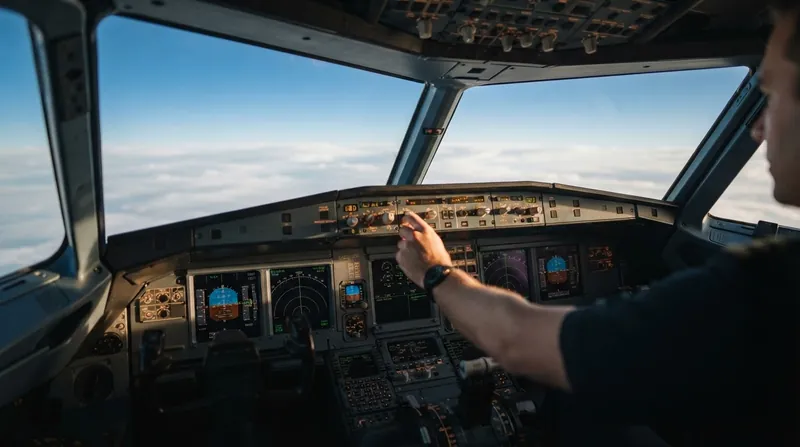

As a commercial jet climbs through 18,000 feet over the United States, the flight crew executes a mandatory, synchronized action: they reach for the altimeter control panel. By pulling or pushing the calibration knob, they discard the local atmospheric pressure reading provided by departure control.[1][3]

In its place, the pilots lock the aircraft’s instruments to a universal baseline of 1013.25 hectopascals. This single mechanical input fundamentally changes how the aircraft measures its place in the sky, shifting the jet from a localized physical reality to a global mathematical standard.[1][4]

Below this boundary, the jet navigates using true geometric altitude to ensure it clears terrain and aligns with physical runways. Above it, the aircraft ceases to fly a fixed distance above the earth, instead tracking an invisible pressure gradient.[3]

By forcing every high-altitude aircraft to reference the exact same theoretical datum, global aviation regulators ensure that vertical separation remains mathematically absolute. The system works flawlessly regardless of the severe weather systems churning in the lower atmosphere.[2][4]

The Local Pressure Problem

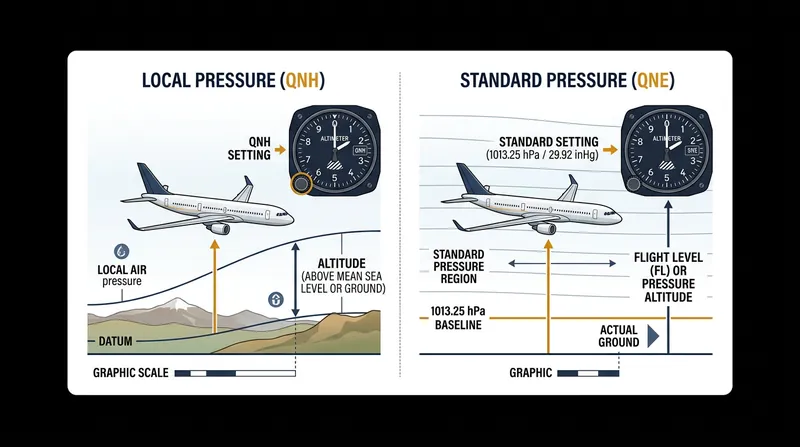

An aircraft altimeter is essentially a highly calibrated barometer. It does not measure distance to the ground using lasers or radar; it measures the weight of the air column pressing down on the fuselage.[5]

Because atmospheric pressure drops predictably as altitude increases, the instrument translates that expanding, thinning air into a height reading in feet. However, the atmosphere is not static, and weather systems constantly alter the baseline weight of the air.[3][5]

A high-pressure weather system compresses the air column, while a low-pressure system expands it. If an altimeter is not calibrated to the specific local pressure—known in aviation as QNH—it will display an incorrect altitude.[3]

Near the ground, this local calibration is a matter of survival. Air traffic controllers constantly broadcast the local QNH, and crews update their instruments to ensure their indicated altitude matches the physical terrain during approach and landing.[1]

But as an aircraft transitions to cross-country cruising, local pressure becomes a fatal liability. Imagine two jets flying toward each other from opposite sides of a continent, one departing a high-pressure zone and the other a low-pressure trough.[4]

If both crews maintained their respective local altimeter settings, their instruments would interpret the same geometric altitude as two entirely different heights. They could be flying at the exact same physical elevation while their screens report a safe 1,000-foot vertical separation.[2][6]

The Standard Atmosphere Datum

To eliminate this collision risk, regulators established the transition altitude, a fixed vertical boundary where local weather is discarded. "The transition altitude is the altitude at or below which the vertical position of an aircraft is controlled by reference to altitudes," states the International Civil Aviation Organization's Document 8168.[2]

In the United States and Canada, this boundary is universally set at 18,000 feet. In Europe, where airspace is highly fragmented and terrain varies wildly, the transition altitude can be as low as 3,000 feet and changes depending on the specific airport.[1][3]

Crossing this line, every pilot dials their altimeter to 1013.25 hectopascals, which equals 29.92 inches of mercury. This figure represents the average atmospheric pressure at sea level on a standard, 15-degree Celsius day.[5]

Once locked to this standard setting, aircraft no longer report their height in thousands of feet. They report Flight Levels, meaning an aircraft cruising at Flight Level 350 is flying at the pressure altitude where the altimeter reads 35,000 feet above the 1013.25 hPa datum.[1]

Riding the Isobaric Waves

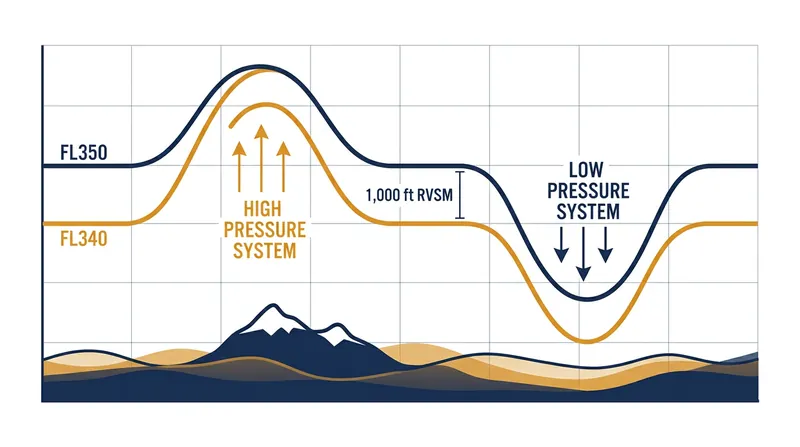

Because real-world pressure rarely matches the 1013.25 hPa ideal, Flight Levels are not flat, parallel lines drawn through the sky. They are dynamic, three-dimensional surfaces that warp and bend in response to the weather below.[4]

When a jet flies from a high-pressure area into a low-pressure area while holding Flight Level 350, the physical aircraft is actually descending closer to the earth. The isobaric surface it is tracking slopes downward, and the autopilot follows that invisible gradient.[5]

This geometric fluctuation does not matter to air traffic control. Because every other aircraft in that sector is also locked to the 1013.25 hPa standard, they are all riding the exact same atmospheric waves simultaneously.[2]

If the Flight Level 350 surface dips by 400 physical feet over a storm system, the Flight Level 340 surface directly below it dips by the exact same amount. The 1,000-foot vertical separation between the two jets remains flawlessly intact.[4][6]

The Transition Layer Trap

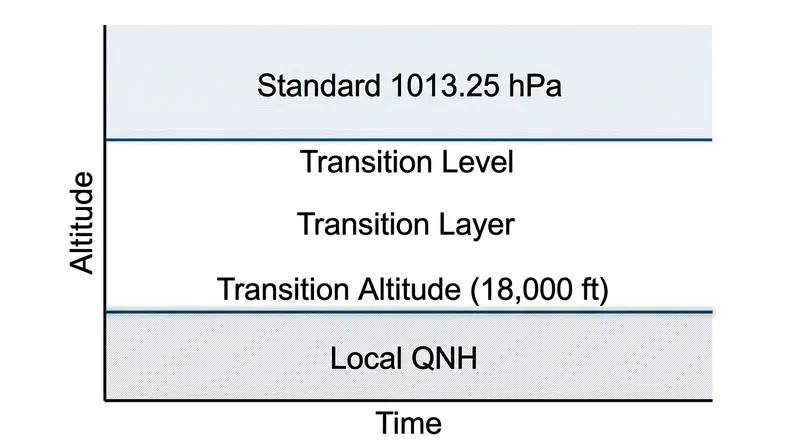

The switch between local and standard pressure creates a temporary mathematical gap known as the transition layer. This is the airspace sandwiched between the transition altitude, where climbing aircraft switch to standard pressure, and the transition level, where descending aircraft switch back.[3]

The thickness of this layer expands and contracts based on the day's weather. On a low-pressure day, the standard 1013.25 hPa datum sits physically lower than the local sea level, compressing the transition layer and requiring careful altitude assignments.[1]

Air traffic controllers must actively manage this shifting buffer. They will not assign cruising altitudes inside the transition layer, ensuring that climbing aircraft on standard pressure never cross paths with descending aircraft still referencing local pressure.[3][6]

Precision in Crowded Skies

The absolute synchronization provided by the 1013.25 hPa standard is the foundational mechanism that allows modern airspace to function. Without it, the density of current commercial traffic would be physically impossible to manage safely.[4]

Between 1997 and 2005, aviation regulators phased in Reduced Vertical Separation Minimum rules. This policy shrank the required vertical distance between cruising jets from 2,000 feet down to just 1,000 feet, instantly doubling the capacity of the upper atmosphere.[6]

This reduced separation relies entirely on the assumption that every aircraft is measuring pressure from the exact same baseline. A deviation of just a few hectopascals between two altimeters would consume a massive percentage of that 1,000-foot safety buffer.[2][6]

By forcing the entire global fleet to abandon true altitude in favor of shared isobaric surfaces, the aviation industry solved its most complex spatial problem. The sky remains safe not because aircraft know exactly where the ground is, but because they agree to ignore it together.[4]
