How Cargo Fire Suppression and Single-Engine Limits Dictate Twin-Jet Oceanic Routes

Under Title 14 of the Code of Federal Regulations, Section 121.633, an aircraft's cargo fire suppression system must outlast its maximum approved diversion time by exactly 15 minutes. This single mathematical buffer dictates the flight paths of thousands of transoceanic flights every day.[2][8]

Before 1985, twin-engine aircraft were restricted to routes that kept them within 60 minutes of a suitable landing field. This rule effectively banned them from crossing the Atlantic or Pacific, leaving those lucrative long-haul routes exclusively to three- and four-engine jets.

The Federal Aviation Administration changed this paradigm by introducing Extended Operations, or ETOPS. This regulatory framework allowed twin-engine jets to fly further from alternate airports, provided their manufacturers and operators met stringent engine reliability standards.[1]

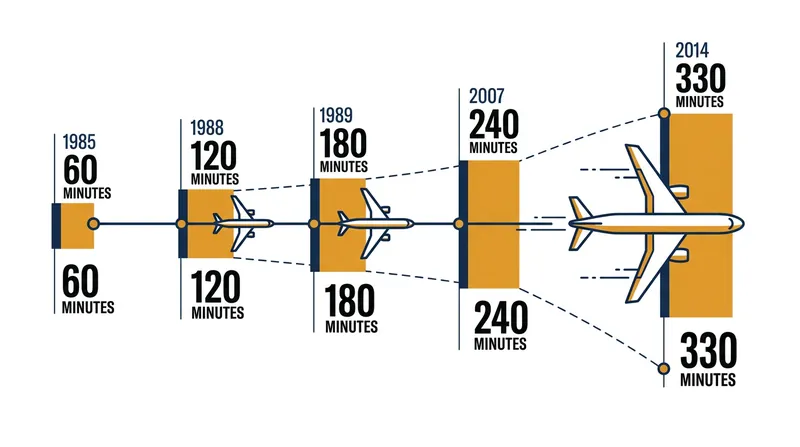

Today, the International Civil Aviation Organization oversees a global framework known as Extended Diversion Time Operations. Under these rules, modern twin-jets can be certified for maximum diversion times of 180, 240, or even 330 minutes from the nearest suitable runway.[5]

While the acronym ETOPS historically focused on engine reliability, the actual limiting factor for modern routing is rarely the engines themselves. The true bottleneck is the endurance of the aircraft's time-limited systems, specifically the cargo fire suppression capabilities.[4][7]

The mechanics of cargo fire suppression

When a smoke detector triggers in a modern airliner's lower cargo deck, the flight crew discharges a rapid-knockdown Halon fire extinguisher. This initial high-concentration burst suppresses the flames, but it does not fully extinguish a deep-seated cargo fire.[4]

To keep the fire suppressed until the aircraft can land safely, a secondary metered system slowly releases additional Halon into the sealed compartment. This continuous flow maintains a fire-suppressing concentration of gas as the aircraft diverts to an emergency runway.[6]

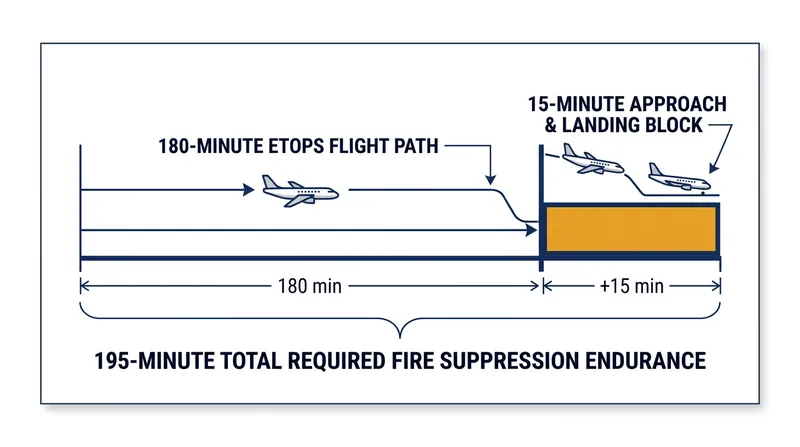

The FAA mandates that this metered flow must last for the entire maximum diversion time, plus an additional 15-minute buffer for approach and landing. If an airline wants to fly a 180-minute ETOPS route, the cargo fire system must be certified for at least 195 minutes.[1][2]

Airbus documentation emphasizes that the integrity of the compartment is critical to the system's success. "The cargo compartments are designed to be airtight, starving any potential fire of oxygen," the manufacturer states. Any breach in this seal drastically reduces the suppression system's effective endurance.[4]

Single-engine diversion speeds

The second pillar of ETOPS planning is the single-engine diversion speed. If one engine fails over the middle of the ocean, the aircraft must descend to a lower altitude where the remaining engine can sustain flight.

At this lower altitude, the aircraft flies slower and consumes fuel at a significantly different rate. Airlines must calculate the maximum distance the aircraft can cover in still air while flying at this approved single-engine speed.[3]

The European Union Aviation Safety Agency and the FAA require operators to ensure that the most limiting time-related system dictates the maximum diversion distance. "The time required to fly the distance to the planned ETOPS alternate... must not exceed the time specified for the airplane's most time-limited ETOPS significant system," the FAA mandates.[1][3]

Dispatchers calculate these time-limited constraints for every single ETOPS flight before departure. They map out equal-time points along the route, identifying exactly which alternate airport the crew should turn toward if a failure occurs at any given moment.

These calculations must also account for forecast wind conditions and potential icing. A 180-minute diversion in still air might take 200 minutes if the aircraft faces a strong headwind, requiring the dispatcher to select a closer alternate airport to remain compliant.[3]

Depressurization and oxygen requirements

Cargo fires and engine failures are not the only ETOPS constraints governing transoceanic routes. A sudden loss of cabin pressure requires an immediate descent to 10,000 feet, where passengers can breathe without supplemental oxygen.[1]

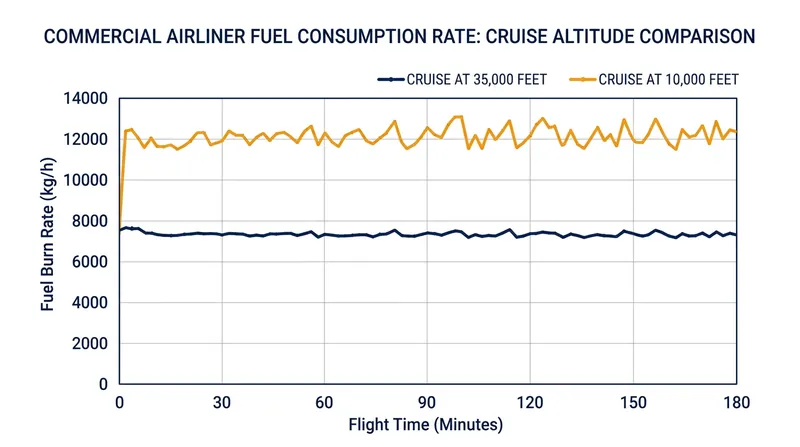

Flying at 10,000 feet drastically increases aerodynamic drag and fuel consumption compared to cruising altitudes. The aircraft must carry enough reserve fuel to complete the diversion from the most critical point along the route at this highly inefficient low altitude.[7]

If the aircraft must fly over high terrain and cannot immediately descend to 10,000 feet, it faces another strict time limit. It must carry enough supplemental oxygen for all passengers and crew for the entire duration of the high-altitude diversion segment.[5]

The National Transportation Library highlights that some fire suppression systems rely on depressurization to starve the fire of oxygen. This creates a complex operational matrix, as depressurizing the aircraft to fight a fire simultaneously triggers the time limits associated with supplemental oxygen supplies.[6]

The operational reality of oceanic flight

This overlapping web of time limits and system redundancies has made twin-engine transoceanic flight remarkably safe. By ensuring that every critical system outlasts the worst-case diversion scenario, regulators have effectively eliminated the distance advantage of four-engine aircraft.[7]

The Aircraft Owners and Pilots Association points out that modern twin-engine jets are now routinely certified for routes that cross the most remote regions of the globe. The Pacific Ocean, once the exclusive domain of the Boeing 747, is now crossed daily by twin-engine Boeing 777s and Airbus A350s.[7]

The 2007 Federal Register update to ETOPS rules formalized these requirements, ensuring that time-limited systems were explicitly tied to the maximum approved diversion times. This regulatory shift acknowledged that engine reliability had outpaced the endurance of other critical onboard systems.

The FAA's Advisory Circular 120-42B provides the detailed guidance airlines use to prove their compliance with these complex time limits. Operators must demonstrate that their maintenance programs and flight planning software can accurately track and manage these constraints on every flight.[1]

As aircraft manufacturers push for even longer ETOPS certifications, the engineering focus has shifted from the engines to the cargo holds. Developing fire suppression systems that can continuously meter Halon for over five hours is now a primary engineering challenge for new widebody jets.[8]

The next generation of ETOPS regulations may need to address the environmental impact of Halon, which is a potent ozone-depleting substance. Finding a replacement fire suppression agent that offers the same endurance and effectiveness remains an ongoing challenge for the aviation industry.[5]

The modern airspace system relies entirely on this precise synchronization of engineering and regulation. The ability to cross oceans safely on two engines requires ensuring that the invisible clock ticking on a fire suppression system never runs out before the runway appears.[8]
