Marvell Demonstrates 2nm Optical Interconnects to Enable 3.2T AI Data Center Networks

For months, industry analysts have warned that the physical limits of power consumption and heat dissipation would throttle the scaling of next-generation artificial intelligence data centers before the end of the decade. At the European Conference on Optical Communication (ECOC) in Frankfurt this week, Marvell Technology offered a concrete rebuttal: the industry’s first demonstration of 2-nanometer optical interconnects, pushing data transfer rates to 400 gigabits per second per lane and paving the way for 3.2-terabit networking.[1][2]

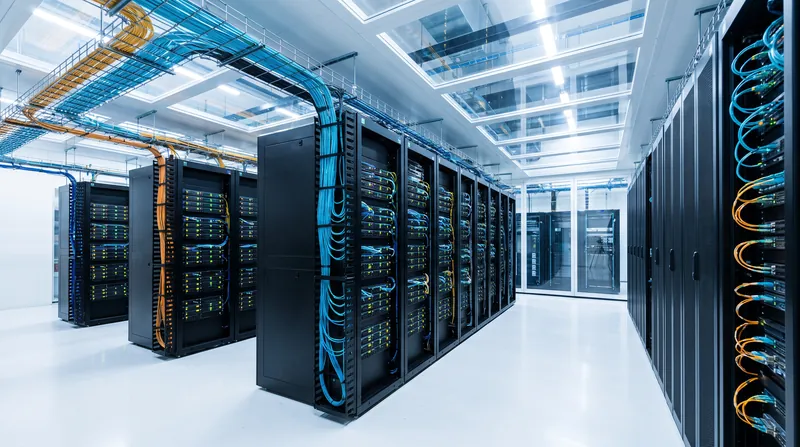

The new 2nm digital signal processors (DSPs) represent a significant leap over the current 3nm and 5nm standards that dominate existing AI clusters. By shrinking the semiconductor node, Marvell achieves a 400G-per-lane speed, which aggregates to support 1.6T and eventually 3.2T optical modules. This density is critical for hyperscale operators attempting to link tens of thousands of graphics processing units into a single cohesive supercomputer.[4][6]

Training models with trillions of parameters requires massive, uninterrupted data flow between processors. The bottleneck in modern AI infrastructure is rarely the compute itself; it is the network connecting the compute. When data cannot move fast enough, expensive GPUs sit idle, wasting both time and electricity. Marvell's 2nm optics directly address this latency and bandwidth constraint.[7]

The 2nm process node fundamentally alters the power equation for data center architects. Current 800G and 1.6T transceivers consume substantial wattage, creating thermal ceilings in server racks that limit how closely equipment can be packed together. Marvell’s architecture reduces the energy required per bit, allowing operators to pack more bandwidth into the exact same physical and thermal footprint.[1][3]

At the ECOC event, Marvell showcased the silicon functioning in real-world conditions, proving that 400G electrical and optical signaling is viable outside of laboratory simulations. The demonstration included live traffic running through the 2nm DSPs, validating the signal integrity required for commercial deployment in high-density switch environments.[2][4]

The announcement places Marvell ahead of rivals in the race to commercialize 2nm networking silicon. While other semiconductor firms have teased 2nm roadmaps, Marvell's live demonstration signals that the supply chain and manufacturing processes are maturing faster than anticipated, giving the company a distinct first-mover advantage in the optical interconnect market.[6][7]

The transition to 3.2T networking will not happen overnight. Current data center deployments are still absorbing 800G modules and early-stage 1.6T hardware. However, the 2nm DSPs provide the foundational building blocks for the network architectures that hyperscalers will require by 2027 and 2028 to train the next generation of frontier AI models.[5]

The optical networking sector has become a critical growth driver for semiconductor firms, shifting from a niche telecommunications segment to the backbone of the AI boom. Marvell's push into 2nm optics solidifies its position in the AI infrastructure market, a segment that continues to command premium valuations from institutional investors tracking capital expenditures by major tech firms.[7]

With the silicon proven, the focus now shifts to module integration and interoperability testing with major hyperscalers. If the 2nm optical interconnects scale as demonstrated in Frankfurt, the theoretical limits of AI cluster sizes will expand dramatically over the next 24 months, clearing the path for models that require unprecedented volumes of training data.[1][5]
