MaP Score vs. Gallons Per Flush: How Two Metrics Dictate Toilet Waste Removal and Water Efficiency

The binding constraint for any high-efficiency plumbing fixture is that it must complete its primary job on the first try. If a toilet requires a second flush to clear solid waste, its water-saving design is entirely defeated, doubling the consumption it was built to reduce. Historically, consumers assumed that water volume dictated flushing power, leading to widespread complaints when federal law capped toilets at 1.6 gallons per flush (GPF) in the 1990s. Today, that assumption is obsolete. Modern plumbing engineering has decoupled water volume from waste removal capacity, proving that internal geometry matters more than the sheer amount of water dropping from the tank.[1]

Two numbers now govern how a toilet performs: the GPF rating, which measures water efficiency, and the Maximum Performance (MaP) score, which measures solid waste removal capacity. Understanding the relationship between these two metrics is the only reliable way to evaluate a fixture before installation. While GPF is federally regulated and printed on every box, the MaP score is a voluntary, independent metric that reveals what the manufacturer's marketing adjectives hide.[5]

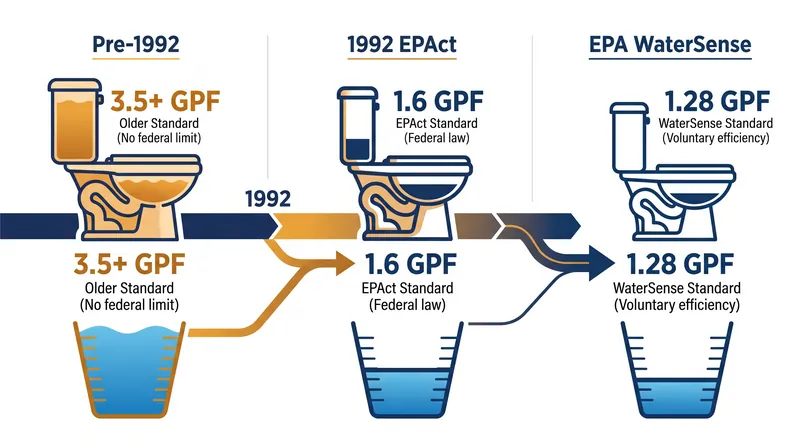

The GPF metric is strictly a measure of input. In 1992, the Energy Policy Act mandated that all new residential toilets use no more than 1.6 GPF, a drastic reduction from the 3.5 to 5.0 GPF fixtures common in the 1980s. The immediate result was a generation of low-flow toilets that frequently clogged, as manufacturers simply reduced tank sizes without redesigning the internal trapways to handle the lower water velocity.[1]

To address the ongoing performance failures, water efficiency advocates and municipal utilities developed the MaP testing protocol in 2003. Unlike traditional testing that used plastic balls or sponges, MaP testing uses a highly realistic medium: extruded soybean paste encased in latex, combined with toilet paper. According to the testing organization's published methodology, "MaP scores represent the number of grams of solid waste (soybean paste and toilet paper) that a particular toilet can flush and remove completely from the fixture in a SINGLE FLUSH." The test is a straightforward failure analysis where the laboratory loads the bowl with increasing amounts of the paste.[5]

The resulting MaP score ranges from 250 grams to a ceiling of 1,000 grams. A score of 1,000 grams means the toilet cleared the maximum amount of waste the laboratory could throw at it. For context, the average human demand is approximately 150 grams of waste per use. However, plumbing professionals generally recommend a MaP score of 800 to 1,000 grams to ensure the fixture has the optimal trapway diameter and internal glazing required to prevent clogs under heavy use.[4][5]

The relationship between GPF and MaP scores demonstrates how far fluid dynamics have advanced. In 2003, the average MaP score across all tested toilets was just 336 grams. By 2017, the average score had climbed to 882 grams. Over this same period, the industry standard for water consumption actually decreased. The Environmental Protection Agency (EPA) introduced the WaterSense program in 2007, capping high-efficiency toilets at 1.28 GPF.[1][5]

To earn the WaterSense label, a toilet must not only flush at 1.28 GPF or less but also achieve a minimum MaP score of 350 grams. This dual requirement ensures that water conservation does not come at the expense of basic functionality. The highest tier of performance is the "MaP PREMIUM" rating, which requires a fixture to clear at least 600 grams of waste while using no more than 1.1 GPF.[4][5]

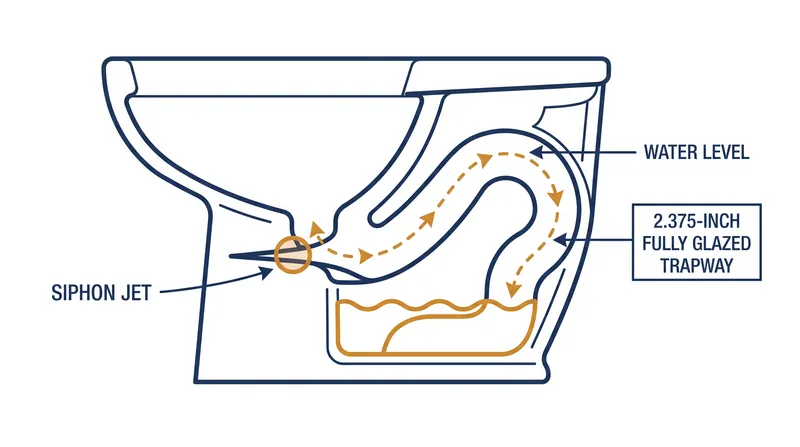

How do modern toilets achieve 1,000-gram MaP scores with only 1.28 gallons of water? The answer lies in the trapway—the curved channel that carries waste from the bowl to the drainpipe. The industry standard trapway diameter is 2.0 inches. High-capacity models expand this to 2.125 or 2.375 inches, increasing the total volume available for waste passage by up to 41 percent.[5]

Furthermore, top-performing models feature fully glazed trapways. In older or cheaper fixtures, the hidden internal channel is left as rough, unglazed porcelain, creating friction that slows water velocity and snags solid waste. A fully glazed trapway provides a glass-smooth surface from the bowl to the floor flange, allowing the reduced water volume to maintain the high velocity necessary to initiate a strong siphon action.[2]

The flush mechanism itself has also evolved to maximize the kinetic energy of the water. Traditional gravity-fed designs rely entirely on the weight of the water dropping from the tank. High-performance models now utilize dual-fed siphon jets, which direct a concentrated stream of water directly into the trapway to force the siphon to start earlier and pull harder.[2]

Pressure-assisted toilets take this a step further. These fixtures contain a sealed pressure vessel inside the porcelain tank. As water fills the vessel, it compresses the trapped air. When flushed, the expanding air forces the water into the bowl at a much higher velocity than gravity alone could achieve. These models routinely score 1,000 to 1,250 grams on the MaP scale, though they are significantly louder than gravity-fed units.[2]

Dual-flush technology introduces a complication to the GPF and MaP relationship. These toilets offer a reduced flush (typically 0.8 to 1.1 GPF) for liquid waste and a full flush (up to 1.6 GPF) for solid waste. However, in May 2024, the EPA revised the WaterSense specification for dual-flush models. The agency found that users frequently selected the full flush out of habit or confusion, negating the expected water savings.

Under the revised Version 2.0 specification, the EPA eliminated the "effective flush volume" calculation. As the agency stated in its May 2024 revision summary, the update establishes "the same maximum flush volume requirement - 1.28 gallons per flush - for both single-flush toilets and full-flush modes of dual-flush toilets." This regulatory shift forces manufacturers to ensure their fixtures can achieve high MaP scores without relying on a 1.6 GPF crutch for solid waste.

For consumers and contractors, the takeaway is clear: GPF dictates the water bill, but the MaP score dictates the maintenance reality. Purchasing a 1.28 GPF toilet without checking its MaP score risks installing a fixture that will require constant plunging. By filtering options to models that achieve at least an 800-gram MaP score, buyers guarantee that the toilet's internal geometry is optimized for the modern era of water conservation.[5]
