The Thermal Illusion of Induction: Why Wide Frying Pans Scorch on Standard Cooktops

When the Association of Home Appliance Manufacturers reported induction cooktops capturing 20 percent of the US market in early 2026, a specific culinary complaint followed the adoption curve. Home cooks upgrading to magnetic ranges found their 28-centimeter skillets suddenly scorching food in a tight center ring.

The symptom presents as a dark, burned circle of food exactly in the middle of the pan, while ingredients near the edges remain pale and undercooked. This thermal gradient ruins delicate proteins and frustrates users who expected perfectly even heating from premium appliances.

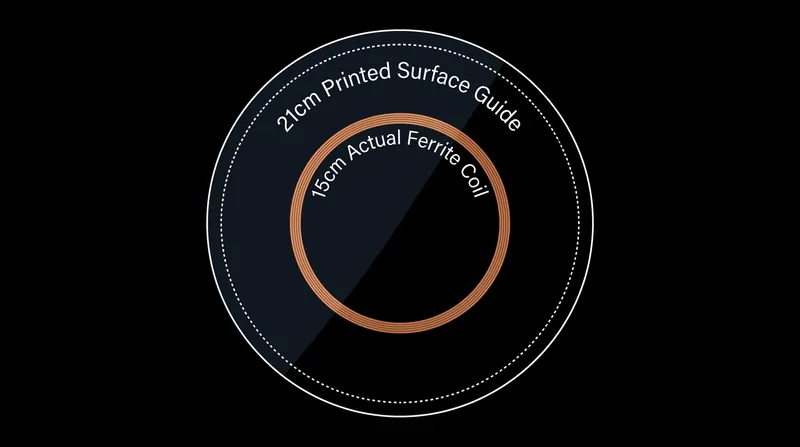

The root cause lies beneath the ceramic glass, hidden by the manufacturer's printed surface graphics. The white circles etched onto the cooktop suggest a wide, uniform heating zone that matches the base of a large family skillet.[2]

In reality, those printed guides frequently mask much smaller internal hardware. A burner marked with a 21-centimeter surface ring often conceals a copper litz-wire coil measuring just 15 centimeters across.[1]

The Hardware Mismatch

Induction cooking works by passing high-frequency alternating current—typically between 24 and 75 kilohertz—through a tightly wound copper coil. This generates a rapidly fluctuating magnetic field that penetrates the glass and induces electrical eddy currents in the magnetic base of the cookware.[1]

The electrical resistance of the pan's iron content converts those eddy currents directly into heat. Because the heat is generated inside the metal itself, induction is incredibly fast and efficient, bypassing the thermal losses associated with open gas flames or radiant electric coils.

However, copper litz wire and the ferrite bars used to direct the magnetic field are expensive components. To control manufacturing costs, appliance brands often install 15-centimeter coils across multiple burner positions, regardless of the larger circles printed on the glass above them.[1]

"The magnetic field drops off by the inverse cube of the distance, meaning any pan surface extending past the ferrite perimeter receives effectively zero direct inductive heating," notes a 2024 engineering review in IEEE Transactions on Industry Applications.[1]

The Physics of Thermal Bridging

When a cook places a 28-centimeter frying pan on a 15-centimeter coil, the magnetic field only excites the metal in the direct center. The outer 6.5-centimeter radius of the pan receives no direct energy from the cooktop.[2]

The unheated outer ring must draw its heat entirely from the center of the pan through lateral thermal conductivity. The pan itself becomes the only mechanism for moving thermal energy from the active induction zone out to the edges.

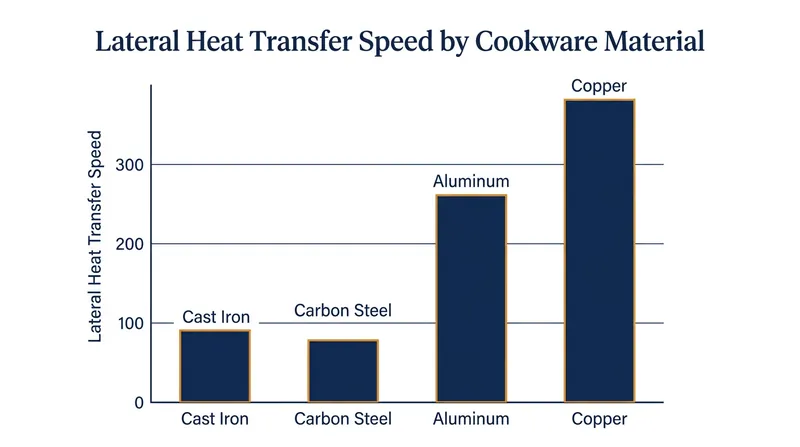

This creates a severe bottleneck for materials with poor thermal conductivity. Cast iron and carbon steel, despite being highly magnetic and excellent at retaining heat, are notoriously slow at moving it laterally across a surface.

On a small induction coil, a cast iron skillet traps the generated heat in a tight 15-centimeter circle. Thermal imaging reveals temperature deltas of up to 65 degrees Celsius between the scorching center of the pan and its relatively cool outer edges.

The Clad Cookware Solution

To solve this thermal bridging problem, cookware manufacturers rely on clad construction. They bond a highly conductive core material—usually aluminum or copper—between layers of magnetic stainless steel that can interact with the induction field.

The magnetic steel generates the heat, and the conductive core rapidly pulls that heat outward toward the rim. However, the thickness of that conductive core dictates whether the pan can outpace the intense, localized energy delivery of the induction coil.

Thin clad pans with only 1 or 2 millimeters of aluminum cannot move the heat fast enough to prevent a center hot spot. Premium induction cookware requires an aluminum core of at least 3 to 4 millimeters to successfully bridge the gap to the unheated edges.

"You cannot cheat the physics of thermal mass; if the cooktop only heats the middle, the pan needs enough conductive metal to carry that burden," explains the testing team at Cook's Illustrated.

Mapping the Unheated Zone

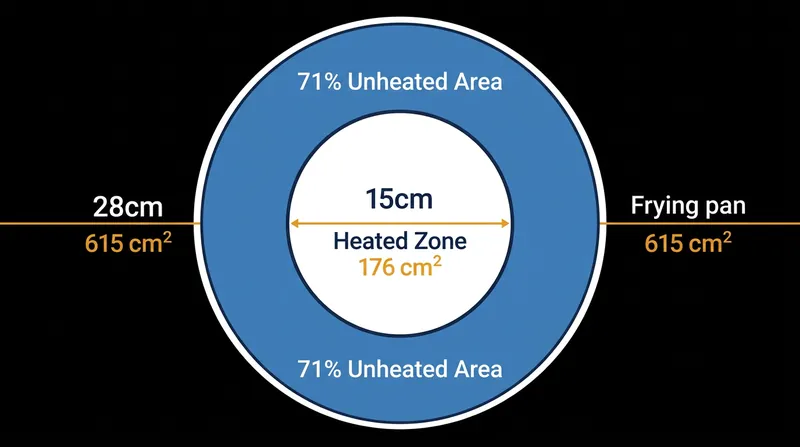

The mathematical reality of this hardware mismatch explains why thin pans fail so dramatically. A standard 15-centimeter internal coil covers an active inductive area of approximately 176 square centimeters.[2]

A standard 28-centimeter frying pan features a flat floor area of roughly 615 square centimeters. When paired together, the cooktop directly heats less than 29 percent of the pan's usable cooking surface.[2]

Over 71 percent of the pan relies entirely on the aluminum core to cook the food sitting above it. If the burner is set to high power, the center overheats and warps the metal before the edges ever reach a functional cooking temperature.[2]

To prevent this, cooks must preheat wide pans on medium-low settings for several minutes. This slower energy delivery gives the aluminum core time to distribute the thermal load evenly across the entire 615-square-centimeter surface.

Finding the True Coil Size

Consumers cannot rely on the printed glass graphics to determine their cooktop's actual capabilities. The International Electrotechnical Commission standards govern electrical safety and magnetic field limits, but they do not mandate that surface printing match internal coil dimensions.

To map a range's true heating zones, cooks can perform a simple water test. Covering the bottom of a wide pan with a thin layer of water and bringing it to a boil will reveal a distinct circle of bubbles that perfectly outlines the hidden ferrite coil.

Armed with that measurement, buyers can match their cookware to their hardware. If the true coil measures 15 centimeters, using a 20-centimeter skillet ensures even heating, while reserving the 28-centimeter pans for tasks that tolerate cooler edges.
