Why Triple-Glazed Argon Windows Lose Half Their Insulation in Standard Sash Frames

Triple-glazed argon windows lose up to half of their added thermal resistance in standard sash frames because the frame itself acts as a highly conductive thermal bridge. While the dense argon gas blocks heat from moving through the center of the glass, the uninsulated perimeter gives that heat an easy detour directly to the outdoors.

This bypass effect means homeowners paying a premium for triple glazing often receive the real-world performance of standard double glazing. The mismatch occurs because buyers focus entirely on the glass specification, ignoring the structural sash that holds it in place and dictates the final energy efficiency of the installation.

The Physics of Thermal Bridging

To understand the loss, you have to look at how heat travels. Thermal energy always seeks the path of least resistance from a warm space to a cold one. In a window unit, that path is rarely through the center of the glass pane.

Argon gas is injected between the panes because it is 38 percent denser than air, which reduces its thermal conductivity by roughly 67 percent. This creates a formidable barrier to heat transfer, dropping the center-of-glass heat loss to an impressive 0.6 Watts per square meter Kelvin (W/m²K).[2][4]

But the glass only accounts for about 70 to 80 percent of a window's total surface area. The remaining 20 to 30 percent is the sash frame and the edge spacers that hold the panes together. If that frame is highly conductive, the insulation of the glass becomes completely irrelevant.

If that frame is made of standard aluminum or uninsulated timber, it conducts heat rapidly. The heat simply moves sideways through the glass until it reaches the frame, bypassing the argon gas entirely and radiating out into the cold exterior air without any significant resistance.[5]

The Conductivity Mismatch

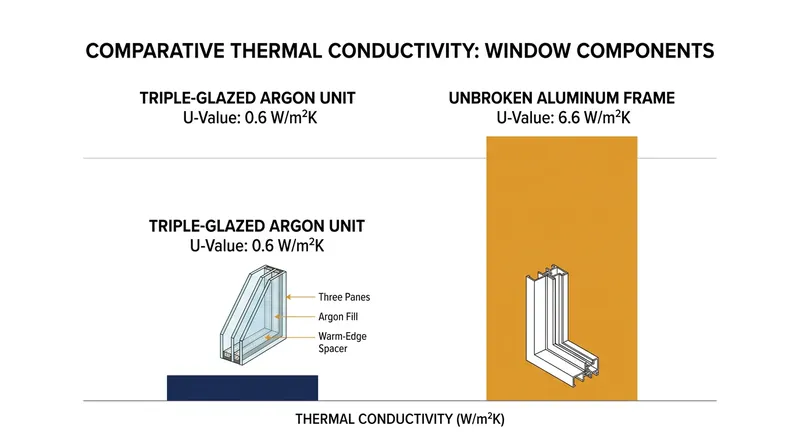

The conductivity gap between the glass and the frame is staggering. An unbroken aluminum frame has a thermal transmittance (Uf-value) of 6.6 W/m²K. That means the metal frame transfers heat exactly 11 times faster than the premium triple-glazed argon unit it holds.[3]

When heat hits the highly insulated glass, it simply moves sideways to the conductive frame and escapes outside. This phenomenon, known as thermal bridging, degrades the whole-window performance (Uw-value) significantly, erasing the expensive gains made by adding a third pane of glass and argon gas.

A triple-glazed unit with a 0.6 W/m²K glass rating can easily yield a whole-window rating of 1.0 W/m²K or worse once the frame is factored in. That 0.4 W/m²K penalty represents a massive loss of the window's total insulating capacity, effectively halving its added value.[1][2]

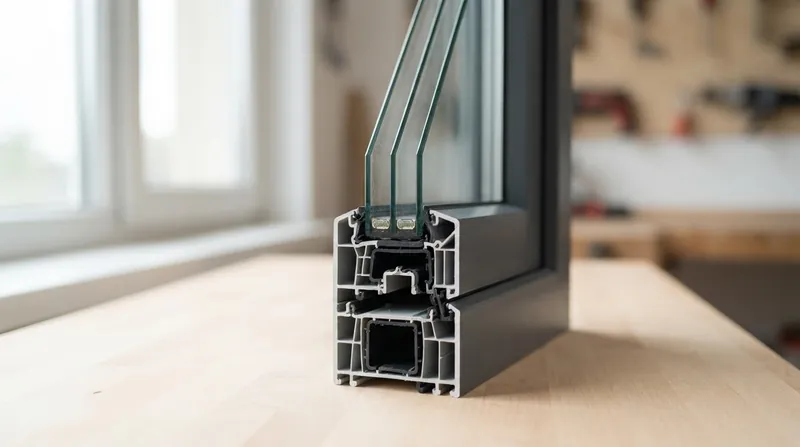

"Metal conducts heat very well, so metal frames are the least energy efficient frame material," notes architectural restoration firm Historical Windows. Without an insulating strip of plastic or polyamide separating the interior and exterior metal—a feature known as a thermal break—the frame bleeds energy continuously.[3][6]

Edge Seals and Spacer Bars

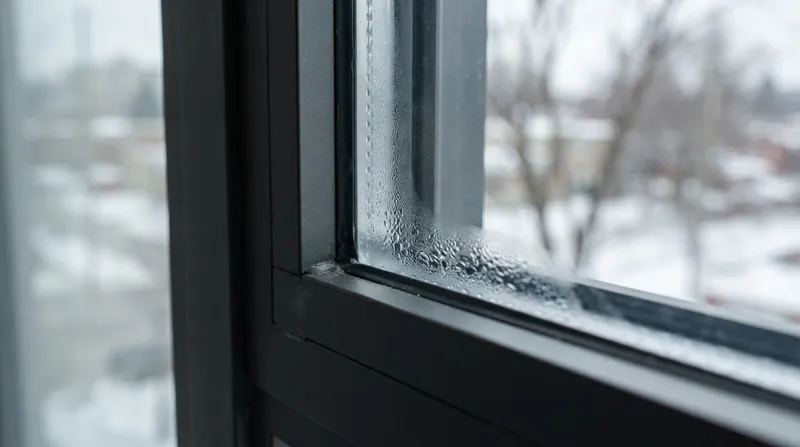

The problem compounds at the very edge of the glass. Traditional aluminum spacer bars, which separate the three panes of glass, create a secondary thermal bridge right where the glass meets the sash, accelerating the heat transfer at the most vulnerable point.

This edge effect cools the perimeter of the inner pane, leading to condensation and further heat loss. Modern high-performance windows replace these metal spacers with "warm-edge" composite materials to interrupt the conductive path and keep the edges of the glass closer to room temperature.[1]

Even with warm-edge spacers, the frame material dictates the final performance. Uninsulated softwood timber frames, while significantly better than raw aluminum, still carry a Uf-value of around 1.9 W/m²K. This is still three times more conductive than the argon-filled glass, creating a persistent thermal leak.[3]

As a result, even traditional timber sashes siphon away a significant portion of the expensive triple-glazing's thermal resistance. The wood provides natural insulation, but it cannot match the extreme thermal resistance of a modern argon-filled cavity without additional engineering and multi-chambered designs.

The Regulatory Loophole

The confusion for consumers stems from how windows are marketed. Many suppliers advertise the center-of-glass Ug-value because it looks incredibly impressive on a brochure, allowing them to sell standard frames at a premium price while hiding the true thermal performance.

However, building regulations in the UK and Europe increasingly focus on the Uw-value, which measures the entire installed unit. A window must achieve a Uw-value of 1.2 W/m²K or lower to meet modern new-build standards, forcing a holistic approach to window design and construction.[1]

Achieving that standard is mathematically impossible if a 0.6 W/m²K glass unit is paired with a 6.6 W/m²K frame. The math forces manufacturers to upgrade the frame to match the glass, or risk failing basic building compliance tests and energy efficiency certifications.

Matching the Frame to the Glass

Ultimately, a window is only as efficient as its weakest component. Installing a premium argon-filled, triple-pane glass unit into a standard uninsulated sash is like putting a heavy winter coat on while leaving your boots at home.

To get the actual thermal resistance you pay for, the frame must match the glass. That requires thermally broken aluminum, multi-chambered uPVC, or insulated fiberglass frames that stop the heat before it reaches the edge and force it to travel through the argon gas.[3][5]

When the frame and the glass are engineered to the same standard, the thermal bridge is severed. Only then does the argon gas trap the heat as intended, delivering the lower energy bills and improved comfort that triple glazing promises to homeowners.

The installation process itself introduces another potential thermal bridge if not handled correctly. Even the most advanced thermally broken frame will leak heat if the gap between the window and the rough opening in the wall is not properly sealed with expanding foam and airtight tapes.[1]

This is why energy-efficient building standards like Passivhaus require rigorous testing of the entire assembly. A high-performance window is not just a piece of glass; it is a complete system of panes, gas, spacers, frames, and installation details working together to stop heat transfer.[1]
