Lithium-Ion vs. Lithium-Air: The Trade-Offs Shaping the 1,600-Kilometer EV Battery

The electric vehicle industry is approaching the physical limits of how much energy it can pack into a conventional battery. To push driving ranges past 1,600 kilometers, manufacturers must abandon the heavy metals that define today's cells and instead pull reactive oxygen directly from the atmosphere. This is the premise of the lithium-air battery, a technology that promises an energy density comparable to gasoline but requires mastering an open chemical system that has historically degraded upon contact with natural air.[1][2][3]

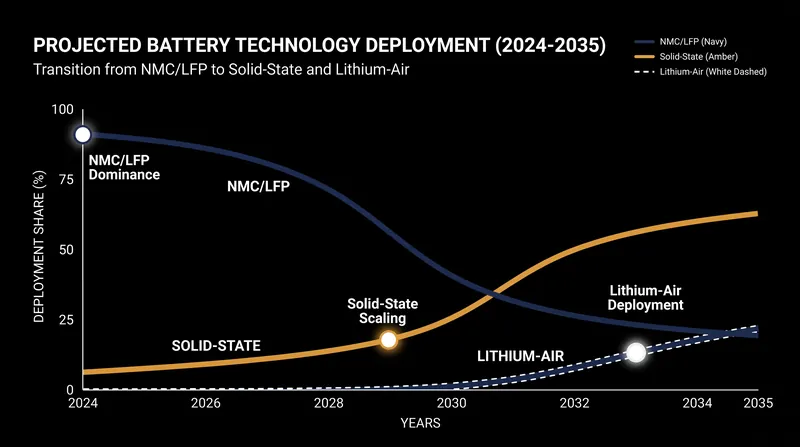

The stakes of this transition were formalized in June 2026 when CATL, the world's largest battery manufacturer, publicly identified lithium-air as its primary long-term research focus. Speaking at the Powering the Nation Forum, CATL Chief Scientist Wu Kai outlined a roadmap that moves from current lithium-ion chemistries to solid-state designs in the late 2020s, culminating in lithium-air deployment post-2030. The strategic shift signals that the industry is preparing for a fundamental architectural change in how energy is stored and deployed.[1][3][6]

To understand the trade-off, one must look at the dead weight in a modern electric vehicle. Traditional lithium-ion batteries rely on heavy metal compounds—such as nickel, cobalt, and manganese—to house lithium ions during the charge and discharge cycles. This closed-system design is highly stable but inherently heavy, capping the practical energy density of mainstream production cells at roughly 250 to 300 watt-hours per kilogram.[1][3]

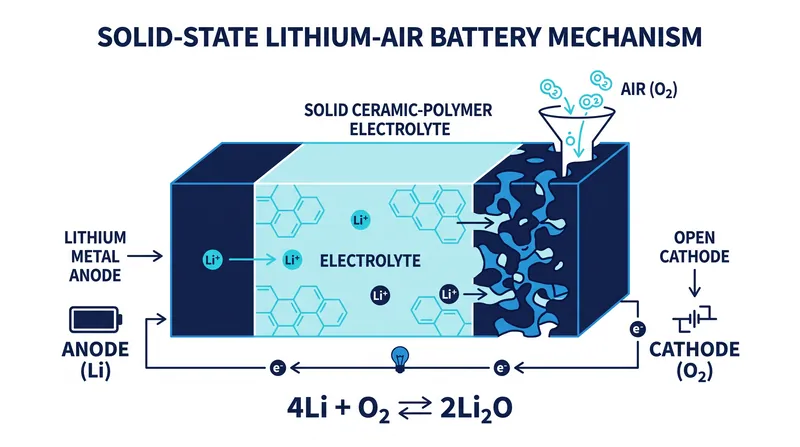

Lithium-air cells discard this heavy cathode infrastructure entirely. Instead, they pair a pure lithium-metal anode with an open architecture that draws ambient oxygen from the air to serve as the cathode reactant. By shedding the metal oxides, the theoretical energy density ceiling of a lithium-air system leaps to 12,000 watt-hours per kilogram. This figure is roughly equivalent to the energy density of refined petroleum, presenting a paradigm shift for transportation engineering.[1][2][3]

Translating that theoretical ceiling into a physical product has historically been hindered by the atmosphere itself. Early lithium-air prototypes suffered from rapid degradation because ambient moisture and carbon dioxide reacted with the lithium metal, destroying the cell after only a few dozen cycles. Managing the air intake required filtration systems that added back the mass the open architecture was supposed to save.[2][3]

Recent laboratory breakthroughs have begun to solve this atmospheric vulnerability. In 2024, a joint research team from the University of Illinois Chicago and Argonne National Laboratory demonstrated a lithium-air cell capable of surviving more than 700 cycles in a realistic, air-like environment containing carbon dioxide and moisture. This marked the first time meaningful cycle life was achieved outside of a pure-oxygen laboratory chamber.[1][3]

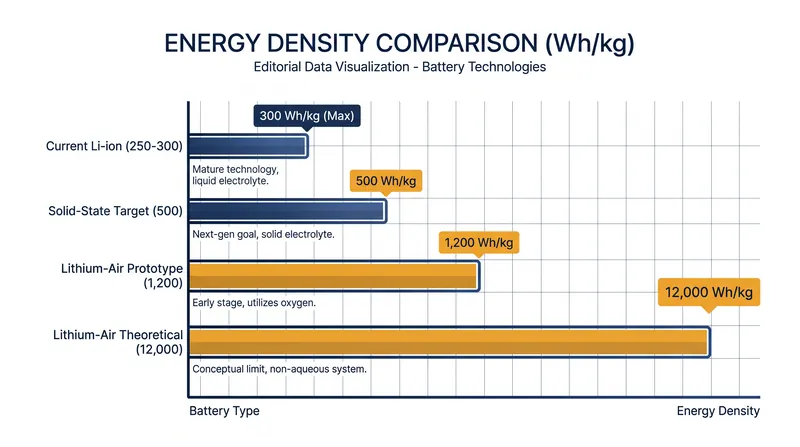

The energy density threshold was subsequently shattered in 2025. Researchers at Argonne National Laboratory and the Illinois Institute of Technology developed a prototype that achieved 1,200 watt-hours per kilogram—more than four times the capacity of current production cells. Crucially, the team utilized a solid-state composite matrix made of a ceramic-polyethylene oxide polymer, replacing flammable liquid electrolytes.[2][4][5]

This solid-state approach enabled a novel four-electron chemical reaction pathway at room temperature, allowing the battery to form and decompose lithium oxide efficiently. The prototype maintained its performance over 1,000 charging cycles, proving that the extreme energy density of lithium-air could be stabilized for long-term use without the safety risks associated with liquid electrolytes.[2][4][5]

If these laboratory metrics can be scaled to industrial production, vehicle architecture will change fundamentally. A battery pack delivering 1,200 watt-hours per kilogram could shrink to a fraction of its current volume while maintaining a standard 500-kilometer range, drastically reducing the vehicle's curb weight and improving overall efficiency. Alternatively, maintaining the current pack volume could yield driving ranges exceeding 1,600 kilometers on a single charge.[1][2][3]

The transition from closed lithium-ion systems to open lithium-air architectures represents a trade-off between immediate manufacturability and ultimate performance. While lithium-ion offers a proven, scalable foundation for the current decade, lithium-air provides the only viable electrochemical pathway to decarbonize heavy-duty transport and aviation. The engineering challenge now shifts from proving the chemistry works to manufacturing it at a global scale.[3][5][6]

The manufacturing hurdles are substantial. Producing lithium metal anodes requires dry-room processing conditions that are significantly stricter than current lithium-ion manufacturing standards. Furthermore, the specialized ceramic-polymer electrolytes that enable the four-electron reaction have not yet been produced at battery-grade volumes or costs.[3][5]

Despite these challenges, the commitment from a manufacturer of CATL's scale changes the trajectory of the technology. By publicly anchoring their post-2030 roadmap to lithium-air, the industry leader is signaling to suppliers, researchers, and automakers that the era of the heavy metal battery has a definitive expiration date. The race to commercialize the breathable battery has officially begun.[1][3][6]
