How Thermal Barriers and Venting Systems Prevent EV Battery Pack Failure

A gasoline vehicle fire requires oxygen from the surrounding atmosphere to sustain combustion, making it extinguishable by smothering the engine bay. An electric vehicle battery undergoing thermal runaway, however, generates its own oxygen as the cathode material decomposes under extreme heat, shifting the engineering challenge from extinguishing a fire to containing a localized temperature spike before it cascades through the pack.[5]

The fundamental unit of an electric vehicle is the individual lithium-ion cell, thousands of which are wired together to form a complete pack. When a single cell suffers an internal short circuit—whether from a manufacturing defect, physical intrusion, or severe overcharging—its internal temperature can spike from an optimal 25 degrees Celsius to over 800 degrees Celsius in a matter of seconds.

This rapid escalation is known as thermal runaway. Left unchecked, the heat radiating from the failing cell will push adjacent cells past their own thermal stability thresholds, triggering a domino effect known as cell-to-cell propagation. Preventing this cascade is the primary objective of modern battery pack safety engineering.

To halt propagation, engineers rely on a defense-in-depth strategy that pairs active liquid cooling with passive thermal management materials. While active cooling regulates the pack during normal operation and fast charging, passive systems act as the ultimate fail-safe when a cell goes into runaway and the vehicle's electronics shut down.[4]

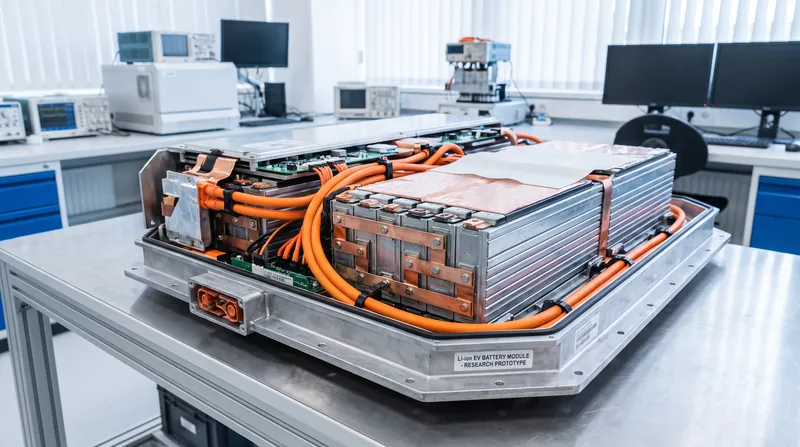

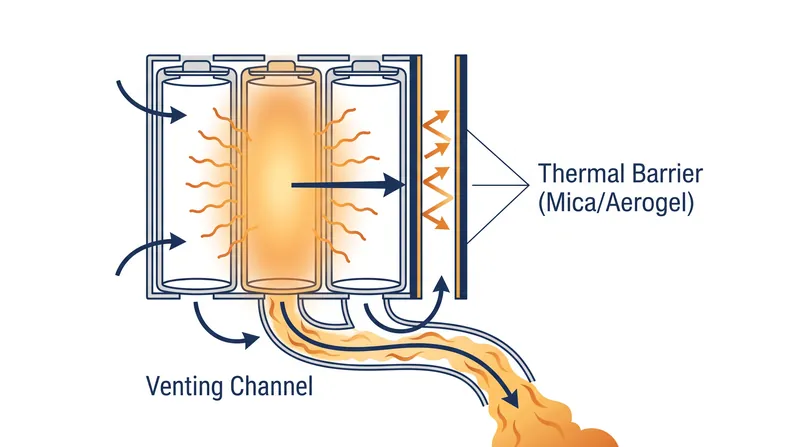

The first line of passive defense is the inter-cell thermal barrier. Placed directly between individual cells or module clusters, these barriers are designed to absorb, deflect, or block extreme heat. Materials such as silica aerogels and intumescent coatings are frequently deployed because they offer exceptionally low thermal conductivity while adding minimal weight to the vehicle.

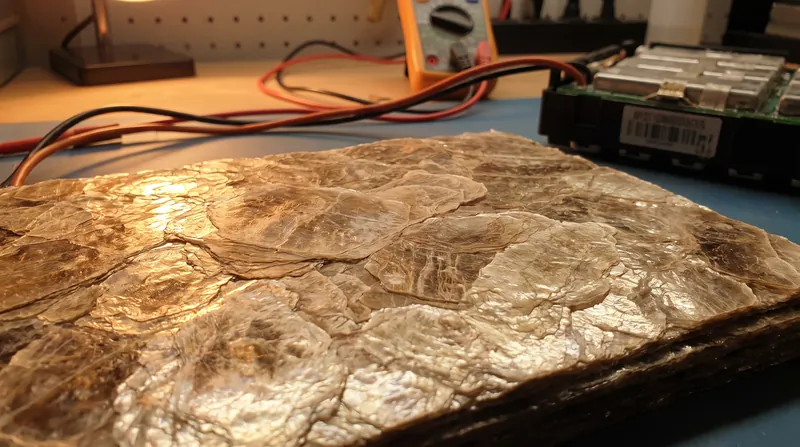

Mica, a naturally occurring silicate mineral, has become a cornerstone of this barrier architecture. According to Electrolock Incorporated, which has documented the material's performance since 2016, mica provides a critical dual function. "Mica materials provide a critical dielectric and thermal barrier, capable of withstanding temperatures exceeding 1,000 degrees Celsius without losing structural integrity," the company notes.[1]

Beyond rigid barriers, the industry has heavily invested in advanced composites. A 2018 patent filing, WO2020083331A1, details thermal barrier materials specifically engineered for electric vehicle applications, highlighting how multi-layered composites can compress to accommodate normal cell swelling while maintaining their fire-retardant properties during a thermal event.[2]

However, heat is only half of the thermal runaway equation. As a failing cell's internal components break down, the liquid electrolyte vaporizes, generating a massive volume of flammable, toxic gas. If this gas is trapped within the rigid confines of the battery pack, the internal pressure will rapidly exceed the enclosure's structural limits.

AI

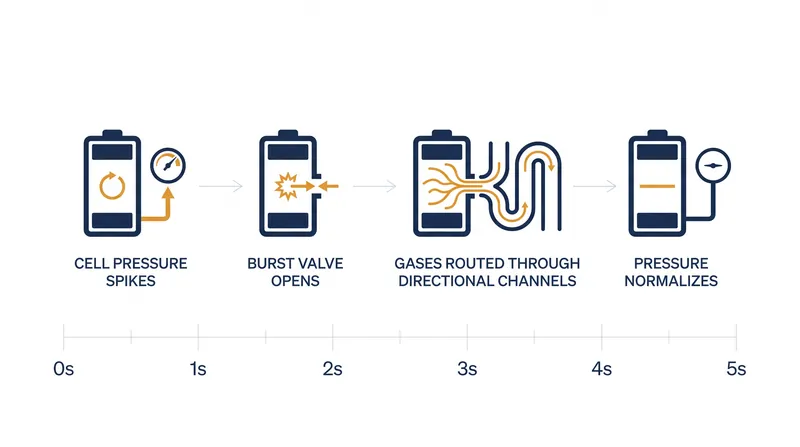

To manage this pressure, battery packs incorporate sophisticated venting systems. These systems utilize directional channels and burst valves calibrated to open at specific pressure thresholds. When a cell vents, the expanding gases are immediately routed away from the passenger cabin and expelled safely beneath the vehicle.

The design and placement of these venting mechanisms are governed by strict industry guidelines. The SAE International standard SAE-MA-03927 provides a comprehensive framework for EV battery pack venting, ensuring that pressure relief systems operate predictably across different vehicle architectures and environmental conditions.[3]

Some advanced pack designs integrate the thermal barriers and venting channels into a single structural matrix. By using the thermal barriers to physically guide the hot gases toward the exhaust valves, engineers can prevent the superheated vapor from impinging on healthy cells and triggering secondary thermal events elsewhere in the pack.

The ultimate goal of these combined systems is not necessarily to save the battery pack, but to guarantee passenger safety. Global automotive regulations mandate that a battery pack must provide at least five minutes of warning to the occupants before a single-cell failure breaches the passenger compartment.[5]

By isolating the initial failure with high-temperature barriers and safely exhausting the resulting pressure, modern thermal management systems routinely exceed this five-minute mandate. The result is a robust infrastructure where the failure of a single component is safely contained, ensuring that a localized hardware fault does not compromise the vehicle.[4][5]
