How the 6-to-60-Minute Percolation Test Dictates the Size of a Septic Drain Field

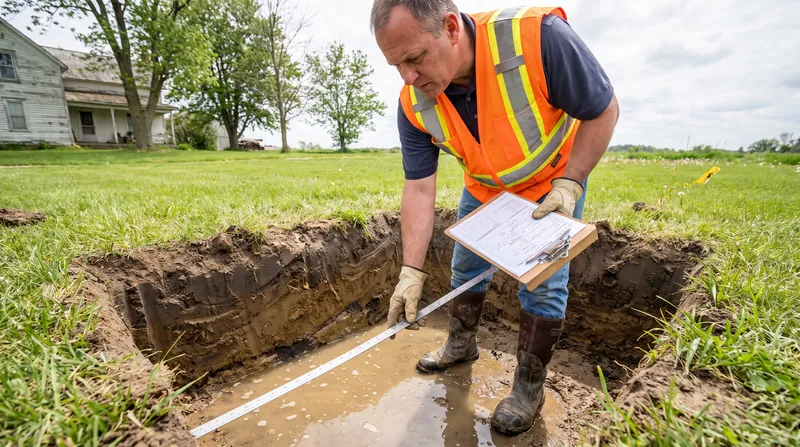

At the bottom of a 36-inch excavation in a rural backyard, a county health inspector pours a bucket of clear water over a two-inch layer of washed gravel and clicks a stopwatch. For the next four hours, they will measure exactly how many minutes it takes for the water level to drop a single inch. That single metric—the percolation rate, measured in minutes per inch (MPI)—will dictate whether a standard gravity drain field can fit on the property, how much excavation will be required, and whether the home can be built at all.[1][4]

A septic system relies on the surrounding soil to act as a biological treatment plant. "Research has demonstrated that such systems, if constructed and maintained properly, can provide a reliable and efficient means of wastewater treatment and disposal at relatively low cost," noted engineers Curtis J. Schmidt and Richard J. Otis in the 1980 EPA Design Manual for Onsite Wastewater Treatment. While the concrete or fiberglass septic tank settles out heavy solids and traps floating fats, the clarified effluent that exits the tank still contains pathogens, nitrogen, and dissolved organic matter. The drain field’s job is to distribute this effluent into the unsaturated soil, where naturally occurring bacteria consume the organic material and physical filtration traps the pathogens before the water reaches the underlying aquifer.[3]

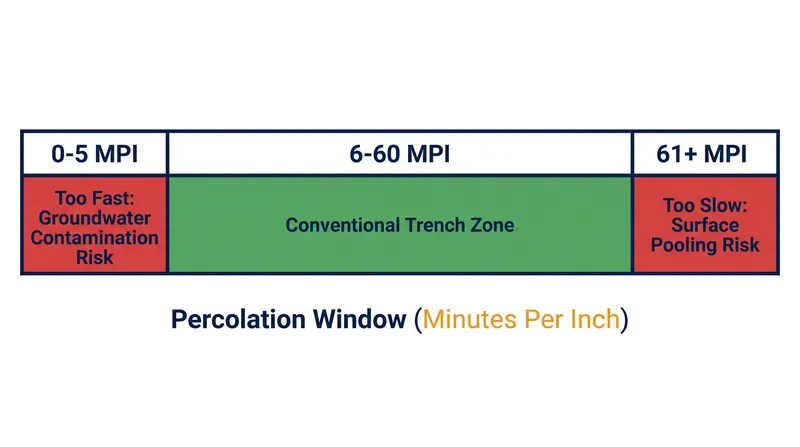

To perform this treatment, the soil must drain at a highly specific rate. The percolation test establishes a strict operational window, typically between 6 and 60 minutes per inch. If the water drops an inch in less than five minutes, the soil is too loose—often composed of coarse sand or gravel. Effluent will plummet through the soil profile too quickly, reaching the groundwater before the biological treatment process can destroy the pathogens, risking severe contamination of local drinking wells.[4]

Conversely, if the water takes more than 60 minutes to drop a single inch, the soil is too tight. Heavy clay soils lack the microscopic void space necessary to absorb hundreds of gallons of water a day. If a standard drain field is installed in 70-MPI soil, the effluent will eventually pool on the surface of the lawn, creating a biohazard, or back up into the home’s plumbing during periods of heavy use.[1][4]

When a site falls within the acceptable 6-to-60 MPI range, the exact percolation rate dictates the physical size of the drain field. The calculation begins with the home’s daily design flow. Under standard environmental codes, a three-bedroom home is estimated to generate 450 gallons of wastewater per day—calculated at a baseline of 150 gallons per bedroom.[3]

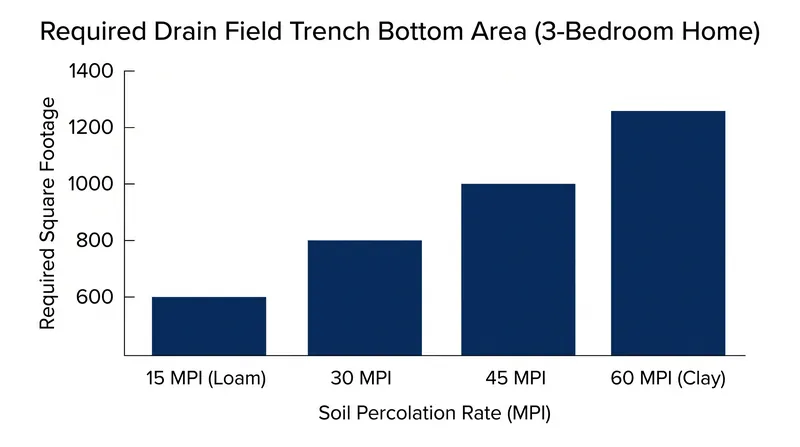

That 450-gallon volume must be divided by the soil’s loading rate, which is directly tied to the percolation test results. In a highly permeable loam with a percolation rate of 15 minutes per inch, the soil might safely absorb 0.8 gallons per square foot per day. But in a denser silt-loam that clocks in at 45 minutes per inch, the allowable loading rate drops significantly, requiring a much larger infiltrative surface area to handle the exact same 450 gallons.[2]

This mathematical shift translates into massive differences in excavation and material costs. A homeowner with fast-draining 15-MPI soil might only need 600 square feet of trench bottom area. Laid out in standard three-foot-wide trenches, that requires 200 linear feet of excavation, perforated pipe, and washed stone.[3]

If that same three-bedroom house is built on 45-MPI soil, the required trench bottom area can easily double. The homeowner is now paying for 400 linear feet of trench. Because trenches must be spaced several feet apart to prevent the soil between them from becoming saturated, the overall footprint of the drain field expands from a modest backyard patch to an area the size of a tennis court.[1]

The spatial demands do not end with the primary installation. Most modern environmental codes mandate a 100 percent reserve area. This is a designated, untouched section of the property, identical in size to the primary drain field, legally set aside in case the original system fails decades down the line. A slow percolation rate effectively doubles the size of both the primary and the reserve areas, consuming vast tracts of usable yard space.[1][2]

When a site fails the percolation test entirely by exceeding the 60-minute-per-inch limit, a conventional gravity trench system is legally prohibited. The property is not necessarily unbuildable, but the homeowner is forced into engineered alternative systems that bypass the native soil's limitations.[4]

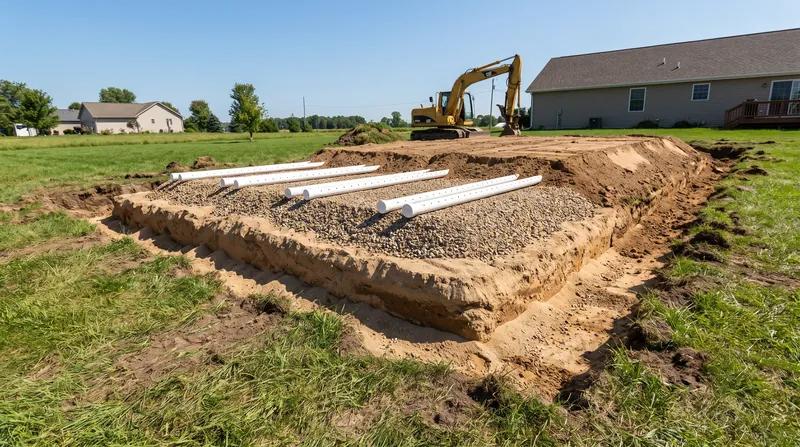

The most common solution for slow-draining clay is the mound system. Instead of burying the trenches, contractors import hundreds of tons of carefully graded, highly permeable sand and build an elevated treatment area above the natural grade. A dosing chamber and an electric pump are installed to push the effluent up into the mound in controlled batches, ensuring the liquid spreads evenly across the sand rather than pooling in one spot.[3][4]

While a mound system effectively creates a custom percolation environment, it fundamentally alters the landscaping and adds thousands of dollars to the installation cost, plus ongoing electrical and maintenance expenses for the pump. In extremely slow soils, some jurisdictions allow lagoon systems—open, fenced ponds where evaporation and aerobic bacteria treat the wastewater—provided the lot is at least three acres in size.[4]

If a site fails on the other end of the spectrum—draining faster than 1 to 5 minutes per inch—engineers must slow the effluent down. This is typically achieved by excavating the trenches deeper and installing a one-foot-thick loamy sand liner at the bottom to artificially restrict the flow, or by using pressure distribution networks that dose the field in tiny, frequent increments rather than allowing gravity to flood the pipes.[3][4]

The percolation test is only one half of the site evaluation. Before the stopwatch even starts, an excavator digs a deep observation pit—often six to eight feet down—to check for the seasonal high water table and restrictive bedrock layers. Even if the topsoil percolates perfectly at 20 minutes per inch, a water table sitting just 24 inches below the surface will disqualify a conventional trench, as the effluent would not have the required vertical separation to filter out pathogens before hitting groundwater.[1][4]

The percolation test translates the microscopic void space of local soil into a strict geometric footprint, anchoring the home's plumbing to the geologic reality of the lot. Until that water drops its final inch and the rate is recorded, any architectural plans for the property remain entirely theoretical.[5]
