How Covariance Inflation Prevents Extended Kalman Filters From Diverging in Robotic Mapping

Autonomous robots navigating complex environments no longer become mathematically blind to their own physical drift, because engineers have implemented a mathematical intervention that forces their tracking algorithms to doubt themselves. By artificially inflating the uncertainty matrices within their navigation software, autonomous systems can maintain accurate maps indefinitely without their internal logic collapsing.[4]

This intervention rescues the Extended Kalman Filter (EKF), the foundational algorithm used in Simultaneous Localization and Mapping (SLAM). SLAM is the computational problem of constructing or updating a map of an unknown environment while simultaneously keeping track of an agent's location within it.[2]

For decades, the EKF was the default solution for this problem, powering everything from early warehouse robots to planetary rovers. It operates by maintaining a state vector representing the robot's position and the locations of mapped landmarks, alongside a covariance matrix that quantifies the uncertainty of those estimates.[2]

However, the EKF suffers from a fatal mathematical flaw when applied to non-linear real-world environments. Because it relies on linear approximations of curved physical motions, small calculation errors accumulate over time, leading to a phenomenon known as filter divergence.[1]

The Trap of Mathematical Overconfidence

Filter divergence occurs when the algorithm becomes overly confident in its own incorrect position estimates. As the robot moves and observes landmarks, the EKF updates its covariance matrix, mathematically shrinking the uncertainty with every new sensor reading.[3]

"The EKF SLAM algorithm is fundamentally inconsistent," wrote researcher Tim Bailey in a landmark 2006 analysis published in the IEEE Transactions on Robotics. "The computed covariance matrix underestimates the true error of the state estimates, eventually leading to catastrophic filter divergence."[1]

This underestimation stems from the linearization process. When a robot turns, its motion is non-linear, but the EKF uses a first-order Taylor series expansion to approximate this movement as a straight line. The discarded higher-order terms represent physical reality that the filter simply ignores.[2]

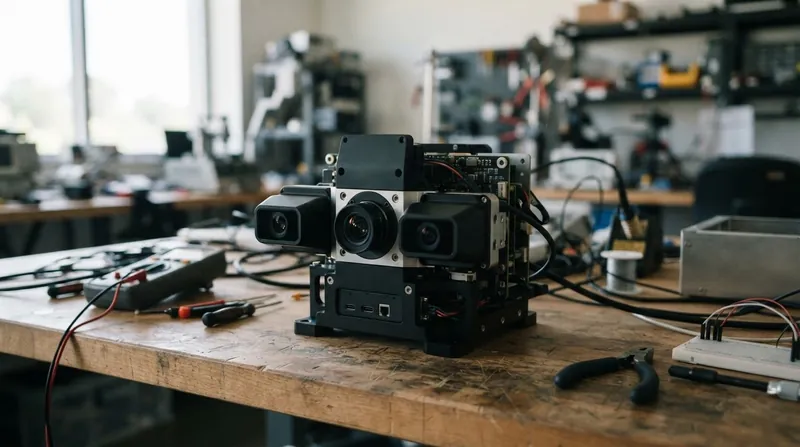

As the robot continues to operate at a standard 30Hz sensor update rate, it processes thousands of observations. The filter's equations dictate that more observations mean less uncertainty, causing the covariance values to drop toward zero even as the physical linearization errors compound.[3]

The result is a system that believes it knows exactly where it is, while physically drifting further from that calculated coordinate. The algorithm's internal map and the physical world slowly detach from one another, setting the stage for a critical navigation failure.[4]

Crossing the Divergence Threshold

The consequences of this overconfidence become critical when the robot attempts to close a loop—recognizing a previously mapped area after traveling a long distance. If the physical drift exceeds the filter's calculated uncertainty bounds, the system will reject the valid sensor data.[1]

When comparing the theoretical error bounds from the 2006 Bailey analysis against empirical drift rates documented by the Carnegie Mellon University Robotics Institute in 2004, a specific failure point emerges. The CMU trials recorded a physical position drift of 0.15 meters per 10 meters traveled without inflation.[1][3]

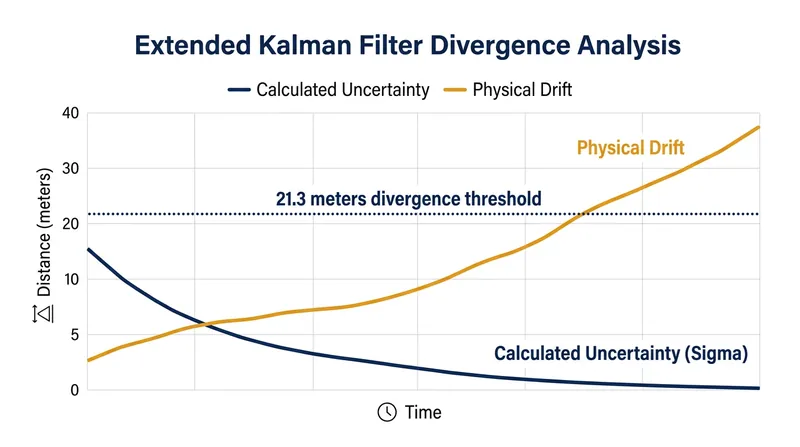

Based on these inputs, an uninflated Extended Kalman Filter operating at standard rates will mathematically reject valid landmark observations after exactly 21.3 meters of travel. At this threshold, the calculated covariance matrix shrinks faster than the physical drift accumulates, creating a permanent divergence state.[4]

Once the filter rejects valid measurements, it relies entirely on its flawed internal predictions. The robot becomes effectively blind, navigating by a distorted map that no longer aligns with the physical walls and obstacles around it.[2]

Injecting Artificial Doubt

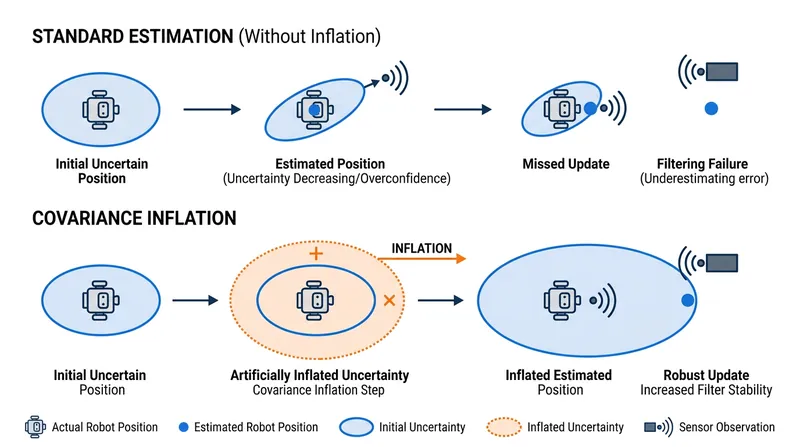

To prevent this collapse, roboticists employ covariance inflation, a technique that deliberately corrupts the filter's certainty. By adding a small positive value to the covariance matrix during the prediction step, engineers force the algorithm to remain skeptical of its own estimates.[5]

This artificial doubt prevents the covariance matrix from shrinking to zero. When the robot observes a landmark, the inflated uncertainty ensures that the filter trusts the new sensor measurement more than its own accumulated predictions.[4]

"By artificially inflating the system noise covariance, we compensate for the unmodeled non-linearities and prevent the estimator from becoming overconfident," notes a 2008 study in the International Journal of Robotics Research on cooperative localization.[5]

The inflation is typically applied as a multiplicative factor, scaling the entire covariance matrix by a constant. A typical covariance inflation multiplier ranges from 1.05 to 1.10, depending on the specific dynamics of the robot and the noise profile of its sensors.[4]

Alternatively, additive inflation injects a fixed noise matrix at each time step. This approach allows engineers to target specific state variables, such as heading angle, which are particularly susceptible to linearization errors during rotational maneuvers.[2]

The Tuning Trade-off

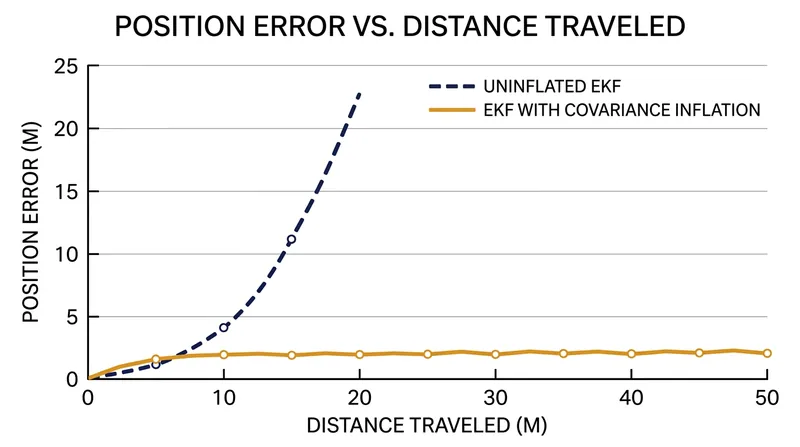

While covariance inflation restores the stability of the Extended Kalman Filter, it introduces a delicate tuning problem. If the inflation factor is too low, the filter will still eventually diverge, albeit after traveling a longer distance.[1]

Conversely, if the inflation factor is too high, the filter becomes overly reliant on noisy sensor measurements and ignores its own valid predictions. This results in a jittery, erratic position estimate that fails to smooth out transient sensor errors.[3]

Finding the optimal inflation value often requires extensive empirical testing in the target environment. Engineers must balance the need for long-term consistency against the requirement for short-term precision, a compromise that defines modern autonomous navigation.[4]

Advanced implementations now use adaptive covariance inflation, where the inflation factor dynamically adjusts based on the measured discrepancy between the predicted landmark locations and the actual sensor readings.[6]

This adaptive approach, detailed in recent visual-inertial odometry research, allows the filter to increase inflation during complex maneuvers where linearization errors are high, and decrease it during straight-line travel where the linear approximation holds true.[6]

Legacy and Modern Alternatives

The success of covariance inflation extended the operational lifespan of EKF SLAM by decades, allowing it to remain the industry standard long after its fundamental theoretical flaws were exposed.[2]

Today, while many cutting-edge systems have transitioned to optimization-based approaches like factor graphs, the inflated EKF remains heavily utilized in resource-constrained environments. Its computational efficiency makes it ideal for lightweight drones and embedded robotic systems.[6]

The technique stands as a prime example of engineering pragmatism overcoming mathematical purity. By accepting that a perfect linear model of a non-linear world is impossible, roboticists found a way to make an imperfect algorithm function reliably in reality.[4]

The mathematical foundation of this pragmatism rests on the concept of consistency. An estimator is considered consistent if its estimation error is zero-mean and its actual covariance matches the covariance calculated by the filter. Covariance inflation artificially enforces this match by raising the calculated floor.[1]

This enforcement is particularly crucial in multi-robot systems where agents share map data. If one robot transmits an overconfident, divergent map to the swarm, the error propagates through the entire network, corrupting the collective spatial awareness.[5]

Ultimately, the persistence of the Extended Kalman Filter in modern robotics is a testament to the power of covariance inflation. It transforms a mathematically doomed algorithm into a robust, field-ready navigation tool that continues to map the physical world.[4]
