How Iterative Action Denoising Prevents Mode Averaging in Robot Learning

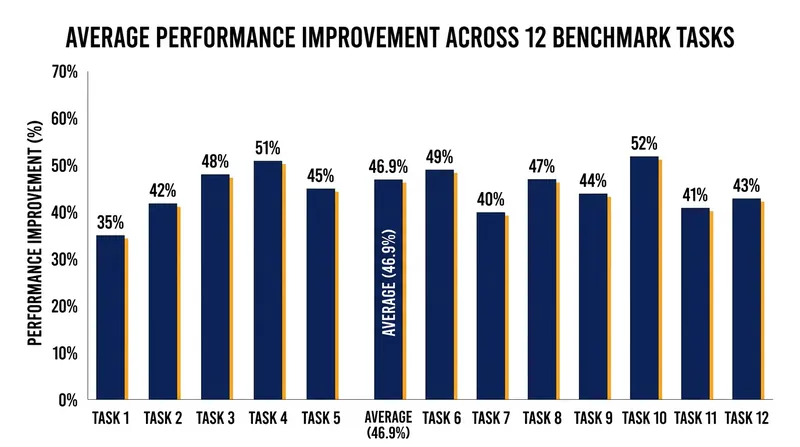

Across 12 standard robotic manipulation benchmarks, a single algorithmic shift has increased task success rates by an average of 46.9%. The breakthrough does not rely on new hardware, better motors, or higher-resolution cameras. Instead, it changes the fundamental mathematics of how a robot decides what to do next.[2]

For years, engineers trained robots using behavioral cloning, a method that treats learning as a deterministic regression problem. The robot observes a human demonstration and attempts to predict the exact motor commands that match it.[1]

This works perfectly when a task has only one correct solution. But human movement is inherently diverse and unpredictable. A person might pick up a coffee cup by the handle, or they might grasp it from the top, depending on subtle contextual cues.[1]

When forced to learn from both approaches simultaneously, traditional algorithms fail catastrophically. They attempt to average the two valid strategies, resulting in a motion that accomplishes neither. The robot simply splits the difference and misses the object entirely.[1]

A new framework called Diffusion Policy solves this by abandoning direct prediction entirely. By adapting the iterative denoising mathematics that power AI image generators, robots can now maintain multiple distinct strategies for a single task and execute them without hesitation.[3][5]

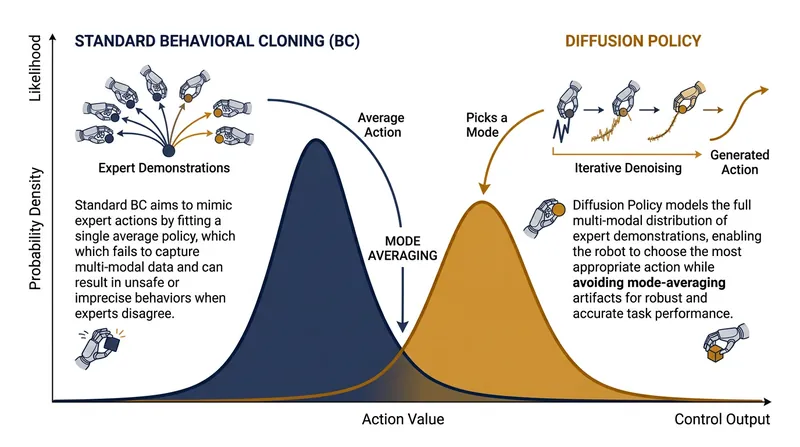

The Mode Averaging Trap

To understand why traditional robot learning fails, consider a robot trained to navigate around an obstacle. The training dataset contains 100 human demonstrations. In 50 of them, the human steers the robot to the left, and in the other 50, the human steers to the right.

Standard behavioral cloning minimizes the mean squared error between the robot's predicted action and the training data. The algorithm seeks a single mathematical output that minimizes its distance to all demonstrated examples simultaneously.[1]

Faced with a bimodal distribution—left or right—the mathematical mean is to go straight. The robot averages the two valid trajectories, drives directly into the obstacle, and fails the task entirely. It cannot comprehend that two contradictory actions can both be correct.

This phenomenon, known as mode averaging, has bottlenecked imitation learning for a decade. It forces engineers to meticulously clean their datasets, throwing away perfectly good demonstrations to ensure every task is performed in exactly the same way.[4]

"A model that must collapse this distribution to a single prediction will either commit to one mode and fail the other half of the time, or average the modes and produce a bizarre in-between trajectory that fails always," notes a 2026 analysis by the Robotics Center. This fundamental mathematical limitation has forced engineers to discard valuable training data for years.[1]

Generative Modeling for Physical Space

The solution emerged from an entirely different domain: generative artificial intelligence. Models like Stable Diffusion generate images by starting with a canvas of pure Gaussian noise and iteratively removing that noise until a coherent picture appears.[1]

In 2023, researchers at Columbia University published a framework that applied this exact process to physical movement. Instead of generating a grid of pixels, the model generates a sequence of motor commands. The mathematics remain identical, but the output is physical action.[3]

Under this Diffusion Policy, the robot does not look at a camera feed and attempt to calculate the correct joint angles directly. Instead, it starts with a completely random sequence of actions in the mathematical action space.[1]

The neural network then evaluates this noisy trajectory against the current visual observation. It calculates the gradient of the action distribution, determining which direction it needs to adjust the random numbers to make them look more like a human demonstration.[5]

Through a process called stochastic Langevin dynamics, the model iteratively refines the trajectory. Over 10 to 100 discrete steps, the noise coalesces into a precise, executable motion plan. The random initialization is sculpted into a deliberate physical movement.[2]

Preserving Multimodal Behavior

Because the diffusion process models the entire probability distribution of the training data rather than just the mean, it preserves multimodal behaviors perfectly. The model understands that "left" and "right" are both dense clusters of valid actions.[4]

When the denoising process begins, the random initialization naturally falls closer to one cluster or the other. The iterative refinement pulls the trajectory toward the nearest valid mode, committing entirely to that specific strategy.[5]

The robot never averages the modes because the space between them represents a low-probability valley in the distribution. It will confidently go left or confidently go right, but it will never go straight. The ambiguity is resolved during the denoising steps.[1]

This capability allows engineers to feed the network highly diverse, uncurated human demonstrations. The policy can absorb different grip styles, approach angles, and recovery maneuvers without suffering from the homogenization that plagues traditional regression models.[7]

Empirical results validate the approach. On a bimanual spreading task where operators used wildly different coordination strategies, Diffusion Policy successfully replicated the complex motions where standard behavioral cloning collapsed entirely. The robot smoothly handled the variance that previously broke the system.[1]

Masking the Latency Penalty

The primary drawback of iterative action denoising is computational cost. A standard regression policy requires a single forward pass through the neural network to predict the next action. A diffusion policy requires dozens of passes to achieve the same result.[1]

Running 10 to 100 denoising steps for every single motor command would introduce massive latency, making real-time physical control impossible. A robot cannot pause for half a second to compute its next millimeter of movement.[1]

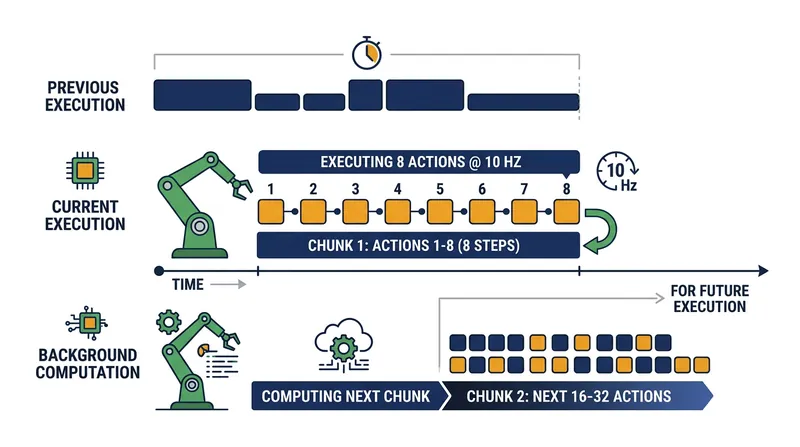

To solve this, the architecture employs a technique called action chunking. Rather than predicting a single instantaneous motor command, the diffusion model denoises an entire sequence of 16 to 32 future actions simultaneously.[1]

The robot executes the first 8 actions from this generated chunk at its standard control frequency, typically 10 Hertz. While those physical movements are occurring, the onboard computer is already denoising the next chunk in the background.[1]

This overlapping execution completely masks the computational penalty. The effective control rate remains bound only by the physical execution time, allowing the robot to benefit from complex generative modeling without sacrificing reaction speed.[6]

Data Scaling and Hardware Requirements

The shift from regression to generative modeling changes how robotics teams collect data. Traditional policies plateau quickly; feeding them more diverse data often degrades performance by introducing more modes to average.[1]

Diffusion policies exhibit the opposite behavior. Because the denoising network contains significantly more parameters and a richer modeling objective, it continues to improve as the dataset scales up. More variance simply creates a richer probability distribution.[1]

A practical baseline requires 100 to 200 demonstrations for a single task in a controlled environment. To achieve robust deployment capable of handling lighting changes and object position variance, teams typically budget 300 to 500 demonstrations.[1]

The representation of the visual data also dictates performance. For smaller datasets, freezing a pre-trained vision encoder provides better generalization. With datasets exceeding 500 demonstrations, training an image encoder end-to-end yields superior precision.[1]

The hardware requirements for training are substantial. Modeling high-dimensional action spaces—such as a 14-degree-of-freedom bimanual setup—requires significant GPU memory to handle the iterative diffusion steps across large batch sizes.[1]

The Future of Visuomotor Control

The adoption of iterative action denoising represents a fundamental shift in robot cognition. The field is abandoning the attempt to map observations directly to deterministic actions, recognizing that physical reality is too ambiguous for single-point predictions.[7]

By embracing probabilistic generative models, roboticists have unlocked the ability to train machines on the messy, contradictory, and highly effective ways that humans actually move. The algorithms finally match the complexity of the physical world.[4]

The 46.9% performance leap is not the ceiling; it is the baseline for a new architecture. As inference acceleration techniques like consistency distillation continue to mature, the latency of the denoising process will drop further.[1][2]

Ultimately, diffusion policies bridge the gap between high-level reasoning and low-level physical control. They provide the mathematical foundation necessary for generalist robots capable of navigating an unpredictable world.[6][7]
