Collinear Rotation Axes Collapse Euler Degrees of Freedom: How Unit Quaternions Prevent Gimbal Lock

When a spacecraft, a surgical robot, or a smartphone needs to understand its precise orientation in three-dimensional space, it relies on a mathematical representation of rotation. For decades, the standard approach across multiple engineering disciplines has been Euler angles, which describe orientation as a sequence of three distinct rotations around the X, Y, and Z axes.

These three angles—commonly known in aerospace as roll, pitch, and yaw—are highly intuitive because they map directly to human perception. A pilot can easily visualize pitching a nose up by 45 degrees or rolling a wing by 30 degrees. However, this intuitive system harbors a severe mathematical vulnerability.

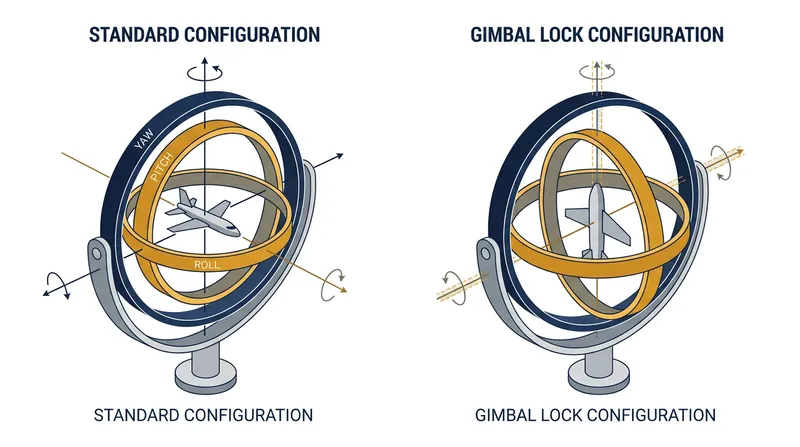

Under specific conditions, the Euler angle system breaks down entirely, causing a phenomenon known as gimbal lock. When the middle rotation in a sequence reaches exactly 90 degrees, the first and third rotation axes physically align with each other.[8]

"Gimbal lock occurs when the middle rotation in an Euler angle sequence reaches 90 degrees, causing the first and third rotation axes to align," explains a 2026 robotics curriculum from SiliconWit. "At this configuration, the three-parameter representation effectively collapses to two parameters."[2]

This collapse means that the system loses one degree of rotational freedom. If a drone's camera gimbal pitches straight down at 90 degrees, any subsequent command to yaw or roll will produce the exact same physical motion—spinning the camera around its vertical axis.[2]

The loss of a degree of freedom is not a mechanical failure of the motors or the hinges. It is a coordinate singularity, an artifact of the mathematics used to describe the orientation. The physical machine can still move in all directions, but the software can no longer calculate how to get there.[4]

The Mathematics of Gimbal Lock

To understand exactly why this catastrophic failure happens, engineers look at the rotation matrices used to compute these movements. A standard aerospace sequence applies yaw, then pitch, then roll in a strict order. Each individual rotation is represented by a 3x3 matrix, and the final 3D orientation is the product of multiplying all three matrices together.[7][8]

When the pitch angle is exactly 90 degrees, the cosine of the pitch becomes zero and the sine becomes one. This causes massive simplification in the resulting composite matrix. The separate terms for yaw and roll merge into a single algebraic expression, typically the sine or cosine of their sum.[7][8]

Because yaw and roll are now added together inside the same trigonometric function, the software cannot distinguish between them. A yaw of 10 degrees and a roll of 5 degrees produces the exact same matrix as a yaw of 5 degrees and a roll of 10 degrees. The system is mathematically locked.[7][8]

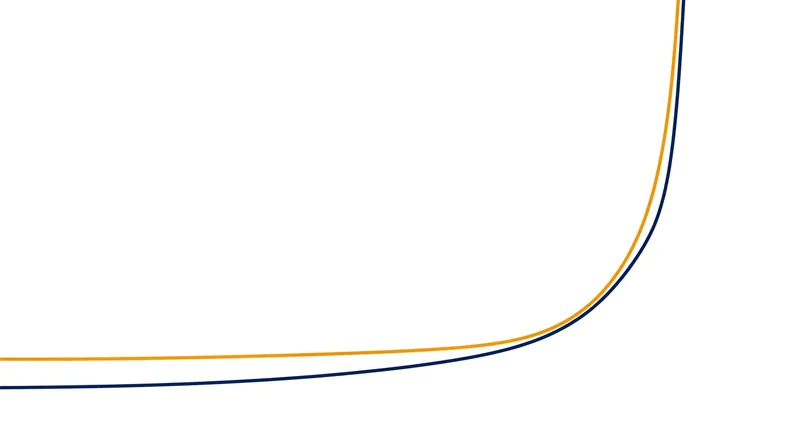

The effects of this instability begin to appear even before the system reaches exactly 90 degrees. According to Xsens, a manufacturer of motion tracking sensors, "gimbal lock effects are insignificant below Pitch = +-80 degrees, and very significant above Pitch = +-85 degrees."[3]

When a system approaches this threshold, the calculated values for yaw and roll begin to fluctuate wildly. The control software, attempting to maintain a smooth path, might command the physical motors to spin at impossible speeds to compensate for the mathematical singularity.[3]

Enter the Fourth Dimension

To solve this fundamental problem, modern aerospace and robotics systems abandon Euler angles entirely in their internal calculations. Instead, they rely on a mathematical concept discovered in 1843 by the Irish mathematician William Rowan Hamilton: the quaternion, a structure that extends complex numbers into higher dimensions.[9]

A quaternion is a four-dimensional mathematical object consisting of one real part and three imaginary parts. While Euler angles require three values to represent a 3D orientation, a quaternion requires four. This extra dimension provides the mathematical space needed to avoid singularities.[9]

"Quaternions provide a compact, efficient, and numerically stable method for representing 3D rotations," notes MathWorks in its aerospace documentation. "Unlike Euler angles, quaternions avoid gimbal lock and are more computationally efficient than rotation matrices."[6]

Because a rotation matrix requires nine values and complex trigonometric calculations, it is computationally heavy for real-time systems. A quaternion requires only four values and relies on simple arithmetic, making it ideal for the high-frequency control loops of drones and spacecraft.[6]

Double-Covering the Rotation Group

To represent a 3D rotation, engineers use a specific subset called unit quaternions, which have a magnitude of exactly one. Geometrically, these unit quaternions form a three-dimensional hypersphere, known as S3, embedded within four-dimensional space.[5]

This hypersphere has a unique topological relationship with the space of all possible 3D rotations, which mathematicians call the Special Orthogonal group, or SO(3). The group of unit quaternions is a double cover of SO(3).[5]

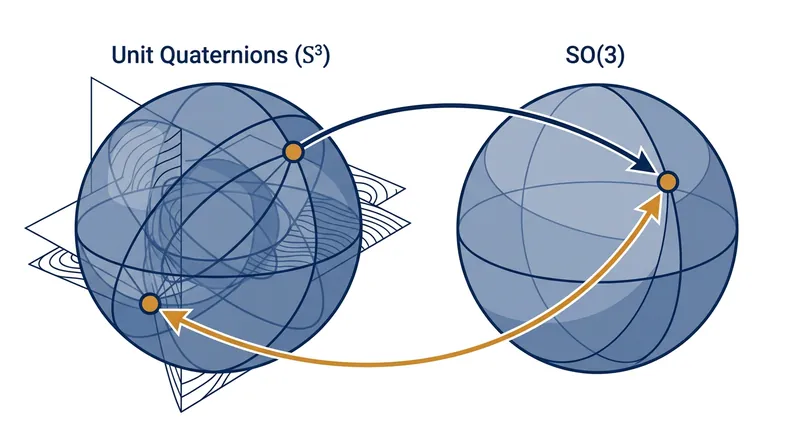

"This relationship is a double cover, where SU(2) is the universal covering group of SO(3)," explains a 2026 topological analysis. For every physical rotation in 3D space, there are exactly two unit quaternions that represent it: a positive quaternion and its exact negative.[5]

Because the quaternion space double-covers the rotation space, it can represent any orientation without ever encountering a coordinate singularity. There is no point on the hypersphere where degrees of freedom collapse, meaning gimbal lock is mathematically impossible.[1]

A 2025 paper published on arXiv highlights this advantage for engineering students. "Unit quaternions provide a compact, globally regular representation of rotation that eliminates these singularities and simplifies the composition, interpolation, and inversion of rotations."[1]

Interpolation Without Singularities

The continuous nature of the quaternion hypersphere also solves another major problem in robotics: interpolation. When a robotic arm needs to move smoothly from one orientation to another, the software must calculate all the intermediate orientations along the path.[2]

Interpolating directly between two sets of Euler angles often produces erratic, curved paths through space, especially if the path passes near a gimbal lock configuration. The robot might suddenly whip its wrist around to reach a mathematically equivalent set of angles.[2]

With quaternions, systems use a technique called Spherical Linear Interpolation, or SLERP. Because all unit quaternions lie on the surface of a hypersphere, SLERP simply traces the shortest great-circle path between the starting and ending quaternions.[2]

This guarantees that the physical motion of the robot or spacecraft will be the shortest, smoothest possible rotation between the two orientations, with a constant angular velocity and no sudden jumps.[2]

Why the Artifact is Mathematical, Not Mechanical

It is crucial for engineers to distinguish between mathematical singularities and mechanical ones. While quaternions solve the mathematical gimbal lock, they cannot fix physical limitations in a robot's hardware.[4]

"Quaternions eliminate the representation singularity (gimbal lock) in stored and interpolated orientation data," notes Industrial Monitor Direct in a September 2026 analysis. "Kinematic singularities... come from the arm geometry and the Jacobian losing rank, and are unaffected by the data format."[4]

If a six-axis industrial robot fully extends its arm so that the elbow is straight, it loses the ability to move the wrist directly toward or away from the shoulder. This is a mechanical singularity, and no mathematical representation can restore that lost physical mobility.[4]

However, if a system fails only when pointing straight up or straight down, and runs perfectly when the same physical motion is commanded in a different coordinate frame, the culprit is almost certainly Euler angles.[4]

Today, the division of labor in modern engineering is clear. Euler angles remain the standard for human interfaces, as pilots and operators need intuitive roll, pitch, and yaw displays to understand their vehicle's attitude. But beneath the surface, the flight controllers and motion planners immediately translate those inputs into quaternions for safe processing.[3]

By operating entirely within the four-dimensional hypersphere, modern control systems ensure that a satellite tracking a star or a surgical robot navigating delicate tissue will never lose its bearings, no matter how complex the maneuver becomes.[7]
