Dissipating Orbital Velocity: The Thermal Protection Trade-Off Between Ablation and Reusable Tiles

At 100 kilometers above the Earth's surface, a returning spacecraft hits the atmospheric interface, the exact boundary where orbital mechanics gives way to fluid dynamics. This is the moment the vehicle's kinetic energy must be aggressively converted into thermal energy to slow down. The velocity at this specific altitude dictates the peak heat flux the hull will experience, forcing engineers into a binary material choice before the craft ever leaves the launch pad: build a shield designed to burn away, or build one designed to survive.[9]

The physics of re-entry do not allow for compromise. A vehicle returning from Low Earth Orbit (LEO) hits the upper atmosphere at roughly 28,000 kilometers per hour. The shockwave compressed in front of the blunt body generates temperatures exceeding 1,500 degrees Celsius. According to the National Academies Press, managing this thermal load requires a Thermal Protection System (TPS) that can either absorb and reject the heat through phase change, or insulate the underlying aluminum and composite structures through extreme thermal resistance.[3]

Historically, the Apollo program relied on the former approach, known as ablation. Ablative heat shields are composed of carbon-phenolic or silicone-based resins that are intentionally designed to undergo pyrolysis. As the material heats up, it chars, melts, and vaporizes, carrying the thermal energy away from the spacecraft in the boundary layer of gas. This sacrificial process is highly predictable and capable of handling extreme temperature spikes.[5]

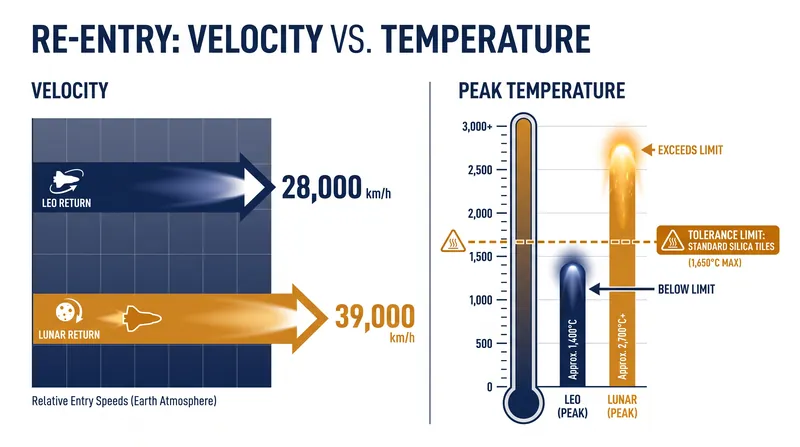

The American Institute of Aeronautics and Astronautics notes that this technology was directly transferred from Apollo to the modern Orion crew capsule. Orion utilizes an Avcoat ablator, a material injected into a fiberglass honeycomb matrix. Because Orion returns from lunar trajectories at velocities approaching 39,000 kilometers per hour, the resulting heat flux is too severe for any known reusable ceramic. The ablative shield guarantees survival by sacrificing its own mass.[6]

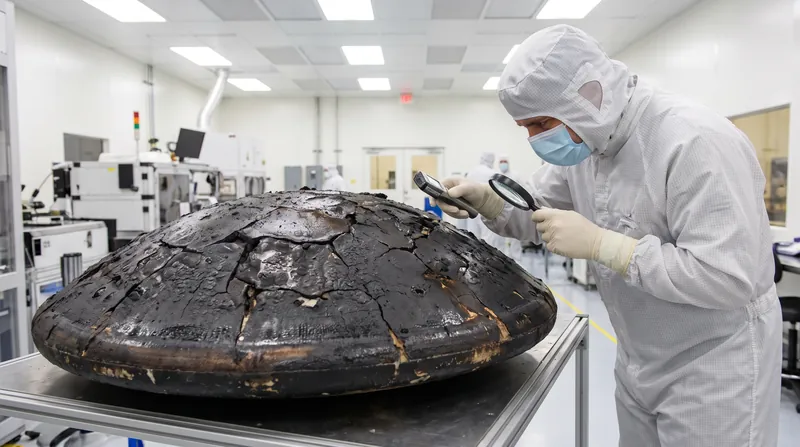

However, the operational penalty of ablation is absolute: the shield is destroyed during use. Every mission requires manufacturing, curing, and installing a completely new TPS. A 2025 market outlook by IDTechEx highlights that while ablative systems offer unmatched peak temperature tolerance, their single-use nature fundamentally limits launch cadence and drives up the per-mission cost of deep-space exploration.[4]

The alternative is the reusable tile, a technology pioneered by the Space Shuttle program and currently being iterated upon by commercial providers. Instead of burning away, these systems rely on highly porous ceramic materials—often silica or alumina—that possess exceptionally low thermal conductivity. They are designed to radiate heat back into the atmosphere rather than absorb it.[7]

A comparative analysis published in MDPI details how these integrated thermal protection systems function. A standard silica tile is roughly 90 percent air by volume. When the outer surface is subjected to 1,650 degrees Celsius, the internal structure prevents that heat from conducting inward. The surface radiates the energy back into the shockwave, while the vehicle's aluminum skin remains safely below 175 degrees Celsius.[1]

Yet, the transition from ablation to radiation introduces severe mechanical vulnerabilities. Hackaday's 2024 review of commercial thermal tiles compared to the Space Shuttle's High-Temperature Reusable Surface Insulation illustrates the fragility of porous ceramics. Because the tiles are mostly air, they are brittle. They can shatter from ice impacts during launch or crack under the acoustic and vibrational loads of ascent.[7]

Furthermore, the thermal expansion mismatch between the ceramic tiles and the underlying steel or aluminum hull requires a flexible strain isolation pad. A separate MDPI durability assessment of tile-type reusable materials emphasizes that these adhesive bonds are the primary failure point during repeated thermal cycling. If a tile detaches during ascent, the exposed hull will melt during re-entry.[8]

This fragility dictates the true cost of reusable systems: inspection and maintenance. During the Space Shuttle era, technicians spent thousands of hours manually inspecting, waterproofing, and replacing individual tiles between flights. The turnaround time was measured in months, negating the economic benefits of reusability and keeping the program's operational costs high.[7]

Modern commercial architectures attempt to solve this by standardizing tile shapes and utilizing automated attachment mechanisms. Some providers use hexagonal tiles mounted on mechanical pins rather than adhesive, allowing for rapid replacement of damaged sections. However, the fundamental trade-off remains: ceramics that are light and insulating enough for flight are inherently susceptible to mechanical damage.[9]

The International Journal of Engineering Research & Technology review on heat shields points out that hybrid approaches are currently under development. These include advanced carbon-carbon composites used on the leading edges of wings, which offer the reusability of ceramics with higher mechanical strength, though at a significantly higher manufacturing cost.[2]

Hypersonic vehicles present an even more complex thermal environment. Research published in Defense and Security Studies indicates that hypersonic glide vehicles experience sustained, lower-peak heat fluxes over much longer durations than ballistic capsules. This sustained thermal soak requires TPS configurations that combine active cooling or advanced ultra-high-temperature ceramics rather than traditional ablation or silica tiles.

NASA's Technical Reports Server documents ongoing efforts to develop conformal ablators—flexible, blanket-like materials that can be applied more rapidly than traditional honeycomb Avcoat. These materials aim to bridge the gap, offering the extreme heat tolerance of ablation with a manufacturing and installation process that supports higher flight cadences.[5]

Because the provided technical literature focuses strictly on material properties and thermodynamic limits rather than personnel, no engineers or program managers are directly quoted in these specific reference documents. The data itself dictates the boundaries of what is possible, leaving launch providers to navigate the constraints of physics.[9]

The choice between ablation and reusable tiles dictates a spacecraft's entire operational profile. If the mission requires lunar or interplanetary return velocities, the physics of heat flux mandate ablation. If the goal is rapid, aircraft-like reusability for LEO logistics, the vehicle must rely on radiating tiles, accepting the maintenance overhead that comes with brittle ceramics. The next generation of orbital infrastructure depends entirely on which material science barrier falls first.[9]
