China Begins Mass Production of Homegrown DUV Chipmaking Tools, Advancing Chip Self-Sufficiency

A Shanghai-based company has reportedly achieved a major engineering milestone by beginning the mass production of China's first homegrown immersion deep ultraviolet (DUV) lithography machines. The breakthrough represents a critical leap in Beijing's long-term push to build a fully localized semiconductor supply chain and reduce its reliance on Western technology. For years, the ability to print microscopic circuits onto silicon wafers has been the most significant bottleneck in China's technological ambitions, heavily dependent on imported machinery. By successfully transitioning this complex technology from the laboratory to the factory floor, the domestic semiconductor industry is demonstrating a newfound resilience and engineering capability that could reshape the global hardware landscape.[2][3]

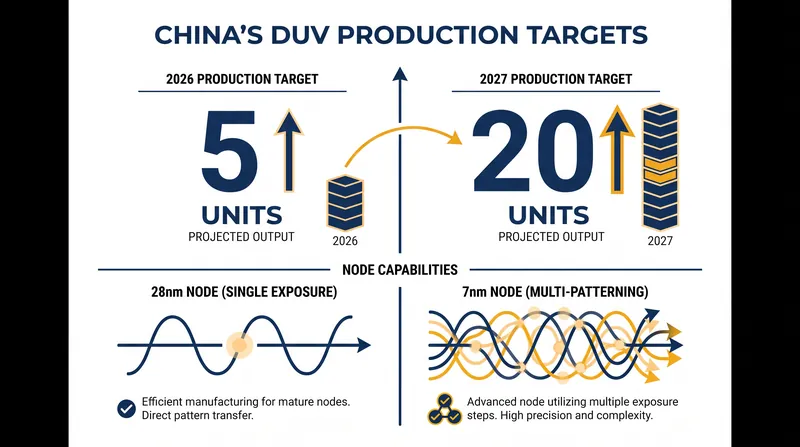

The state-backed startup, identified by industry watchers as Shanghai Yuliangsheng, is targeting a limited but highly significant initial rollout. According to reports, the company plans to produce about five DUV machines this year, scaling up to roughly 20 units in 2027. While these numbers are small compared to the massive output of global incumbents, they mark the crucial transition of Chinese lithography from prototype research to active commercial deployment. The methodical scale-up suggests a focus on quality control and iterative improvement rather than sheer volume, allowing engineers to refine the incredibly delicate optical and mechanical systems required for stable chip production.[3][4]

These initial units are expected to be delivered directly to leading domestic chipmakers to integrate into their active production lines. Semiconductor Manufacturing International Corp (SMIC), Hua Hong Semiconductor, and ChangXin Memory Technologies (CXMT) are reportedly among the first customers slated to receive the new scanners. By placing these machines directly into the hands of the country's largest foundries, the manufacturer ensures that the equipment will be tested under rigorous, real-world manufacturing conditions. This tight feedback loop between the equipment maker and the foundries is essential for identifying defects, improving wafer yields, and eventually scaling the technology to meet the massive domestic demand for silicon.[2][4]

Technically, the new immersion DUV scanner is reportedly designed to process 28-nanometer class chips in a single exposure, a mature node that powers everything from automotive electronics to consumer appliances. However, by utilizing advanced multi-patterning techniques—where the wafer is exposed to the light multiple times to create denser features—foundries could potentially use the tool to manufacture 7-nanometer or even 5-nanometer chips. While multi-patterning significantly increases the time and cost per wafer and often results in lower yields, it provides a viable pathway to produce the advanced silicon required for artificial intelligence accelerators and modern smartphones without relying on restricted foreign equipment.[4][7]

Immersion DUV lithography is widely considered one of the most complex engineering challenges in modern manufacturing, requiring a symphony of physics, chemistry, and precision engineering. The machines use an argon-fluoride excimer laser to produce deep ultraviolet light, which then travels through a layer of ultra-purified water placed directly over the final lens. This water layer alters the refraction of the light, allowing the machine to imprint microscopic, highly precise circuit designs onto silicon wafers with greater resolution than dry lithography. Mastering this process domestically requires not just the machine itself, but an entire ecosystem of specialized lenses, ultra-precise mirrors, and advanced photoresist chemicals.[4]

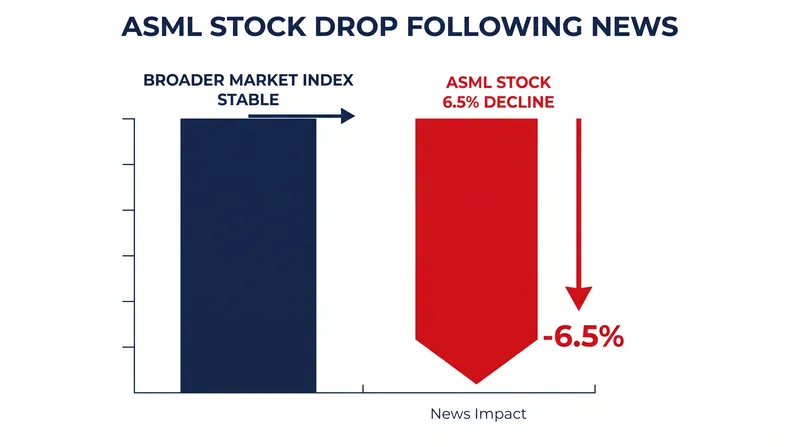

The news of this domestic breakthrough sent immediate ripples through the global semiconductor equipment market. Shares of ASML, the Dutch lithography giant that has long held a near-monopoly on advanced scanners, dropped as much as 6.5% following the reports. U.S. equipment manufacturers, including Applied Materials and Lam Research, also experienced stock declines as investors digested the long-term implications of a localized Chinese supply chain. The market reaction underscores the immense financial stakes involved; if Chinese foundries can source their most critical equipment domestically, the total addressable market for Western equipment manufacturers could shrink significantly in the coming years.[1][5][6]

China has historically been a crucial and highly lucrative market for ASML, accounting for a massive portion of its global sales. Because U.S. and Dutch export controls previously barred ASML from selling its most cutting-edge extreme ultraviolet (EUV) machines to China, Chinese chipmakers aggressively stockpiled ASML's older immersion DUV tools. These DUV sales became a massive revenue driver for the Dutch firm, representing up to 36% of its sales in recent years. The emergence of a viable domestic alternative means this critical revenue stream is now vulnerable, forcing global equipment makers to reassess their long-term growth projections in the Asia-Pacific region.[1][5]

Industry analysts note that Western export controls, designed to freeze China's chip capabilities at older-generation nodes, appear to have inadvertently accelerated Beijing's domestic research and development. By cutting off access to top-tier tools, the restrictions removed the easy option of importing technology and forced Chinese engineering teams to aggressively pursue self-sufficiency in the lithography bottleneck. This dynamic mirrors previous technological embargoes in history, where strict sanctions often catalyze massive state-backed investments and rapid innovation, ultimately creating formidable new competitors in industries that were previously dominated by a handful of established players.[5][6]

Despite the breakthrough, experts caution that the Chinese-built scanner is still at the very beginning of its production life and faces a steep learning curve. The system likely lags ASML's mature, highly optimized systems in terms of critical metrics like wafers-per-hour throughput, machine uptime, and overall defect rates. Furthermore, while the majority of the machine is built from domestic parts, some critical components are reportedly still imported from Japan and other regions, meaning the supply chain is not yet fully sovereign. Overcoming these hurdles will require years of relentless optimization and close collaboration with domestic component suppliers.[2][7]

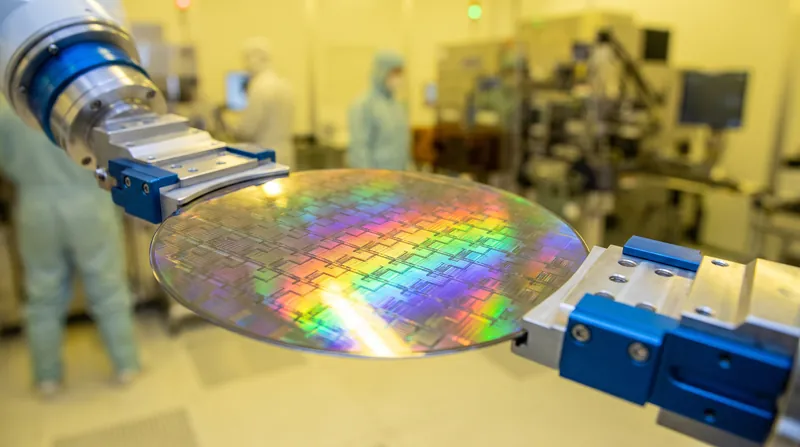

Getting from a successful pilot line to a stable, high-yield manufacturing floor is a genuinely difficult engineering leap that has historically taken established companies decades to perfect. SMIC has reportedly been trialing the new machine since late 2025, aiming for active mass production at the foundry level as early as 2027. The true test of the equipment will be its performance metrics during these extensive trial runs, specifically its ability to maintain microscopic precision across thousands of wafers without breaking down. The industry will be watching closely to see if the manufacturer can meet its ambitious production targets while maintaining the quality required for commercial chipmaking.[7]

If the 2027 production targets hold and the machines achieve commercial viability, Chinese foundries will gain a sovereign option for mature-node and multi-patterned advanced flows. This development would not only secure China's domestic chip production against future supply chain disruptions but also fundamentally alter the leverage dynamics of international export controls in the semiconductor industry. By proving that the lithography bottleneck can be overcome through focused domestic engineering, this milestone paves the way for a more diversified and competitive global semiconductor landscape, where technological capability is distributed across multiple independent ecosystems.[2][7]
