Altitude Compression: How Hypersonic Vehicles Defeat Ground-Based Early Warning Radar

At an altitude of 1,200 kilometers, a traditional intercontinental ballistic missile in its midcourse phase becomes visible to a ground-based radar from roughly 3,900 kilometers away. That geometric reality—dictated entirely by the curvature of the Earth—has anchored global nuclear deterrence for six decades. Because radar waves travel in straight lines, a target must rise above the horizon to be seen. For an ICBM traveling at seven kilometers per second, that 3,900-kilometer detection radius guarantees a defending command center approximately nine to ten minutes to track the warhead, calculate its trajectory, and launch interceptors [1].[1]

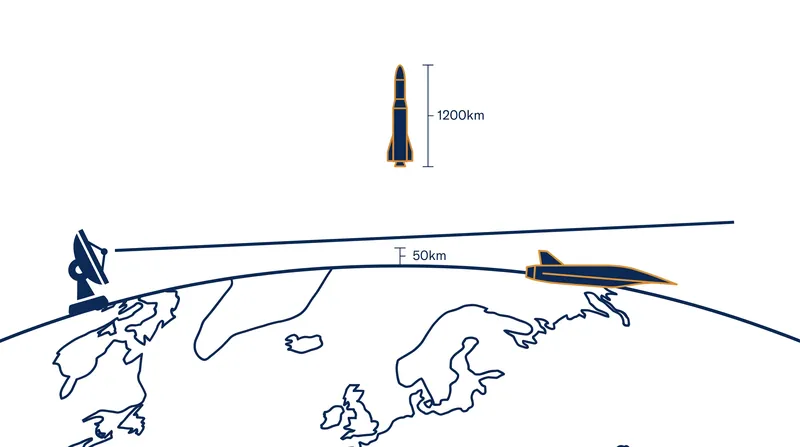

Hypersonic glide vehicles (HGVs) dismantle that mathematical foundation. While often defined in popular media entirely by their speed—flying at Mach 5 or higher—their primary tactical advantage is actually their cruising altitude. After being boosted into the upper atmosphere by a conventional rocket, an HGV detaches and surfs along the top of the stratosphere at an altitude of roughly 50 kilometers [3]. At that depressed height, the Earth's curvature physically hides the vehicle from ground-based radar until it is just 800 kilometers away [1][3]. The radar beam simply shoots straight out into space above the incoming weapon.[1]

The compression of that detection radius alters the fundamental calculus of missile defense and command authority. An HGV traveling at five kilometers per second crosses that 800-kilometer threshold just two and a half minutes before reaching its target. This 72% reduction in warning time strips away the window required for human-in-the-loop decision making, forcing defense systems to rely entirely on automated interception protocols [4]. A human commander cannot physically receive a warning, verify the track, assess the threat, and authorize a launch within a 150-second window.[3]

Ground-based interceptors, such as the US Patriot or Terminal High Altitude Area Defense (THAAD) systems, require precise, continuous tracking data to calculate an interception vector. When a traditional ballistic target is detected at 3,900 kilometers, radar systems have multiple minutes to paint the object, filter out radar-reflecting decoys, and establish a firm, predictable track [2]. When detection occurs at 800 kilometers, the tracking window shrinks to mere seconds. In a 2024 assessment of defense architectures, the Congressional Research Service noted that the depressed trajectory of these weapons 'challenges the ability of terrestrial radar to provide sufficient warning time for point-defense systems to engage' [1]. Furthermore, unlike ballistic warheads that follow a predictable parabolic arc governed by gravity, HGVs retain the ability to maneuver aerodynamically during their glide phase, meaning the initial radar track acquired as it crests the horizon does not reliably predict the vehicle's final destination.[1][2]

To compensate for the terrestrial radar horizon problem, modern militaries are actively shifting their early warning architecture into orbit. Space-based infrared sensors, such as the US Space-Based Infrared System (SBIRS), detect the intense heat of a missile's initial rocket launch regardless of the vehicle's eventual altitude [2]. However, once an HGV separates from its booster and begins its unpowered glide phase, its heat signature drops significantly. Tracking a relatively cool, maneuvering object against the cluttered thermal background of the Earth requires a dense constellation of low-Earth orbit tracking satellites, a capability that remains in the early stages of deployment and testing [3].[2]

The vulnerability of ground-based radar has driven a parallel shift in interception strategy. Because terminal point-defense systems lack the time to react to an HGV popping over the horizon at the last minute, defense contractors are developing 'glide phase interceptors' designed to engage the vehicle while it is still in the upper atmosphere, long before it reaches the target area [1]. These interceptors must rely on continuous targeting data passed down from the emerging satellite constellations, entirely bypassing the limitations of the ground-based radar horizon. If the terrestrial radar cannot see the threat in time, the interceptor must be guided by an eye in the sky.[1]

Until those space-based tracking networks and glide-phase interceptors are fully operational, the altitude compression achieved by HGVs creates a structural gap in global missile defense architectures. The basic physics of radar propagation cannot be altered; a standard radio frequency beam cannot bend around the curvature of the Earth to see what is approaching. As long as early warning relies primarily on terrestrial antennas, vehicles that fly low and fast will continue to dictate the timeline of engagement, leaving defenders with a severe geometric disadvantage [4].[3]

The structural consequence of this geometric reality is a mandatory lowering of the threshold for automated defense. When warning times drop below three minutes, the authorization to launch interceptors must inevitably be delegated to software. The transition from human oversight to algorithmic response represents a fundamental shift in how nuclear-armed nations manage the risk of strategic escalation. That shift is not driven by a desire for artificial intelligence in warfare, but entirely by the mathematical limits of line-of-sight detection on a spherical planet.
