The Resonance Effect: How VHF Radars Detect Stealth Aircraft and Why They Cannot Guide Missiles

Stealth technology does not render an aircraft invisible to the electromagnetic spectrum. Instead, fifth-generation fighters like the F-22 Raptor and F-35 Lightning II are engineered to delay detection by specific, high-frequency radar bands used for missile guidance. Against these systems, their geometric shaping deflects incoming energy away from the receiver.

This deflection reduces the aircraft's radar cross-section (RCS) to a fraction of its physical size. In the X-band, which operates at frequencies between 8 and 12 gigahertz, an F-22 returns an RCS of approximately 0.0001 square meters. That signature is roughly equivalent to a marble, giving fire-control radars almost nothing to track.

However, the laws of physics dictate that an airframe cannot be optimized against every frequency simultaneously. While radar-absorbent materials and planform alignment defeat short wavelengths, they lose their effectiveness against the longer waves of the Very High Frequency (VHF) band. In this regime, the fundamental mechanics of radar scattering change entirely.[1]

VHF radars operate between 30 and 300 megahertz, producing wavelengths that stretch from one to ten meters. When these long waves strike a tactical fighter, they do not bounce off the faceted edges. Instead, they interact with the entire structure of the aircraft, triggering a phenomenon known as the resonance effect.[2]

The Resonance Regime

When a radar wavelength is comparable to the physical dimensions of a target's features—such as a fighter's wingspan or tailfins—the airframe itself begins to resonate. This Rayleigh scattering forces the aircraft to radiate electromagnetic energy in all directions, including directly back toward the transmitting radar station.[1][2]

This resonance strips away the advantages of geometric stealth. According to a 2026 statistical analysis published by the American Institute of Aeronautics and Astronautics, the stealth capabilities of targets like the F-35 "significantly reduce" in the VHF band due to this scattering. The aircraft's carefully managed radar return balloons in size.[2]

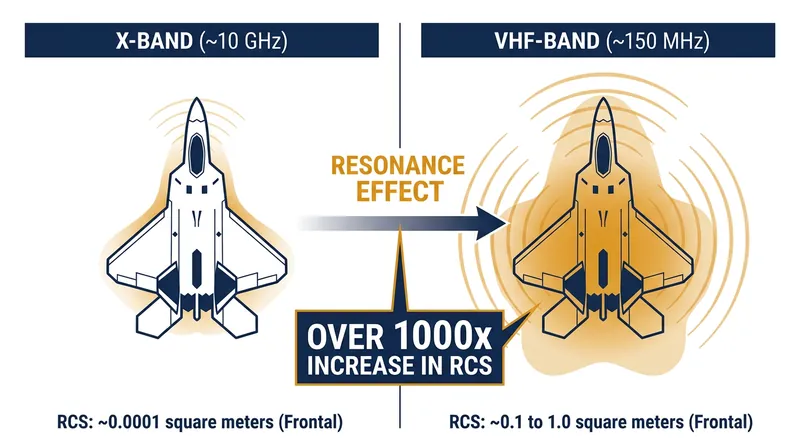

In the VHF band, the RCS of a stealth fighter can increase to between 0.1 and 1.0 square meters. That represents a hundredfold to thousandfold increase in detectability compared to its X-band baseline. To a VHF receiver, the marble-sized F-22 suddenly appears as large as a conventional aircraft.[3]

Air defense networks exploit this physical vulnerability to establish early warning perimeters. Systems like the Russian P-18 Spoon Rest and the newer Nebo-SVU broadcast massive amounts of low-frequency energy into the sky. They can detect the presence of low-observable aircraft at ranges extending hundreds of kilometers, long before the fighter reaches its target.

Yet, detecting a stealth fighter is only the first step in the kill chain. Knowing that an F-35 is in the airspace does not give an air defense battery the data required to shoot it down. The same long wavelengths that cause the airframe to resonate also create a crippling limitation for the radar operators.[1]

The Beam Resolution Problem

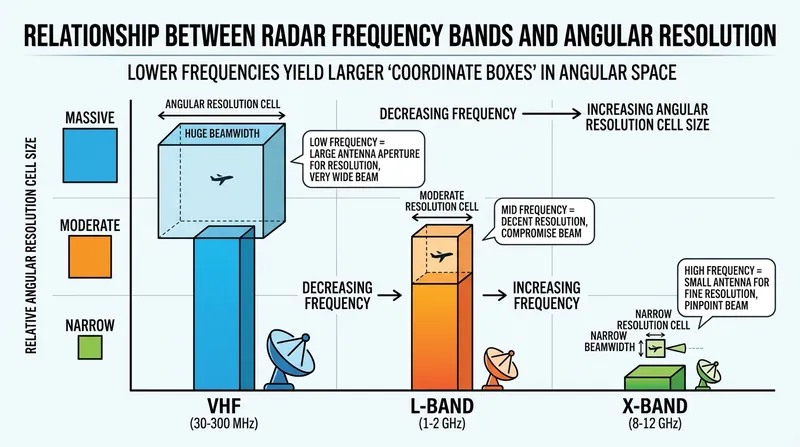

The precision of a radar system—its angular resolution—is directly tied to its wavelength and the size of its antenna. Because VHF waves are incredibly long, the resulting radar beam is wide and diffuse. This creates a massive resolution cell, meaning the radar can only place the target within a broad, generalized volume of space.[1]

A VHF radar might identify a stealth fighter's location, but only to an accuracy of several kilometers. A surface-to-air missile cannot fuse its warhead based on a coordinate box that large. As one U.S. Air Force official noted in 2016, "Even if you can see an L.O. strike aircraft with ATC radar, you can't kill it without a fire control system."[1]

To guide a weapon, the defense network requires a "weapons-grade lock." This demands the millimeter-level precision that only high-frequency X-band or Ku-band radars can provide. The tactical challenge for air defenders is bridging the gap between the VHF system that sees the aircraft and the X-band system that cannot.[1]

If a standalone VHF radar detects an incoming strike package, the operators must scramble interceptor jets to the general area or blindly fire missiles into the resolution cell. Neither tactic yields a high probability of a kill against a fifth-generation fighter. The solution requires networking multiple radar bands together in real time.[1]

Modern integrated air defense systems are designed specifically to solve this handoff problem. By fusing data from multiple arrays, these networks attempt to use the strengths of one frequency to cover the blind spots of another. The most prominent example of this architecture is the Russian 55Zh6M Nebo-M complex.[3]

Multi-Band Sensor Fusion

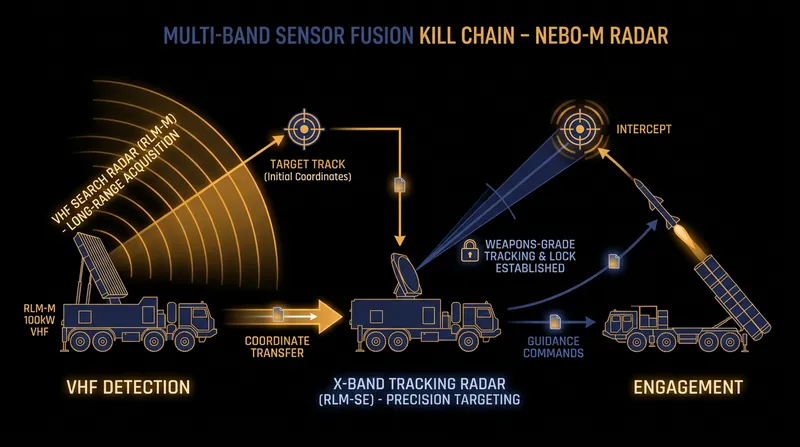

Introduced to the Russian Aerospace Defense Forces in 2015, the Nebo-M is a highly mobile, truck-mounted system that combines three distinct radar arrays. It deploys the Nebo-SVU for VHF-band coverage, the Protivnik G for the L-band, and the Gamma-S1 for the S and X-bands. A central command post fuses their data into a single tracking picture.[3]

The operational concept relies on the VHF array acting as the network's wide-angle lens. The Nebo-SVU sweeps the airspace, triggering the resonance effect to detect the stealth fighter at long range. Once the VHF radar establishes a rough track, it passes those coordinates to the high-frequency arrays.[3]

Instead of scanning the entire sky—which would dilute its energy and allow the stealth fighter to slip through—the X-band Gamma-S1 focuses all of its transmitting power on the specific sector identified by the VHF array. This concentrated burst of high-frequency energy attempts to burn through the aircraft's radar-absorbent coating.[3]

If the X-band radar successfully establishes a track, it generates the weapons-grade lock required to guide a surface-to-air missile. The Nebo-M then feeds this firing solution directly to networked missile batteries, such as the S-400 Triumf, completing the kill chain that the VHF radar initiated.

However, this multi-band handoff is far from foolproof. Even when cued by a VHF track, an X-band radar must still overcome the fighter's geometric shaping. If the aircraft is flying at a low altitude or presents an optimized aspect angle, the X-band array may still fail to secure a lock before the fighter releases its munitions.

The Tactical Trade-Offs

Furthermore, activating these massive radar arrays exposes the air defense network to immediate counterattack. A VHF radar emitting enough energy to detect an F-35 acts as a brilliant beacon on the electromagnetic spectrum. The stealth fighter's passive sensors can instantly geolocate the transmission source.

Once the radar's position is known, the aircraft can deploy anti-radiation weapons, such as the AGM-88 HARM, which ride the radar's own emissions back to the antenna. To survive, the radar operators must frequently shut down their transmitters and relocate, a tactic that breaks the tracking chain and allows the stealth aircraft to proceed.[3]

The physical size of VHF antennas also limits their tactical utility. To achieve even marginal angular resolution with meter-long waves, the radar requires an enormous physical aperture. These towering arrays are difficult to conceal, slow to deploy, and highly vulnerable to both kinetic strikes and electronic warfare.[1]

Stealth aircraft designers are well aware of the VHF threat and continually adapt their tactics. While tactical fighters cannot alter their physical dimensions to escape the resonance regime, larger stealth platforms like the B-2 Spirit and the upcoming B-21 Raider lack the tailfins and sharp angles that trigger the most severe scattering.[1]

For fighter-sized aircraft, the primary defense against VHF detection is electronic attack. Fifth-generation jets carry advanced electronic warfare suites capable of injecting noise and false targets into the enemy's radar network. This jamming degrades the already poor resolution of the VHF arrays, widening the coordinate box until it is tactically useless.[3]

The Limits of the Kill Chain

The interaction between stealth airframes and long-wavelength radar highlights a fundamental truth of modern aerial warfare: detection does not equal destruction. The electromagnetic spectrum is a contested environment where both sides exploit unalterable physical laws to gain a momentary advantage.[1]

VHF radars guarantee that no aircraft can operate with total impunity. By forcing airframes into the resonance regime, they deny stealth fighters the element of absolute surprise. The defenders will know that an attack is coming, and they will know the general vector of the approach.

Yet, the massive resolution cells inherent to long-wavelength physics ensure that stealth remains a decisive capability. The inability of VHF systems to guide weapons independently forces defenders to rely on complex, fragile handoffs to high-frequency arrays that the aircraft are explicitly designed to defeat.[1]

As long as the kill chain requires a weapons-grade lock to close the final mile, the geometric shaping and radar-absorbent materials of fifth-generation fighters will dictate the terms of the engagement. The radar may see the aircraft, but seeing is only the beginning of the problem.[3]

The ongoing development of multi-band systems like the Nebo-M represents the most direct challenge to this dynamic. By tightening the integration between early warning and fire control, air defense networks are attempting to compress the time a stealth fighter has to operate inside the contested airspace.[3]

The balance of power in this electromagnetic contest rests entirely on processing speed and tactical geometry. The stealth fighter must complete its strike and egress before the cued X-band radar can burn through its defenses, while the integrated defense network must secure its lock before an anti-radiation missile shatters the array.
