A New Analog Chip Architecture Cuts AI Energy Use by 47x for 3D Vision

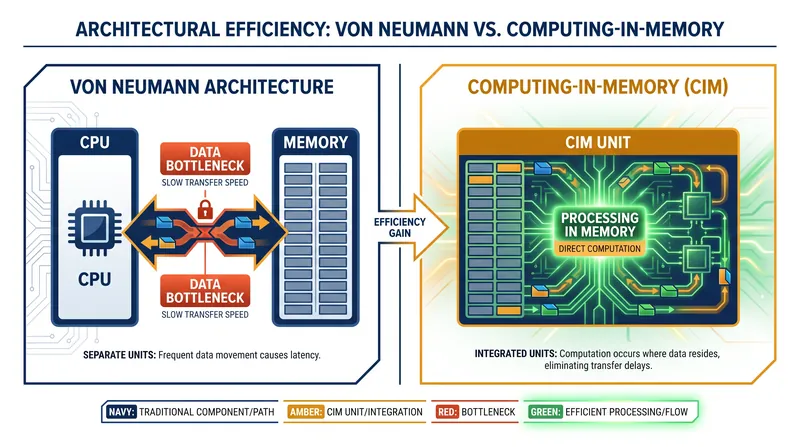

The artificial intelligence boom has collided with a physical wall: the von Neumann bottleneck. For decades, computers have been built with a strict separation between the memory chips that store data and the processing cores that perform calculations. Every time an AI model needs to compute a value, it must shuttle data back and forth across a microscopic highway. In modern, data-heavy applications like 3D computer vision, this constant transit consumes vastly more time and energy than the actual math itself.[1][6]

A newly published breakthrough in the journal Nature offers a radical, physics-inspired detour around this roadblock. A coalition of researchers from the University of Hong Kong, the Southern University of Science and Technology, and the Chinese Academy of Sciences has successfully demonstrated a hardware-software co-design that performs complex AI computations directly inside the memory cells. By utilizing resistive memory, the team achieved energy efficiency gains of up to 47.2 times that of state-of-the-art graphics processing units (GPUs).[1][2]

The research specifically targets the challenge of "sparse-input signal reconstruction." In many real-world scenarios—from medical imaging to autonomous driving—sensors cannot capture a complete, high-resolution picture of their environment. Instead, they gather sparse, scattered data points. The AI system must then reconstruct a flawless 3D scene from these fragments, a computationally grueling task that typically drains the batteries of edge devices and requires massive server racks.[1][3]

To solve this, the engineering team completely reimagined both the software algorithm and the physical silicon. On the software side, they employed "neural fields." Rather than storing a 3D space as a massive grid of individual voxels—which requires enormous amounts of memory—a neural field trains a compact neural network to learn the continuous physical properties of the space. This approach inherently compresses the data, making it mathematically elegant but traditionally heavy on processor compute cycles.[3][6]

The hardware innovation is where the true efficiency is unlocked. The researchers built a computing-in-memory (CIM) platform using Resistive Random-Access Memory (ReRAM). Unlike conventional digital memory, which stores data as binary ones and zeroes using electrical charge, ReRAM stores information by physically altering the electrical resistance of a solid-state dielectric material. This allows the memory cell itself to act as an analog resistor, performing matrix multiplication natively as current flows through it.[1][3]

"By bridging the gap between algorithm design and hardware realization, the researchers have charted a course that could soon redefine the boundaries of efficient computing in machine perception," notes the editorial synthesis of the findings. The system essentially mimics the human brain, where synapses simultaneously store memories and process incoming signals without shuttling data to a separate central processor.[2][6]

One of the most ingenious aspects of the design is its "Gaussian Encoder." In traditional digital computing, the inherent physical randomness—or stochasticity—of analog components is viewed as a flaw to be engineered out. However, the researchers turned this bug into a feature. They harnessed the natural, random variations in the formation of the resistive memory filaments to encode the incoming sparse data, entirely bypassing the need for a separate, power-hungry digital encoding circuit.[3][5]

Following the encoder, the data flows into a Multi-Layer Perceptron (MLP) Processing Engine. Because analog computing can be susceptible to noise and voltage drops, the team implemented a Hardware-Aware Quantization circuit. This ensures that the precise weights of the neural network are mapped accurately onto the physical resistance states of the memory cells, preventing the analog noise from degrading the final image quality.[3]

The physical evidence of this architecture is a 40-nanometer, 256-kilobit in-memory computing macro chip. When benchmarked against top-tier GPUs across various complex tasks, the physical prototype delivered staggering results. For 3D Computed Tomography (CT) sparse reconstruction, the chip demonstrated a 31.5-fold energy efficiency boost. For novel view synthesis—generating new camera angles of a static scene—it reached a 35.5-fold improvement.[1][3]

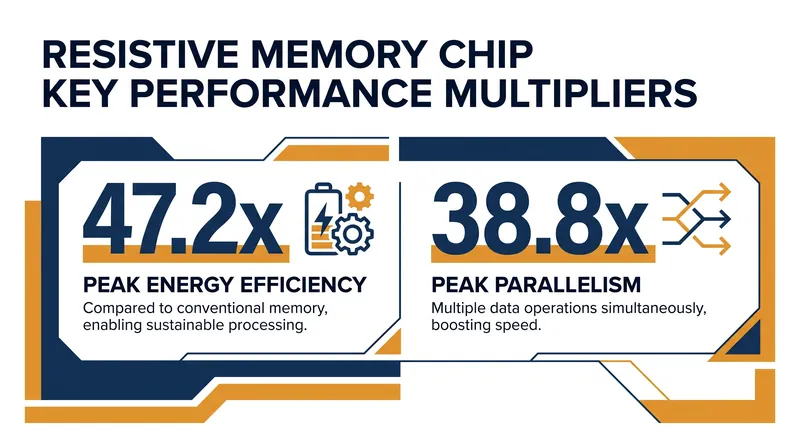

The peak performance was recorded during the reconstruction of dynamic, moving scenes, where the resistive memory chip achieved a massive 47.2-fold reduction in energy consumption. Furthermore, because the memory array computes all its stored weights simultaneously, the chip demonstrated peak parallelism improvements of 38.8 times over sequential digital processors, drastically cutting down the latency required to render a frame.[1][3]

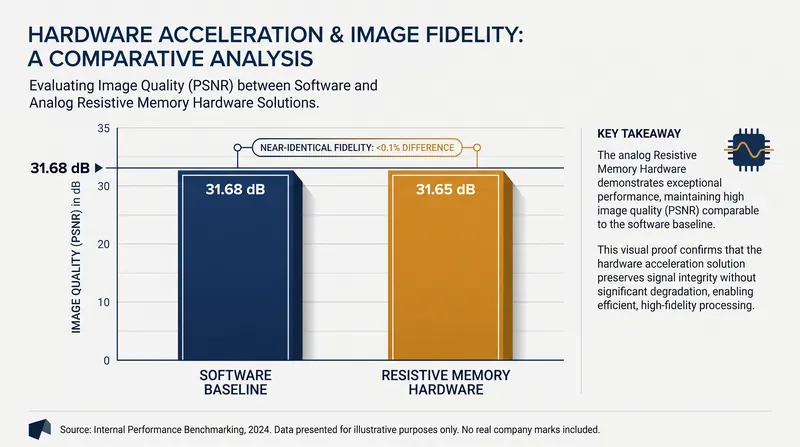

Crucially, these massive gains in speed and efficiency did not come at the expense of accuracy. In the realm of signal reconstruction, quality is measured by the Peak Signal-to-Noise Ratio (PSNR). The analog hardware achieved an average PSNR of 31.68 dB for 3D CT scans and 29.19 dB for dynamic scenes—metrics that are virtually indistinguishable from the pristine, energy-intensive software baselines running on digital supercomputers.[1][3]

The clinical implications for medical diagnostics are profound. CT scanners rely on taking multiple X-ray snapshots around a patient's body to build a 3D image. By utilizing this highly efficient sparse reconstruction hardware, medical facilities could theoretically capture far fewer X-ray slices—significantly reducing the patient's radiation exposure—while relying on the edge-computing chip to instantly and accurately reconstruct the full 3D organ in real-time, without needing a cloud connection.[2][6]

Beyond the hospital, the technology clears a major hurdle for the future of spatial computing. Augmented and virtual reality headsets currently struggle with a severe power-to-weight ratio; rendering high-fidelity, dynamic 3D environments requires heavy batteries and hot processors. A resistive memory architecture could allow lightweight, untethered glasses to perform novel view synthesis locally, sipping milliwatts of power while maintaining immersive frame rates.[4][6]

Despite the triumphant prototype, the path to commercialization faces steep manufacturing realities. The current test macro is 256 kilobits—a proof of concept. Modern commercial AI models require gigabytes of parameter storage. Scaling resistive memory arrays to that density while maintaining uniform resistance states across billions of microscopic cells remains one of the most notoriously difficult challenges in semiconductor fabrication.[5][6]

Furthermore, while the hardware-aware quantization mitigates analog noise at the macro scale, larger arrays introduce complex issues with "IR drop"—the loss of voltage as current travels down longer microscopic wires. Silicon foundries will need to develop new interconnect materials and error-correction protocols before these analog chips can be mass-produced with the reliability of standard digital silicon.[5]

Nevertheless, the successful demonstration of a fully integrated, software-hardware co-design marks a definitive turning point. It proves that the AI energy crisis cannot be solved by simply shrinking transistors on a von Neumann architecture. Instead, the future of efficient machine intelligence lies in embracing the messy, analog physics of the materials themselves.[2][6]

As the demand for edge AI continues to outpace the energy capacities of mobile devices, architectures that fuse memory and computation will transition from academic curiosities to industry necessities. By proving that analog stochasticity can be harnessed for precise, high-fidelity 3D vision, this resistive memory framework lays the foundation for a new generation of truly brain-like computers.[1][6]
