Why Solid-State Batteries Short-Circuit, and How Mechanical Stress and Interlayers Stop Lithium Dendrites

A modern electric vehicle battery holds enough energy to power an average home for 3 days, but packing that power into a smaller space requires fundamentally changing the chemistry inside the cell. The industry's long-term goal is the solid-state lithium battery, a design that replaces the flammable liquid electrolyte found in today's electronics with a solid ceramic or polymer. This swap theoretically allows manufacturers to use pure lithium metal as the anode, potentially doubling the energy density of the battery and pushing vehicle ranges past 600 miles on a single charge. But despite years of breakthrough announcements from startups, the transition has been stalled by a microscopic flaw: lithium dendrites.

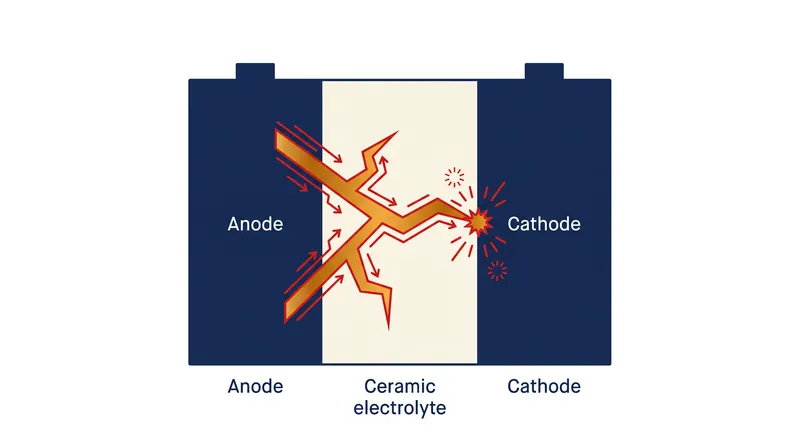

During the charging process, lithium ions migrate from the cathode, across the electrolyte, and deposit onto the anode. In a perfect, theoretical system, these ions would settle into a smooth, even layer of metal. Instead, the lithium often accumulates in sharp, branching structures known as dendrites. These microscopic filaments are frequently thinner than 10 nanometers, yet they possess a rigid, needle-like structure that allows them to pierce the materials separating the positive and negative sides of the battery.

Once a dendrite bridges the gap between the anode and the cathode, it creates an internal short-circuit. This direct connection allows the battery's stored energy to discharge instantly, generating immense heat. In traditional lithium-ion batteries, this thermal runaway can ignite the liquid electrolyte, leading to catastrophic fires. Solid-state batteries eliminate the flammable liquid, which removes the immediate fire danger, but a dendrite-induced short still instantly kills the cell, rendering the device or electric vehicle completely useless. This failure mode has kept solid-state technology confined to research laboratories.

For years, materials scientists operated under a straightforward assumption: if the liquid electrolyte were replaced with a hard, solid ceramic, the dendrites would be physically blocked from growing. Ceramics like lithium lanthanum zirconium oxide (LLZO) possess a high shear modulus, meaning they are exceptionally stiff. Early models suggested this stiffness would force the lithium to deposit flatly against the surface. But when researchers actually built these solid-state cells, the dendrites still found a way through, often short-circuiting the batteries after just a few dozen cycles.

The mystery of how soft lithium metal could penetrate hard ceramic was solved by examining the electrical properties of the electrolytes themselves. A 2019 study published by the Oak Ridge National Laboratory and the National Science Foundation revealed that the problem lies in the material's electronic conductivity. Solid electrolytes are designed to conduct ions—the charged particles that carry energy—while strictly blocking the flow of electrons. If electrons cannot move through the barrier, the lithium should only form on the designated anode surface.[4]

However, the 2019 research demonstrated that materials like LLZO and amorphous Li3PS4 inadvertently allow a small number of electrons to leak through their crystalline structures. When these rogue electrons meet lithium ions migrating through the ceramic, they neutralize the ions prematurely. This causes lithium metal to nucleate directly inside the bulk of the ceramic, forming isolated pockets of metal that rapidly expand into dendrites from the inside out, rather than just growing from the surface of the anode.[4]

To halt this internal growth, engineers have turned to chemical interventions, specifically the introduction of a solid electrolyte interphase (SEI). Research published by the Royal Society of Chemistry demonstrated that applying a thin, chemically stable coating between the lithium metal and the solid electrolyte can physically block the dendrites. This engineered interlayer reacts with the lithium to form a barrier that maintains high ionic conductivity—often approaching 10^-3 Siemens per centimeter—while completely shutting down the leakage of electrons.[1]

A 2025 comprehensive review in the journal Batteries highlighted how these artificial interlayers are transforming battery stability. When materials like lithium phosphorus oxynitride (LiPON) or lithium fluoride are applied to the surface of the solid electrolyte, they lower the energy barrier for uniform lithium deposition. Instead of clustering into sharp points, the lithium is guided to spread evenly across the anode, preventing the filaments from taking root in the first place.[2]

The performance gains from these chemical coatings are substantial. In one trial analyzing a lithium fluoride-rich interphase, researchers enhanced the critical current density of the cell—the maximum charging speed it can handle before dendrites form—from 0.7 milliamperes per square centimeter to over 2.0 milliamperes per square centimeter. This breakthrough allows the solid-state battery to charge nearly three times faster without risking a short-circuit, a crucial metric for electric vehicle adoption.[2]

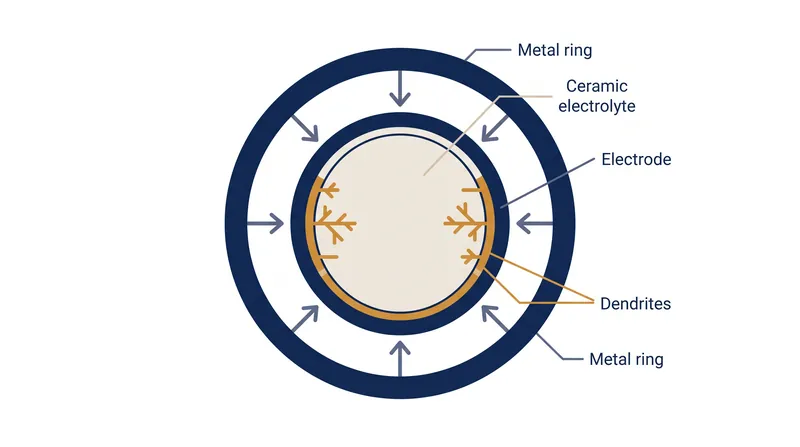

Beyond chemical coatings, researchers are finding success with physical force. A 2026 study from the SLAC-Stanford Battery Center found that applying mechanical compression to the solid electrolyte can dictate the behavior of the lithium metal. By squeezing the battery with a metal ring, the team altered the internal stresses of the ceramic, deflecting the propagation direction of any dendrites that managed to form.[5]

Instead of growing vertically toward the cathode, the mechanical compression forced the dendrites to grow horizontally along the surface of the electrolyte. This horizontal growth prevents the filaments from bridging the gap between the electrodes, effectively neutralizing the short-circuit risk. Under this compression, the experimental solid-state cells survived for thousands of charging cycles with no degradation in safety.[5]

"We want to make reliable, energy-dense batteries that are fast charging," said Teng Cui, a postdoctoral researcher at Stanford University who conducted the compression research. "This research shows us several of the steps that need to happen to make that possible." The Stanford findings provided direct evidence that managing the mechanical environment of the cell is just as important as managing its chemistry.[5]

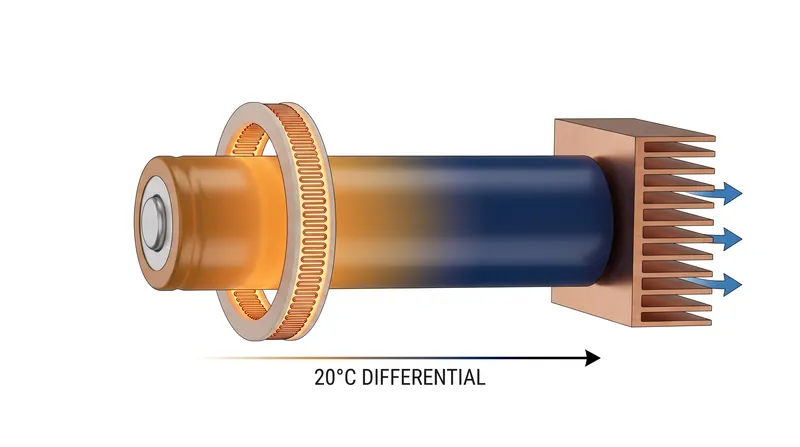

Temperature manipulation offers another, highly accessible pathway to mechanical stability. In January 2026, engineers at Brown University demonstrated that applying a temperature gradient across the solid electrolyte creates a localized mechanical stress that effectively suppresses dendrite formation. By heating one side of an LLZTO electrolyte with a ceramic ring and cooling the other with a copper heat sink, the team created a thermal imbalance that physically restricted the lithium's ability to branch.[3]

The Brown University team found that a difference of exactly 20 degrees Celsius between the hot and cold sides of the electrolyte was sufficient to block the destructive growth. This modest temperature gradient yielded a 300 percent improvement in the charging performance of the cell, offering a surprisingly simple solution to a complex materials science problem. By leveraging thermal dynamics rather than relying solely on chemical perfection, the researchers bypassed one of the most stubborn failure modes in battery engineering.[3]

"Dendrites are one of the biggest challenges plaguing next-generation solid-state batteries," said Zikang Yu, a graduate student in Brown's School of Engineering and the paper's lead author. "But we show that temperature-induced mechanical stress effectively suppresses them." Because electric vehicle battery packs already incorporate advanced thermal management systems, applying a targeted temperature gradient could be implemented without requiring exotic new materials.[3]

The combination of these three strategies—chemical interlayers, mechanical compression, and thermal gradients—provides a clear roadmap for moving solid-state batteries out of the laboratory. However, a laboratory proof-of-concept is not a commercial product. The challenge now shifts from fundamental science to advanced manufacturing. Scaling these precise, multi-layered architectures to gigafactory production volumes remains a formidable logistical hurdle, as the coatings must be applied flawlessly across millions of cells.[6]

As automakers and consumer electronics companies push for lighter, safer, and more powerful energy storage, mastering the interface between lithium metal and solid ceramics will dictate which technologies ultimately reach the market. With the mechanisms of dendrite growth now understood and proven suppression strategies in hand, the era of the solid-state battery is closer to commercial reality than ever before.[6]
