Why Doubling Transmission Voltage Cuts Power Line Loss by 75%

Stand beneath a 500-kilovolt transmission line on a quiet afternoon, and the air itself seems to hum. That faint, continuous crackle is corona discharge—electricity ionizing the surrounding oxygen and escaping into the sky. To an observer on the ground, it sounds like a system leaking energy. Yet grid operators intentionally push electricity to these extreme, volatile pressures before sending it across the country.

They do so because of a mathematical physical law that dictates how energy degrades into heat. By stepping up the voltage of a transmission line, operators are not just pushing power harder; they are exploiting an inverse-square relationship that cuts the line's resistive heat loss by exactly 75 percent.[6]

The United States power grid is often described as the largest machine in the world, a sprawling network of generation, transmission, and distribution infrastructure. But it is a leaky machine. The U.S. Energy Information Administration estimates that approximately 5 percent of all electricity generated nationwide is lost before it ever reaches a meter.

Over a 70-year span ending in 2022, technological and regulatory advancements have steadily driven this figure down from a historical high of 15 percent. The primary mechanism behind that efficiency gain has been the steady escalation of transmission voltages, which allows utilities to transport massive amounts of power over hundreds of miles with minimal degradation.[1][4][5]

To understand why voltage is the key to efficiency, one must look at how electricity moves through a conductor. Power is the product of voltage (the pressure pushing the electrons) and current (the volume of electrons flowing).

To deliver a specific amount of power—say, 1,000 megawatts from a wind farm to a distant city—an operator can either use a low voltage and a massive current, or a high voltage and a very small current. The choice dictates how much of that energy will survive the journey, because the aluminum and copper cables that make up the grid are not perfect conductors.[2][3]

As a high volume of current flows through a transmission cable, the electrons constantly collide with the atomic structure of the metal. This resistance generates friction, which manifests as heat—a phenomenon known as Joule heating. If a line carries too much current, it can heat up to the point where the metal physically expands and sags toward the ground, creating a severe safety hazard. Therefore, the fundamental engineering challenge of power transmission is moving the maximum amount of energy while generating the minimum amount of heat.[2][3][5]

This is where the mathematics of Joule's first law provide a massive advantage. The law states that the energy lost to heating in a conductor is proportional to the resistance of the wire multiplied by the square of the current. Because the loss scales exponentially with the current, any reduction in the volume of electrons flowing through the wire yields a disproportionately large reduction in heat.[2][5]

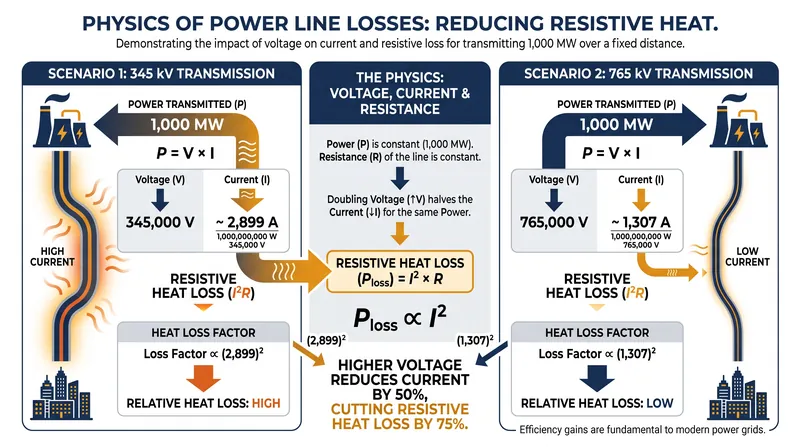

When a grid operator doubles the voltage on a transmission line, the current required to deliver the same amount of power is cut exactly in half. Because the heat loss scales with the square of that current, halving the current reduces the resulting friction to 0.25.

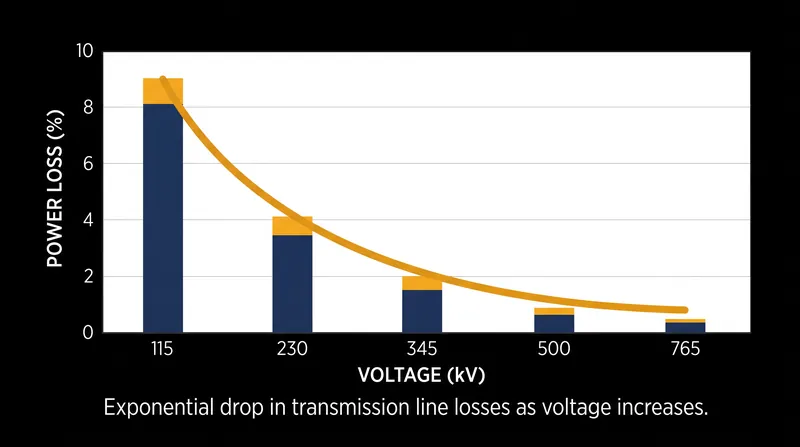

In practical terms, this means that doubling the voltage mathematically eliminates 75 percent of the resistive line losses. A 100-mile span operating at 345 kilovolts might lose 4.2 percent of its 1,000-megawatt payload to heat; upgrading that same load to a 765-kilovolt line drops the loss to roughly 1 percent.[2][5][6]

This exponential efficiency gain explains why the modern grid relies on massive step-up transformers at generation sites. A power plant might generate electricity at 20,000 volts, but before that power enters the long-haul transmission system, transformers push it up to 230,000, 345,000, or even 765,000 volts. At these extreme pressures, the current becomes a mere trickle compared to the raw power being moved, keeping the cables cool and the energy intact across vast distances.[3][5]

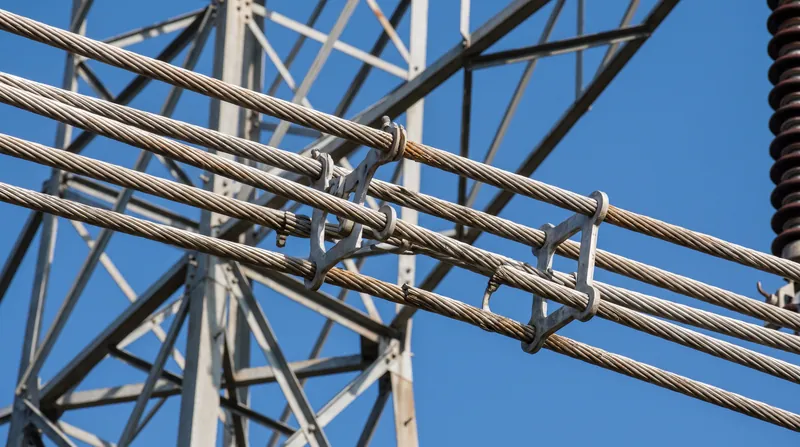

However, the push for higher voltages is not without physical limits. As voltage increases, the electric field surrounding the wire becomes so intense that it begins to ionize the air, leading to the corona discharge that hums audibly from the towers. At voltages exceeding 2,000 kilovolts, these corona losses become so severe that they can entirely offset the efficiency gained from reducing the resistive heat. To mitigate this, engineers use bundle conductors—multiple parallel cables that distribute the electric field and keep the air from ionizing too rapidly.[1][5]

The infrastructure required to support these voltages is also massive and expensive. Higher voltages require taller towers, wider rights-of-way, and significantly larger ceramic or polymer insulators to prevent the electricity from arcing directly to the grounded steel structures. The Natural Resources Defense Council notes that updating and expanding this high-voltage network is critical for integrating new renewable energy sources, which are often located far from urban demand centers.[3][4]

The 75 percent efficiency rule dictates the architecture of the entire renewable energy transition. As the grid shifts toward remote wind and solar resources, minimizing the energy lost in transit becomes just as important as generating the power in the first place.

Yet, as Stanford University researchers note, "Without a revolutionary breakthrough in conductor materials, the efficiency of modern transmission systems is likely approaching an asymptote in the range of 4-5%." Until those new materials arrive, managing the delicate balance between voltage and current remains the only way to ensure that electricity generated on a windy plain actually reaches the cities that need it.[1][4][6]
