Why Classical Architects Bulged Columns to Stop Them From Looking Pinched

The columns of the Parthenon appear perfectly straight to the human eye because they are actually bowed. By adding a subtle outward bulge to the marble, ancient architects permanently corrected a glitch in human visual processing.[1][2]

This technique, known as entasis, demonstrates that classical builders understood the fallibility of human perception centuries before modern psychology could explain it. The result is a structure that lies to the eyes in order to tell the brain the truth.[4]

When a person stands at the base of a massive structure and looks up at a tall, straight-sided cylinder, the parallel lines taper toward the top due to perspective. However, the human visual system overcompensates for this tapering, creating a false perception of concavity.[1]

The middle of the column appears to narrow, giving the structure a weakened, hourglass-like waist. Without correction, a colonnade of perfectly straight pillars looks as though it is buckling under the immense weight of the stone roof above it.[1]

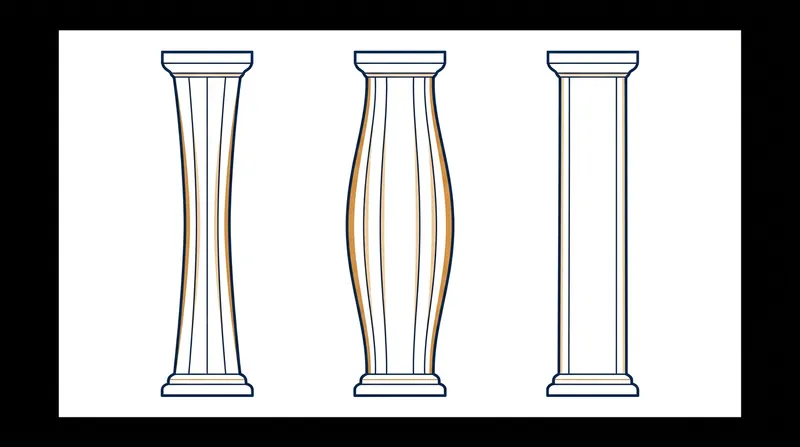

To counteract this perceptual waist narrowing, architects applied a calculated convex curve to the column's profile. The stone swells gently from the base, reaching its maximum deviation near the middle before tapering back toward the capital.[2]

Because the eye expects the straight lines to bow inward, the physical outward bulge cancels out the optical illusion perfectly. The viewer is left with the impression of a perfectly rigid, unbending pillar that defies the natural distortions of human sight.[1][2]

The written record

The Greeks themselves left no surviving written records explaining why they used entasis. This left modern historians to reconstruct their reasoning from the stones themselves.[1]

The earliest surviving rationale comes from the Roman architect and engineer Vitruvius in his first-century BCE treatise De architectura. Vitruvius explicitly stated that the swelling was necessary because "without a slight swelling of the shaft of a column, the straight upright line would strike the eye as hollowed inwards."[1][3]

For centuries, European architects largely ignored Vitruvius's text, assuming the Parthenon and other classical temples were built using strict, flat geometry. It was not until the mid-19th century that British architects John Pennethorne and Francis Cranmer Penrose painstakingly measured the ruins in Athens.[1][3]

Their measurements proved the building was full of deliberate curves. Penrose discovered that the Parthenon's columns deviate from a straight line by just 1.75 centimeters over their 10.4-meter height—a ratio of roughly 1 part in 600.[1]

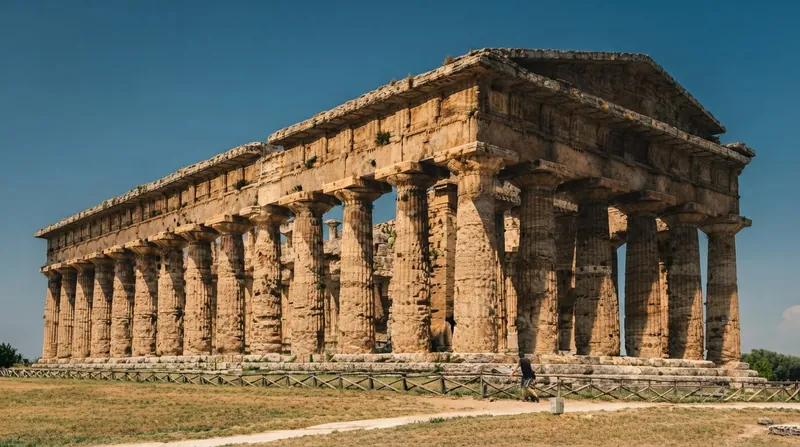

The application of entasis was not always so mathematically subtle. In early Archaic Doric temples, such as the First Temple of Hera at Paestum built around 550 BCE, the curvature is exaggerated and immediately obvious to the naked eye.[2][3]

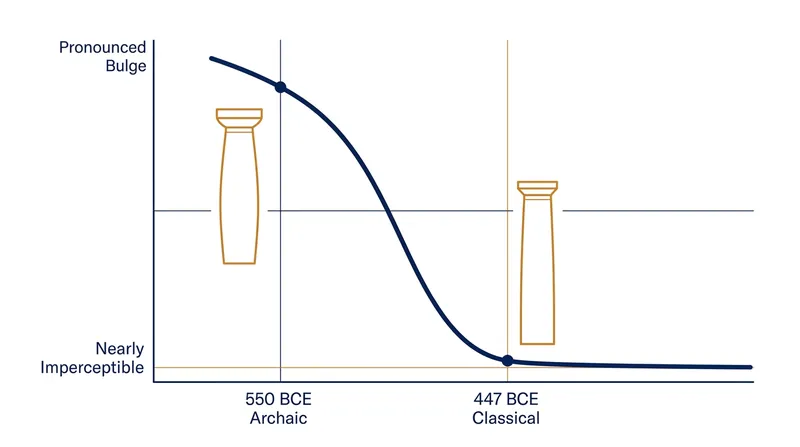

The columns look almost inflated, bulging heavily at their lower extremities. Over the next century, Greek architects refined the ratio by an order of magnitude, shrinking the bulge until it fell entirely below the threshold of conscious perception.[2]

The edge of imperceptibility

By the time construction began on the Parthenon in 447 BCE, the curve had been mastered to the edge of imperceptibility. The precision required to carve these subtle arcs into stacked marble drums was staggering, requiring custom geometry for every single block.[3]

The columns do not just bulge; they also lean inward. Measurements show that if the bowed vertical lines of the Parthenon's colonnade were projected upward into the sky, they would converge at a focal point approximately 3.5 kilometers above the Acropolis.[3]

While the optical correction theory remains the most widely accepted explanation, some architectural historians argue for a more organic interpretation. Yale historian Vincent Scully proposed that entasis was meant to evoke the physical strain of weight-bearing.[1][3]

Scully argued the columns mimic a human muscle swelling when pushing back against a heavy load. In this view, the building is not just correcting a visual error; it is expressing the tension of its own construction, transforming static stone into a dynamic architecture.[1]

In recent years, some mathematicians and psychologists have questioned whether the "concavity illusion" is actually strong enough to warrant such massive engineering efforts. Oxford mathematics professor Alain Goriely has argued that the optical corrections in the Parthenon might be practically imperceptible.[1]

This has led to alternative theories, including the idea that a "stunted cycloid" column that bulges in the middle is structurally stronger against buckling than a straight-tapered column. This would give entasis a sound engineering purpose alongside its aesthetic legacy.[1]

A global phenomenon

Interestingly, the use of entasis is not confined to the Mediterranean. The technique appears to have been developed independently by multiple cultures facing the same visual and structural challenges.[1]

Similar convex curves can be found in the walls and doorways of Inca fortresses, designed to counteract the illusion that the openings were narrowing. It also appears in the sloping structures of Tibetan monasteries.[1][3]

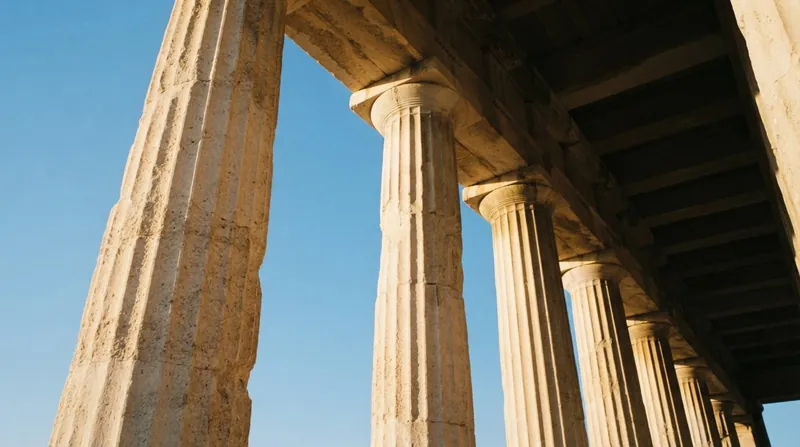

The optical tricks of classical architecture extended far beyond the columns themselves. The base of the temple, known as the stylobate, employs a similar corrective curvature to prevent the illusion of sagging.[3]

If the massive horizontal steps were built perfectly level, the human eye would perceive them as dipping in the center under the visual weight of the building.

To counteract this, the Parthenon's steps rise by up to 10.9 centimeters in the center along the flanks. This creates a gentle dome that sheds rainwater while appearing perfectly flat to an observer on the ground.[3]

Beyond the columns

Architects also had to account for how light and shadow alter the perception of mass. The columns at the very corners of the Parthenon are exposed to the bright Greek sky on multiple sides.[1]

Meanwhile, the inner columns are viewed against the dark, shadowed backdrop of the temple's interior. Because bright backlighting visually eats away at the edges of an object, the corner columns would appear noticeably thinner than their neighbors.[1]

To fix this, the builders made the corner columns slightly thicker in diameter. This adjustment ensured perfect uniformity in the eye of the beholder, regardless of the lighting conditions.[1]

Executing these microscopic curves across a building the size of a modern football field required extraordinary logistical control. The columns were not carved from a single monolithic piece of stone, but were assembled from individual cylindrical drums stacked on top of one another.[1][4]

To achieve a continuous, sweeping curve, the masons could not simply carve straight edges. They likely used full-scale wooden templates and precise geometric compasses to ensure each drum tapered at the exact, shifting angle required for its specific height in the stack.[4]

The knowledge of entasis was largely lost during the Middle Ages, resulting in the rigid, straight-lined columns of early medieval architecture. However, the rediscovery of Vitruvius's texts during the Renaissance sparked a revival of classical optical corrections.[1][3]

Master architects like Andrea Palladio reintroduced entasis into European design in the 16th century. Palladio employed the technique heavily in his own masterpieces, cementing the subtle bulge as a permanent fixture in the vocabulary of Western architecture.[3]
