Why Cation Hydrolysis Drops Pit pH Below 2, Trapping Stainless Steel in Autocatalytic Corrosion

Stainless steel fails catastrophically from microscopic scratches because the metal itself manufactures a localized acid bath that drops the pH below 2. Once a pit forms in the presence of chlorides, positively charged metal ions react with water to release hydrogen ions, creating an autocatalytic loop that prevents the protective oxide layer from ever reforming.

The conventional wisdom in structural engineering blames the external environment for corrosion—the salinity of the ocean, the acidity of the rain, or the harshness of industrial chemicals. That view fundamentally misunderstands the mechanism of localized failure. The bulk environment merely pulls the trigger; the metal supplies the ammunition.

Once the process begins, the chemistry of the bulk fluid becomes largely irrelevant to the reaction kinetics inside the microscopic cavity. The pit becomes a chemically isolated reactor, operating under rules entirely divorced from the water flowing just micrometers above it. To stop pitting, engineers must stop treating the ocean and start treating the alloy.

The Illusion of the Passive Film

The term "stainless" is a metallurgical marketing triumph that obscures a fragile physical reality. Iron-based alloys achieve their resistance not by being inert, but by forming a passive film of chromium oxide. This layer requires a minimum of 13 percent chromium to form a continuous barrier against oxidation.

This protective shield is extraordinarily thin, measuring only a few nanometers across. It is not a static wall, but a dynamic equilibrium, constantly dissolving and repassivating in response to minor environmental abrasions. As long as the rate of repair exceeds the rate of dissolution, the steel remains pristine.

However, chloride ions—ubiquitous in marine environments and deicing salts—are uniquely equipped to disrupt this balance. Because they are small and highly electronegative, chlorides penetrate the passive film at weak points, such as grain boundaries or microscopic inclusions. This localized breach exposes the highly reactive bare metal beneath.

"Classical pitting corrosion caused by passive film breakdown will only occur in the presence of aggressive anionic species, and chloride ions are usually, although not always, the cause," notes the ASM International handbook on localized corrosion. That initial breakdown is inevitable in real-world applications; the fatal flaw lies in what happens next.[1]

The Chemistry of Cation Hydrolysis

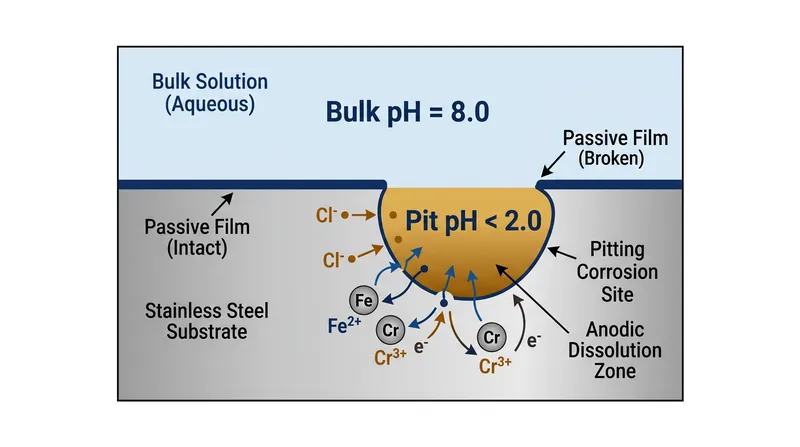

When the bare metal is exposed, anodic dissolution begins immediately. Iron and chromium atoms surrender electrons and enter the microscopic cavity as positively charged cations, specifically iron (II) and chromium (III). In a perfectly neutral environment, these ions might simply diffuse away, allowing the oxide layer to heal.

Instead, these densely charged metal cations react violently with the surrounding water molecules in a process known as cation hydrolysis. The cations bind with the hydroxide ions in the water, leaving the hydrogen protons behind. The chemical equation is straightforward, but its structural consequences are devastating.

Every chromium ion that undergoes hydrolysis releases three hydrogen protons into the confined space of the pit. This massive proton generation causes the local pH to plummet. While the bulk seawater outside the pit might maintain a mildly alkaline pH of 8.0, the fluid inside the microscopic cavity rapidly drops below a pH of 2.0.

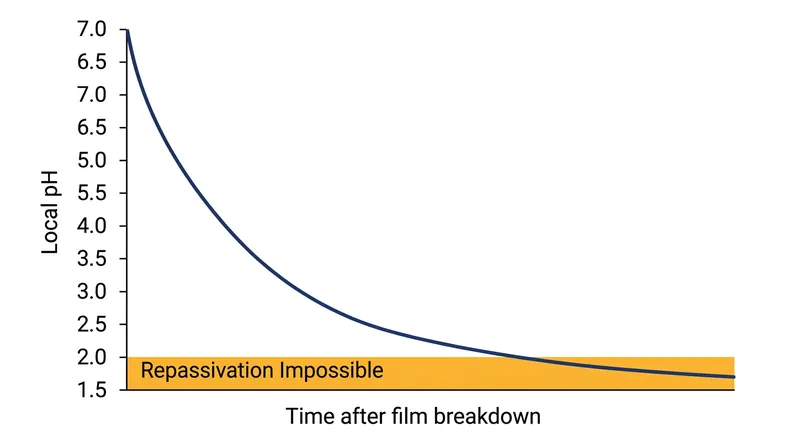

This extreme acidity fundamentally alters the electrochemical landscape. At a pH below 2.0, the thermodynamics of chromium oxide formation reverse. The passive film can no longer precipitate out of solution to cover the exposed metal, effectively disabling the alloy's only defense mechanism and leaving the wound permanently open.

The Autocatalytic Death Spiral

The failure to repassivate is only the first half of the trap. The accumulation of positively charged hydrogen protons and metal cations creates an intense localized electrical gradient. To maintain electroneutrality, the pit must import negative charge from the surrounding environment.

Chloride ions migrate into the cavity, drawn by the dense positive charge. The result is a highly concentrated solution of metal chlorides and hydrochloric acid. A 2022 study published in Corrosion demonstrated just how extreme this concentration becomes, noting that chloride levels inside such occluded droplets "can reach up to 15 M."[3]

This dense, acidic chloride broth accelerates the rate of anodic dissolution, which in turn produces more metal cations, driving further hydrolysis, releasing more protons, and pulling in even more chlorides. The process is entirely autocatalytic. Once the loop closes, the pit grows at an ever-increasing rate without any additional external stimulus.

"Pits constituted a confined environment where acidification could occur rapidly due to corrosion reactions followed by hydrolysis of cations, and then the production of protons," researchers noted in a 2020 Corrosion Science analysis of 17-4 PH stainless steel. The metal effectively digests itself from the inside out.[2]

The Geometry of the Trap

The physical shape of the pit exacerbates the chemical runaway. Because the cavity is an occluded space—often deeper than it is wide—the dense, heavy acid cannot easily diffuse out into the bulk solution. Gravity and fluid dynamics conspire to keep the corrosive broth trapped exactly where it does the most damage.

Meanwhile, the electrochemical circuit requires a corresponding cathodic reaction to consume the electrons liberated by the dissolving metal. This reaction—typically the reduction of dissolved oxygen—takes place on the vast, intact passive surface surrounding the microscopic pit. The spatial separation of these two reactions is the final nail in the coffin.

Because the intact surface area is massive compared to the microscopic anode inside the pit, it can process a tremendous amount of oxygen. This large cathode drives the tiny anode at an incredibly high current density. The metal at the bottom of the pit dissolves orders of magnitude faster than it would if the entire surface were actively corroding.

This geometry explains why pitting is so insidious. A pipeline or pressure vessel might lose only a fraction of a gram of total mass, yet suffer a complete catastrophic perforation. The damage is entirely focused on a surface area measured in square micrometers, driven by the electrical potential of the surrounding square meters.

Why Bulk Defenses Fail

Understanding this autocatalytic mechanism exposes the futility of many traditional corrosion mitigation strategies. Adding chemical inhibitors or pH buffers to the bulk fluid often fails to arrest active pitting. The occluded geometry of the pit prevents these large, bulky inhibitor molecules from ever reaching the active dissolution site at the bottom.

The only reliable defense must be engineered directly into the alloy's metallurgical matrix. Elements like molybdenum and nitrogen are added to high-grade duplex and austenitic stainless steels specifically to interrupt this localized feedback loop. Molybdenum does not prevent the initial scratch, but it alters the dissolution kinetics just enough to allow repassivation before the pH collapses.

These additions raise the critical pitting temperature—the threshold below which stable pits cannot propagate regardless of the applied potential. By ennobling the dissolution kinetics, the alloy buys itself the milliseconds it needs to rebuild the chromium oxide wall before cation hydrolysis can flood the cavity with protons.

The strongest counter-argument from traditional fabricators is that perfect surface finishing and rigorous cleaning can prevent pitting from ever initiating. They argue that eliminating surface defects removes the incubation sites where chlorides gather. While true in a sterile laboratory, this view fails in the brutal reality of industrial deployment.

Scratches, microscopic weld defects, and stress fractures are inevitable in field conditions. If an alloy relies entirely on avoiding initiation, it will eventually fail. True resilience requires a material capable of surviving the breach—one that can outpace its own cation hydrolysis and rebuild its passive shield before the autocatalytic trap snaps shut.
