Why Instant Water Heaters Rely on Feedforward Telemetry to Prevent Scalding

A traditional 50-gallon water heater operates exactly like a massive thermal flywheel. When a household tap opens, the hot water drawn from the top of the tank is immediately replaced by cold water at the bottom, but the sheer volume of stored heat prevents any sudden temperature shift at the spout.[2]

The only difference between that legacy system and a modern instant water heater is the complete elimination of that thermal inertia. A tankless unit holds less than a quart of water in its copper heat exchanger at any given moment.

That missing mass creates a severe control problem. When a secondary tap opens—say, a toilet flushing while someone is in the shower—the cold water pressure drops, instantly halving the flow rate through the heater.[3]

If the gas burner continues firing at its previous output for even two seconds, that reduced volume of water will absorb double the thermal energy. The result is a dangerous temperature spike that can cause third-degree burns before a standard thermostat even registers the change.[2]

The Trap of Feedback Loops

The intuitive engineering solution is a feedback control loop, the same mechanism that governs home thermostats and cruise control. A sensor at the outlet measures the water temperature and tells the gas valve to throttle down if the water gets too hot.[1]

We rely on feedback loops because they are self-correcting and simple to implement. However, feedback is inherently reactive; the error must actually occur before the system can take any steps to correct it.[1]

In a high-inertia system, that delay is harmless. The 50-gallon tank absorbs the excess burner heat for minutes before the outlet temperature rises by a single degree, giving the feedback loop ample time to shut off the gas.[2]

In a tankless heat exchanger, the water transit time is measured in milliseconds. By the time an outlet thermistor detects a 15-degree temperature spike and commands the gas valve to close, the scalding water is already traveling through the home's plumbing.[3]

The strongest counter-argument to this vulnerability is that faster processors and more sensitive thermistors could theoretically close the feedback gap. Yet even a zero-latency processor cannot overcome the physical thermal mass of the thermistor probe itself, which takes roughly 1.5 seconds to register a sudden heat change.[2][3]

Shifting to Feedforward Telemetry

To solve the latency trap, engineers had to abandon reactive temperature measurement and adopt feedforward control. Instead of waiting to see if the water gets too hot, the system measures the variables that will eventually cause the temperature to change.[1]

The primary variable is the water flow rate. As the Department of Energy notes, these systems "heat water directly without the use of a storage tank," which fundamentally shifts the burden of temperature stability onto the inlet sensors.

Modern instant heaters place a highly sensitive turbine flow meter at the cold water inlet. This sensor tracks the exact gallons-per-minute entering the heat exchanger in real time, spinning faster or slower as household demand fluctuates.[3]

When that toilet flushes and the flow rate drops from 3.0 to 1.5 gallons per minute, the inlet turbine registers the deceleration instantly. The control board receives this telemetry before the slower-moving water has even reached the burner section.[3]

According to ScienceDirect's engineering overview, feedforward control is deployed specifically "to measure the disturbance and take corrective action before it upsets the process." The processor calculates the exact reduction in thermal energy required for the new flow rate.[1]

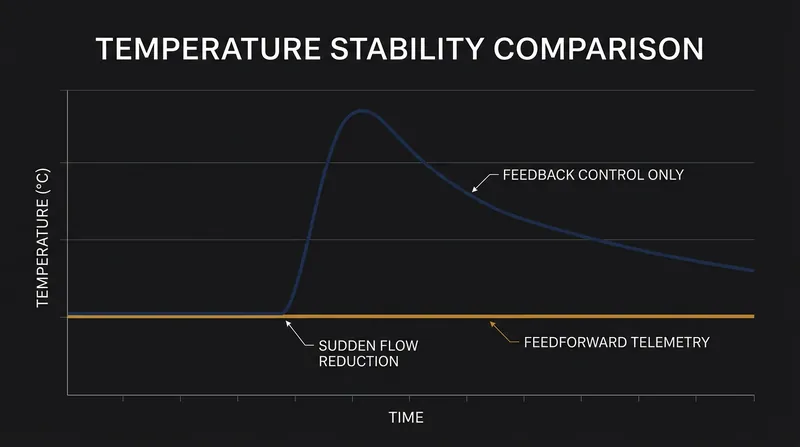

The gas burner reduces its flame intensity simultaneously with the drop in water volume. Because the heat input and the water mass decrease in perfect lockstep, the outlet temperature remains completely stable, and the feedback thermistor never registers an error.[1][3]

The Role of Proportional Gas Valves

Feedforward telemetry is entirely useless without a physical mechanism capable of executing its rapid digital commands. Traditional water heaters use binary gas valves, meaning they are either completely open or completely closed, offering no intermediate states for fine-tuning.

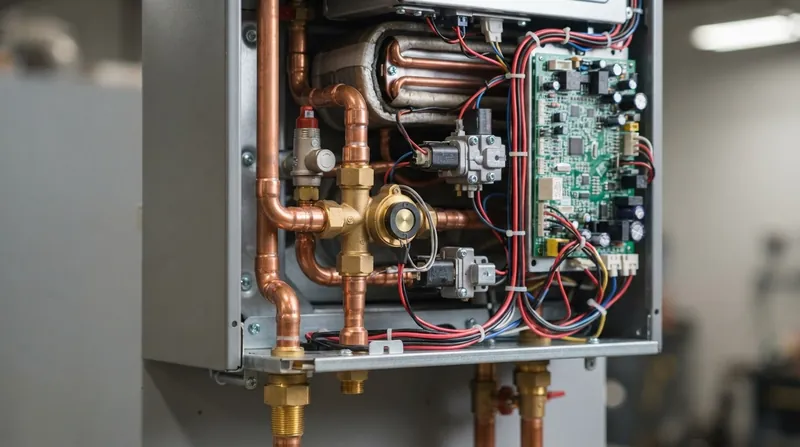

Instant heaters require proportional gas valves driven by stepper motors or voice coils. These valves can adjust the gas flow across hundreds of micro-steps, allowing the burner to output anywhere from 15,000 to 199,000 British thermal units per hour.[3]

When the feedforward controller detects a 10 percent drop in water flow, it does not shut the burner off. It simply steps the proportional valve down by exactly 10 percent, maintaining the precise air-to-fuel ratio required for clean combustion.[1][3]

This modulation must occur in fractions of a second. If the valve lags behind the flow sensor, the system experiences a brief burst of scalding water followed by a plunge into cold water as the system overcorrects.[3]

To prevent this, manufacturers map the exact response curves of their gas valves into the control software. The processor knows exactly how many milliseconds it takes for a voltage change to translate into a physical reduction in flame height.[3]

Blending Feedforward and Feedback

While feedforward telemetry handles sudden dynamic changes, it cannot operate in isolation. Feedforward systems are inherently blind to their actual results; they assume that a specific gas valve position will yield a specific temperature.[1]

If the incoming groundwater temperature drops during the winter, or if the gas line pressure fluctuates, the feedforward calculation will be slightly inaccurate. The flow rate might remain constant, but the water will exit the heater a few degrees too cold.[3]

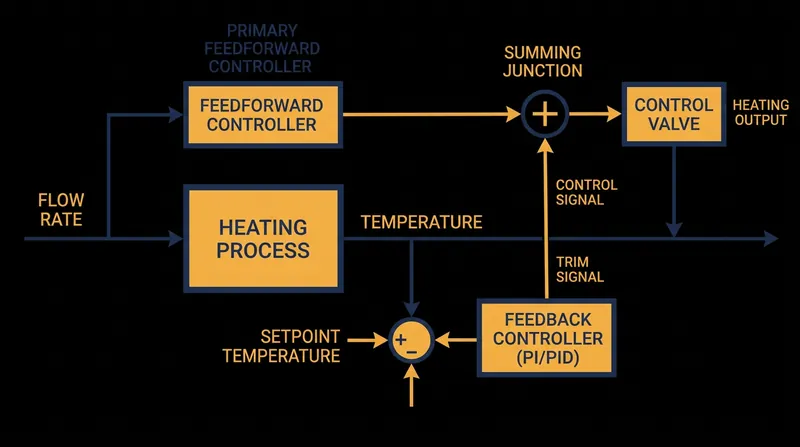

To correct these slow-moving variables, engineers layer a traditional feedback loop over the feedforward architecture. The outlet thermistor constantly monitors the final water temperature and sends a slow trim signal to adjust the baseline gas calculation.[1]

This hybrid approach leverages the strengths of both control theories. The feedforward flow sensor provides the lightning-fast reflexes needed to survive sudden pressure drops, while the feedback thermistor provides the long-term accuracy required for comfort.[1][3]

The Limits of Modulation

Despite the sophistication of feedforward telemetry, physical limits still govern the system's lower bounds. Every proportional gas valve has a minimum firing rate, often around 15,000 British thermal units per hour, below which the flame becomes unstable and extinguishes.[3]

If a user barely cracks open a bathroom faucet, demanding only 0.3 gallons per minute, the required thermal energy falls below the burner's minimum threshold. The feedforward sensor detects the flow, but the processor refuses to ignite the burner to prevent overheating.[3]

This creates the infamous cold water sandwich experienced during low-flow demands. To combat this, newer designs incorporate a small internal buffer tank or a recirculation pump to artificially inflate the thermal mass just enough to bridge the modulation gap.[3]

The transition from storage tanks to instant heating represents a fundamental shift from mechanical brute force to algorithmic precision. The physical mass of the stored water has been entirely replaced by the digital speed of the telemetry loop.[3]
