Teardrop Clothoids Tame 12-G Entry Spikes by Shrinking Loop Radii as Coaster Speeds Drop

Twelve times the weight of your own body—that is the crushing magnitude early roller coaster riders experienced at the bottom of a perfectly circular loop. Measured against the 9-G limit where modern fighter pilots risk losing consciousness, this 12-G spike was a structural and physiological disaster.[2]

We argue that the true genius of the roller coaster lies not in its speed, but in its geometry. The culprit behind these extreme forces was not the raw velocity of the coaster, but the rigid geometry of the circle itself.[3]

A perfect circle features a constant radius, which forces a brutal mathematical compromise between the top and the bottom of the loop. To survive the apex, the bottom must be punishing.

To prevent a coaster from stalling and falling off the track at the highest point, it must enter the bottom of the loop at extreme velocities. But pushing a high-speed train into a tight, constant-radius curve generates massive centripetal acceleration.

The track must push back against the train with immense force to change its direction. The solution that saved the modern amusement park is the clothoid loop, a teardrop shape that constantly changes its radius.[1]

By widening the curve at the bottom and tightening it at the top, engineers tamed the physics of circular motion. This elegant negotiation with physics replaced the lethal trap of the perfect circle.[1]

The mathematical trap of the perfect circle

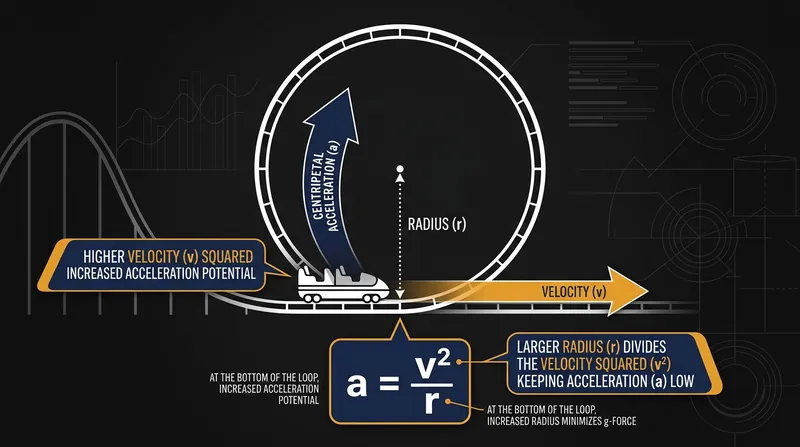

To understand why circular loops fail, you have to look at the equation for centripetal acceleration: velocity squared divided by the radius. This formula dictates exactly how much force pushes riders into their seats as they change direction.[3]

It is an unforgiving law of classical mechanics. In a perfectly circular loop, the radius never changes, meaning the only variable controlling the G-force is the velocity of the train.

That velocity fluctuates wildly as gravity slows the coaster on the way up and accelerates it on the way down, creating a massive disparity in forces. At the top of the loop, the train is moving at its absolute slowest.[1]

To keep the wheels pinned to the track and the riders from falling out, the train must maintain a minimum speed. At this speed, the outward centripetal acceleration must exceed the 1-G downward pull of gravity.[3]

Hitting that minimum speed at the apex requires entering the bottom of the loop at a blistering pace. Because the radius at the bottom is exactly the same as at the top, that high entry speed gets squared and divided by a relatively small number.

The math guarantees a violent outcome. The result is an instant, crushing spike in G-forces that the human body simply cannot endure for more than a fraction of a second.

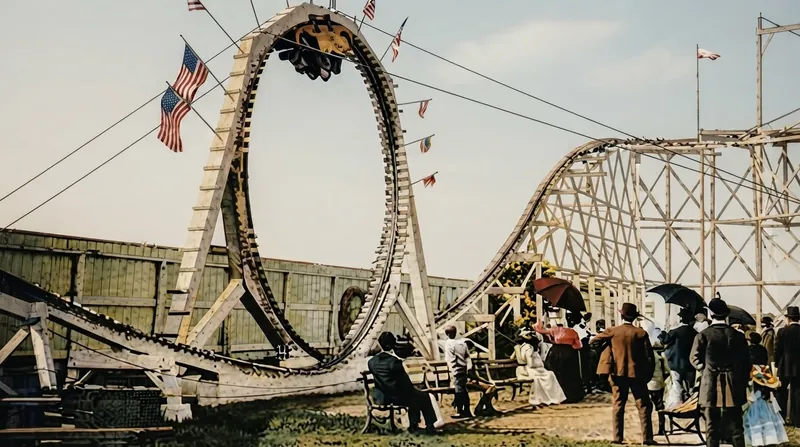

When the 1895 Flip Flap Railway at Coney Island sent riders through a 25-foot circular loop, the sudden onset of 12 Gs caused whiplash, neck injuries, and blackouts. The human body simply cannot endure that level of sustained acceleration.[2]

Decoupling speed from curvature

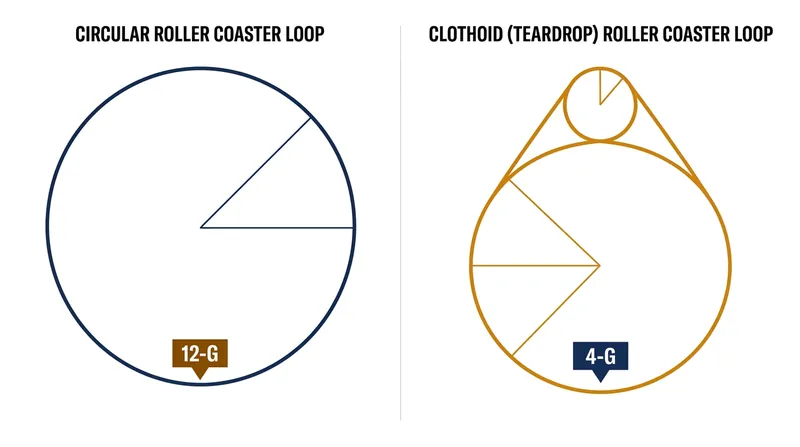

The engineering breakthrough came when designers realized they did not have to accept a constant radius. If the track's curvature could change dynamically, they could manipulate the denominator of the acceleration equation.[1]

This would offset the changing velocity and keep the resulting forces within a survivable range. This is the defining characteristic of the clothoid, or cornu spiral.[1]

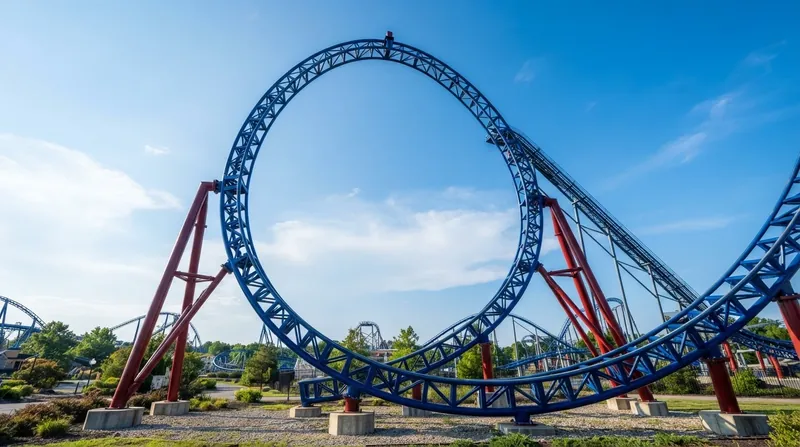

Instead of a uniform circle, the clothoid features a wide, gentle curve at the base that gradually sharpens into a tight peak at the top. It is a shape explicitly designed to cheat the velocity squared.[1]

By featuring a larger radius at the bottom and a tighter radius at the top, this geometric trick decouples the entry speed from the apex speed. When a coaster train hits the bottom of a clothoid loop at maximum speed, it enters a wide radius.[3]

Dividing that massive velocity squared by a much larger radius keeps the resulting centripetal acceleration manageable, capping maximum forces at a safe 3.5 to 4.5 Gs. The track gently guides the train upward rather than slamming it into a tight turn.[3]

As the train climbs and loses kinetic energy to gravity, its velocity drops significantly. To maintain the necessary force to keep riders in their seats, the track's radius shrinks proportionally.[1]

By the time the train reaches the apex, it is moving relatively slowly, but the curve is at its tightest. Dividing a smaller velocity squared by a smaller radius ensures the centripetal acceleration remains strong enough to counteract gravity.[3]

If the radius is reduced at the top of the loop, the centripetal acceleration is increased sufficiently to keep the passengers and the train from slowing too much and falling. As the encyclopedic sources contain no direct quotations from the original engineers, the mathematics must speak for themselves.[3]

Engineering the onset of force

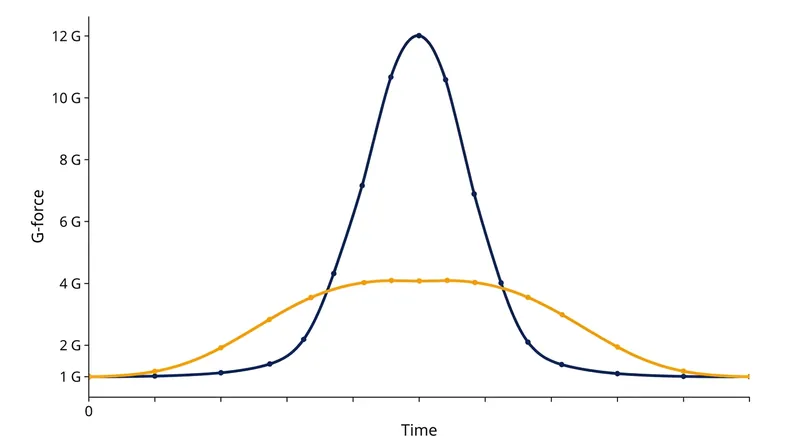

Beyond capping the maximum force, the teardrop shape solves a secondary physiological problem: the rate of force onset. The human body can tolerate high G-forces if they build gradually, but sudden jolts cause severe trauma.[3]

Entering a circular loop from a flat track subjects riders to an instantaneous jump from 1 G to 5 Gs or more. The transition is violent, snapping the head forward and compressing the spine before the muscles can react.

A clothoid loop acts as a geometric shock absorber. Because the curve tightens progressively, the centripetal acceleration builds smoothly as the train ascends, giving the cardiovascular system time to brace against the increasing pressure.[1]

German engineer Werner Stengel pioneered this application in 1976 on The New Revolution at Six Flags Magic Mountain, effectively ending the era of the circular loop. His teardrop design became the universal standard, allowing coasters to go taller and faster without injuring passengers.[1]

The energy budget of a roller coaster

The necessity of the clothoid shape is rooted in the fact that roller coasters have no engines. Once the train drops from the initial lift hill, it relies entirely on the conversion of potential energy into kinetic energy.[3]

A 60-meter drop generates roughly 4.7 million joules of kinetic energy, pushing speeds exceeding 120 km/h. Every loop, hill, and corkscrew drains a portion of that energy budget through friction and air resistance.[3]

When holding the initial potential energy constant across a theoretical 60-meter drop, a perfectly circular loop requires a significantly higher entry velocity to prevent apex stalling. The teardrop shape is not just a physiological safety measure; it is a vital energy-conservation mechanism.[3]

The limits of the teardrop design

While the clothoid loop solved the 12-G problem, it is not without its own physical constraints. The tight 10-meter radius at the apex means the train must be relatively short, or the forces will vary wildly between the front and back cars.[3]

When a long train weighing 8,000 kilograms crests the tight top of a teardrop loop, the heavy center of mass is still climbing or already falling. This creates a whip effect, pulling the rear cars over the top faster than the front cars.[3]

Ultimately, the teardrop loop represents a perfect compromise between physics and human physiology. It proves that the thrill of a roller coaster is not about defying gravity, but about manipulating geometry to make gravity work for the rider.[3]
