The Reinhard and ACES Formulas: How Tone Mapping Compresses a 32-Bit Render Target to a 10-Bit Display

At the exact millisecond a graphics processing unit finalizes a frame, the math inside the render target is violently incompatible with the monitor sitting on the desk. The game engine has calculated the scene using 32-bit floating-point precision, meaning the brightness of a digital sun might be registered at a value of 120,000.0. But the display hardware—even a high-end High Dynamic Range (HDR) panel—can only accept a 10-bit integer signal, capping out at exactly 1,024 discrete steps per color channel. If the engine simply feeds that 32-bit data straight to the screen, any value over 1.0 instantly clips to pure, flat white, destroying all detail in the highlights.[4]

The solution to this hardware bottleneck is a mathematical compression curve known as tone mapping. As the LearnOpenGL documentation notes, "High Dynamic Range (HDR) allows us to specify color values outside the default 0.0 to 1.0 range," but those values must eventually be remapped back into a finite space before the player can see them. For the last two decades, the games industry has relied on two primary algorithms to perform this compression: the Reinhard operator and the Academy Color Encoding System (ACES) filmic curve. Each represents a fundamentally different philosophy on how to sacrifice data when compressing infinity down to a 10-bit box.[4][8]

The Reinhard operator, introduced in a landmark 2002 paper by Erik Reinhard, is the definition of mathematical elegance. Its core formula is astonishingly simple: the output color equals the input color divided by one plus the input color. If a pixel has a brightness of 0.5, it becomes 0.33. If it has a brightness of 10.0, it becomes 0.90. If it reaches 100,000.0, it becomes 0.99999. The curve asymptotically approaches 1.0 but never quite touches it, guaranteeing that no matter how bright a light source gets in the 32-bit render, it will never mathematically clip in the 10-bit output.[1]

But that simplicity carries a severe visual cost. Because Reinhard treats all color channels equally and compresses them uniformly, extreme highlights lose their saturation. A roaring digital fire that should look deep orange at its edges and hot yellow at its core instead desaturates into a washed-out, uniform white. The contrast in the upper ranges is crushed, giving games that rely heavily on Reinhard a distinctly flat, slightly grey aesthetic that defined the early Xbox 360 and PlayStation 3 generation of physically based rendering.[1][6]

The modern alternative was not born in the games industry, but in Hollywood. The Academy Color Encoding System (ACES) was developed by the Academy of Motion Picture Arts and Sciences to standardize color pipelines across different cameras and visual effects houses. As color scientist Chris Brejon explains, "ACES is a free, open, device-independent color management and image interchange system." When game developers realized they wanted their real-time renders to look like blockbuster films, they began adapting the ACES tone mapping curves for GPU shaders.[2][5]

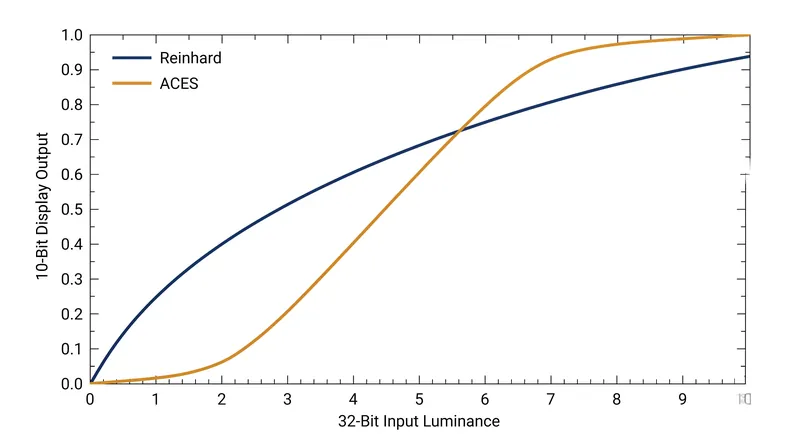

The ACES curve is vastly more complex than Reinhard. Rather than a simple division, it uses a multi-stage polynomial function. In 2016, graphics programmer Krzysztof Narkowicz published a highly optimized approximation of the ACES filmic curve specifically for game engines, reducing the heavy Hollywood math to a fast shader operation. Narkowicz's formula introduces a distinct "toe" (crushing deep shadows for richer blacks), a steep linear mid-section (preserving high contrast), and a long, rolling "shoulder" for the highlights.[3]

The visual difference in that shoulder is what defines modern gaming graphics. When an ACES curve compresses a 32-bit value of 10.0, it does not just bring the brightness down; it preserves the ratios between the red, green, and blue channels much further up the brightness scale. That same digital fire now retains its rich yellow and orange hues right up to the absolute peak of the flame, mimicking the way physical film stock reacts to overexposure. The result is a punchy, high-contrast, cinematic image.[3][7]

However, the ACES approach demands a heavier computational toll. Where Reinhard requires a single addition and division per pixel, the Narkowicz ACES approximation requires multiple multiply-add operations. Across a 4K display rendering 8.2 million pixels at 60 frames per second, those extra arithmetic instructions accumulate. Furthermore, ACES is highly opinionated; it aggressively darkens the midtones and shadows, forcing lighting artists to pump significantly more artificial light into their scenes just to maintain visibility in darker areas.[3][8]

The industry has largely accepted this trade-off. Major commercial engines, including Unreal Engine, now default to ACES-based filmic tone mapping pipelines. The demand for photorealism has outpaced the need to save a fraction of a millisecond on post-processing ALU instructions. Yet, the choice between the two algorithms remains a fundamental architectural decision for any custom engine build, dictating the entire lighting pipeline from the first asset placed to the final pixel rendered.[5][8]

The Reinhard operator fits well when a game targets mobile hardware with strict arithmetic logic unit limits, or when the art direction demands a washed-out, low-contrast aesthetic. It also excels in scientific or data-visualization rendering where maintaining the relative luminance of midtones is more important than cinematic flair. It does not fit when rendering photorealistic environments with extreme lighting differentials, as the highlights will inevitably desaturate into flat white.[1][4]

Conversely, the ACES formula fits well when a title relies on physically based rendering and requires cinematic, high-contrast visuals where fire, neon, and sunlight must retain their hue at peak brightness. It is the definitive choice for matching live-action film plates or achieving a blockbuster aesthetic. It does not fit when GPU cycles are severely bottlenecked, or when a stylized, non-photorealistic game requires absolute control over specific color values without a filmic curve altering the midtones.[3][5]

As display hardware pushes past 10-bit color into 12-bit Dolby Vision territory, the gap between the 32-bit render target and the physical screen is slowly narrowing. But until monitors can output infinite light, the math of compression remains mandatory. Whether a developer chooses the elegant simplicity of Reinhard or the heavy, cinematic punch of ACES, that final equation is the lens through which every player experiences the game.[4][8]
