The Principles of Hull Design: Comparing Displacement, Planing, and Semi-Displacement Hulls on Speed, Efficiency, and Stability

The shape of a boat’s hull dictates exactly how it interacts with the water, forcing a permanent, inescapable compromise between speed, fuel efficiency, and stability. A displacement hull pushes through the water, offering maximum efficiency and stability at low speeds but strictly capping its top speed. A planing hull rides on top of the water, unlocking high speeds at the cost of fuel economy and rough-water comfort. A semi-displacement hull attempts to split the difference, offering moderate speeds and stability but mastering neither. For a prospective boat buyer or owner looking to upgrade, understanding these three fundamental hull types is the single most critical decision in the purchasing process.[5]

The hull ultimately defines the vessel's mission. A buyer dreaming of high-speed weekend water sports will be miserable in a displacement trawler, while a retiree planning to cruise the Great Loop will burn their retirement savings trying to fuel a planing yacht. The physics of water resistance cannot be cheated by simply adding a larger engine; the hull must be designed from the keel up to support the owner's specific goals.[4]

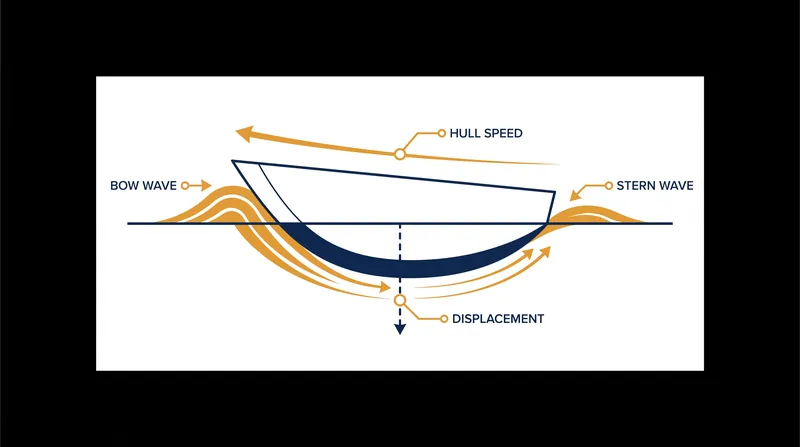

The displacement hull is the oldest and most fundamental design in naval architecture, relying entirely on buoyancy. When at rest and when underway, it displaces a volume of water equal to its own weight. Because it pushes through the water rather than riding over it, it creates a distinct bow wave and a stern wave as it moves forward.

The physics of this wave-making resistance impose a hard physical limit on the boat's top speed, universally known as "hull speed." This limit is calculated by multiplying the square root of the vessel's waterline length by 1.34. Once a displacement hull reaches this theoretical speed, the wavelength of its bow wave equals the length of the boat, effectively trapping the vessel in a trough of its own making.

Adding more horsepower at this point does not increase the boat's speed. It simply causes the stern to squat deeper into the water, the bow to rise toward the sky, and fuel consumption to skyrocket as the boat tries to climb a hill of water it can never crest. For the owner, this means predictable, highly efficient cruising at 7 to 9 knots, making the displacement hull the undisputed standard for sailboats, long-range trawlers, and commercial cargo vessels.[2][4]

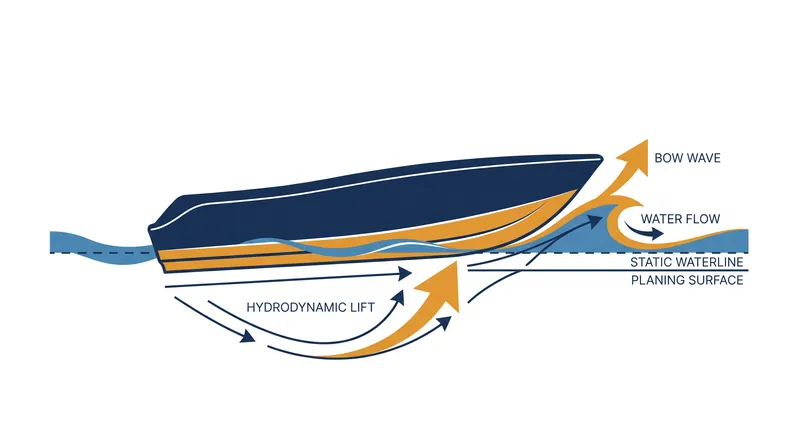

Planing hulls are engineered specifically to break free of this limitation. At low speeds, they operate much like displacement hulls, but as engine power is applied, their flatter bottom surfaces generate hydrodynamic lift. This lift forces the bow up and eventually pushes the entire hull up and over its own bow wave, allowing the boat to skim across the surface of the water rather than pushing through it.

Getting "on plane" requires a massive initial expenditure of energy to overcome the peak wave-making resistance. However, once the hull is skimming the surface, hydrodynamic drag is significantly reduced, allowing for exceptionally high speeds. For the recreational boater, this is the realm of ski boats, center consoles, and fast weekend cruisers that prioritize getting to a destination quickly.[4]

The trade-off for this speed is comfort and efficiency. Because a planing hull rides on top of the water, it is subjected to the physical impact of every wave it encounters. A flat-bottomed planing hull will pound violently in rough seas. To mitigate this, designers use a "V" shape—measured as the deadrise angle—to slice through waves, but a deeper V requires even more horsepower to lift out of the water, dramatically increasing fuel costs.[3][4]

The semi-displacement, or semi-planing, hull attempts to bridge the gap between the slow efficiency of a displacement hull and the high-speed fuel burn of a planing hull. These designs typically feature a sharper, rounder entry at the bow to slice through the water efficiently, transitioning to a flatter, wider section at the stern to provide some dynamic lift.[1]

This hybrid approach allows the vessel to exceed its theoretical hull speed without fully climbing on top of the water. It pushes a significant amount of water aside while generating just enough lift at the stern to prevent the boat from squatting excessively when additional power is applied.[1]

For the buyer, semi-displacement hulls—often seen in Downeast-style cruisers, lobster boats, and larger motor yachts—offer immense versatility. They can cruise efficiently at 10 to 12 knots, but have the reserve power to push to 18 or 20 knots to outrun a developing storm or reach port before dark.[4]

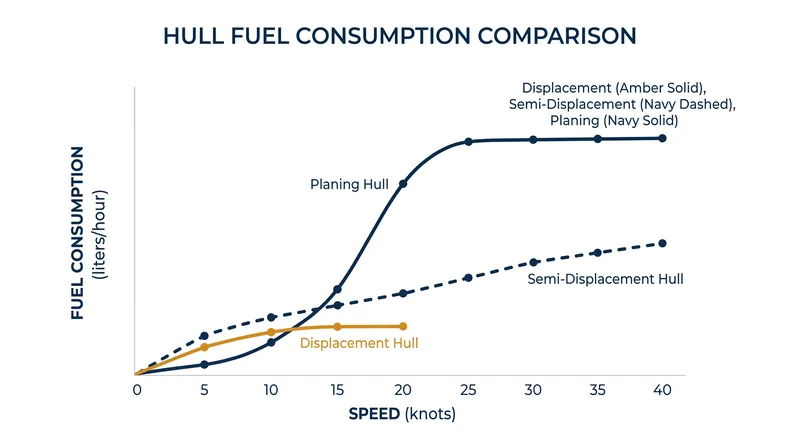

However, this versatility comes with inherent compromises that owners must accept. A semi-displacement hull is never as fuel-efficient as a pure displacement hull at low speeds, nor is it as fast or agile as a pure planing hull at high speeds. When pushed into its upper speed ranges, it requires massive engines and burns fuel at a prodigious rate because it is still dragging a significant portion of its hull through the water.[1][2]

Beyond speed and fuel, hull shape dictates stability and draft, directly impacting where and how a boat can be used. Displacement hulls typically have deep drafts and rounded bottoms, often requiring active stabilization systems or heavy keels to prevent rolling in beam seas. Planing hulls, particularly flat or shallow-V designs, have shallow drafts ideal for coastal exploring but can be unstable at rest, snapping back sharply when hit by a wave.[3]

While these three categories form the foundation of naval architecture, modern design is increasingly blurring the lines. Stepped hulls introduce air under a planing hull to reduce friction, while power catamarans utilize two very narrow displacement or semi-displacement hulls to achieve high speeds with lower resistance and greater stability than a traditional monohull.[3]

Ultimately, there is no perfect hull shape, only the right hull for a specific application. Buyers must honestly assess their intended use—whether that is crossing oceans at a walking pace, racing across a bay to a fishing spot, or coastal cruising with the occasional need for speed—and accept the physical compromises that their chosen hull demands.[5]
