The Mechanics of Residential Solar Inverters: A Guide to String, Microinverters, and Power Optimizers

The solar panels mounted on your roof are only as effective as the hardware that translates their power. Solar panels generate direct current (DC) electricity, which is fundamentally incompatible with standard home appliances and the broader utility grid until it is converted into alternating current (AC). The solar inverter is the critical engine that performs this conversion. Choosing the wrong inverter technology can permanently bottleneck a premium solar array, particularly if the roof experiences shading from trees, chimneys, or neighboring buildings. Understanding how this conversion is managed is the most important decision a homeowner will make during the solar purchasing process.[6]

The three main architectures dominating the residential solar market today are string inverters, microinverters, and a hybrid approach known as power optimizers. Each of these technologies handles the essential DC-to-AC conversion at a completely different point in the electrical pathway. By shifting where the conversion happens—either centrally on the side of the house or decentralized up on the roof—these systems fundamentally alter the installation's upfront cost, its long-term scalability, and its ability to tolerate environmental variables like shade and debris.[3][5]

String inverters represent the traditional, most widely adopted, and most cost-effective approach to residential solar. In this setup, multiple solar panels are wired together in a continuous series—commonly referred to as a 'string.' These panels route their combined, high-voltage DC power down from the roof to a single, centralized inverter unit. This central unit is typically mounted on the side of the house near the main electrical panel or inside the garage, where it handles the conversion for the entire array all at once.[1][6]

The primary advantage of a string inverter is its mechanical simplicity and exceptionally high peak efficiency. Because there is only one conversion point for the entire system, a high-quality string inverter can achieve up to 98 percent peak efficiency under ideal, unshaded conditions. They are also significantly cheaper to manufacture and install. For a standard residential array, opting for a central string inverter can reduce the upfront quote by $1,000 to $2,000 compared to a fully decentralized microinverter system, making it highly attractive for budget-conscious buyers.[2][3]

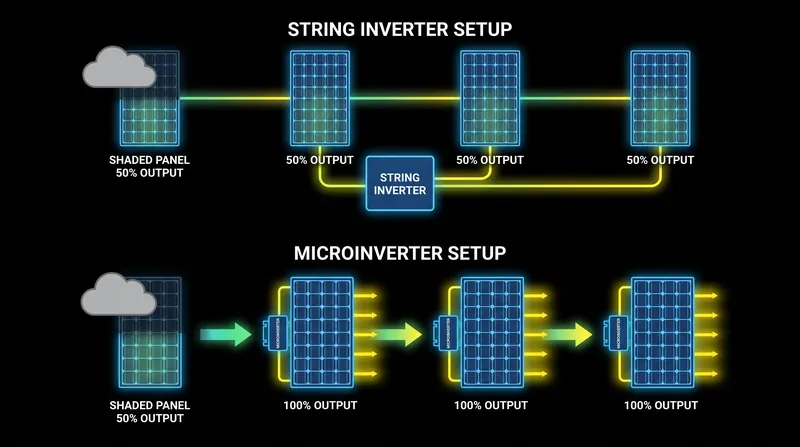

However, string inverters operate on a strict 'weakest link' principle that can severely compromise performance in the real world. Because the solar panels are wired in series, the electrical current flowing through the string is mathematically constrained by the lowest-performing panel in that specific circuit. If a single panel is shaded by a chimney, covered in a layer of dust, or operating at 50 percent capacity due to a passing cloud, the output of every other panel on that string artificially drops to match it.[1][5]

This inherent limitation makes standard string inverters poorly suited for complex roofs with multiple angles, dormers, or properties with significant shading issues. If your roof is a wide, completely unshaded, south-facing plane that receives uniform sunlight all day, a string inverter is undoubtedly the most economical and logical choice. But if a neighbor's oak tree casts a creeping shadow across your array at 3:00 PM, a string inverter will amplify that localized energy loss across the entire system, drastically reducing your daily energy harvest.[5][6]

Microinverters were engineered specifically to solve this weakest-link problem by fully decentralizing the power conversion process. Instead of routing high-voltage DC power to a single central unit on the ground, a miniaturized inverter is installed underneath every individual solar panel directly on the roof. Each microinverter takes the DC power generated by its specific panel and converts it to AC right at the source, sending grid-ready power down the side of the house.[1][2]

Because the DC-to-AC conversion happens at the module level, the solar panels are able to operate entirely independently of one another. If one panel is heavily shaded by a passing cloud, covered in autumn leaves, or soiled by bird droppings, only that specific panel's electrical output drops. The rest of the solar array remains completely unaffected, continuing to produce AC power at its maximum possible capacity based on the sunlight it is currently receiving.[6]

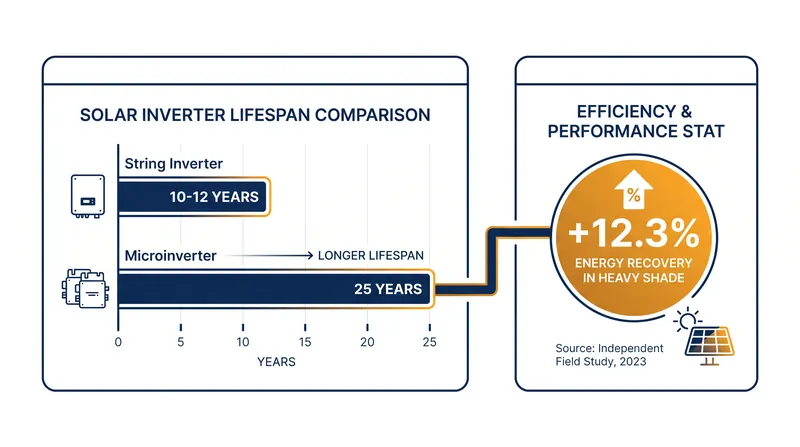

Rigorous field tests conducted by the National Renewable Energy Laboratory (NREL) and PV Evolution Labs have quantified the exact financial and energetic advantage of this independence. Under light shading conditions, module-level electronics like microinverters recover 3.7 percent more energy than a standard string system. Under moderate shade, that recovery jumps to 7.8 percent, and under heavy shade conditions, microinverters successfully capture 12.3 percent more power that would have otherwise been lost to the weakest-link effect.[2][5]

Beyond their superior shade tolerance, microinverters offer significant advantages in system monitoring and hardware longevity. Because each panel is paired with its own inverter, homeowners and installers can monitor the exact wattage output of individual modules via a smartphone app, making it incredibly easy to identify a failing panel. Furthermore, while central string inverters typically wear out after 10 to 12 years and require a costly mid-life replacement, microinverters are generally warrantied for 20 to 25 years, perfectly matching the expected lifespan of the solar panels themselves.[3][5]

The primary downside to microinverters is the steep upfront cost and the physical complexity of long-term maintenance. Purchasing and installing twenty individual microinverters is inherently more expensive than wiring an array to one central string inverter. Additionally, if a roof-mounted microinverter does fail, a technician must physically climb onto the roof, unbolt the solar panel, and replace the unit in the elements, whereas a central string inverter can be diagnosed and swapped out easily by a technician standing at ground level.[1][2]

For homeowners seeking a middle ground between these two extremes, power optimizers offer a highly compelling hybrid solution. Like microinverters, power optimizers are small electronic devices installed underneath each individual solar panel on the roof. However, they do not actually convert the DC power to AC. Instead, they 'condition' or optimize the DC voltage at the panel level and then send that optimized DC current down to a central string inverter for the final conversion.[1]

Power optimizers successfully provide the panel-level independence of microinverters—isolating an underperforming or shaded panel so it doesn't drag down the rest of the string—while keeping the complex, heat-generating DC-to-AC conversion centralized in one accessible unit. This hybrid setup is slightly cheaper than a full microinverter system, yet it still provides the granular panel-level monitoring and critical shade mitigation that modern homeowners demand.[6]

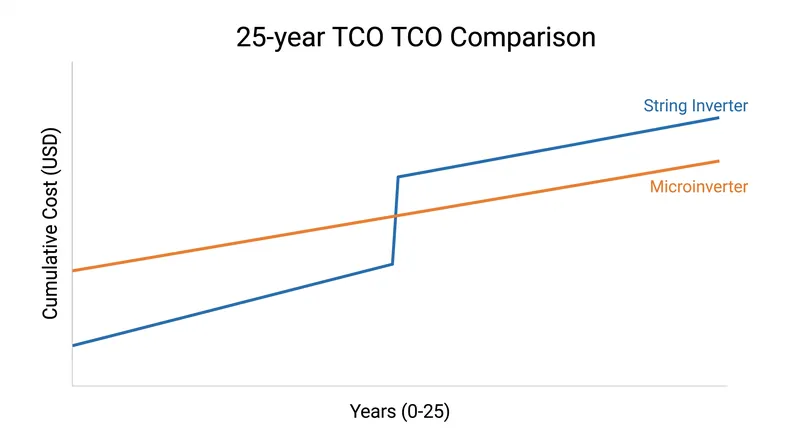

When calculating the total cost of ownership over a standard 25-year solar lifecycle, the initial price premium of microinverters or power optimizers often pays for itself. Factoring in the inevitable replacement cost of a string inverter at year 12, combined with the 7 to 12 percent compounded energy yield loss under moderately shaded conditions, module-level electronics frequently achieve financial parity or outright beat string systems over the long term.[4][5]

Ultimately, the decision between a string inverter, microinverters, or power optimizers comes down to the specific geometry and environmental realities of the installation site. For a simple, unshaded roof, a string inverter remains the most cost-effective path to clean energy. But for complex rooflines, partial shading, or homeowners prioritizing granular data and long-term warranties, microinverters and power optimizers represent the superior, future-proof investment.[2][3]
