The Mechanics of Home Insulation: Comparing Fiberglass, Cellulose, and Spray Foam

Nine out of ten homes in the United States are under-insulated, leaking conditioned air through attics, walls, and floors at a rate equivalent to leaving a window open year-round. This continuous thermal bleed forces heating and cooling systems to work overtime, driving up utility bills and reducing indoor comfort. Upgrading a home's thermal envelope is one of the most cost-effective improvements a homeowner can make, yielding an average 15% reduction in heating and cooling costs. But navigating the insulation aisle requires understanding exactly how different materials stop heat from moving.

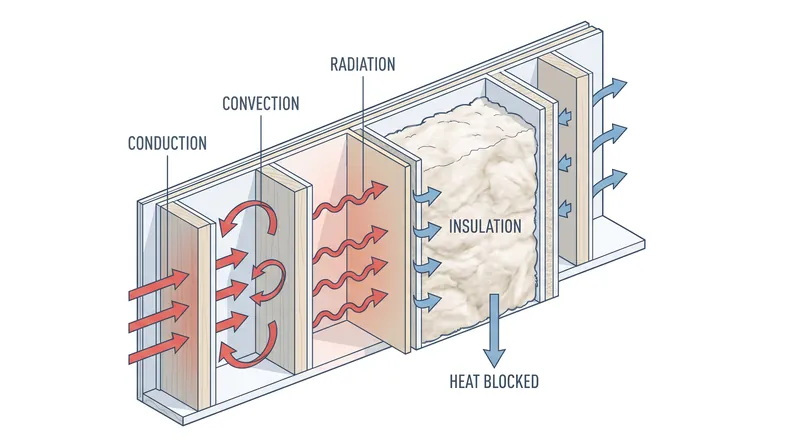

Heat transfer in a building occurs in three ways: conduction (heat moving through solid materials like wood studs), convection (heat carried by air movement), and radiation (heat traveling in straight lines, like the sun hitting a roof). The primary job of bulk insulation is to trap tiny pockets of air or gas, which are poor conductors of heat, thereby slowing down conductive heat transfer. The effectiveness of this resistance is measured by its R-value.[1]

R-value stands for thermal resistance. The higher the R-value, the better the material resists the conductive flow of heat. It is a linear scale: an R-10 material provides twice the thermal resistance of an R-5 material. However, a material's R-value is only part of the equation. If air can easily flow through or around the insulation, convective heat loss will bypass the thermal barrier entirely. This makes air sealing just as critical as the insulation material itself.[1]

The most common and affordable option is fiberglass insulation, which typically comes in pre-cut batts or continuous rolls. Made from extremely fine glass fibers woven together, fiberglass traps air within its matrix to slow heat transfer. It provides an R-value of roughly R-2.2 to R-3.8 per inch of thickness. Because it is manufactured to fit standard 16-inch or 24-inch stud spacing, it is a popular choice for do-it-yourself projects.[2]

However, fiberglass has a significant limitation: it does not stop air movement. If a wall cavity has gaps or cracks, cold air will blow right through the fiberglass batts, drastically reducing their real-world effectiveness. Furthermore, fiberglass must be cut perfectly to fit around electrical boxes and plumbing. If it is compressed or leaves voids, its R-value drops. For fiberglass to perform optimally, the wall cavity must be meticulously air-sealed with caulk or expanding foam before the batts are installed.[3]

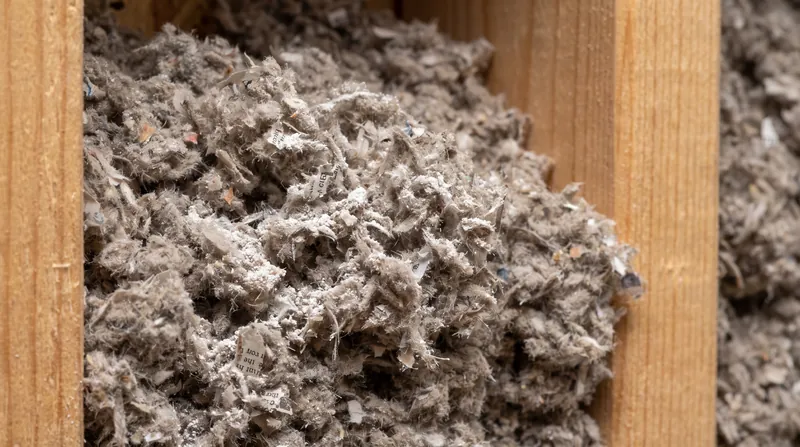

Cellulose insulation offers a step up in both performance and eco-friendliness. Manufactured primarily from recycled newspaper and treated with borate for fire and insect resistance, cellulose is typically blown into attics or densely packed into closed wall cavities using specialized pneumatic equipment. It provides an R-value of R-3.2 to R-3.8 per inch, comparable to high-density fiberglass, but it behaves very differently in a wall assembly.[2]

Because cellulose is a loose-fill material, it easily flows around wires, pipes, and irregular framing, filling the cavity completely without the voids common to fiberglass batts. When installed as "dense-pack" in walls, cellulose is blown in under high pressure. This density not only prevents the material from settling over time but also significantly reduces convective air movement through the wall. While it is not a perfect air barrier, dense-pack cellulose provides substantial air-sealing benefits compared to fiberglass.[3]

For maximum thermal resistance and complete air sealing, spray polyurethane foam is the premium choice. Spray foam is applied as a liquid that rapidly expands to fill every crack, crevice, and void before curing into a solid plastic matrix. It comes in two main varieties: open-cell and closed-cell. Open-cell foam is lighter, remains somewhat flexible, and provides an R-value of about R-3.5 to R-3.8 per inch. It stops air movement but allows water vapor to pass through.

Closed-cell spray foam is the heavy hitter of the insulation world. Its cells are packed tightly together and filled with an insulating gas, giving it an impressive R-value of R-5.0 to R-7.0 per inch. Because it cures into a rigid, dense plastic, closed-cell foam acts as a complete air barrier and a Class II vapor retarder. It also adds structural rigidity to the wall assembly. This makes it ideal for extreme climates, unvented attics, and areas where space is limited but high R-values are required.

The trade-off for spray foam's superior performance is cost and complexity. It is significantly more expensive than fiberglass or cellulose and requires professional installation using specialized chemical mixing equipment. The chemicals used must be applied at precise temperatures and ratios to cure safely and effectively. For homeowners on a budget, the high upfront cost of closed-cell foam means the payback period through energy savings will be much longer, especially in mild climates where extreme R-values are less critical.[4]

When choosing between these materials, the optimal solution often involves a hybrid approach. A common and cost-effective strategy is "flash and batt": applying a thin one-inch layer of closed-cell spray foam to the exterior sheathing to create a perfect air and moisture seal, and then filling the rest of the cavity with inexpensive fiberglass or cellulose to achieve the target R-value. This delivers the air-sealing benefits of foam without the exorbitant cost of filling the entire cavity with it.[3]

Ultimately, the best insulation material depends on the specific application, the local climate zone, and the budget. Attics, which are the primary source of heat loss in most homes, generally require R-values between R-30 and R-60. Blowing in a thick layer of loose-fill cellulose is often the most economical way to hit these targets. For exterior walls, where space is constrained to a 3.5-inch or 5.5-inch cavity, dense-pack cellulose or closed-cell foam will maximize the thermal resistance within that limited footprint.

Regardless of the material chosen, the building envelope must be treated as a complete system. Insulation without air sealing is like wearing a thick wool sweater on a windy day: the wind will cut right through the knit. By combining proper air sealing techniques with the appropriate R-value material, homeowners can create a thermal boundary that dramatically improves comfort, protects the building structure from moisture damage, and permanently lowers energy consumption.[4]
