The Mechanics of Grid Frequency and Inertia: How the AC System Stays Synchronized and the Challenge of Renewables

What everyone gets wrong about the renewable energy transition is the assumption that it is purely a volume problem. Public discourse focuses almost entirely on generating enough clean megawatt-hours to replace coal and gas. But for the engineers managing the electrical grid, the hidden challenge is not volume; it is rhythm. The alternating current (AC) power grid is the largest synchronized machine on Earth, and maintaining that synchronization is becoming fundamentally more difficult as the generation mix changes.[3]

Everything connected to an AC grid must pulse at exactly the same frequency—typically 50 or 60 Hertz, depending on the region. For over a century, this delicate synchronization has been maintained by the sheer physical mass of traditional power plants. Inside coal, gas, and nuclear facilities, massive steel turbines and generators spin in lockstep with the grid's frequency. These are known as synchronous generators, and they are the heavy anchors of the modern power system.

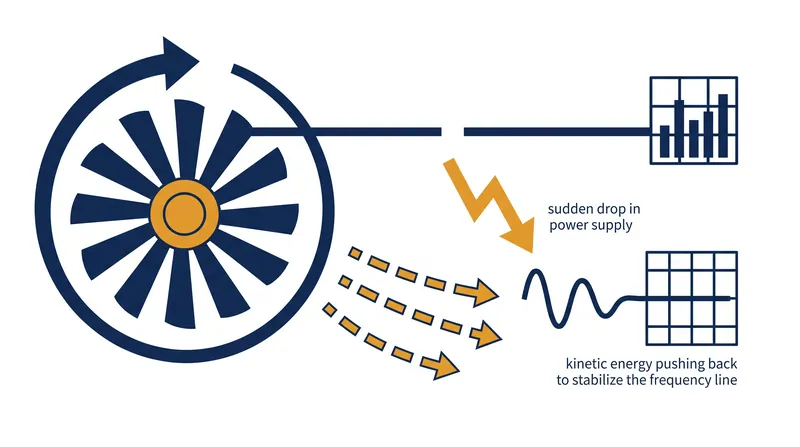

This spinning mass provides what engineers call "mechanical inertia." According to Newton's first law of motion, a heavy object in motion wants to stay in motion. If a power plant suddenly trips offline, or if consumer demand spikes unexpectedly, the grid's frequency begins to drop. However, the massive rotors in the remaining synchronous generators resist this sudden change in speed, acting as a physical shock absorber for the entire network.

For a few precious seconds, the kinetic energy stored in that spinning metal automatically injects power into the grid, slowing the rate at which the frequency falls. This buffer gives grid operators and automated secondary systems the crucial time they need to bring backup generators online or shed load. Without this inertial buffer, the frequency would plummet rapidly, triggering automated safety disconnects and cascading blackouts.

Enter renewable energy. Solar panels have no moving parts whatsoever, producing direct current (DC) that must be converted to AC. Wind turbines do rotate, but their speed is dictated by the wind, not the grid, and they are decoupled from the wider electrical system by power electronics. Because they do not spin in synchrony with the grid, standard wind and solar farms provide zero mechanical inertia.

As these inverter-based resources replace traditional thermal plants, the grid loses its physical shock absorbers. In a low-inertia grid, a sudden loss of generation causes the frequency to drop much faster—a metric known as a high Rate of Change of Frequency (RoCoF). If the frequency drops below a critical threshold, such as 59.5 Hz in a 60 Hz system, under-frequency load shedding automatically disconnects neighborhoods to save the broader grid from total collapse.[2]

This "inertia gap" is one of the most complex hurdles in achieving a fully decarbonized power system. However, the solution is not to keep fossil fuel plants running simply for the sake of their spinning mass. Instead, the energy industry is shifting from mechanical physics to digital control, replacing heavy metal with smart silicon.[3]

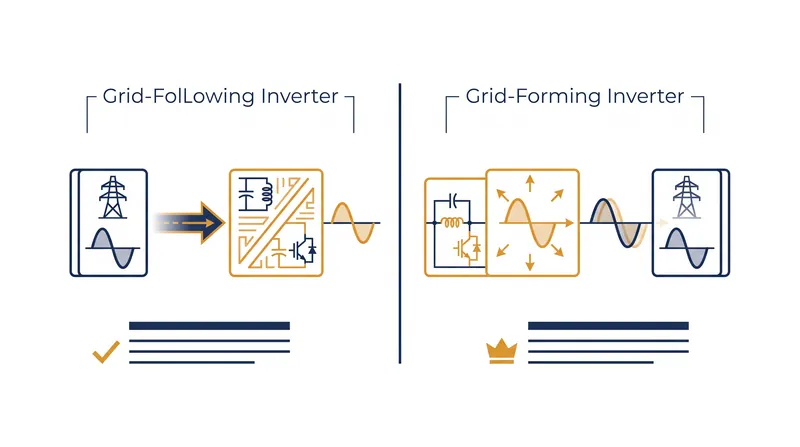

The key technology enabling this shift is the "grid-forming inverter." Traditional renewable energy inverters are "grid-following." They rely on a phase-locked loop to measure the existing grid frequency and then inject current to match it. They are followers; if the grid's voltage or frequency becomes unstable, or if the grid goes down entirely, grid-following inverters shut off to protect themselves.[1][2]

Grid-forming inverters, by contrast, act as leaders. Rather than waiting for the grid to tell them what to do, they synthesize an internal voltage phasor and actively establish the local voltage and frequency. They behave like controllable voltage sources, mimicking the stabilizing characteristics of a traditional synchronous generator without requiring any physical rotating mass.[1]

By programming these advanced inverters with specific control algorithms—such as Virtual Synchronous Generator (VSG) frameworks—engineers can create "synthetic inertia" or virtual inertia. When the inverter's software detects a sudden drop in grid frequency, it instantly commands the system to inject stored energy to prop the network up, resisting the change just as a spinning turbine would.

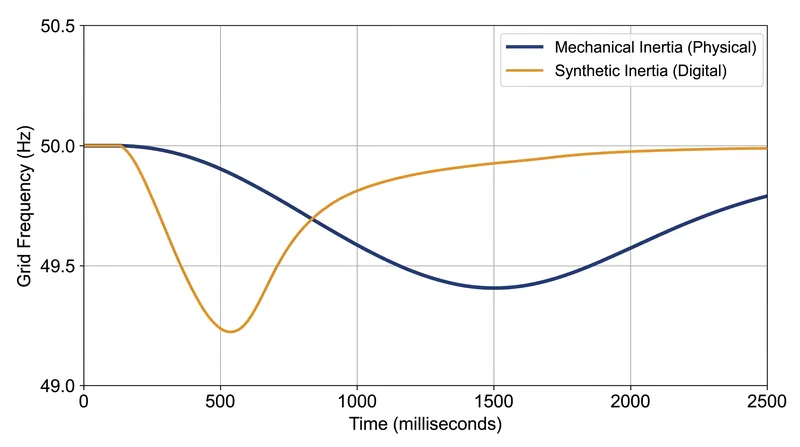

This rapid power injection usually comes from a battery energy storage system (BESS) or from curtailed headroom in a wind or solar farm. Because the response is digitally controlled rather than mechanically bound, synthetic inertia can react in milliseconds. This is significantly faster than the physical response of a steam turbine, offering a new kind of precision in grid management.

While a traditional generator's inertia constant might provide a physical buffer for 4 to 10 seconds, synthetic inertia from renewable sources typically operates in the 1 to 6-second range. However, its near-instantaneous digital deployment means it can arrest a frequency drop faster, shifting the grid's defense mechanism from duration-based buffering to speed-based intervention.[3]

The transition to grid-forming technology is already underway. Major standards organizations, including the IEEE and the European Network of Transmission System Operators for Electricity (ENTSO-E), have introduced technical requirements for grid-forming capabilities. These standards ensure that the next generation of renewable plants can actively stabilize the network rather than just passively feeding it.[1]

Pilot projects and utility-scale deployments are proving the concept in the field. Battery plants equipped with grid-forming inverters have successfully demonstrated the ability to black-start a dead grid segment and maintain strict frequency control without the assistance of a single spinning turbine, effectively operating as independent microgrids when necessary.[1][2]

Ultimately, the shift from mechanical inertia to synthetic inertia represents a fundamental upgrade to the power grid's operating system. By embedding the physics of a synchronous machine into the software of a voltage source converter, the energy sector is proving that a 100% renewable grid can be just as stable—and potentially more responsive—than the fossil-fueled system it replaces.[3]
