The Mechanics of ERVs and HRVs: How Homes Breathe Without Losing Heat

Most people think making a home energy-efficient means sealing it up as tight as a drum to keep the expensive conditioned air inside. But a perfectly sealed house is a recipe for stale air, trapped moisture, and a buildup of indoor pollutants like volatile organic compounds and carbon dioxide. When a home cannot breathe, the indoor air quality rapidly degrades, leaving occupants feeling fatigued and uncomfortable. The solution isn't to simply open a window and let the expensive heat escape into the neighborhood. Instead, the answer lies in mechanical ventilation—specifically, the installation of an Energy Recovery Ventilator (ERV) or a Heat Recovery Ventilator (HRV).[3]

As modern building codes increasingly mandate tighter building envelopes to reduce overall energy demand, the natural infiltration of fresh air through cracks and drafts has plummeted. Homes still desperately need fresh outdoor air to maintain a healthy environment, but they need it without driving up the heating and cooling costs that the tight envelope was designed to save. This is where recovery ventilators step in, continuously exchanging stale indoor air with filtered outdoor air while recovering the thermal energy that would otherwise be lost to the outside environment.[2]

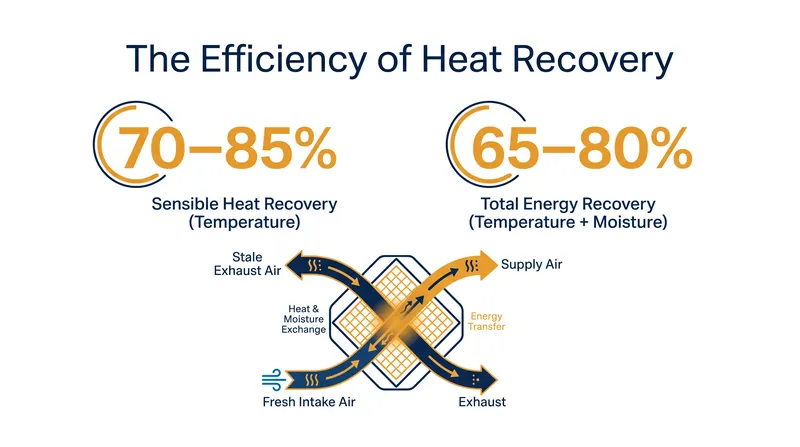

Both HRVs and ERVs solve the exact same core problem using a remarkably similar mechanical approach. These units typically utilize two motorized impeller fans and two completely separate air streams housed within a single metal cabinet. As the warm, stale air is exhausted from the home's interior, it is forced through a central heat-exchange core. At the exact same time, cold, fresh air is pulled from the outside and passes through that very same core in the opposite direction.[1]

The crucial mechanical feature of this process is that the two air streams never actually mix with one another. They cross paths within the tightly woven channels of the core, allowing the thermal energy from the outgoing exhaust air to transfer directly to the incoming fresh air. In the dead of winter, the warm exhaust air pre-heats the freezing fresh air before it enters the living space. In the sweltering summer, the cool exhaust air pre-cools the incoming hot air, stripping it of its intense heat.

This passive exchange process recovers a massive amount of thermal energy that would otherwise be completely wasted. Sensible heat recovery effectiveness for modern residential units typically ranges from 70% to 85% at their rated airflow capacity. This means that instead of your furnace or central air conditioner having to condition 100% of the incoming fresh air from scratch, it only has to handle the remaining 15% to 30% of the thermal load, resulting in profound utility savings over the lifespan of the equipment.

While they look identical from the outside, the fundamental difference between an HRV and an ERV comes down to one critical factor: moisture management. To understand why this matters, you have to understand the thermodynamic difference between sensible heat and latent heat. Sensible heat is the raw temperature you can easily measure with a standard wall thermometer. Latent heat, on the other hand, is the energy tied directly to moisture in the air, which dictates how humid, sticky, or dry the indoor environment actually feels to the human body.[2]

An HRV, or Heat Recovery Ventilator, is designed to transfer only sensible heat. The core of an HRV is typically constructed from corrugated aluminum or a rigid plastic material that acts as an absolute physical barrier between the two airstreams. It allows the temperature to pass through the thin walls of the core, but absolutely no moisture is exchanged in the process. The humidity stays firmly on its original side of the airstream, meaning whatever moisture is inside the house gets exhausted directly to the outside.[1]

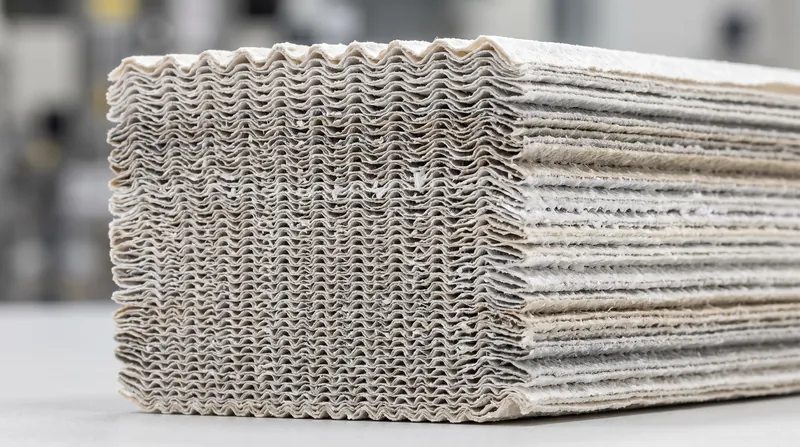

An ERV, or Energy Recovery Ventilator, takes the process one step further by transferring both sensible heat and latent energy. Instead of solid aluminum, the ERV core utilizes a specialized permeable or desiccant-coated membrane. This advanced material allows microscopic water vapor molecules to migrate from the higher-humidity airstream directly into the lower-humidity airstream, all while keeping the actual air volumes completely separated. Because both temperature and moisture are actively transferred, ERVs are classified by engineers as total enthalpic devices.[1]

This moisture transfer capability fundamentally changes how the ventilation system interacts with your home's specific climate. During a freezing winter, an ERV captures the heat from the outgoing air while simultaneously retaining the indoor humidity, returning that moisture to the bone-dry incoming fresh air. This is incredibly helpful in cold northern climates where homes tend to get uncomfortably dry during the long heating season, often causing static shocks, dry skin, shrinking hardwood floors, and respiratory irritation for the occupants.[3]

In the summer, the ERV works its magic in reverse to protect the indoor environment. As it pre-cools the incoming fresh air, the desiccant core also strips away a significant portion of the outdoor moisture, transferring that heavy humidity directly to the outgoing exhaust air. This crucial step limits how much hot, humid outdoor air raises your indoor humidity levels, drastically easing the latent cooling load on your central air conditioner and preventing the home from feeling like a damp, uncomfortable swamp.

Because ERVs handle the complex transfer of both temperature and moisture, their overall performance is measured by a metric called Total Recovery Efficiency (TRE), which generally sits between 65% and 80%. While this number is slightly lower than the raw sensible recovery rate of an HRV, the TRE provides a much more accurate and comprehensive picture of the actual energy saved in humid or very dry climates, where moisture management is just as expensive and energy-intensive as basic temperature control.[2]

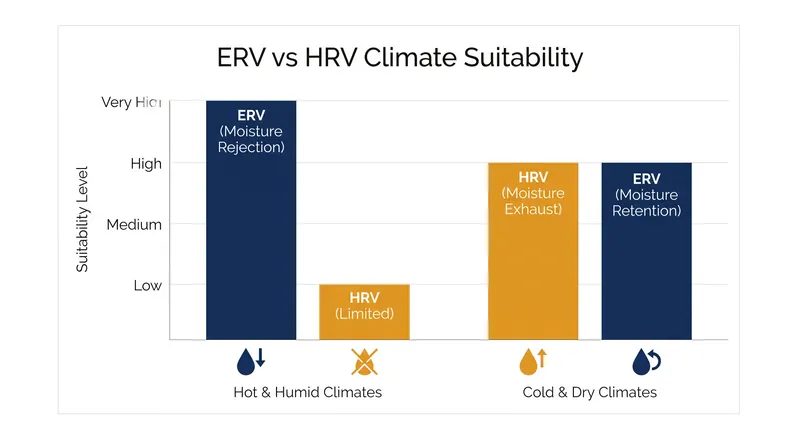

Choosing between the two technologies depends entirely on your local climate zone and your home's specific architectural needs. In hot, humid climates like Florida or the Gulf Coast, ERVs are universally the better choice because they actively pre-dehumidify the incoming outdoor air. Without this latent moisture transfer, pumping humid outdoor air into the house all summer long would completely overwhelm the air conditioner, leading to massive utility bills, shortened equipment lifespans, and the potential for dangerous mold growth inside the ductwork.

Conversely, in extremely cold, dry climates, an HRV might be the preferred option if the homeowner's primary goal is to aggressively exhaust excess indoor moisture generated by daily cooking, cleaning, and showering. However, if the home is built to extreme tightness standards and the winter indoor humidity regularly falls below 30%, an ERV can help retain that necessary ambient moisture. This allows the occupants to stay comfortable and healthy without relying heavily on energy-intensive, maintenance-heavy supplemental whole-home humidifiers.[3]

Regardless of which core type is selected, both systems integrate directly with the whole-home HVAC system via standard sheet metal or flexible ductwork. They can be installed with dedicated, independent ducting routed to specific rooms—such as pulling stale air directly from bathrooms and kitchens while supplying fresh air exclusively to bedrooms—or they can be connected directly to the central air handler's return plenum to distribute the conditioned fresh air evenly throughout the entire house alongside the primary heating and cooling.

Modern ventilation units increasingly incorporate variable-speed ECM motors for intelligent, demand-controlled operation. Instead of running constantly at a fixed, inefficient rate, these advanced systems can modulate their airflow based on integrated occupancy sensors, smart home schedules, or indoor carbon dioxide monitors. This ensures the home gets exactly the right amount of fresh air it needs at any given moment, maximizing indoor air quality and occupant health without wasting a single watt of unnecessary fan power on an empty house.[3]
