U-factor and Solar Heat Gain Coefficient: The Fundamental Trade-Offs Dictating Window Energy Efficiency

Homeowners and window salespeople often assume that a single "energy efficient" label or a high R-value means a window is universally good for any climate. The prevailing belief is that the most heavily insulated glass on the market will automatically lower utility bills, regardless of where the house is built. But according to building scientists and the U.S. Department of Energy, that assumption is fundamentally flawed. The evidence shows that window efficiency is actually governed by two competing metrics, and a window designed to trap heat in a northern winter can actively bake a southern home in the summer.[3][4]

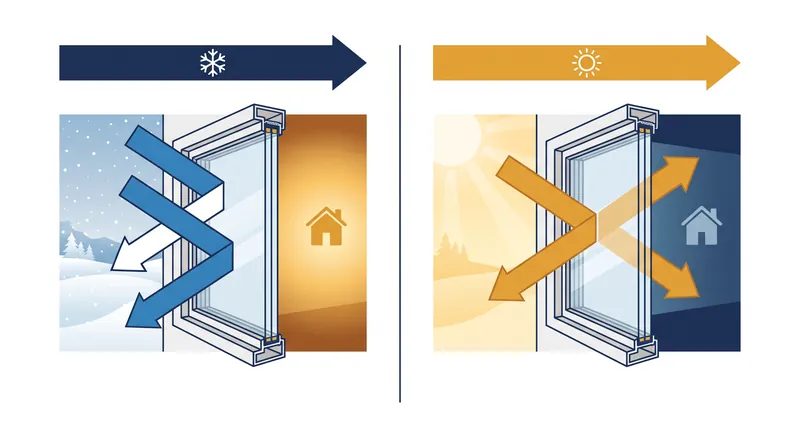

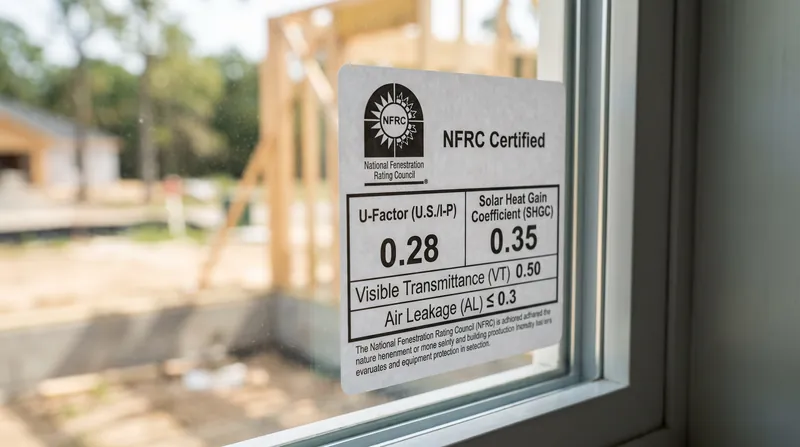

The reality of window performance is dictated by a fundamental trade-off between two distinct measurements: U-factor and Solar Heat Gain Coefficient (SHGC). As the National Fenestration Rating Council (NFRC) outlines, these two numbers measure completely different physical processes. U-factor measures the conduction of ambient heat through the physical materials of the window, while SHGC measures the transmission of radiant solar energy passing directly through the glass.[4]

The stakes for getting this balance right are significant. The U.S. Department of Energy estimates that 25% to 30% of a residential home's heating and cooling energy use is lost through its windows. Because glass is inherently less resistant to heat flow than an insulated wall, windows act as thermal bridges. As the Department of Energy notes, 'traditional window materials used in houses across the United States do a poor job of keeping out the cold and excessive heat,' allowing outward heat flow in the winter and inward heat flow in the summer.[3]

To understand the mechanics, buyers must first look at the U-factor. This metric quantifies the rate of non-solar heat transfer through the entire window assembly, including the glass panes, the frame, the spacers, and the insulating gas fills. It is essentially the inverse of the R-value used to rate fiberglass wall insulation; while a higher R-value is better, a lower U-factor indicates superior insulation.[1][2]

In the United States, U-factors are expressed in British Thermal Units per hour per square foot per degree Fahrenheit, with typical residential window ratings ranging from 0.20 to 1.20. A standard single-pane window might have a U-factor of 1.10, offering almost no thermal resistance, while a high-performance triple-pane window can achieve a U-factor as low as 0.19.[2]

In practice, a low U-factor acts like a thick thermal blanket. During a cold winter in a northern climate, it prevents expensive, heated indoor air from escaping to the freezing outdoors. It also keeps the interior surface of the glass warmer, which eliminates the cold drafts that often cascade down the walls beneath poorly insulated windows.[1]

However, U-factor only tells half the story. While it handles ambient temperature differences, it does not account for the direct heat of the sun. That is where the Solar Heat Gain Coefficient comes in. SHGC measures the fraction of incident solar radiation that is admitted through a window, both directly transmitted and absorbed before being released inward.[2]

The SHGC scale is expressed as a decimal between 0 and 1. An SHGC of 0.27 means the window allows 27% of the sun's radiant heat to pass through into the living space, while blocking the remaining 73%. A rating of zero would represent an impenetrable wall, while a rating of 1 would represent direct, unfiltered exposure to the sun.[2]

This is where the universal concept of an "energy efficient" window breaks down into climate-specific engineering. In a hot, cooling-dominated climate like Texas or Florida, a low SHGC is the most critical factor. Blocking the sun's radiant heat from entering the home drastically reduces the workload on the air conditioning system during the summer months.[4]

Conversely, in a cold, heating-dominated climate like Wisconsin or the Pacific Northwest, a higher SHGC can actually be highly beneficial. A window with a higher SHGC allows for passive solar heating, letting the winter sun warm the home's interior for free during the day, offsetting the work of the furnace.[4]

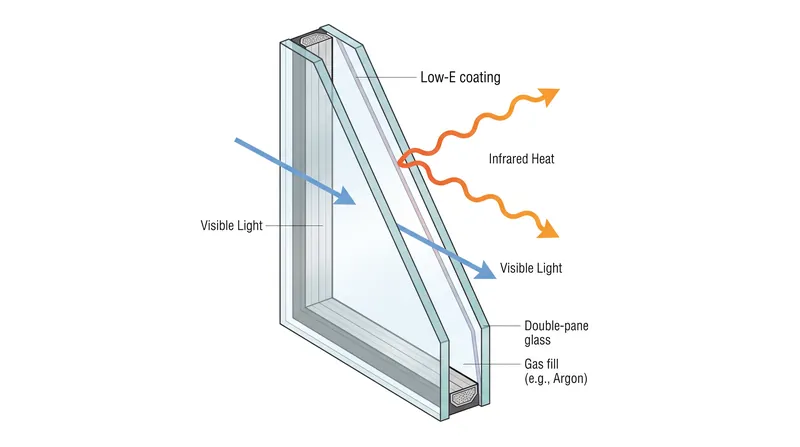

To manipulate these two competing metrics, manufacturers rely heavily on low-emissivity, or Low-E, coatings. These are microscopically thin layers of metallic oxides applied directly to the glass surfaces. Low-E coatings are engineered to reflect infrared light—which carries heat—while still allowing visible light to pass through.[1][3]

By applying these coatings to different surfaces within a double-pane or triple-pane assembly, engineers can tune the window's performance. They can create a window with a low U-factor and a high SHGC to trap heat and harvest winter sunlight for the north, or a window with a low U-factor and a low SHGC to block the summer sun in the south.[1][4]

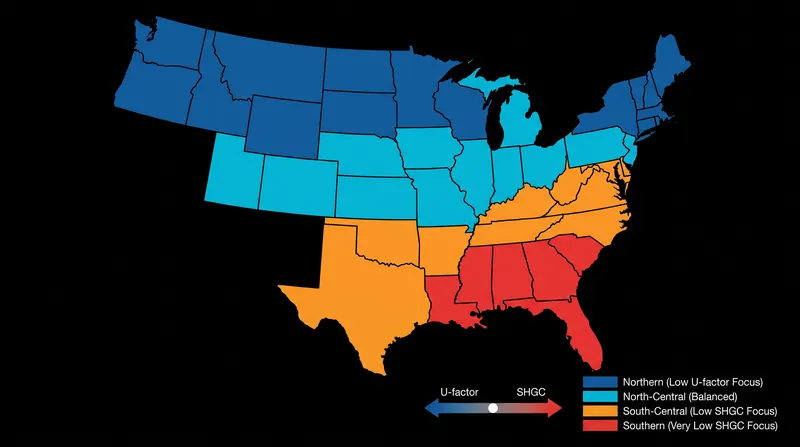

To simplify this complex physics problem for consumers, the Environmental Protection Agency's Energy Star program divides the country into distinct climate zones, setting specific U-factor and SHGC requirements for each region. Following the most recent standard updates in 2023 and 2024, these criteria ensure that homeowners are buying the right glass formulation for their local weather patterns.[3]

For example, in the Northern Climate Zone, Energy Star certification requires a U-factor of 0.27 or less to maximize insulation, but allows a higher SHGC to capture winter sunlight. In the South-Central zone, the requirement shifts dramatically, mandating a strict SHGC of 0.23 or lower to block the intense summer sun, while allowing a slightly higher U-factor of 0.28.[4]

The framing materials also play a crucial role in the overall U-factor of the assembly. Older aluminum frames conduct heat rapidly, undermining the performance of the glass. Modern vinyl, fiberglass, and composite frames offer much better thermal resistance, ensuring that the edges of the window insulate just as well as the center of the pane.[1][3]

The data clearly shows that there is no single "best" window on the market. The optimal choice requires matching the U-factor and SHGC to the specific climate, and even to the specific directional orientation of the walls on the house. South-facing windows might require a different SHGC than north-facing windows on the exact same property, proving that true efficiency is a matter of precise, localized tuning.[4]
