The Mechanics of Carbon Capture and Storage (CCS): Comparing Post-Combustion, Pre-Combustion, and Oxy-Fuel Technologies

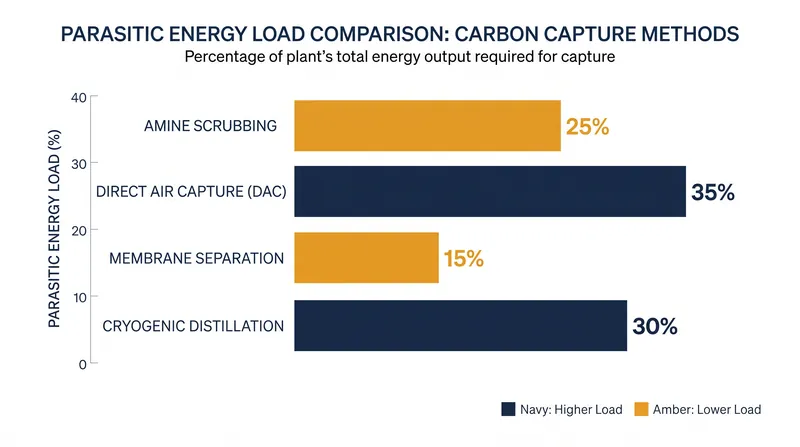

Running the machinery required to capture carbon dioxide from an industrial smokestack can consume between 10% and 40% of a power plant's total energy output. This massive "parasitic load" is the central engineering hurdle of the decarbonization era. To meet global climate targets, industrial operators—from power plants to cement kilns—must install systems that strip CO2 out of their exhaust before it hits the atmosphere. But CO2 does not emerge neatly packaged; it is mixed with nitrogen, water vapor, and other gases. Separating it requires immense amounts of energy, capital, and physical space.[9]

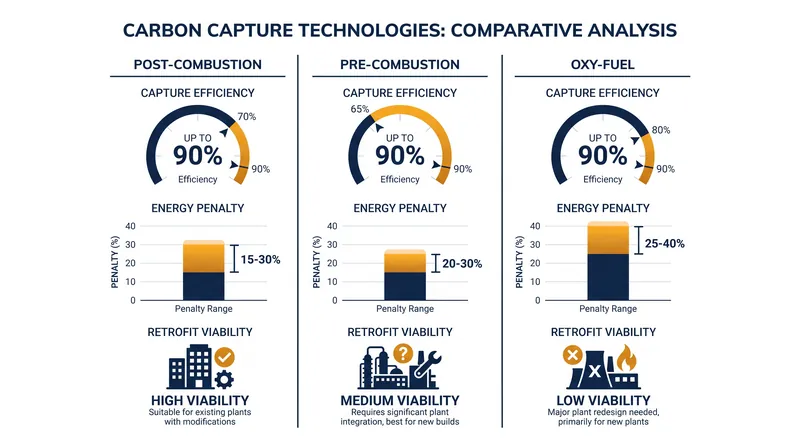

For facility managers and policymakers, the decision comes down to three primary technologies: post-combustion, pre-combustion, and oxy-fuel combustion. Each method intervenes at a different stage of the industrial process. The choice dictates how much a facility will spend on retrofits, how much extra fuel it must burn to power the capture equipment, and ultimately, the final cost of the electricity or materials it produces. Understanding the mechanics of these three pathways is essential for evaluating the viability of any heavy-industry decarbonization plan.[6][9]

Post-combustion capture is the industry standard for existing facilities. As the name suggests, this method extracts CO2 from the flue gas after the fossil fuel has been burned. The exhaust is routed through a massive absorber column where a liquid solvent—typically an amine—chemically binds with the carbon dioxide. The remaining gases, mostly nitrogen, are vented into the atmosphere. The CO2-rich solvent is then pumped into a stripper column and heated, releasing pure CO2 gas that can be compressed and transported.[3][6]

The primary advantage of post-combustion is its modularity. Operators can bolt these systems onto existing coal or natural gas power plants without fundamentally altering the core combustion process. However, the utility comes at a steep cost. Heating the solvent to release the captured CO2 requires a tremendous amount of thermal energy. To maintain the same level of electricity generation for the grid, the plant must burn significantly more fuel, which in turn generates more CO2 that must be captured, creating a costly feedback loop.[3][9]

Pre-combustion capture takes a fundamentally different approach by removing the carbon before the fuel is ever burned. This method is primarily used in integrated gasification combined cycle (IGCC) power plants. Instead of burning coal or gas directly, the facility reacts the fuel with oxygen and steam under high pressure to create a "syngas" composed of carbon monoxide and hydrogen. A secondary "water-gas shift" reaction converts the carbon monoxide into CO2 and produces even more hydrogen.[6][7]

Because the resulting gas mixture is highly pressurized and contains a high concentration of CO2, separation is much more efficient than in post-combustion systems. Operators can use physical solvents that require less energy to regenerate. The remaining pure hydrogen is then burned in a turbine to generate electricity, producing only water vapor as exhaust. The fatal flaw of pre-combustion, however, is its inflexibility. It cannot be easily retrofitted onto standard power plants. It requires building a specialized gasification facility from the ground up, making it a highly capital-intensive option reserved for new construction.[6][7]

Oxy-fuel combustion offers a third path: changing the air, rather than the fuel. Standard combustion burns fuel in ambient air, which is 78% nitrogen. That nitrogen dilutes the exhaust, making CO2 harder to extract. Oxy-fuel systems solve this by burning the fossil fuel in pure oxygen. The resulting exhaust is almost entirely CO2 and water vapor. Cooling the exhaust condenses the water, leaving behind a highly concentrated stream of CO2 that requires minimal chemical processing before compression and storage.[9]

While oxy-fuel combustion drastically simplifies the capture process, the bottleneck shifts to the front end of the plant. Producing pure oxygen at an industrial scale requires an air separation unit (ASU). These cryogenic facilities cool ambient air to sub-zero temperatures to separate oxygen from nitrogen. ASUs are incredibly expensive to build and demand massive amounts of electricity to run, creating an energy penalty that rivals the solvent-heating requirements of post-combustion systems.[9]

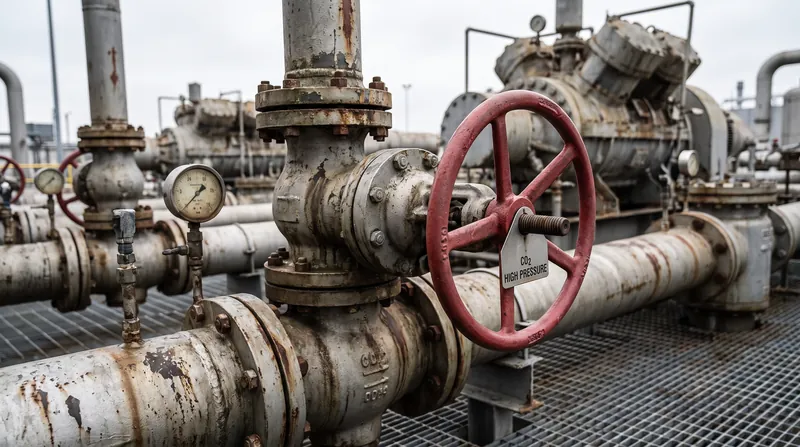

Once the CO2 is captured—regardless of the method—it must be compressed into a dense, liquid-like "supercritical" state. This requires specialized compressors that add further energy demands to the facility. The supercritical CO2 is then transported, typically via dedicated pipelines, to a geological storage site. Here, it is injected thousands of feet underground into porous rock formations, such as depleted oil and gas reservoirs or deep saline aquifers, where an impermeable cap rock prevents it from escaping back to the surface.[9]

The economics of these technologies remain the highest barrier to scale. Adding any form of carbon capture to an industrial facility is a pure added cost. Without aggressive government intervention, carbon pricing, or substantial tax credits, the financial math rarely pencils out for operators. The engineering is proven, but the transition relies entirely on regulatory frameworks that force or incentivize the adoption of these massive, energy-hungry systems.[1][10]
