The Mathematical Artifact That Makes Complete Meta-Analyses Look Biased

In 2011, the BMJ published a comprehensive framework by statistician Jonathan Sterne and colleagues that fundamentally altered how medical researchers evaluate systematic reviews. The guidelines targeted a specific visual tool used to detect suppressed scientific data. That tool was routinely generating false alarms.[1]

The tool in question is the funnel plot, a scatter graph designed to reveal publication bias. Researchers plot the results of individual clinical trials to see if negative findings have been quietly filed away. When all data is published, the plot should resemble a symmetrical, inverted funnel.

"Funnel plots have been widely used to detect small study effects," Sterne’s team wrote in the BMJ. They noted that asymmetry is traditionally assumed to represent publication bias. However, the researchers warned that this visual symmetry relies on a fragile mathematical assumption that often fails in practice.[1]

The assumption breaks down completely when researchers analyze binary outcomes using odds ratios. An odds ratio measures the likelihood of an event happening in one group compared to another. It is the standard metric for trials evaluating whether a drug prevents a specific outcome, like a heart attack.

The Mechanics of the Illusion

To construct the plot, the odds ratio sits on the horizontal axis. The vertical axis represents the study's precision, usually measured by its standard error. Larger, more precise trials cluster tightly at the top. Smaller trials scatter widely at the bottom, forming the funnel's wide base.

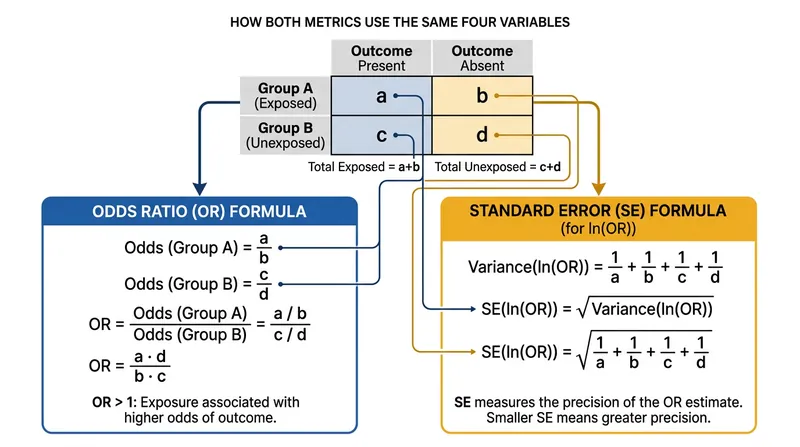

The structural flaw lies in how those two axes are calculated. For an odds ratio, both the effect size and the standard error are derived from the exact same four numbers in a trial's results table. They are mathematically coupled before they ever reach the graph.

When a clinical trial records very few events, this mathematical coupling distorts the data. A low event rate naturally produces a highly variable odds ratio. Simultaneously, that same low event rate inflates the standard error, pushing the data point lower on the vertical axis.

This dual effect forces the results of small, sparse trials into the bottom outer edges of the scatter plot. The graph skews heavily to one side, creating a distinct visual void on the opposite edge. To a reviewer, this void looks exactly like missing, unpublished studies.

A 2003 simulation study published in PubMed by researcher Norma Terrin and colleagues quantified this distortion. They generated thousands of hypothetical meta-analyses with absolutely no publication bias. They then tested those pristine datasets using the standard Egger regression test for funnel plot asymmetry.[8]

Quantifying the False Alarms

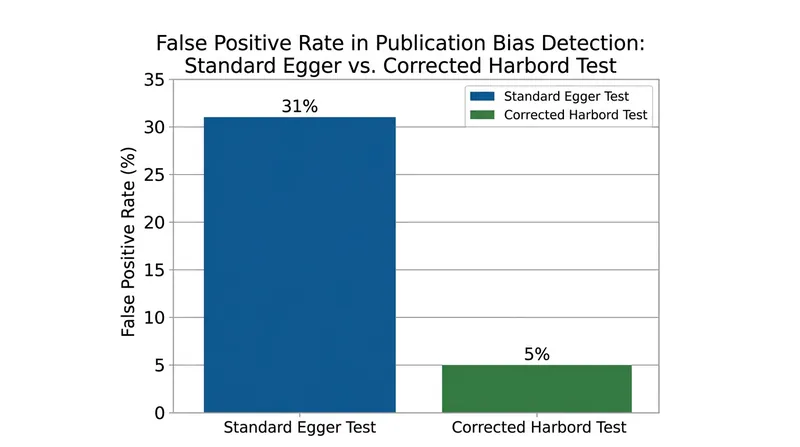

The results revealed a severe inflation of the type I error rate. The standard test falsely flagged publication bias in a massive proportion of the simulated reviews. The mathematical artifact alone was enough to trigger the statistical alarms designed to catch scientific misconduct.[8]

"The type I error rate of the Egger test is inflated when the treatment effect is measured by the odds ratio," the researchers concluded. They demonstrated that the false-positive rate climbed as the baseline event rate dropped. The rarer the medical event, the worse the mathematical illusion became.[8]

A separate analysis in JAMA by Petra Macaskill's team confirmed these structural failures. They compared different methods for detecting publication bias and found that standard regression tests routinely misfired. The coupling of the axes meant the test was measuring mathematical variance, not missing literature.[2]

The distortion is not limited to odds ratios. A 2017 paper in eLife by researchers at the University Medical Center Utrecht found similar artifacts when using standardized mean differences. They demonstrated that standardizing a continuous outcome against its own variance creates the same intrinsic correlation between the axes.[4]

Decoupling the Axes

To fix the false alarms, statisticians had to break the mathematical link between the horizontal and vertical measurements. If the standard error was hopelessly entangled with the odds ratio, the vertical axis needed a new metric. The solution was to use sample size instead.

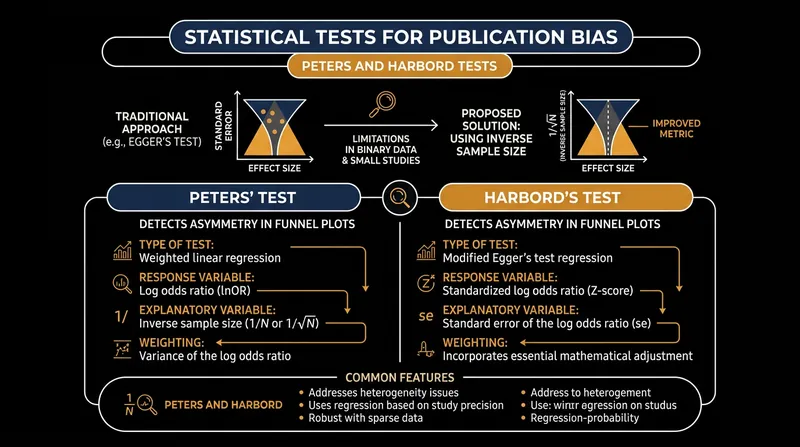

In 2006, researcher Roger Harbord and colleagues published a modified test in PubMed designed specifically for binary endpoints. Instead of plotting the odds ratio against its standard error, the Harbord test regresses a modified score against the statistical variance of the trial.[7]

"We propose a modified linear regression test," Harbord's team wrote, noting that their method maintains the statistical power of the original Egger test. Crucially, their mathematical adjustment successfully reduced the false-positive rate back to the nominal five percent level, even when event rates were low.[7]

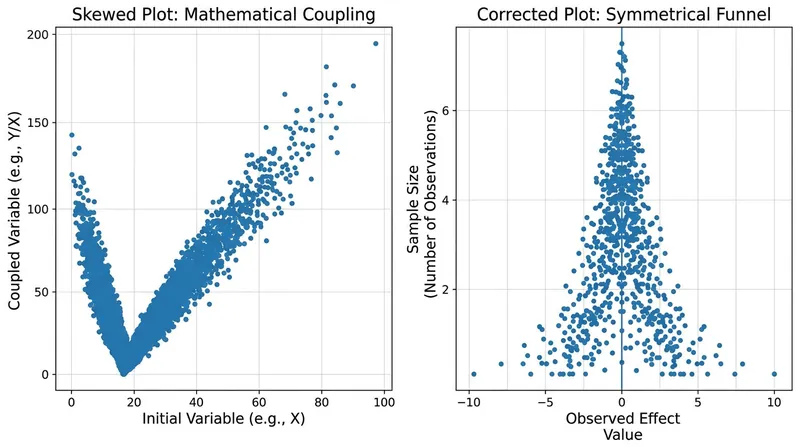

That same year, Jaime Peters and a team of methodologists published another alternative in BMC Medical Research Methodology. The Peters test replaces the standard error on the vertical axis with the inverse of the total sample size. This completely severs the mathematical dependency between the two plotted variables.[5]

Rewriting the Rulebook

The Peters regression method proved highly effective. By plotting the natural logarithm of the odds ratio against the reciprocal of the sample size, the intrinsic skew vanished. The funnel plot regained its symmetry, accurately reflecting the complete, unbiased literature in the simulations.[5]

These statistical corrections eventually reshaped the global standards for evidence synthesis. The Cochrane Collaboration, the premier international organization for systematic reviews, updated its official handbook to warn researchers about the mathematical trap. Chapter 13 of the current Cochrane Handbook explicitly addresses the risk of spurious asymmetry.[6]

The Cochrane guidelines now instruct reviewers to avoid standard funnel plots when analyzing odds ratios from trials with rare events. They mandate the use of the Harbord or Peters tests to prevent false accusations of publication bias. The visual tool is only trusted when the math is decoupled.[6]

Despite these established guidelines, the error persists in modern medical literature. A large survey published in the CMAJ by John Ioannidis and Thomas Trikalinos examined how often researchers apply the correct asymmetry tests. They found that many meta-analyses still rely on the flawed standard Egger regression.[3]

The Cost of Statistical Artifacts

"The appropriateness of asymmetry tests for publication bias in meta-analyses is often questionable," the CMAJ authors noted. When reviewers use the wrong test, they risk discarding valid medical evidence. A false positive for publication bias casts unwarranted doubt on the efficacy of a treatment.[3]

This mathematical quirk highlights a broader vulnerability in evidence-based medicine. Systematic reviews are considered the highest level of clinical evidence, guiding global treatment guidelines and healthcare policy. When the statistical tools used to verify those reviews are structurally biased, the resulting medical advice is compromised.

The illusion of publication bias forces researchers to hunt for suppressed trials that were never actually conducted. It wastes institutional resources and delays the acceptance of genuine medical breakthroughs. The mathematical artifact creates a phantom problem that distracts from actual scientific evaluation.

Resolving the funnel plot distortion requires a skeptical approach to statistical software. Automated analysis tools often default to the standard Egger test, generating a flawed scatter plot with a single click. Researchers must actively override these defaults to apply the necessary mathematical corrections.

Moving Beyond the Funnel

The reliance on visual symmetry is slowly being phased out in favor of more robust analytical frameworks. While the funnel plot remains a staple of medical research, its limitations are now mathematically mapped. The focus has shifted from drawing shapes to interrogating the underlying variance.

The integrity of a meta-analysis depends on understanding the mechanics of its own metrics. The mathematical dependence between odds ratios and sampling variances is a permanent feature of binary data. Acknowledging that artifact is the only way to ensure that missing data is actually missing.
