Evaluating the Discrete Cosine Transform: Where JPEG Compression Excels and Where It Fails

Modern web developers often claim that newer formats like WebP or AVIF have rendered the 1992 JPEG standard obsolete for all use cases. The mathematical evidence from the Joint Photographic Experts Group specification contradicts this blanket dismissal.[5]

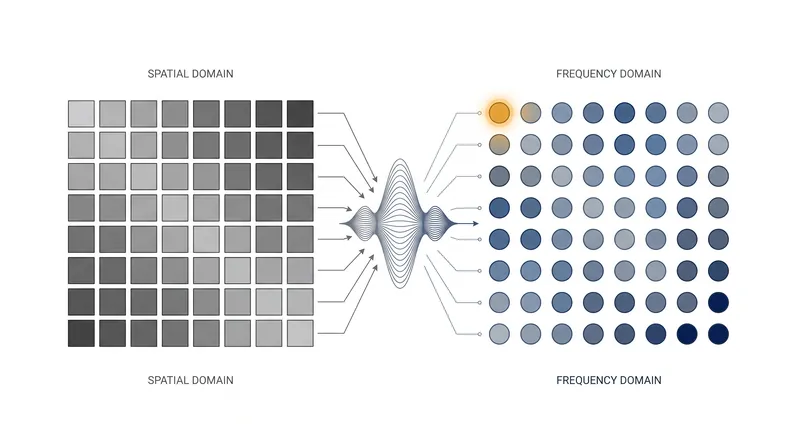

To understand what JPEG actually does, one must look past the marketing language of 'AI-enhanced' modern codecs and examine the Discrete Cosine Transform (DCT). The DCT does not compress data on its own; rather, it translates spatial information—the actual color and brightness of pixels—into frequency information.[1][3]

The algorithm divides an image into a grid of 8×8 pixel blocks. Within each block, the 64 individual pixels are analyzed and converted into 64 frequency coefficients. The top-left coefficient, known as the DC coefficient, represents the average color of the entire block, while the remaining 63 AC coefficients represent increasingly finer details and rapid color changes.[1]

This translation is entirely reversible and mathematically lossless. The actual compression—and the permanent destruction of data—occurs in the next phase: quantization. The human visual system is highly sensitive to broad shifts in brightness and color, but remarkably poor at detecting minute, high-frequency variations.[3]

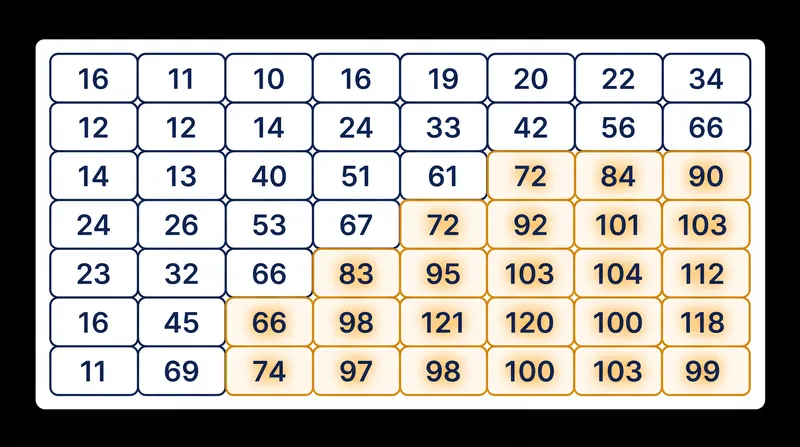

Quantization exploits this biological blind spot. The encoder applies a quantization matrix, dividing each of the 64 frequency coefficients by a specific integer and rounding the result to the nearest whole number. Low-frequency coefficients are divided by small numbers, preserving their values. High-frequency coefficients are divided by much larger numbers, frequently rounding them down to exactly zero.[1][4]

As Gregory Wallace, a key architect of the standard, noted in his seminal 1991 ACM paper: 'The quantization step is the principal source of lossiness in the DCT-based encoders.' By forcing dozens of high-frequency coefficients to zero, the resulting data string becomes highly repetitive, allowing subsequent Huffman coding to shrink the file size dramatically.[1]

At a standard quality setting of 50, a typical encoder discards roughly 75% of the high-frequency data in a photographic block. Despite this massive data loss, the reconstructed image often achieves a 10:1 to 20:1 compression ratio with no degradation visible to the naked eye.[1][4]

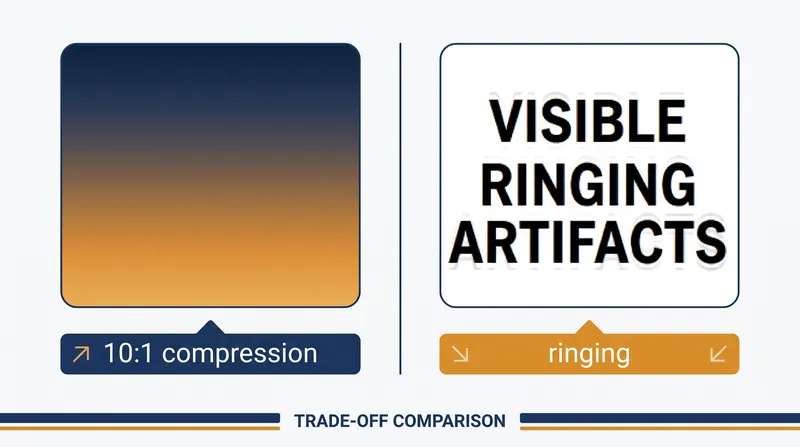

However, this biological exploit fails catastrophically on synthetic images. When an 8×8 block contains a sharp, high-contrast edge—such as black text on a white background—that edge requires intense high-frequency coefficients to render accurately. When quantization rounds those coefficients to zero, the decoder cannot reconstruct the sharp boundary.[2][5]

The result is the 'ringing' artifact, also known as the Gibbs phenomenon. The decoder attempts to approximate the missing high-frequency data using the surviving low-frequency waves, creating a visible halo or ripple effect around the text. This is why a 50-kilobyte JPEG of a text document looks substantially worse than a 15-kilobyte PNG of the same file.[2]

The Library of Congress notes in its digital preservation guidelines that while progressive JPEG encoding offers structural advantages for web delivery, the underlying DCT quantization makes it inherently unsuitable for line art, typography, or any archival material where edge fidelity is paramount.[2]

Modern alternatives like AVIF utilize more complex intra-frame prediction and variable block sizes, ranging from 4×4 up to 64×64, allowing them to handle sharp edges more gracefully than JPEG's rigid 8×8 grid. Yet, for continuous-tone photography, the computational cost of encoding AVIF can be hundreds of times higher than JPEG, yielding diminishing returns on file size.[5]

The 34-year-old standard remains ubiquitous not because of inertia, but because its specific trade-off—sacrificing high-frequency detail to preserve low-frequency gradients—perfectly matches the optical properties of the natural world. The decision to use it should be dictated entirely by the structural content of the image being compressed.[4][5]
