The Mathematical Accident That Defined Digital Audio: Why the Compact Disc Runs at 44.1 kHz

On one side of the laboratory sat the acoustic purists, armed with theoretical mathematics. They argued that the digital audio standard of the future should be a clean, round 50,000 samples per second. This figure was chosen purely to capture the absolute limits of human hearing with a comfortable safety margin.[6]

On the other side sat the hardware pragmatists, staring at the staggering data requirements of uncompressed digital sound. They knew that no dedicated audio medium on earth in 1979 could actually store that much information. They argued that the standard had to be dictated by the only machines that could: television video recorders.[3][6]

This fundamental tension between acoustic theory and manufacturing reality defined the birth of the compact disc. The purists wanted a standard built for an idealized future, unconstrained by the limitations of 1970s technology. The pragmatists understood that if the format could not be mastered and duplicated using existing equipment, it would never reach the consumer market.[2][6]

The compromise they struck remains one of the most enduring mathematical artifacts in consumer electronics. Today, billions of digital music files, streaming algorithms, and compact discs operate at exactly 44,100 hertz. That highly specific, seemingly arbitrary number is not a product of acoustic science, but a ghost of analog television.[1][6]

The Acoustic Baseline

To understand why 44.1 kHz exists, one must first understand the biological limits of the human ear. A healthy young person can hear frequencies ranging from a low rumble at 20 hertz up to a high-pitched whine at 20,000 hertz. Capturing that entire spectrum is the baseline requirement for high-fidelity audio.[1]

In the analog era, capturing this range meant cutting physical grooves into vinyl or arranging magnetic particles on a continuous tape. Digital audio, however, requires slicing a continuous sound wave into discrete, frozen snapshots. The rules for taking those snapshots were established decades before the compact disc was ever conceived.[2]

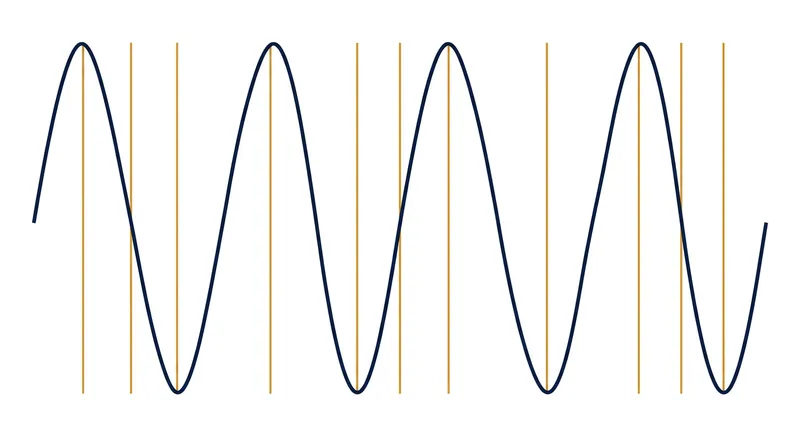

In 1949, mathematician Claude Shannon formalized the Nyquist-Shannon sampling theorem, a foundational principle of information theory. The theorem dictates that to perfectly reconstruct a continuous signal, you must sample it at a rate at least twice its highest frequency. For human hearing, the math is straightforward: twice 20,000 hertz is 40,000 hertz.[5]

Therefore, a digital system must take at least 40,000 snapshots per second to capture everything a human can hear. However, engineers cannot simply cut off a recording at exactly 20,000 hertz without introducing severe digital distortion known as aliasing. They require a transition band—a buffer zone where a low-pass filter can smoothly roll off the high frequencies.[1][5]

"To implement a practical anti-aliasing filter, the sampling frequency must be set somewhat higher than the theoretical Nyquist minimum," notes the Audio Engineering Society's historical archive on the compact disc.[2]

The Video Tape Hack

This engineering reality pushed the minimum viable sampling rate from a theoretical 40,000 hertz up to roughly 44,000 hertz. Establishing the target rate was only half the problem; storing the resulting data was the true hurdle.[1][2]

In the late 1970s, a stereo audio signal sampled at 44,000 times per second at a 16-bit resolution generated over 1.4 million bits of data every second. Hard drives of the era were the size of washing machines and held mere megabytes. Traditional analog audio tape lacked the bandwidth to record this massive digital torrent.[3]

The only commercially available magnetic medium capable of handling a 1.4-megabit-per-second data stream was analog video tape. Specifically, engineers turned to the Sony U-matic, a 3/4-inch video cassette system originally designed for television broadcasters.[1][3]

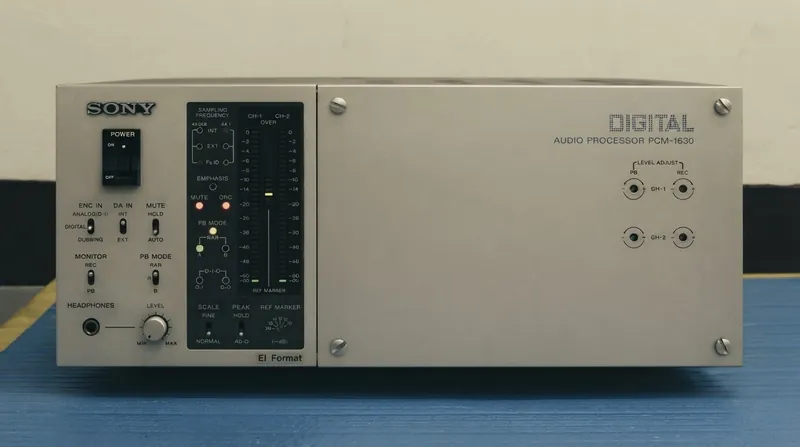

To store audio on a video cassette, engineers had to disguise the digital ones and zeros as a black-and-white television signal. They built a device called a Pulse-Code Modulation adaptor. This machine took the digital audio data and translated it into the visual scan lines of a standard video frame.[3]

Because the audio was now masquerading as video, the sampling rate had to lock perfectly into the rigid mathematical grid of television broadcasting. If the audio data did not divide evenly into the video frames, the picture would tear, and the digital data would be catastrophically corrupted.[1][3]

The Television Math

This requirement forced the audio engineers to reckon with the two incompatible television standards that divided the globe. In Europe, the PAL standard displayed 50 interlaced fields per second, with a total of 625 horizontal lines per frame. In North America and Japan, the NTSC standard displayed 60 fields per second, with 525 lines per frame.[1]

Not all of those lines could be used for data. Both formats reserved several lines at the top and bottom of the screen for the vertical blanking interval—the time it took the cathode-ray tube's electron gun to reset to the top of the screen. The audio data had to fit exclusively within the active, visible lines.[1]

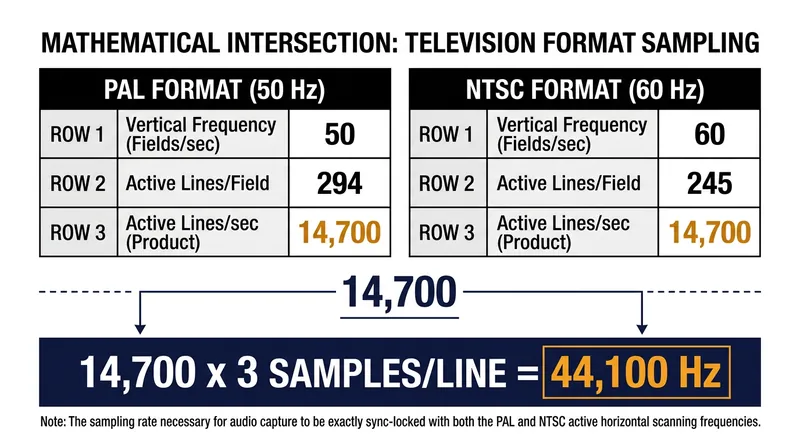

In the European PAL system, subtracting the blanking interval left exactly 294 active lines per field. At 50 fields per second, that provided 14,700 active lines every second. The engineers determined they could safely encode three discrete audio samples into each horizontal line.[1][6]

The calculation for PAL was therefore 14,700 lines multiplied by three samples per line, yielding exactly 44,100 samples per second. But a global audio format could not rely solely on European television equipment. The math also had to work flawlessly on the American and Japanese NTSC standard.[1][6]

The NTSC system utilized 60 fields per second, but had fewer total lines. After subtracting its specific blanking interval, NTSC offered exactly 245 active lines per field. At 60 fields per second, this generated 14,700 active lines every second—the exact same figure produced by the PAL system.[1][6]

Multiplying those 14,700 NTSC lines by three samples per line yielded the identical result: 44,100 samples per second. It was a mathematical miracle. The only frequency that satisfied the Nyquist theorem and divided perfectly into both global television formats was 44.1 kHz.[1][6]

Cementing the Compromise

When Sony and Philips convened in 1979 to finalize the specifications for the new compact disc, they faced a choice. Philips, leaning toward the acoustic purists, initially proposed a 44,000 hertz standard. Sony, representing the hardware pragmatists, pushed for 44,100 hertz, as their PCM-1600 video adaptors were already actively mastering albums at that rate.[3][4]

Sony's argument ultimately prevailed. The U-matic video tape infrastructure was already deployed in recording studios around the world. Changing the sampling rate would have rendered millions of dollars of early digital recording equipment obsolete overnight, stalling the rollout of the compact disc by years.[3][4]

In 1980, the two companies published the Red Book, the definitive technical standard for the compact disc. It formally enshrined 44.1 kHz as the global sampling rate for digital audio. The acoustic purists lost their clean, round number, but the pragmatists delivered a format that could be manufactured immediately.[2][4]

An Enduring Artifact

The U-matic video tapes that necessitated this compromise have been obsolete for decades. Modern solid-state drives can store terabytes of data in the palm of a hand, and digital audio no longer needs to masquerade as a television signal to survive. Yet, the 44.1 kHz standard remains deeply entrenched.[1][6]

When Apple launched the iTunes Store in 2003, it sold tracks encoded at 44.1 kHz. When Spotify streams a song to a smartphone today, the underlying master file is almost certainly anchored to that same rate. The entire digital music ecosystem was built on a foundation poured in 1979.[6]

There are modern alternatives, of course. Film and television audio later standardized on 48 kHz, and high-resolution music services offer files at 96 kHz or even 192 kHz. But the vast majority of the world's recorded music library was digitized at the Red Book standard, and upsampling it cannot add information that was never there.[1][2]

The 44.1 kHz sampling rate is a testament to the messy reality of engineering. It proves that technological standards are rarely handed down from theoretical mountaintops. Instead, they are forged in the friction between what scientists want to build, and what the hardware of the day will actually allow.[6]
