The Four-Satellite Trilateration Principle: How GPS Receivers Calculate Position by Correcting for Clock Drift

On June 23, 1977, when the United States launched the NTS-2 satellite to test the first orbiting Navstar Global Positioning System hardware, engineers at the Naval Research Laboratory faced a fundamental physics problem. The satellite carried a cesium atomic clock capable of measuring time to the nanosecond. But the receivers on the ground, which would eventually be built into vehicles and handheld devices, could never house a $100,000 atomic oscillator. They would have to rely on cheap, imperfect quartz clocks.[6]

That hardware mismatch defines how modern navigation works. The Global Positioning System does not actually measure distance; it measures time. "The GPS receiver compares the time a signal was transmitted by a satellite with the time it was received," explains the Federal Aviation Administration's technical operations manual. By multiplying that time difference by the speed of light, the receiver calculates its distance from the satellite.[1]

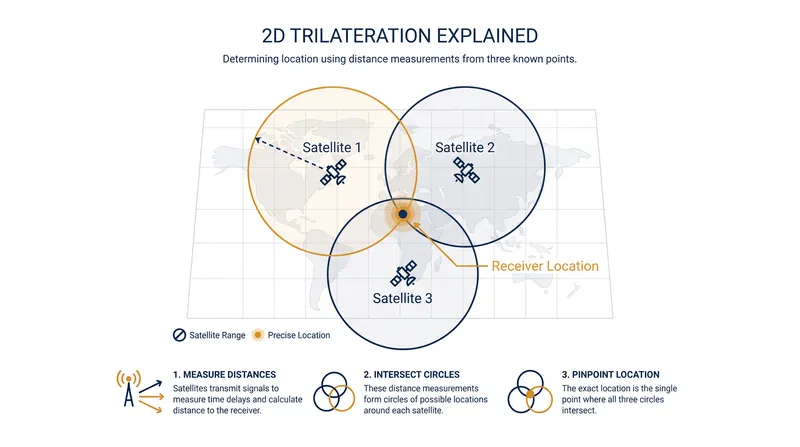

This process is called trilateration, not triangulation. Triangulation uses intersecting angles to find a location. Trilateration uses intersecting spheres. If a receiver knows it is exactly 22,000 kilometers from Satellite A, it must be located somewhere on the surface of a sphere with a 22,000-kilometer radius.[2]

Adding a second satellite narrows that location down to the circle where the two spheres intersect. A third satellite narrows it further to just two points in space—one on the Earth's surface, and one deep in space which the receiver's software immediately discards. In a world with perfect clocks, three satellites would be enough to pinpoint a user's exact latitude, longitude, and altitude.[2][4]

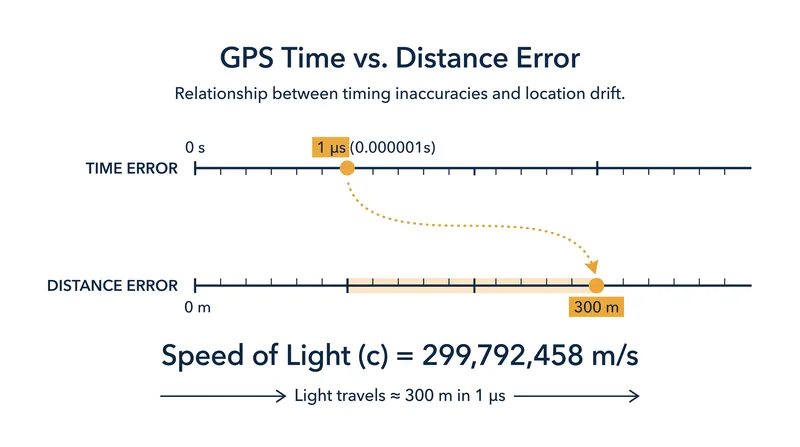

But the world does not have perfect clocks. Radio waves travel at the speed of light, or 299,792,458 meters per second. At that velocity, a timing error of just one microsecond—one millionth of a second—translates to a distance error of 300 meters.[1][8]

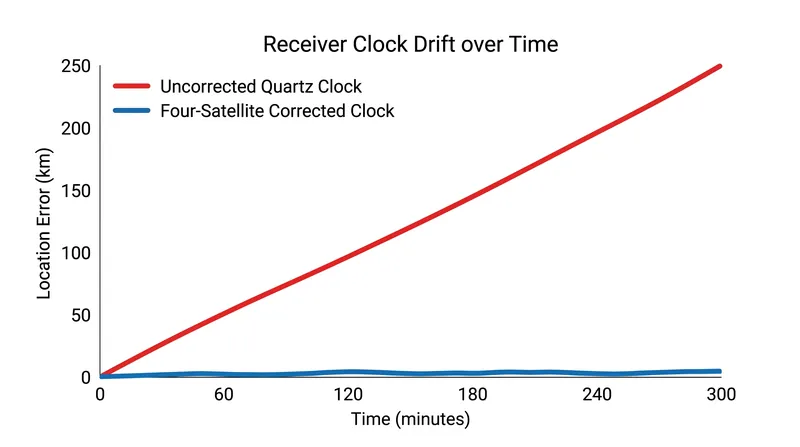

A standard quartz oscillator inside a modern smartphone drifts by several milliseconds per day. If a phone relied only on three satellites and its own internal clock to calculate the intersecting spheres, the resulting position would drift by hundreds of kilometers within minutes. The spheres would simply fail to intersect at a single point.[5]

The mathematical solution to this hardware limitation is the requirement for a fourth satellite. When a GPS receiver searches for a signal, it is solving a system of equations with four unknown variables: latitude (x), longitude (y), altitude (z), and receiver clock bias (t).[4]

"The receiver clock bias is the difference between the receiver clock time and the GPS time," notes a 2001 research paper published by the University of New Brunswick's Department of Geodesy and Geomatics Engineering. Because the clock error applies equally to all incoming satellite signals, the receiver can treat its own inaccuracy as a constant offset.[5]

By pulling in a fourth satellite signal, the receiver's processor adjusts its internal time variable until the four spheres perfectly intersect at a single point. This calculated distance, which includes the clock error before it is corrected, is known in navigation engineering as the "pseudorange."[3]

As Kalmix's engineering documentation on GNSS architecture details, the pseudorange is the raw measurement. The receiver continuously shifts its internal time offset to force the four pseudorange equations to resolve. In doing so, a $500 smartphone effectively synchronizes its $2 quartz clock with the $100,000 atomic clocks orbiting 20,200 kilometers above the Earth.[3][8]

While clock drift is the most significant variable, it is not the only one. As the radio signals enter the Earth's atmosphere, they pass through the ionosphere—a layer of charged particles—and the troposphere, where weather occurs. These layers refract the signal, slowing it down and creating additional timing delays that the receiver must model and subtract.[1][6]

For standard consumer applications, this four-satellite pseudorange calculation yields an accuracy of about three to five meters. However, scientific and surveying applications require far more precision. To achieve millimeter-level accuracy, advanced receivers do not just time the data packets; they measure the physical radio waves themselves.[2][7]

This technique is called carrier-phase tracking. According to a technical description in the NOAA Institutional Repository, "carrier phase measurements can be modeled to millimeter precision." By counting the exact number of radio wave cycles between the satellite and the antenna, surveyors can map tectonic plate movements and monitor dam deformations.[7]

The reliance on a fourth satellite explains why navigation apps frequently struggle in dense urban environments. When skyscrapers block the line of sight to the sky, a phone might only receive clean signals from three satellites, while the fourth signal bounces off a glass facade before reaching the antenna—a phenomenon known as multipath interference.[4][6]

Without four clean, direct signals, the receiver cannot accurately solve for its clock bias. The intersecting spheres blur, the equations fail to resolve tightly, and the blue dot on the map jumps across city blocks until the antenna clears the skyline and locks onto a fourth atomic clock.[8]
