The Evidence Pack: How 800-Volt Architectures Are Solving the EV Charging Bottleneck

For the first decade of the modern electric vehicle era, the industry settled on a quiet consensus: 400 volts. From the earliest Nissan Leafs to the dominant Tesla Model 3, 400-volt electrical architectures provided a reliable balance of cost, safety, and performance. But as the market matured, a stubborn bottleneck emerged. Consumers demanded faster charging times and longer ranges, pushing 400-volt systems to their physical limits.

The physics of electricity dictate a harsh reality for automotive engineers. To charge a battery faster, a station must push more power into the vehicle. Power is simply the product of voltage and current. In a 400-volt system, the only way to significantly increase power is to increase the current, measured in amps.[2]

However, pushing massive amounts of current through a vehicle's wiring generates immense heat. To prevent the cables from melting, automakers had to use increasingly thick, heavy copper wiring and complex liquid cooling systems. This added weight, which in turn reduced the vehicle's overall range, creating a frustrating engineering paradox.[2]

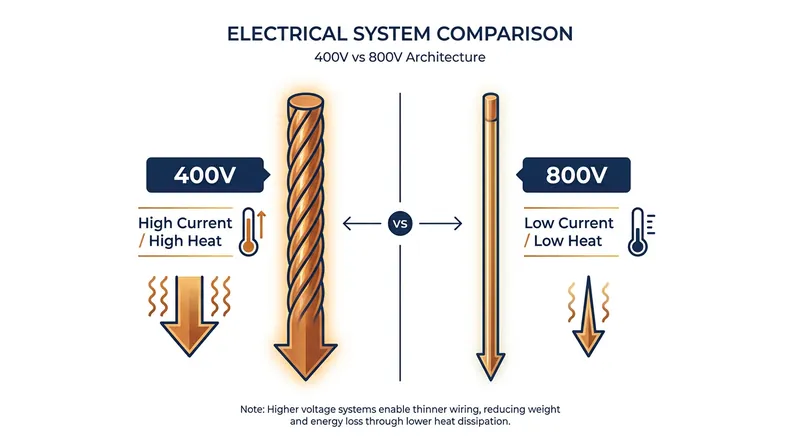

Enter the 800-volt architecture. By doubling the operating voltage, engineers can deliver the exact same amount of power using half the current. This fundamental shift in electrical design is rapidly rewriting the rulebook for how electric vehicles are built, charged, and driven, moving from luxury novelties to the mainstream standard for 2026.[1]

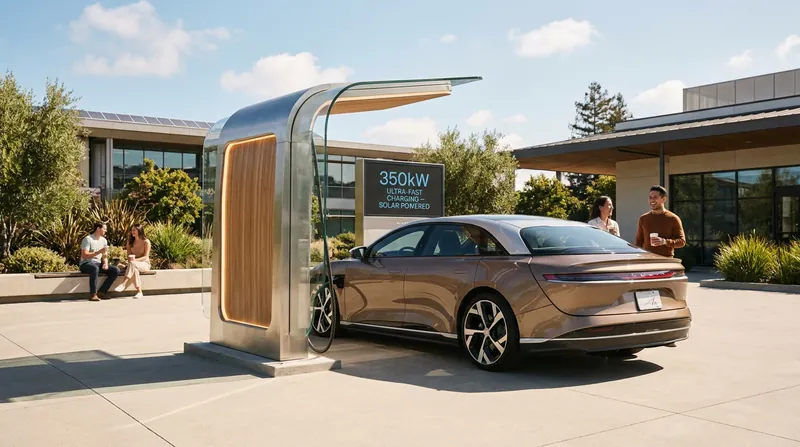

The immediate and most visible benefit of this transition is charging speed. While a state-of-the-art 400-volt vehicle typically maxes out around 150 to 200 kilowatts of charging power, an 800-volt system can comfortably accept 350 kilowatts or more without overwhelming the battery's thermal management system.

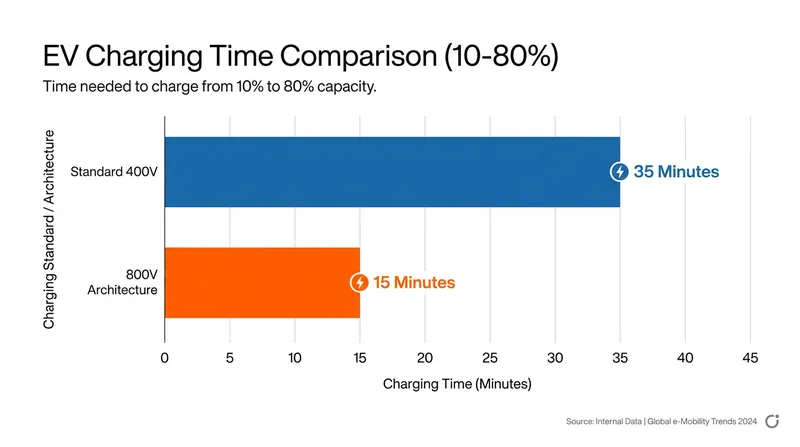

In practical terms, this reduces the time required to charge a battery from 10 percent to 80 percent from roughly 35 minutes down to just 10 to 15 minutes. For drivers on long road trips, this effectively mirrors the cadence of a traditional gas station visit—enough time to use the restroom and grab a coffee, but not long enough to require a sit-down meal.

Beyond the charging station, doubling the voltage unlocks cascading efficiencies throughout the vehicle's chassis. Because 800-volt systems require half the current to deliver the same power, the heavy copper cables connecting the battery pack to the electric motors can be significantly thinner.[2]

This reduction in copper yields substantial weight savings, often stripping dozens of pounds from the vehicle's curb weight. A lighter vehicle requires less energy to move, which directly translates to improved range. Furthermore, thinner cables are easier for robotic assembly arms to manipulate on the factory floor, streamlining the manufacturing process and reducing production costs.

The motors themselves also benefit from the higher voltage. 800-volt electric motors can spin faster and operate more efficiently, generating less waste heat during sustained high-speed driving. This is why the first production vehicle to adopt an 800-volt system was the high-performance Porsche Taycan in 2019, which required robust thermal management for repeated track use.

If the benefits are so profound, why did it take until 2026 for 800-volt architectures to become the industry standard? The answer lies in the microscopic world of semiconductors, specifically the components used in the vehicle's inverter.[1]

The inverter is the brain of the EV's powertrain, responsible for converting the direct current (DC) stored in the battery into the alternating current (AC) required by the electric motors. For years, these inverters relied on traditional silicon insulated-gate bipolar transistors (IGBTs).

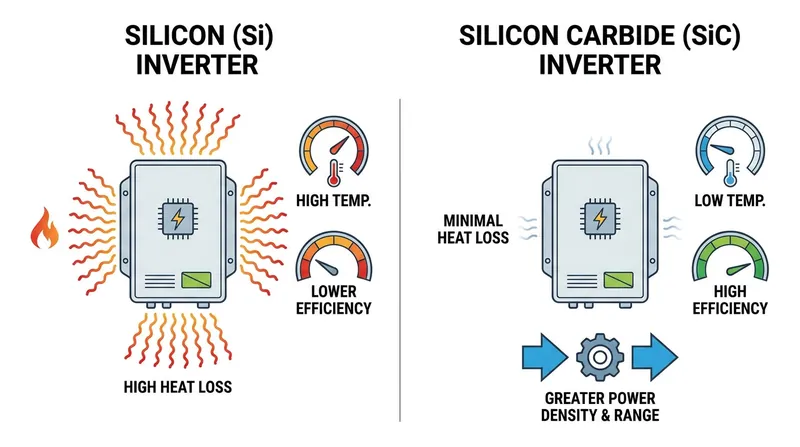

While reliable, standard silicon IGBTs struggle to handle 800 volts efficiently. They experience significant switching losses, bleeding energy as heat when operating at high frequencies and voltages. To make 800-volt systems viable, the industry needed a new material: Silicon Carbide (SiC).[2]

Silicon Carbide is a wide-bandgap semiconductor that can operate at much higher voltages, temperatures, and frequencies than traditional silicon. SiC inverters are dramatically more efficient, virtually eliminating the heat losses that plagued earlier high-voltage designs and allowing the powertrain to extract more miles from the same battery pack.

Until recently, Silicon Carbide wafers were notoriously difficult and expensive to manufacture, restricting their use to high-end luxury vehicles and aerospace applications. However, massive investments in SiC fabrication facilities over the past five years have finally brought economies of scale to the market, driving costs down to parity with older technologies.

With the hardware bottleneck resolved, automakers across the globe are aggressively pivoting. Hyundai's E-GMP platform, which underpins the popular Ioniq series, proved that 800-volt tech could succeed in the mass market. Now, legacy giants from Detroit to Stuttgart are phasing out their 400-volt platforms entirely in favor of the new standard.

Despite the momentum, the transition is not without friction. The public charging infrastructure remains a patchwork of different capabilities. While newer stations are built to dispense 800 volts natively, thousands of older DC fast chargers are hardwired for 400 volts.

When an 800-volt vehicle plugs into a legacy 400-volt charger, it must use an onboard DC-to-DC converter to step up the voltage before it can enter the battery. This process is inherently limited by the converter's capacity, often capping charging speeds at 50 to 150 kilowatts and temporarily negating the vehicle's primary advantage.

To bridge this gap, some automakers are employing clever engineering workarounds. Certain battery packs are designed to physically split into two 400-volt halves when connected to an older charger, allowing them to charge in parallel without relying on a slow onboard converter.

Ultimately, the shift to 800-volt architectures represents the most significant leap in electric vehicle engineering since the widespread adoption of lithium-ion cells. By solving the thermal and weight limitations of early EVs, the industry is removing the final major friction point for consumers.[1]

As the charging infrastructure upgrades to match the capabilities of these new vehicles, the era of range anxiety and hour-long highway stops is rapidly drawing to a close, clearing the path for the next generation of electric mobility.[1]
