The Boat Speed × Cosine Formula: How Sailors Calculate Velocity Made Good

Aboard a racing yacht beating upwind in 15 knots of breeze, the digital displays mounted on the mast tell two different stories. The knotmeter reads a blistering 7.5 knots of raw boat speed. But the number that actually dictates the crew's fate—the Velocity Made Good (VMG)—flashes a much lower 5.3 knots. The difference between those two figures is the central mathematical puzzle of competitive sailing.

Velocity Made Good measures a sailboat's actual progress straight toward the wind or a specific mark, stripping away the lateral distance covered by sailing at an angle. Because a sailboat cannot sail directly into the wind, the helmsman must steer an angled course. The boat goes faster through the water as it turns further away from the wind, but it covers less direct distance toward the upwind destination.[1][4]

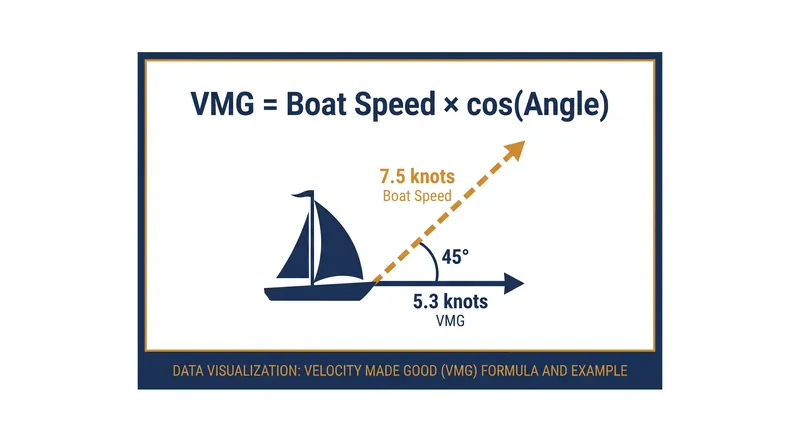

The relationship is governed by a strict trigonometric equation: VMG equals the boat's speed through the water multiplied by the cosine of the angle to the target. If a boat sails at 7.5 knots at a 45-degree angle to the true wind, the cosine of 45 degrees (0.707) dictates that the actual speed toward the wind is 5.3 knots.[1]

"Velocity made good (VMG) is a term used in sailing, especially in yacht racing, indicating the speed of a sailboat towards the direction of the wind," notes the 2008 Wikipedia reference on the subject. While the definition is straightforward, executing it on the water requires constant, high-stakes compromise between the helm and the sail trimmers.[5]

Pinching—sailing too close to the wind—reduces the angle and increases the cosine multiplier, but it starves the sails of airflow, causing raw boat speed to plummet. Conversely, bearing away—sailing a wider angle—spikes the raw boat speed but shrinks the cosine multiplier, meaning the boat is sailing fast in the wrong direction.[1][4]

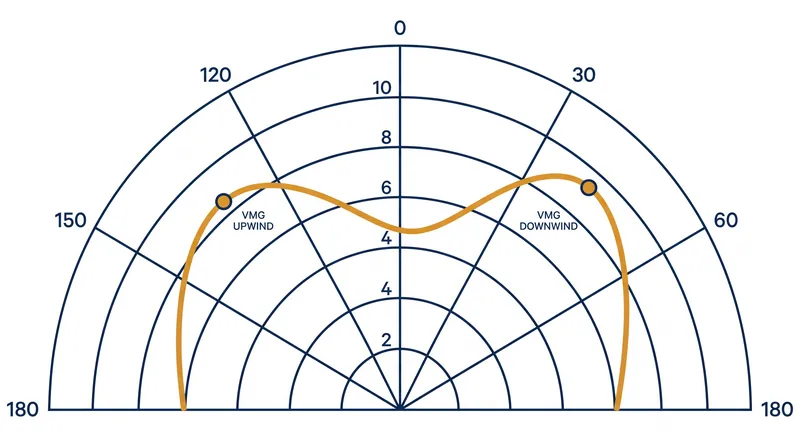

The tactical application of this formula was detailed in a 2020 SailZing analysis, which emphasized that crews must constantly hunt for the optimal crossover point. Every hull design has a unique performance profile, mapped out in a polar diagram, which dictates the exact angle where the product of speed and cosine peaks.[1]

Downwind sailing introduces a counterintuitive application of the same math. While a boat can physically sail dead downwind (a 180-degree angle straight at the mark), doing so blankets the sails and reduces the apparent wind speed to a crawl.[7]

To maximize downwind VMG, modern racing yachts actually turn away from the mark, sailing at angles of 140 to 150 degrees to generate apparent wind across their asymmetrical spinnakers. The raw speed increases so dramatically that it overcomes the penalty of sailing a longer distance.[7]

"The biggest challenge is finding that sweet spot where you are sailing low enough to make progress toward the mark, but high enough to keep the boat moving fast," explains the 2020 Sailing World guide on finding the best downwind VMG angle. The math proves that a boat sailing 10 knots at a 140-degree angle will beat a boat sailing 6 knots straight downwind.[7]

The introduction of digital VMG calculators has transformed how this data is processed in real-time. Platforms like OceanCalc provide instant VMG outputs, taking the mental trigonometry out of the equation and allowing navigators to focus on shifting weather patterns and fleet positioning.[2][3]

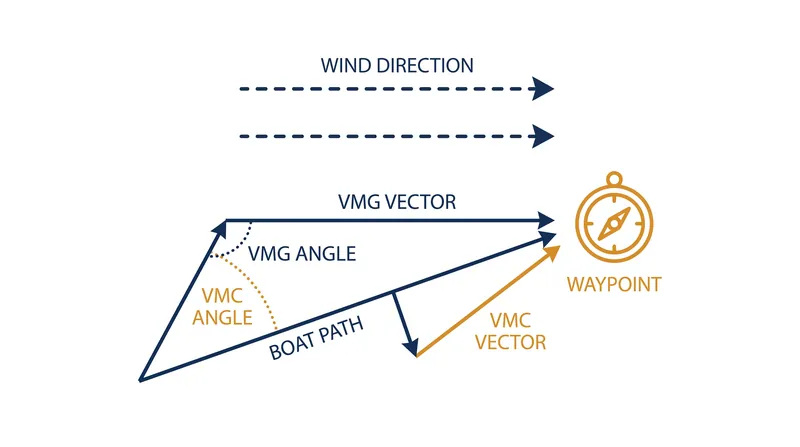

However, VMG only measures progress against the wind. When a racecourse introduces cross-currents or marks that are not perfectly aligned with the wind axis, navigators must shift their focus to Velocity Made Good on Course (VMC), which measures progress toward a specific GPS waypoint rather than the wind direction.[6]

The 2021 Ashtree Marine technical breakdown highlights this distinction, noting that confusing VMG (wind-based) with VMC (waypoint-based) is a frequent error that costs boats critical positions at the turning marks. A boat can have excellent VMG but poor VMC if the wind has shifted away from the direct line to the buoy.[6]

The 2025 curriculum from the Lake St. Clair Sailing School drills this formula into new racers, emphasizing that the math remains absolute whether a sailor is navigating a 14-foot dinghy or a 75-foot foiling monohull. The physics of the wind and the geometry of the course do not change.[4]

As sensor technology improves, the precision of VMG calculations on modern race boats has reached the decimal point, integrating wind shear data from the top of the mast and micro-current data from the hull. Yet, the fundamental equation remains the same.[8]

The crews that win regattas are those who can translate the cold output of the cosine formula into the physical trim of the sails. The numbers on the mast dictate the ceiling of what is possible, but the execution relies on the crew's ability to hold that mathematical edge through every wave and wind shift.[8]
