Rocket Engine Cycles Compared: The Trade-offs in Thrust, Efficiency, and Complexity

A rocket engine cannot function unless it pumps liquid propellant into its main combustion chamber at a pressure strictly higher than the continuous explosion happening inside it. If the chamber pressure exceeds the pump pressure, the exhaust flows backward into the plumbing, destroying the vehicle. Driving these turbopumps requires immense mechanical power—often tens of thousands of horsepower—which means the engine must consume a fraction of its own fuel just to feed itself. How a rocket generates and manages that parasitic power demand defines its thermodynamic cycle.[1]

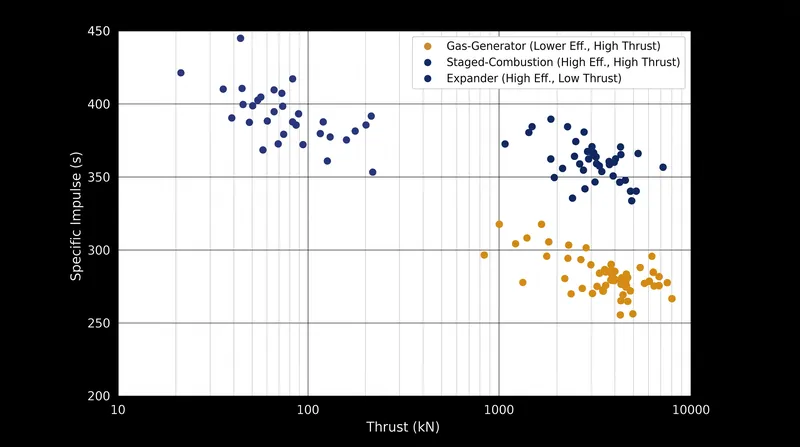

Aerospace marketing often frames every new engine as a revolutionary leap in propulsion. In reality, the physics of chemical rockets have remained bound by the same thermodynamic constraints since the 1960s. Every modern liquid-propellant engine relies on one of three fundamental architectures: the gas-generator cycle, the staged-combustion cycle, or the expander cycle. Each represents a strict compromise between specific impulse (efficiency), maximum thrust, and engineering complexity.[2]

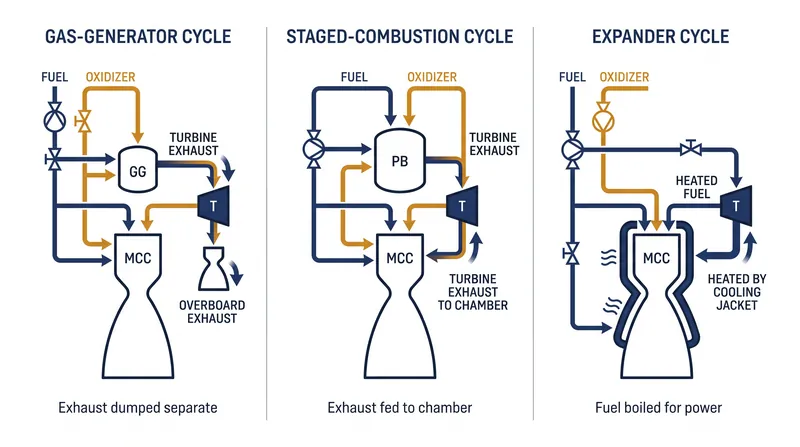

The gas-generator cycle, often called an open cycle, is the brute-force solution to the turbopump problem. A small fraction of the fuel and oxidizer is diverted into a separate pre-burner. This mixture is ignited to create high-pressure gas that spins the turbine, and the resulting exhaust is then dumped overboard through a dedicated exhaust pipe.[3]

Because this exhaust never reaches the main combustion chamber, its potential thrust is largely wasted. This lowers the engine's overall specific impulse—the rocket equivalent of fuel economy. However, dumping the exhaust keeps the turbine pressures relatively low and prevents hot, reactive gases from flowing back into the delicate main injector. SpaceX's Merlin 1D engine, which powers the Falcon 9, uses this cycle to produce 190,000 pounds of thrust at sea level while maintaining a highly reliable, manufacturable design.[3]

When efficiency is paramount, engineers turn to the staged-combustion cycle. Instead of dumping the pre-burner exhaust overboard, a closed-cycle engine routes it directly into the main combustion chamber to finish burning. This ensures every gram of propellant contributes to the primary thrust vector.[1]

The engineering penalty for this efficiency is severe. To force the pre-burner exhaust into the main chamber, the pre-burner itself must operate at an extraordinarily high pressure. The Space Shuttle Main Engine (RS-25) utilized a fuel-rich staged-combustion cycle, achieving a chamber pressure of 2,994 psi and a vacuum specific impulse of 452 seconds. Operating at these extremes requires exotic metallurgy to prevent the oxygen-rich or fuel-rich hot gases from melting the turbopump blades. "Cycle selection impacts the design of the associated turbopump assembly by dictating the turbine drive gas temperature and pressure," notes engineering firm Concepts NREC.[4]

The expander cycle bypasses the pre-burner entirely. Instead, cryogenic fuel—typically liquid hydrogen—is routed through cooling channels in the walls of the main combustion chamber. The heat from the main combustion boils the liquid fuel into a high-pressure gas, which then spins the turbine before being injected into the chamber to burn.

This elegant closed loop is highly efficient and leaves no soot in the turbine, making it exceptionally reliable for multiple restarts in the vacuum of space. The Aerojet Rocketdyne RL10, which has flown on Centaur upper stages since 1962, uses an expander cycle to achieve a vacuum specific impulse of 465 seconds.[5]

The binding constraint of the expander cycle is the square-cube law. As an engine scales up, the volume of the combustion chamber (which dictates thrust) grows faster than its surface area (which dictates how much heat can be transferred to the fuel). Consequently, expander-cycle engines are physically capped at roughly 300,000 newtons (67,000 pounds) of thrust, relegating them exclusively to upper stages where raw power is less critical than efficiency.

The choice of engine cycle dictates the entire architecture of the launch vehicle. A heavy-lift booster requires the raw thrust of a gas-generator or the high-pressure efficiency of staged combustion, while an orbital transfer vehicle relies on the clean, restartable efficiency of an expander cycle. The deciding factor is never which cycle is objectively superior, but which specific penalty—wasted fuel, extreme pressure, or thrust limitations—the mission profile can afford to pay.[2]
