PJM Proposes New Reliability Rules After 3.8 GW Data Center Load Trip

At 7:56 a.m. on July 22, a mechanical failure on a 230-kilovolt transmission line in Northern Virginia triggered the largest sudden load transfer in the history of the PJM Interconnection. The fault itself was routine and properly cleared by the grid's automated protection systems. However, the momentary voltage fluctuation caused a massive cluster of data centers in Dominion Energy's zone to interpret the minor hiccup as a severe threat, prompting them to automatically disconnect from the grid and switch to onsite backup generation.[1]

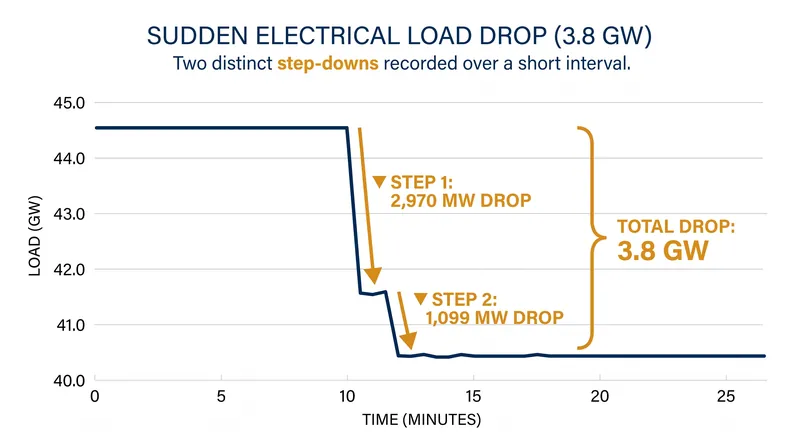

The exodus occurred in two rapid waves. Initially, 2,970 megawatts of computational load transferred away from the grid. As the sudden loss of demand caused system voltage to spike, a second wave of 1,099 megawatts of data center capacity also disconnected and transferred to backup power. In total, approximately 3,800 megawatts of load vanished from the bulk power system without warning.[2]

The sudden disappearance of nearly 4 gigawatts of demand created a severe imbalance between generation and load. This imbalance caused substantial swings in voltage and frequency across PJM's 13-state regional grid, forcing operators in the control room to take immediate corrective action. To prevent a cascading failure, PJM rapidly dispatched generation down to match the newly reduced load and deployed reactive-power resources to stabilize the system's frequency back to 60 hertz.[3]

Thanks to swift intervention, PJM recovered its balancing-authority-area control error within nine minutes, well inside the 30-minute standard required by the North American Electric Reliability Corporation (NERC). The grid remained reliable, and traditional consumers did not experience blackouts. Yet, the sheer scale of the event—and the fact that a normally cleared fault nearly triggered a secondary system-wide disturbance—has prompted PJM to rethink how it integrates massive computational facilities.[1][2]

The grid operator is now formally evaluating new "ride-through" requirements for data centers, cryptocurrency mines, and other large computational loads. Currently, data center protection systems are highly sensitive, designed to isolate the facility at the first sign of voltage instability to protect billions of dollars worth of servers. For an individual facility, this is an appropriate protective response. But when thousands of megawatts act simultaneously in the same direction, that localized self-preservation creates a macro-level crisis.[2][4]

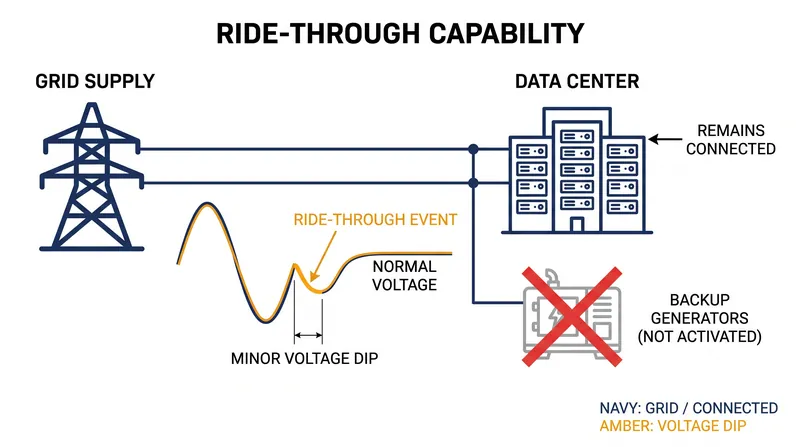

The proposed ride-through rules would function similarly to standards already imposed on power generation resources. Just as inverter-based solar and wind farms are required to absorb minor voltage and frequency deviations without severing their grid connection, large data centers would be mandated to ride out routine disturbances. This ensures that a localized transmission fault does not escalate into a regional emergency simply because massive consumers panic and drop off the network.[2][5]

The July 22 event was not an isolated anomaly, but rather the escalation of a growing trend in Northern Virginia, which houses the largest concentration of data centers in the world. PJM noted that similar, albeit smaller, events in Dominion's zone caused sudden load transfers of about 1,500 megawatts each in July 2024 and February 2025. The increasing magnitude of these transfers illustrates that as data center campuses grow larger, their collective impact on grid dynamics becomes more profound.[1]

"A nearly 3.8 GW transfer from grid supply to onsite generation following a transmission disturbance is large enough that planners should be asking not only, 'How much load is connected?' but also, 'How will that load behave when the system is disturbed?'" noted Neil Osnato, founder of Persistence Analytics Group. The incident underscores that the headline metric of a "1-gigawatt data center" is increasingly inadequate for grid operators who must manage real-time stability.[2]

PJM's Operating Committee is now reviewing existing and future industry ride-through standards to establish technical requirements for both existing and future large loads. The scope of these potential requirements could extend beyond simple voltage thresholds to include protection coordination, dynamic load models, event telemetry, and strict protocols for how facilities behave when transferring to and from onsite generation.[4]

The regional push by PJM aligns with broader federal efforts to regulate the intersection of digital infrastructure and grid reliability. In July 2026, the Federal Energy Regulatory Commission (FERC) directed NERC to develop enforceable, nationwide reliability standards specifically tailored to the integration of large computational loads into the bulk power system. While the first phase of those national standards is not due until December 2026, PJM's recent experience suggests that regional operators may need to implement their own safeguards well before the federal floor is established.[2][3]
