Negative Pore Pressure and 1-to-8 Water Ratios: The Capillary Physics of Building Stable Sandcastles

The structural integrity of any sandcastle relies entirely on a delicate, invisible constraint. Both air and water must be present within the microscopic gaps between individual grains of sand. Without this exact balance, the entire structure is doomed to fail before it even begins.

If the sand is completely dry, the grains simply tumble past one another. They form nothing more than a shallow slump with a maximum angle of repose around 33 degrees. Conversely, if the sand is completely submerged, it turns into a heavy, formless slurry.[3]

The magic only happens in the narrow margin between those two extremes. In this precise state, water and air share the internal void space to create a powerful physical grip. For beachgoers and professional sculptors alike, finding that exact balance is crucial.

The Architecture of Capillary Bridges

When water is mixed into dry sand, it does not act as a traditional adhesive. Instead, it forms microscopic structures called capillary bridges at the exact points where the sharp edges of the sand grains touch.[2]

These tiny liquid bridges cling to the rough silica surfaces. They wrap around the contact points like microscopic rubber bands, binding the granular matrix together. Because water molecules are highly attracted to one another, the outer edge of each bridge curves inward.[2]

This concave shape is known as a meniscus, and its curvature is the engine of a sandcastle's strength. The surface tension along the meniscus constantly tries to pull the water into a tighter sphere. This action pulls the attached sand grains firmly together with surprising force.[2]

This network of liquid bridges transforms a loose collection of millions of individual particles into a cohesive, elastic solid. Physicists studying granular materials at the University of Amsterdam found that these capillary forces are incredibly robust.[4]

"Our work gives a clear and detailed physical understanding of how a wetting liquid is distributed within a granular pile and how it influences its mechanical stability by virtue of capillary forces," researcher Ralf Seemann noted regarding granular physics.[4]

They allow wet sand to support significant weight and resist the shear forces that would normally cause a dry pile to instantly collapse. The strength of these bridges is what allows record-breaking structures to exist in the real world.[4]

In 2011, American sculptor Ed Jarrett leveraged these exact capillary principles to build a sandcastle reaching 37 feet and 10 inches in height. Without the tensile strength provided by millions of microscopic water bridges, a structure of that magnitude would buckle under its own immense weight.[4]

Harnessing Negative Pore Pressure

In geotechnical engineering, the inward pull generated by these capillary bridges is quantified as negative pore pressure, or suction. Below the water table, where the ground is fully saturated, pore pressure is positive, pushing outward against the soil with a force measured in kilopascals.[1][3]

Above the water table, in the damp sand used for sculpting, the pressure inside the water bridges drops below the ambient atmospheric pressure. This negative pressure effectively vacuums the sand grains toward each other.[1]

As the suction increases, it amplifies the compressive friction between the rough, angular surfaces of the grains. This friction locks the particles into a rigid matrix, granting the sandcastle the structural stability required to stand vertically and support cantilevered arches.[1][3]

However, this suction is highly sensitive to environmental changes. As the sun and wind evaporate the water from the capillary bridges, the menisci shrink and eventually snap. Without the negative pore pressure pulling the grains together, the compressive friction vanishes.[1]

Once the moisture content drops below a critical threshold, the sandcastle inevitably crumbles back into a dry, featureless mound. To prevent this, builders must maintain the moisture level, ensuring the capillary bridges remain intact throughout the sculpting process.[4]

The 1-to-8 Golden Ratio

To maximize this suction effect, builders must use the precise amount of water necessary to form bridges without filling the pores entirely. Through extensive laboratory testing and field experience, researchers and professional sculptors have identified an optimal recipe.[4]

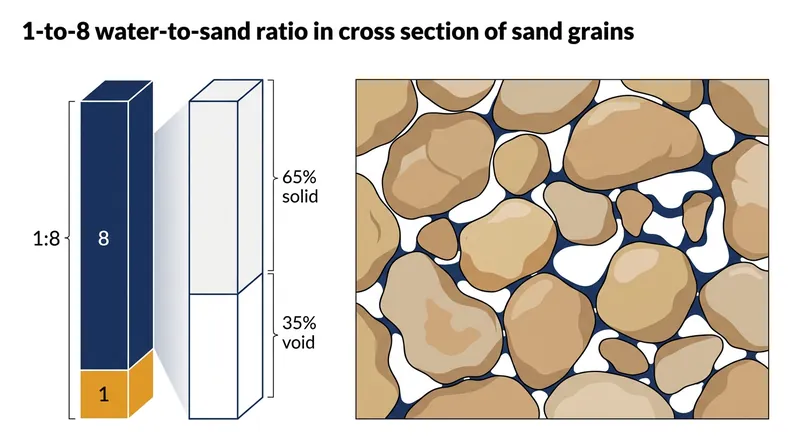

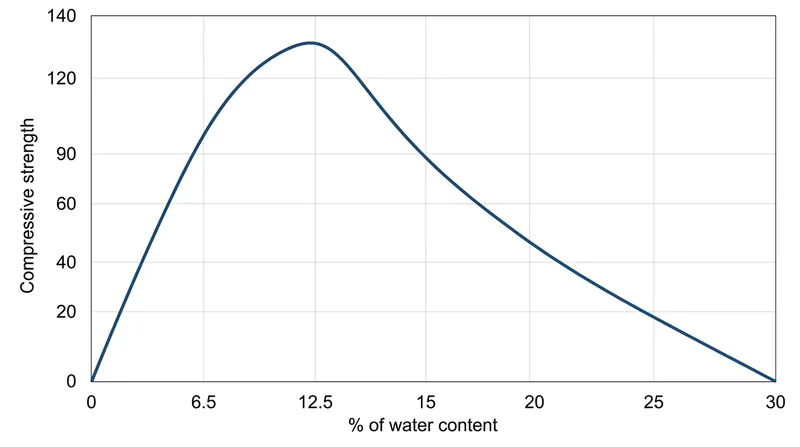

The ideal mixture requires exactly one part water to eight parts dry sand. This 1-to-8 ratio, which equates to 12.5 percent of the total mixture by volume, provides the perfect conditions for structural integrity.[4]

This specific ratio is not arbitrary. When beach sand is tightly compacted, the empty void space between the individual grains accounts for approximately 35 percent of the total volume. Mixing in the 1-to-8 water ratio fills just over one-third of that available internal void space.[1][4]

By leaving nearly two-thirds of the internal pores filled with air, the 1-to-8 ratio maximizes the total surface area of the air-water menisci. Every single grain becomes coated and connected by a bridge, generating the highest possible cumulative negative pore pressure.[4]

This precise calibration ensures the sand is sticky enough to carve without becoming heavy and unstable. Deviating from this golden ratio, particularly by adding too much water, introduces catastrophic structural risks to the entire project.[4]

The Dangers of Oversaturation

When the water content exceeds the capacity of the capillary bridges, the liquid begins to fill the remaining air pockets within the sand matrix. As the air is displaced, the concave menisci flatten out, and the crucial air-water interfaces disappear entirely.[1]

Without the menisci, the negative pore pressure instantly neutralizes. If even more water is added, the pore pressure turns positive. Instead of pulling the grains together, the water now pushes them apart, acting as a frictionless lubricant.[1][3]

The compressive strength drops to zero, and the once-solid sandcastle suffers a rapid flow-slide, collapsing under its own weight in seconds. This exact mechanism explains why a sandcastle built too close to the incoming tide will melt away the moment a wave washes over it.[3]

The sudden influx of ocean water fully saturates the lower levels, erasing the capillary suction and causing the foundation to liquefy instantly. Geologists observe this same positive pore pressure dynamic during devastating natural landslides following heavy rainfall.[1][3]

Elastic Buckling and Height Limits

Even with the perfect 1-to-8 water ratio and maximum negative pore pressure, a sandcastle cannot grow infinitely tall. As the column of wet sand rises, the sheer mass of the material pressing down on the base steadily increases.[4]

Eventually, the structure reaches a critical failure point governed by a principle known as elastic buckling. In a 2012 Nature Scientific Reports analysis, researchers determined that the maximum theoretical height of a sand column increases as the two-thirds power of its base radius.[4]

This means that to build a sandcastle twice as tall, the builder must increase the radius of the foundation by nearly three times. This wider base is absolutely necessary to prevent the lower levels from buckling outward under the massive compressive load.[4]

Compaction and Grain Selection

While the 1-to-8 water ratio provides the necessary capillary physics, the ultimate strength of the castle also depends on mechanical compaction. Professional sculptors use heavy wooden forms and physical tamping tools to force the sand grains closer together.[4]

This reduces the overall void space and shortens the distance the capillary bridges must span. As the grains are packed tighter, the mechanical friction between the particles increases exponentially, providing a much stronger foundation for the sculpture.[4]

The physical shape of the sand itself also plays a crucial role in the building process. Fine-grained sand with sharp, angular edges locks together far more securely than coarse, heavily weathered sand with rounded edges.[4]

The angular facets provide more surface area for the capillary bridges to grip. They also create a higher baseline of mechanical friction when pulled together by the negative pore pressure, making river or quarry sand superior to typical beach sand.[4]

By combining angular sand, rigorous compaction, and the precise 1-to-8 water ratio, builders can push the limits of granular physics. Armed with these principles, a day at the beach becomes an exercise in applied soil mechanics.[4]

These scientific insights allow anyone to construct towering, gravity-defying structures. The resulting sandcastles will stand firm, resisting the pull of gravity and the drying wind, until the tide finally returns to reclaim the shore.
