Granular Shear Dilatancy Forces Wet Beach Sand to Vacuum Surface Water Under Pressure

For beach sand to instantly dry under your weight, a strict physical condition must already hold: the grains must be densely packed. If you step on loose, dry sand higher up the beach, your foot simply compresses the material downward. The grains slide closer together, and the volume shrinks.[1][6]

But at the water's edge, the environment is fundamentally different. The rhythmic action of the incoming tide and receding waves has already settled the silica grains into a tight, interlocking matrix. The sand is resting in its most compact possible arrangement, fully saturated with ocean water.[2][6]

When a heel strikes this saturated surface, the physical response is immediate and counterintuitive. The wet sand instantly turns pale and dry, with the effect radiating outward from the sole of the foot. The surface remains dry for the exact duration of the step, only to flood again once the weight is removed.[1]

The Geometry of a Footstep

The mechanism driving this visual trick is rooted in the physical geometry of granular materials. Unlike a wet sponge, which expels water when squeezed, densely packed sand behaves according to a completely different set of mechanical rules. The applied pressure does not compress the matrix; it disrupts it.[1][5]

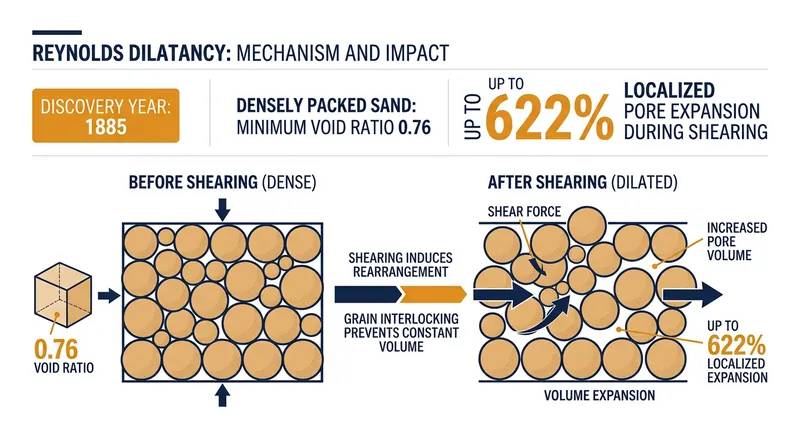

In 1885, the Irish physicist Osborne Reynolds first described this specific behavior scientifically. He discovered that when a densely packed granular material is subjected to shear stress, its overall volume actually increases. The phenomenon was subsequently named Reynolds dilatancy, establishing a foundational principle in modern soil mechanics.[1][5]

The expansion occurs because the sand grains are already resting in a state of maximum density. They are physically interlocked, meaning they cannot simply squeeze any closer together when a downward force is applied. To accommodate the intrusion of a foot, the grains have to move out of the way.[2][5]

Because they are tightly packed, the grains cannot slide past one another in a straight line. Instead, they are forced to roll and lever over their neighbors. This tumbling motion inevitably pushes the particles further apart, disrupting the efficient packing arrangement that the waves had previously established.[4][5]

Expanding the Interstitial Void Space

This mechanical disruption has a profound effect on the microscopic architecture of the beach. As the grains lever over one another, the tiny gaps between them—known as the interstitial void space—are forced to expand. The total volume of the sand matrix increases directly beneath and around the foot.[2][4]

In geotechnical engineering, the baseline void ratio of densely packed, cohesionless sand sits at approximately 0.76. This ratio represents the volume of the empty pores relative to the volume of the solid silica grains. It is the absolute minimum space required for the grains to rest against one another.[2]

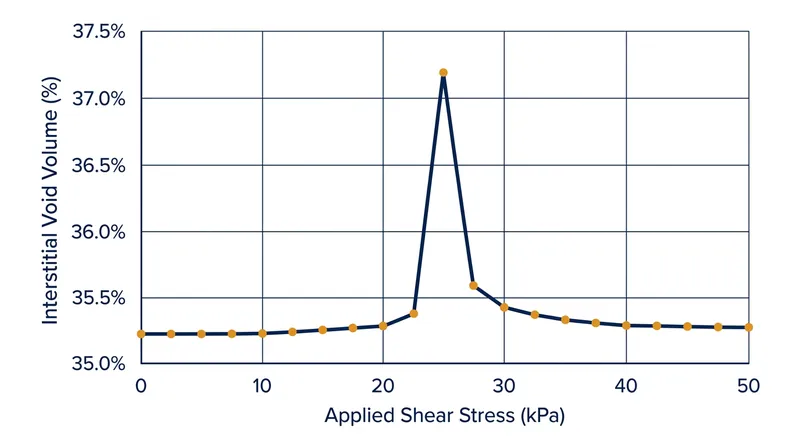

When shear stress is applied to this matrix, the void ratio spikes dramatically. Recent three-dimensional microstructural imaging utilizing synchrotron radiography has tracked this deformation in real time. The data reveals that as discrete grains are pushed apart under compressive strain, localized internal pores can expand in volume by up to 622 percent.[4]

This massive increase in internal volume fundamentally alters the hydrology of the sand. The space between the grains is no longer static; it is actively growing while the total amount of water in that specific patch of sand remains exactly the same. The system is suddenly out of balance.[4][6]

The Vacuum Effect

The sudden expansion of the interstitial void space creates an immediate physical consequence for the trapped fluid. The newly created empty space generates a localized drop in pressure within the sand matrix. This negative pressure differential effectively acts as a microscopic vacuum beneath the surface.[1][6]

To equalize the pressure, the expanding voids must be filled. Because the surrounding wet sand is relatively impermeable in the short term, the path of least resistance for the fluid is straight down. The surface water is instantly sucked downward into the expanding matrix to fill the new capacity.[1][6]

This rapid downward drainage is what creates the visual illusion of drying. The water level drops just a fraction of a millimeter, falling below the top layer of the sand grains. The surface turns pale because the highly reflective water is no longer coating the uppermost silica particles.[6]

The speed of this reaction is dictated by the size of the grains and the viscosity of the water. A typical fine beach sand grain measures roughly 0.1 millimeters in diameter, creating a highly efficient capillary network. The water is drawn down in milliseconds, perfectly matching the pace of the footstep.[2][6]

The Rebound and Saturation

The drying effect is strictly temporary, lasting only as long as the shear stress is actively applied to the surface. As long as the foot remains planted, the grains are held in their expanded, inefficient packing arrangement. The expanded void space continues to hold the surface water in the subsurface.[5][6]

As soon as the foot is lifted, the mechanical deformation ceases. Without the downward pressure forcing the grains apart, gravity and capillary action immediately reassert control over the sand. The particles are free to settle back into their original, densely packed configuration.[2][5]

As the grains slide back together, the interstitial void space shrinks back to its minimum ratio of 0.76. The excess capacity disappears, and the sand matrix can no longer hold the volume of water it had temporarily absorbed. The system must expel the fluid to return to equilibrium.[2]

The displaced water is forced straight back up to the surface. It floods the top layer of grains, erasing the dry footprint and restoring the wet, reflective sheen to the beach. The entire cycle of dilation and compaction is completed in the time it takes to take a single step.[6]

Beyond the Beach

Understanding granular shear dilatancy extends far beyond coastal observations and footprint mechanics. Geotechnical engineers rely heavily on these exact principles to predict how saturated soils will behave under extreme conditions. The same volumetric expansion dictates the stability of building foundations during the massive shear stresses of an earthquake.[3][5]

In industrial applications, Reynolds dilatancy governs how bulk materials flow through silos, hoppers, and pipelines. If engineers fail to account for the volume expansion of densely packed grains under shear, the resulting pressure can rupture steel containers. The physics of a beach footprint scales directly to massive infrastructure failures.[1][5]

Recent studies on post-wildfire debris flows have also highlighted the critical role of void space expansion. When heavy rains hit denuded slopes, the soil matrix shears and dilates, drawing water into the flow and accelerating the landslide. The mechanics of granular dilation ultimately determine how the earth moves under pressure.[3]
