How Solid-State Batteries Work: The Science Behind the Next Generation of EVs

The promise of the solid-state battery has hovered over the electric vehicle industry for more than a decade, often feeling like a mirage that is always five years away. Now, in 2026, the technology is finally crossing the threshold from laboratory curiosity to commercial reality. But the transition is happening in pragmatic stages rather than an overnight revolution. While true 'all-solid-state' batteries are still navigating the complexities of pilot production, a transitional technology known as 'semi-solid' or hybrid batteries is already hitting the road. These hybrid cells are powering a new wave of electric vehicles with unprecedented range and safety, serving as the crucial stepping stone toward the ultimate goal of a fully solid energy future.

To understand why this shift is so monumental, one must look at the core vulnerability of today's ubiquitous lithium-ion batteries: the liquid electrolyte. This liquid is the chemical medium that shuttles lithium ions back and forth between the battery's anode and cathode during charging and discharging cycles. Typically, this liquid consists of a lithium salt dissolved in a highly flammable organic solvent. Under extreme stress—such as a severe physical crash, an electrical overcharge, or exposure to extreme environmental heat—this liquid can ignite. When it does, it triggers a dangerous, self-sustaining chain reaction known as thermal runaway, which is notoriously difficult for firefighters to extinguish.[1]

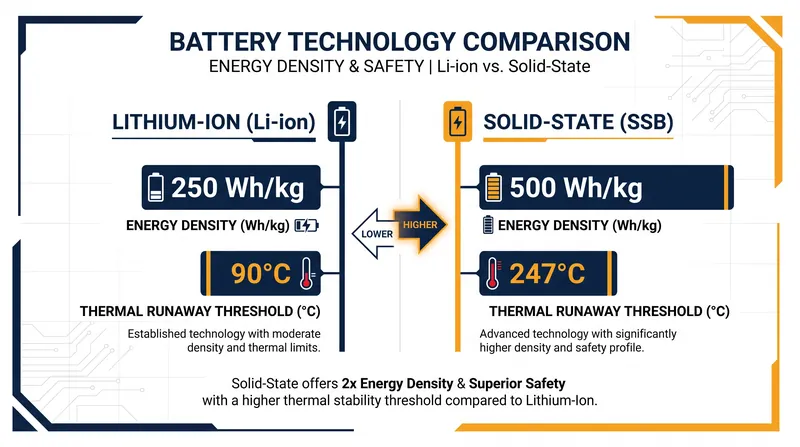

Solid-state batteries eliminate this fundamental vulnerability by replacing the volatile liquid with a solid, non-flammable material. By utilizing advanced ceramics, sulfides, or specialized polymers as the electrolyte, engineers have fundamentally altered the failure physics of the battery cell. Comparative thermal testing demonstrates the stark difference: thermal events in solid-state systems do not even begin to develop until internal temperatures reach roughly 247°C. In contrast, conventional lithium-ion cells can enter thermal runaway at just 90°C. For consumers concerned about the safety of electric vehicles, this represents a generational leap in intrinsic vehicle safety.

Yet safety is only half of the solid-state equation; the other half is a massive leap in energy density. Today's most advanced liquid lithium-ion batteries max out at an energy density of roughly 250 to 300 watt-hours per kilogram (Wh/kg). Solid-state technology aims to push that ceiling dramatically higher, targeting 400 to 500 Wh/kg for commercial cells. This leap would allow automakers to either double the driving range of an electric vehicle using the same size battery pack, or drastically shrink the pack's physical size and weight while maintaining current ranges, making vehicles lighter and more efficient.[1]

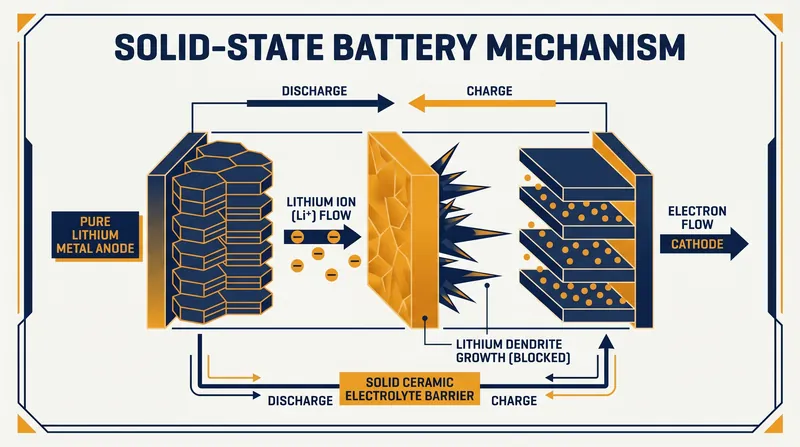

This massive jump in energy density is unlocked by what battery researchers call the 'golden combination': pairing a solid electrolyte with a pure lithium metal anode. In traditional batteries, the anode is made of graphite, which safely stores lithium ions but takes up significant physical space and adds dead weight. If engineers try to use pure lithium metal in a liquid battery, the metal tends to grow microscopic, needle-like structures called dendrites during the charging process. These dendrites eventually pierce the battery's internal separator, causing catastrophic short circuits and fires.[1]

A rigid solid electrolyte solves this problem by acting as an impenetrable physical barrier, suppressing dendrite growth and allowing the safe use of energy-dense lithium metal. However, engineering this solid barrier is an immensely complex materials science challenge. The industry is currently divided into three main material camps trying to perfect the solid electrolyte: sulfides, oxides, and polymers. Each of these chemical flavors offers a different set of trade-offs between ionic conductivity, manufacturing ease, and long-term chemical stability.[1][2]

Sulfide-based electrolytes are currently the front-runners for high-performance automotive applications because they conduct ions almost as efficiently as liquids. They are also relatively soft, which helps them maintain good physical contact with the electrodes as they expand and contract. However, sulfides are highly sensitive to moisture; exposure to even trace amounts of water during the manufacturing process can produce toxic hydrogen sulfide gas. This requires automakers to build ultra-dry, highly controlled cleanrooms, which significantly drives up the capital cost of production facilities.[1]

Oxide electrolytes, which are essentially advanced ceramics, offer a different path. They are incredibly stable, highly resistant to thermal breakdown, and immune to moisture, making them much safer and easier to handle in a factory setting. But their primary weakness is that they are brittle. As the battery charges and discharges, the electrodes naturally swell and shrink. A rigid ceramic electrolyte struggles to maintain continuous physical contact with these shifting electrodes, leading to high 'interfacial resistance' that chokes the flow of electrical power.[1][2]

Polymers offer a third, highly scalable path. These plastic-like materials are flexible, easy to manufacture using existing roll-to-roll battery equipment, and highly stable. The main drawback of pure polymers is that they generally suffer from poor ionic conductivity at room temperature, often requiring the battery to be actively heated before it can deliver peak power. Because of these competing trade-offs, many leading research teams are now exploring composite electrolytes that blend polymers and ceramics to capture the flexibility of plastics with the conductivity of oxides.[1][2]

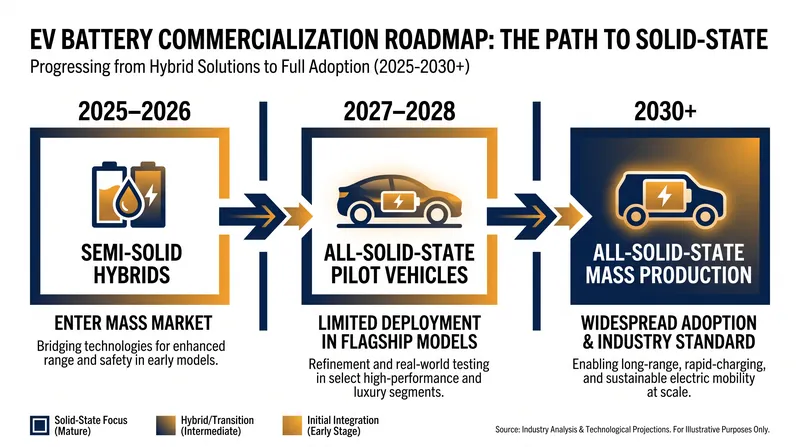

Because mastering these solid-solid interfaces remains so difficult at a commercial scale, the industry has embraced 'semi-solid' batteries as a vital stepping stone in 2026. These hybrid cells use a mostly solid framework but retain a small amount of liquid or gel electrolyte to ensure smooth ion transfer at the microscopic boundaries. This pragmatic compromise delivers significant safety and density improvements while remaining largely compatible with the manufacturing equipment already installed in massive lithium-ion gigafactories around the world.

The commercial momentum for these hybrid semi-solid batteries is accelerating rapidly, particularly in the Chinese market. Automakers like SAIC Motor, through its MG brand, are already deploying hybrid solid-liquid batteries developed by Qingtao Energy into mass-market vehicles. Dongfeng Motor is targeting the mass production of 350 Wh/kg semi-solid batteries by late 2026. Meanwhile, premium EV makers like NIO are utilizing 150 kWh semi-solid packs that are already delivering real-world driving ranges approaching 1,000 kilometers on a single charge.

While hybrids dominate the immediate landscape, the race for true all-solid-state commercialization continues aggressively in the background. Major global players like Toyota, CATL, and BYD are currently running pilot-scale production lines, with small-batch premium vehicle deployments targeted for the 2027 and 2028 model years. European and Australian partnerships are also pushing the boundaries; a recent £3.4 million collaboration between Gelion and Nissan is focused on developing novel lithium-sulphur solid-state chemistries that could theoretically push energy densities even higher.

The ultimate barrier to all-solid-state dominance is no longer basic chemistry, but the brutal economics of manufacturing scale. Upgrading an existing factory to produce semi-solid cells requires an equipment investment of just 10% to 15% over a standard lithium-ion line. In stark contrast, true all-solid-state cells currently carry a production cost premium of three to five times that of conventional batteries, requiring entirely new manufacturing paradigms, specialized pressing equipment, and novel quality control measures that are still being invented.

As the decade progresses, the successful commercialization of solid-state batteries will reshape more than just the automotive sector. High-density, inherently fire-proof energy storage will unlock new possibilities in electric aviation, wearable medical devices, and grid-scale renewable energy storage. While the full realization of the all-solid-state dream—where EVs charge in five minutes and cost less than gas cars—may stretch into the early 2030s, the semi-solid revolution of 2026 proves that the next era of energy storage has officially arrived.[1][2]
