How Silicon Carbide Inverters Are Reshaping Electric Vehicle Range and Thermal Architecture

The conversion of direct current from a vehicle's battery into the alternating current required to spin its motor happens inside the traction inverter. Every watt of energy that reaches the wheels must pass through this gate. If the semiconductor switches inside the inverter operate inefficiently, energy bleeds off as heat before it ever generates motion. This single component dictates the vehicle's maximum range, the speed at which it can charge, and the size of the cooling system required to keep the powertrain from melting.[6]

Historically, the industry standard for this task has been the Insulated-Gate Bipolar Transistor (IGBT). Built from standard silicon, IGBTs are mature, reliable, and cheap to manufacture. However, they are inherently limited by silicon's physical properties. When an EV accelerates, the inverter's transistors turn on and off thousands of times per second. During each of these transitions, standard silicon resists the flow of electrons just enough to generate substantial heat—a phenomenon known as switching loss.[4][6]

The material science shifting this bottleneck is silicon carbide (SiC). As a wide-bandgap semiconductor, SiC requires more energy to shift electrons from a resting state to a conductive state, but once active, it allows them to move far more freely than standard silicon. This atomic structure enables SiC transistors to switch states faster and cleaner, drastically reducing the energy wasted during the DC-to-AC conversion.[4][6]

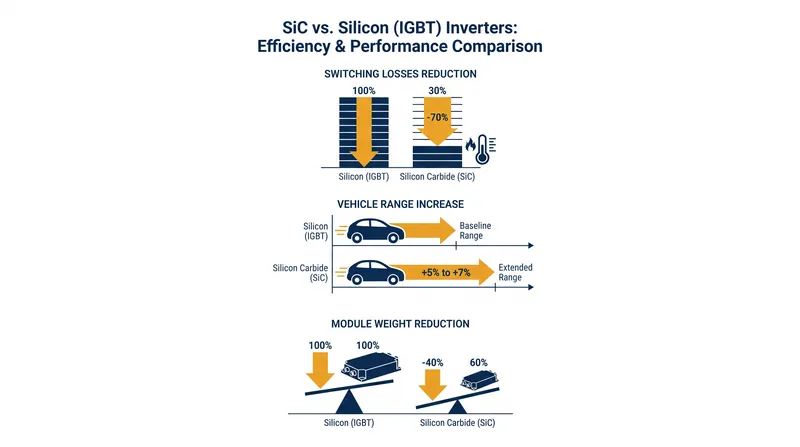

The efficiency gains are stark. According to engineering data from BorgWarner, replacing silicon IGBTs with silicon carbide components reduces power losses within the inverter by up to 70 percent. Because less energy is lost as heat, a higher percentage of the battery's stored energy reaches the traction motor.[2]

"The inverter is an often-overlooked part of the EV powertrain," Stephen Lambert, Head of Electrification at McLaren Applied, told Power Electronics News in 2023. "But as a device that converts the DC power stored in the battery to the AC power used in the electric motor, it is fundamental." McLaren Applied's own IPG5 silicon carbide inverter, which operates at switching frequencies up to 32 kHz, extends a vehicle's driving range by over 7 percent compared to legacy IGBT systems.

That range extension triggers a cascade of downstream architectural benefits. Because SiC generates less heat, the thermal management system can be downsized. BorgWarner's Viper 800-volt SiC module utilizes dual-sided cooling that reduces the product's weight by 40 percent and its physical footprint by 30 percent compared to traditional silicon-based inverters.[2]

This thermal resilience is what makes 800-volt vehicle architectures viable. Pushing 800 volts through standard silicon IGBTs generates thermal loads that require heavy, complex liquid cooling loops. Silicon carbide, by contrast, thrives under high thermal stress. In June 2026, semiconductor manufacturer Wolfspeed introduced its fifth-generation SiC MOSFETs, which are rated for continuous junction temperatures of 200°C.[3][4]

"What excites me most isn't just the pace of our innovation; it's what this technology unlocks for our customers: an accelerated path to smarter, more efficient, compact systems made for real-world conditions," said Dr. Cengiz Balkas, Wolfspeed's Chief Business Officer. The company's Gen 5 technology achieved a 27 percent efficiency improvement over competing 1200-volt solutions, further shrinking the required active die area.[3]

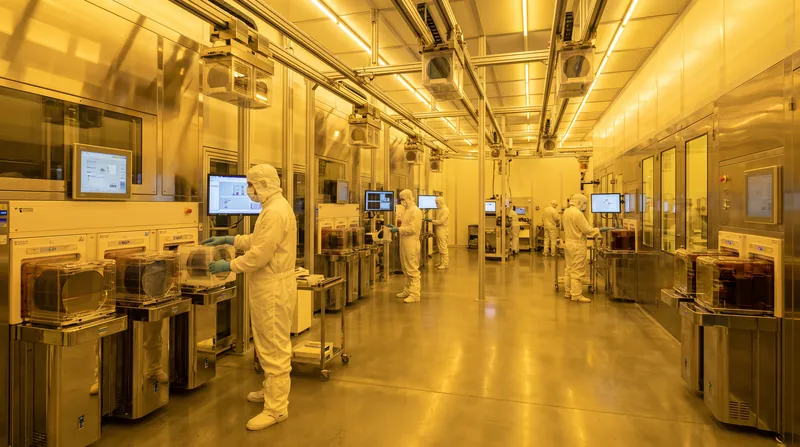

The primary barrier to universal adoption remains manufacturing complexity. Silicon carbide crystals are notoriously difficult to grow. The boules must be formed in vapor deposition furnaces at temperatures exceeding 2,000°C over several weeks, making the resulting 200mm wafers significantly more expensive than standard silicon.[5][6]

Yet, the system-level economics heavily favor the more expensive chip. A 2022 study published in the journal Energies by MDPI researchers found that applying a SiC power module reduced an EV's driving energy from 13.12 kWh per 100 kilometers down to 12.47 kWh.[1]

For an automaker designing a vehicle with a 500-kilometer target range, that efficiency gain means they can install a 62.35 kWh battery pack instead of a 65.6 kWh pack. The silicon carbide inverter alone eliminates the need for 3.25 kWh of battery cells. At current market rates, removing those cells saves hundreds of dollars and roughly 20 kilograms of mass, entirely offsetting the premium price of the SiC semiconductor.[1][6]

Despite these advantages, standard silicon is not obsolete. Pragmatic system integrators like NX Technologies maintain that IGBTs still offer the best cost-to-performance ratio for mainstream, 400-volt commuter vehicles. By optimizing the cooling plate design and refining the software's gate drive control, engineers can extract adequate efficiency from cheaper silicon without exposing the supply chain to SiC wafer shortages.[4]

The division of labor in the automotive sector is now drawn along voltage lines. High-performance, long-range, and fast-charging 800-volt platforms are moving exclusively to silicon carbide. Meanwhile, entry-level 400-volt architectures continue to rely on the mature, high-yield production of silicon IGBTs.[4][6]

The traction inverter has ceased to be a passive pass-through component. It is the active constraint on electric vehicle performance, and the material science of its semiconductors now dictates the geometry, weight, and cost of the entire powertrain.[6]
